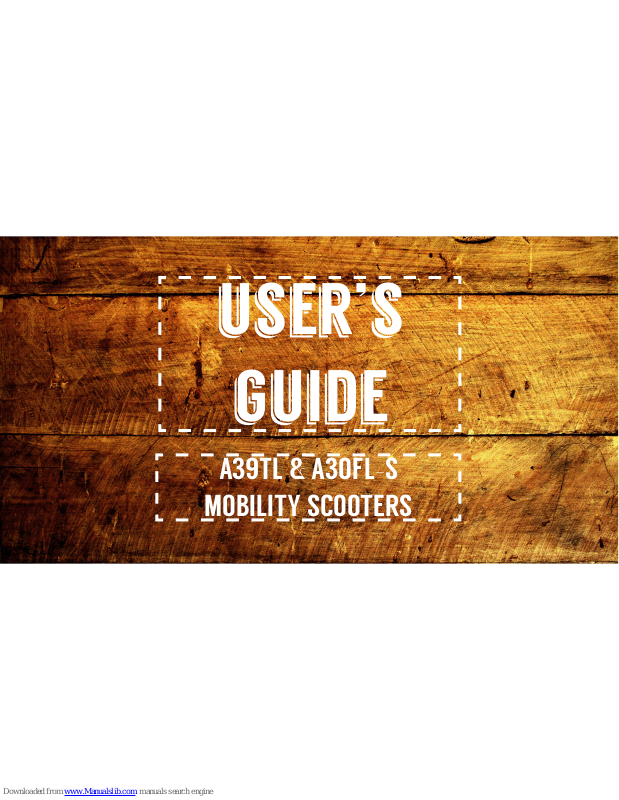

user’s
guide
A39TL & A30FL-S
MOBILITY SCOOTERS
1
hello
CONGRADULATIONS ON THE PURCHASE OF YOUR NEW SCOOTER.
WE ARE QUITE CONFIDENT THAT YOU ARE GOING TO GET ALONG.
We designed this scooter with one main objective - to provide mobility,
independance and freedom, all coupled with ease of use and a touch of
style.
is user guide is intended to help you become familiar with the ins and
outs of your scooter, so that you can ensure high performance and long
life for your scooter.
We also recommend you follow the maintanece schedule outlined in this
guide, and take advantage of our trained techinicians, both for regular
maintenance, and if you should encounter your problem.
Now, without further adieu, enjoy your mobility scooter!
2
ANATOMY OF A SCOOTER
BATTERY
BATTERY F.A.Q.
OPERATION
ELECTROMAGNETIC INTERFERENCE (EMI)
SAFETY
ASSEMBLY AND DISSASSEMBLY
MAINTENANCE
SPECIFICATIONS
WARRANTY
BUYER’S REGISTRATION FORM
TABLE OF CONTENTS
e manufacturer reserves the rights of nal interpretation on the manual. For any printing mistakes or new improvements, the manufacturer will update in the new editions.
3
ANATOMY OF A SCOOTER
TILLER CONSOLE
e tiller console houses all controls needed to drive your scooter, including the key switch, throttle control levers, speed adjustment dial, and the
battery status meter. (See gure 1).
KEY SWITCH
- Fully insert the key into the key switch to turn on your scooter.
- Remove the key from the key switch to turn o your scooter.
THROTTLE CONTROL LEVERS
e throttle levers allow you to control the machine moving forward and
backward.
- Place your right hand on the right handgrip and your le hand on the
le handgrip.
- Forward: Push the right lever.
- Backward: Push the le lever.
- When the throttle is completely released, it automatically returns to the
center “stop” position the brake is engaged and your scooter will stop.
SPEED ADJUSTMENT DIAL
is dial allows you to preset your scooter’s speed.
- e image of the tortoise represents the slowest speed setting.
- e image of the hare represents the fastest speed setting.
4
BATTERY STATUS METER
When the key is fully inserted the key switch, this meter indicates
approximate battery strength. For further information on the battery
condition meter, see page 5 on batteries and charging.
REAR SECTION
e manual freewheel lever, ant-tip wheels, and motor/transaxle assembly are located on the rear section of your scooter. (See gure 2).
MANUAL FREEWHEEL LEVER
Whenever you need or want to push your scooter for short distance,
you can put it in freewheel mode.
- e manual freewheel lever is located at the right of the rear section.
- Pull up the manual freewheel lever to disengage the driving system
you may now push your scooter manually.
- Push the manual freewheel lever down to reengage the driving systems, this changes your scooter to power drive mode.
ANTI-TIP WHEELS
e anti-tip wheels are an integral part and make an important safety
feature of your scooter. Do not, under any circumstances, remove the
anti-tip wheels from your scooter.
MOTOR TRANSAXLE ASSEMBLY
e motor transaxle assembly is an electromechanical device that converts
electrical energy from your scooter batteries into the controlled mechanical energy that drives the scooter’s wheels.
BATTERY PACK
e scooter is equipped with an innovative, easy to remove battery pack.
A handle on the top of the battery pack makes it easy to li the pack o
the scooter with one hand. e battery pack contains two 12 volt, 17AH
batteries, the fuse and the charger receptacle.
OFF –BOARD BATTERY CHARGER
Plug the output of the charger into the charger receptacle on the battery,
then plug the charger input into the wall outlet to charge.
