May 2016
206-735-00D
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
ECT[DIN]
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
ECT[DIN]
Table of Contents
Introduction ........................................................................................................ 3
Specifications .................................................................................................... 3
Dimensions ........................................................................................................ 5
Ordering Information ......................................................................................... 4
Dimensions ........................................................................................................ 5
Calibration .......................................................................................................... 7
Calibration Setup ...............................................................................................................7
Calibration Procedure........................................................................................................7
Calibration Diagrams .........................................................................................................8
Installation ........................................................................................................ 10
Electrical Connections .....................................................................................................10
Recommended Ground Wiring Practices ........................................................................11
CE Conformity .................................................................................................................11
Installation Diagrams .......................................................................................................12
Hazardous Locations ......................................................................................................15
Customer Support ........................................................................................... 15
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
Introduction
This is the user’s manual for Moore Industries’ line of
4-wire, Economy Signal Isolator/Converters, the ECT
[DIN]. Available in configurations that accept a variety
of inputs, the principal function of the ECT family
of products is to provide low cost isolation between
instruments at either end of a process loop.
ECTs furnish up to 1500Vrms isolation between
transmitting and receiving devices.
Specifications
Performance
Accuracy: ±0.1% of span
Stability:
±0.2% of reading per year
Isolation: WITHOUT -RF
OPTION: 1500Vrms between
input, ouput and power;
WITH -RF OPTION: 500Vrms
between input and output,
1500Vrms power terminals
Output Response Time:
DC Input, 100msec, maximum
to 99% of output; AC Input,
400msec, maximum, from
0-99% of output
DC Input Resistance:
50 ohms
Ripple: 10mV peak-to-peak
maximum measured across
250 ohm resistor
Load Effect: Current outputs,
0.01% of span from 0 to
maximum load
Power Supply Effect:
Exceeds 90db for current
input unit
Performance
(continued)
Ambient
Conditions
The ECT can also function as a low-cost signal
converter or splitter. Configurations accommodate a
single input and your choice of one or two accurate
outputs. Dual inputs and dual outputs are also
available. Inputs and outputs are available in a variety
of industry standard ranges. Refer to the Ordering
Information table for more information.
The ECT is a highly cost-effective means of protecting
process signals from distortions associated with
ground loops, motor noise, and other common types of
electrical interference.
Maximum Input
Overrange: Current inputs,
250% of full scale; DC
Voltage inputs, 150% of full
scale
Burden: 1V maximum
with 4-20mA input; 0.01V
maximum with 0-5A input
Output Current Limiting:
25mA, typical; 30mA,
maximum
Operating Range:
-40°C to +85°C
(-40°F to +185°F)
Storage Range:
-40°C to +85°C
(-40°F to +185°F)
Ambient Temperature
Effect: ±0.007% of span/°C,
typical; ±0.015% of span/°C,
maximum
Relative Humidity:
0-95% non-condensing
Ambient
Conditions
(Continued)
Adjustments
Weight
RFI/EMI Protection:
WITHOUT -RF OPTION:
Less than ±0.1% of span
error when tested at
10V/m@20-1000MHZ
WITH -RF OPTION: Less
than ±0.1% of span error
when tested at
30V/m@20-1000MHZ
Common Mode
Rejection:
Exceeds 95 dB@60Hz
with a limit of 1500Vrms
Front panel potentiometer
Span: ±10%
Zero: ±5%
(non-interactive when span
is set first)
Single I/O Channel:
384g (13.7oz) maximum
Dual I/O Channel:
431g (15.4 oz) maximum
The Interface Solution Experts 3
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
Ordering Information
Unit
ECT
4-Wire
(Line/
Mains)
Economy
Isolator,
Converter,
Repeater,
and
Splitter
Input
SINGLE INPUT
CHANNEL:
4-20MA
into 25 ohms
10-50MA
into 10 ohms
1-5V into 1 Mohm
0-10V into 1 Mohm
0-150AC
into 100 kohms
0-250AC
into 160 kohms
0-5AAC
into 0.002 ohms
(Other AC ranges also
available)
DUAL INPUT
CHANNELS:
2X4-20MA
into 25 ohms
2X1-5V into 1 Mohm
2X0-10V into 1 Mohm
Output
SINGLE OUTPUT
CHANNEL:
4-20MA
into 1000 ohms
0-10V into 5 kohms
minimum
DUAL OUTPUT
CHANNELS
(Signal Splitter):
2X4-20MA into
600 ohms
DUAL OUTPUT
CHANNELS:
2X4-20MA
into 600 ohms
2X1-5V into
5 kohms minimum
2X0-10V into
5 kohms minimum
Power
24DC, ±10%
117AC,
50/60Hz, ±10%
230AC,
50/60Hz, ±10%
(3 watts maximum
for single channel
models; 5 watts
maximum for dual
channel models)
Option
-EM Externally-mounted input
transformer for current input
(available with 0-5Aac input
only)
-TX 24V transmitter excitation
for powering a 2-wire
transmitter (Available on
4-20MA input/output models
only; standard on 2X4-20MA
models)
Enhanced RFI/EMI
-RF
protection provides
30V/m@20-1000MHZ
protection with less than
±0.1% of span error (-EM
option required for AC current
input)
Housing
DIN Aluminum,
DIN-style housing
mounts on 32mm
G-type (EN50035)
and 35mm Top Hat
(EN50022) rails
FLB2 Externallymounted flange
provides a secure
mount and
ensures resistance
to vibration
When ordering, specify: Unit / Input / Output / Power / Options [Housing]
Model number example: ECT / 0-5AAC / 4-20MA / 117AC / -RF [DIN]
Options
The following paragraphs describe the options
available with the ECT family of transmitters:
• EM–ExternallyMountedTransformer, for use
with the 0-5Aac input configuration, this option
consists of a toroidal transformer that physically
separates high-level current input from the
receiving device in a process loop. This provides
the added convenience of allowing the servicing
of receivers without having to interrupt process
signals.
• TX–TransmitterExcitation, available for use
with the 4-20mA input configuration, TX-equipped
ECTs provide power for a 2-wire transmitter in
the process loop, eliminating the need to provide
separate power supplies for the non-isolated
transmitters.
4 The Interface Solution Experts
RF–RFI/EMIProtection, available for use with
•
our aluminum housings, this option provides
you with outstanding protection against RFI and
EMI interference. Units with the -RF option are
provided with 30V/m@20-1000MHZ protection
with less than ±0.1% of span error (requires -EM
option for AC current input)
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing

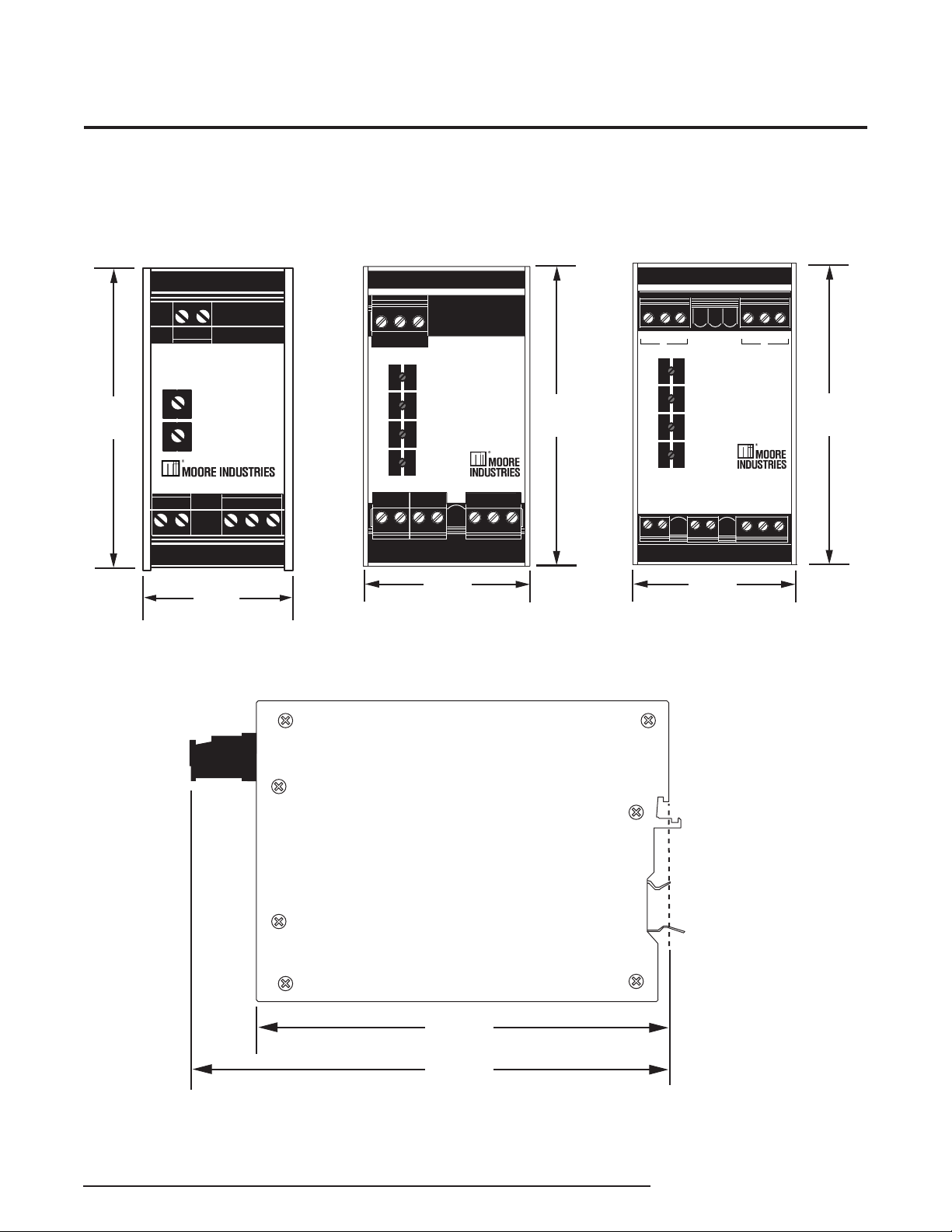

Figure 1. Dimensions of the aluminum-housed ECT and ECT Splitter [DIN]
80mm
(3.2 in)
130mm
(5.1 in)
SIDE VIEW
80mm
(3.2 in)
45mm
(1.8 in)
ECT
SIGNAL
ISOLATOR
CONVERTER
SPAN
SPAN
ZERO
ZERO
+IN
-IN
A
B
A
B
AC
+OUT-OUT+OUT-OUT
ACC
GND
+TX
FRONT VIEW
4-WIRE SPLITTER
110mm
(4.3 in)
ECT
SIGNAL ISOLATOR/
CONVERTER
CT/PT CT/PT
SPAN
ZERO
+OUT –OUT
36mm
(1.4 in)
AC ACC GND
FRONT VIEW
4-WIRE ECT
ECT
DUAL
SIGNAL
ISOLATOR
CONVERTER
SPAN
SPAN
ZERO
ZERO
A
B
A
B
AC
+OUT-OUT +OUT-OUT
ACC
GND
+TX +IN -IN
+TX +IN -IN
A B
80mm
(3.2 in)
51mm
(2.0 in)
FRONT VIEW
DUAL I/O
The Interface Solution Experts 5
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
Table 1. Terminal Designations for 4-Wire Units
4-Wire (Line/Mains-Powered) Top Terminals Bottom Terminals
Models (left to right) (left to right)
AC Power Single Input/Dual Outputs & -TX +TX +IN -IN A +OUT A -OUT B +OUT B -OUT AC ACC GND
DC Power Single Input/Dual Outputs & -TX +TX +IN -IN A +OUT A -OUT B +OUT B -OUT DC DCC GND
Power with AC Input or -EM Option CT/PT CT/PT +OUT -OUT AC ACC GND
AC Power with -TX Option +TX +IN -IN +OUT -OUT AC ACC GND
Power with DC Input or -EM Option CT/PT CT/PT +OUT -OUT DC DCC GND
DC Power with -TX Option +TX +IN -IN +OUT -OUT DC DCC GND
Table 2. Terminal Designations for 4-Wire Dual I/O Units
4-Wire (Line/Mains-Powered)
Dual I/O Models
AC Power & Dual Inputs/Dual Outputs
DC Power & Dual Inputs/Dual Outputs
Key Definition
A Channel 1 on dual output models
B Channel 2 on dual output models
AC AC line power input
ACC AC line power return (neutral)
CT/PT Current Transformer/Potential Transformer input
DC +DC power input
DCC -DC power input
GND Ground
IN Input signal (+ or -)
OUT Output signal (+ or -)
-TX Transmitter excitation for powering 2-wire transmitter
T1 T2 T3 B1 B2 B3 B4 B5 B6 B7 B8
T1 T2 T3 B1 B2 B3 B4 B5 B6
Top Terminals
(left to right)
T1 T 2 T3 T4 T5 T6 T7 T8 T9 B1 B2 B3 B4 B5 B6 B7 B8 B9
A +TX A +IN A -IN
A +TX A +IN A -IN
B +TX B +IN B -IN
B +TX B +IN B -IN
A +OUT A -OUT
A +OUT A -OUT
Bottom Terminals
(left to right)
B +OUT B -OUT
B +OUT B -OUT
AC ACC GND
DC DCC GND
6 The Interface Solution Experts
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
Calibration
Prior to shipment, every ECT is subjected to rigorous
testing by our team of skilled technicians. Every
product Moore Industries manufactures, sells and
services is guaranteed to meet the strict quality
standards that have become synonymous with our
company name.
Before placing your ECT into service, a bench check
of basic operation is recommended to ensure that the
unit hasn’t sustained any damage during transit, and to
set zero and span points for your application.
Every unit should be:
• CheckedtoverifythattheappropriateECT
model has been ordered for the intended
application.
• Connectedinacalibrationsetup(described
later in this section) and checked for desired
output.
• Adjustedfordesiredzeroandspan.
Calibration Setup
Table 3 lists the equipment you will need to bench
check the ECT. These materials are not supplied by
Moore Industries, but should be available in those
environments suited for calibration and maintenance of
electronic instruments.

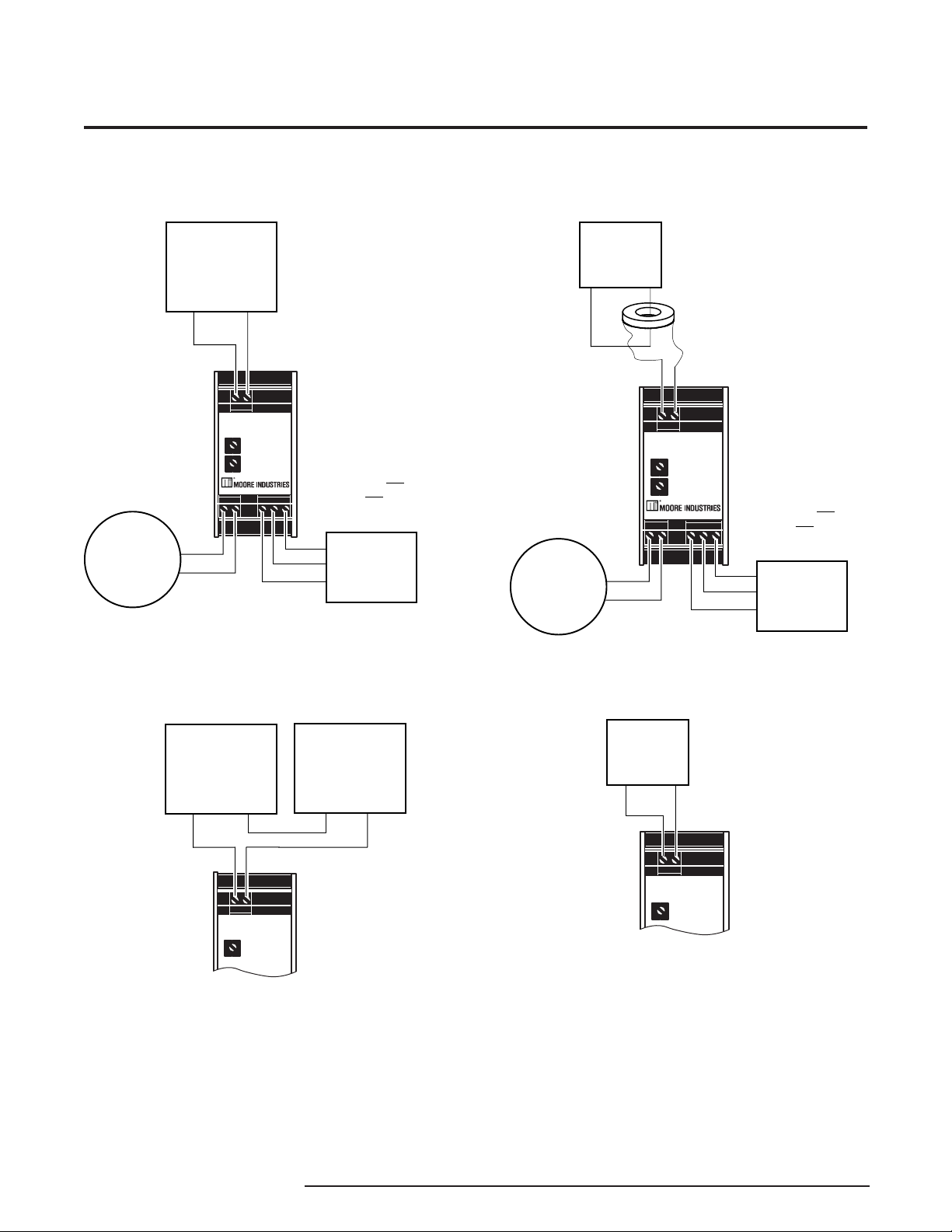

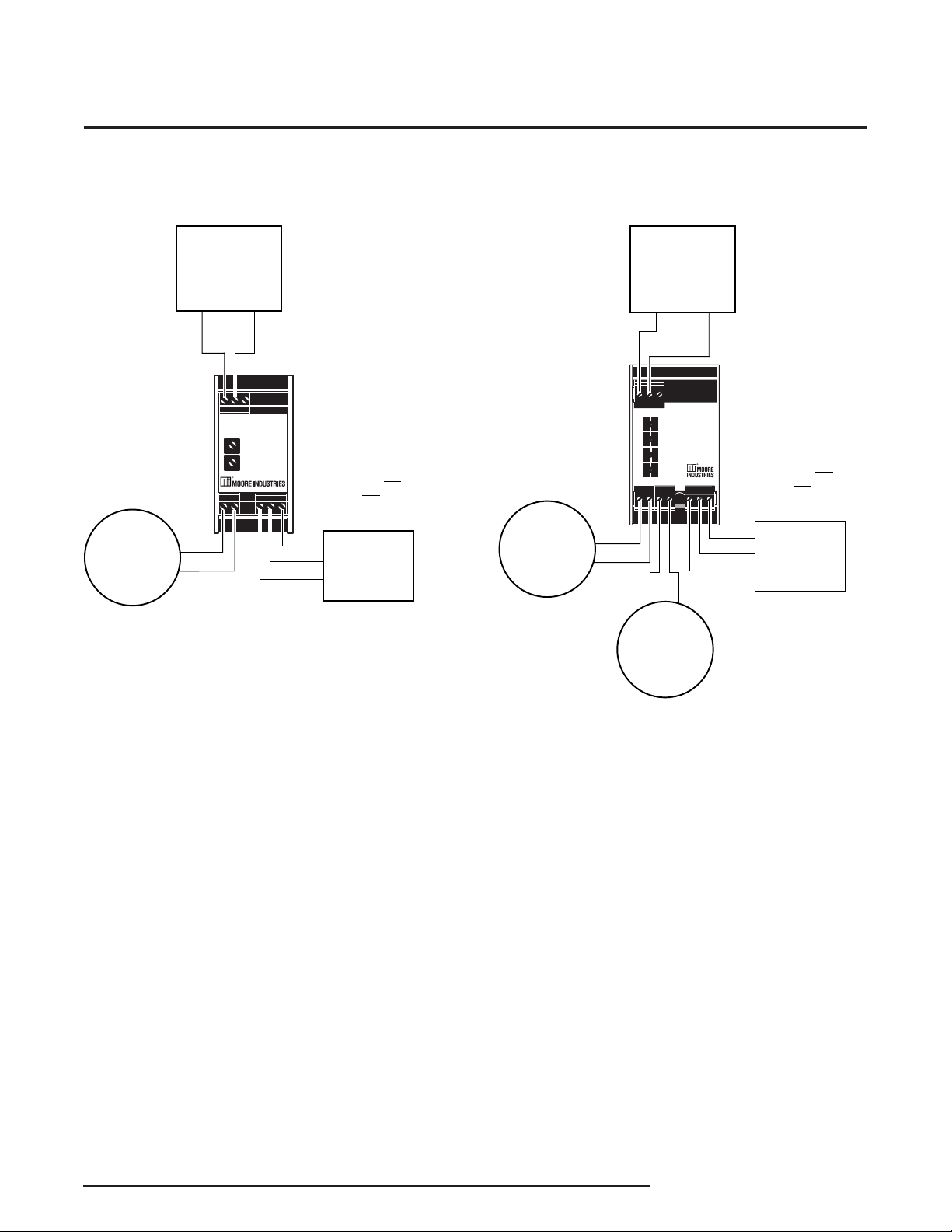

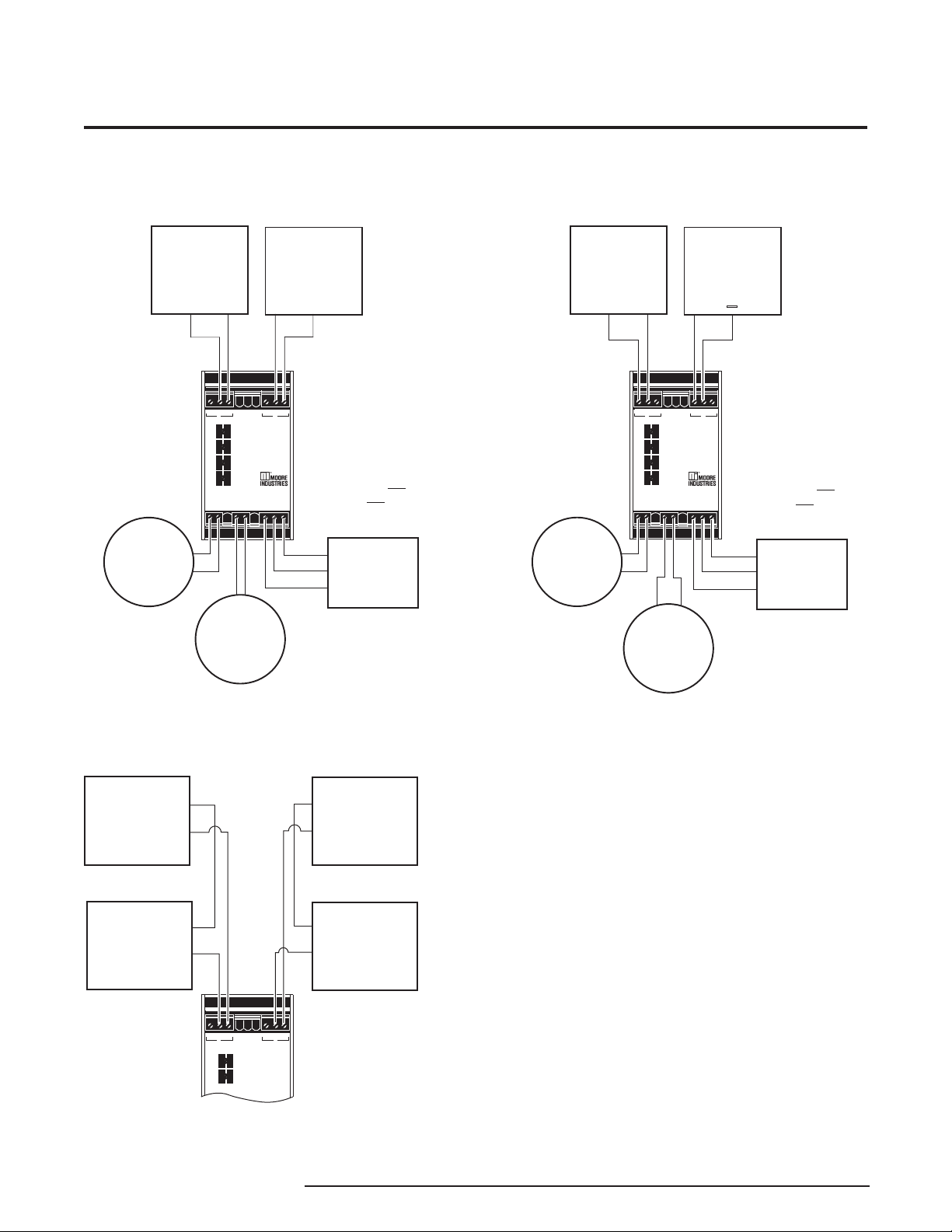

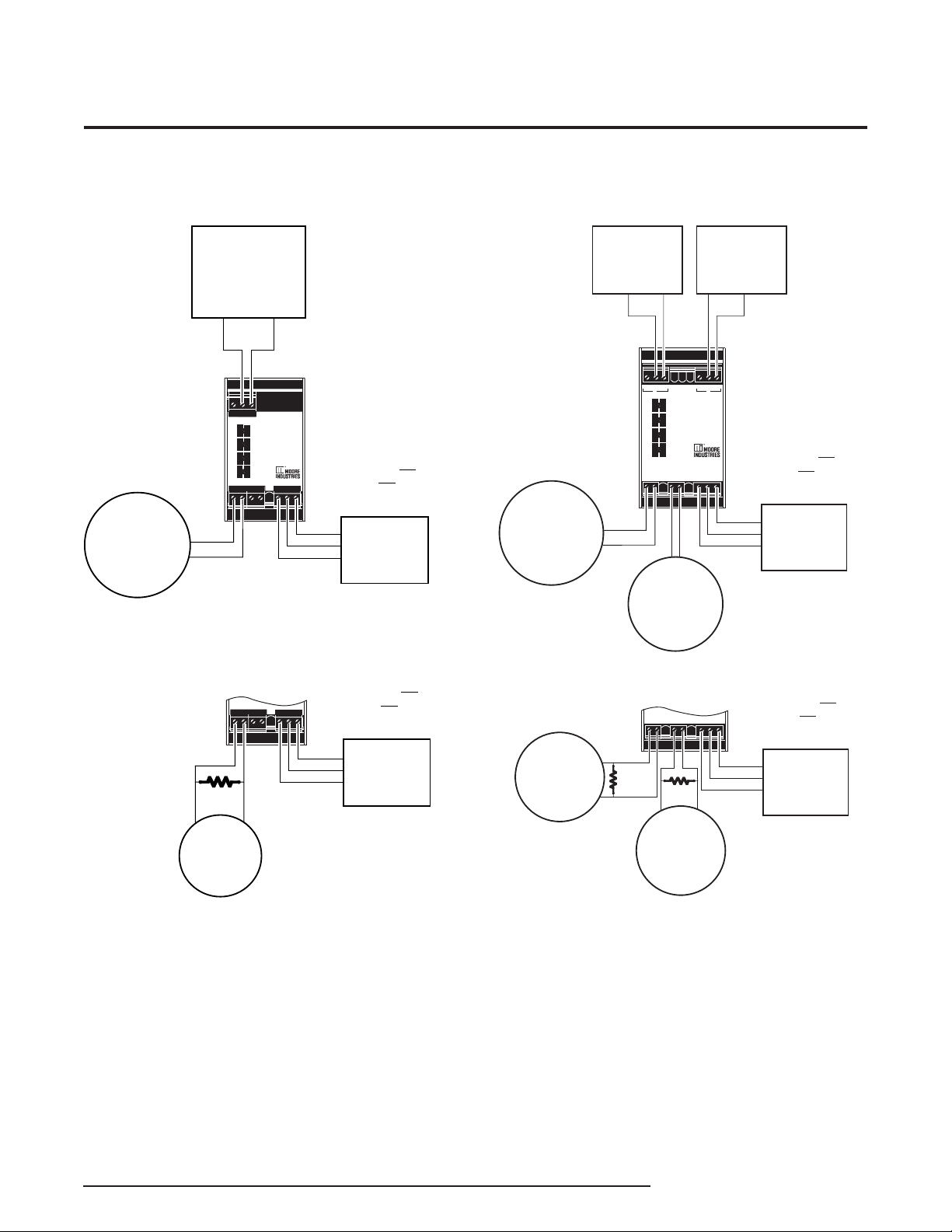

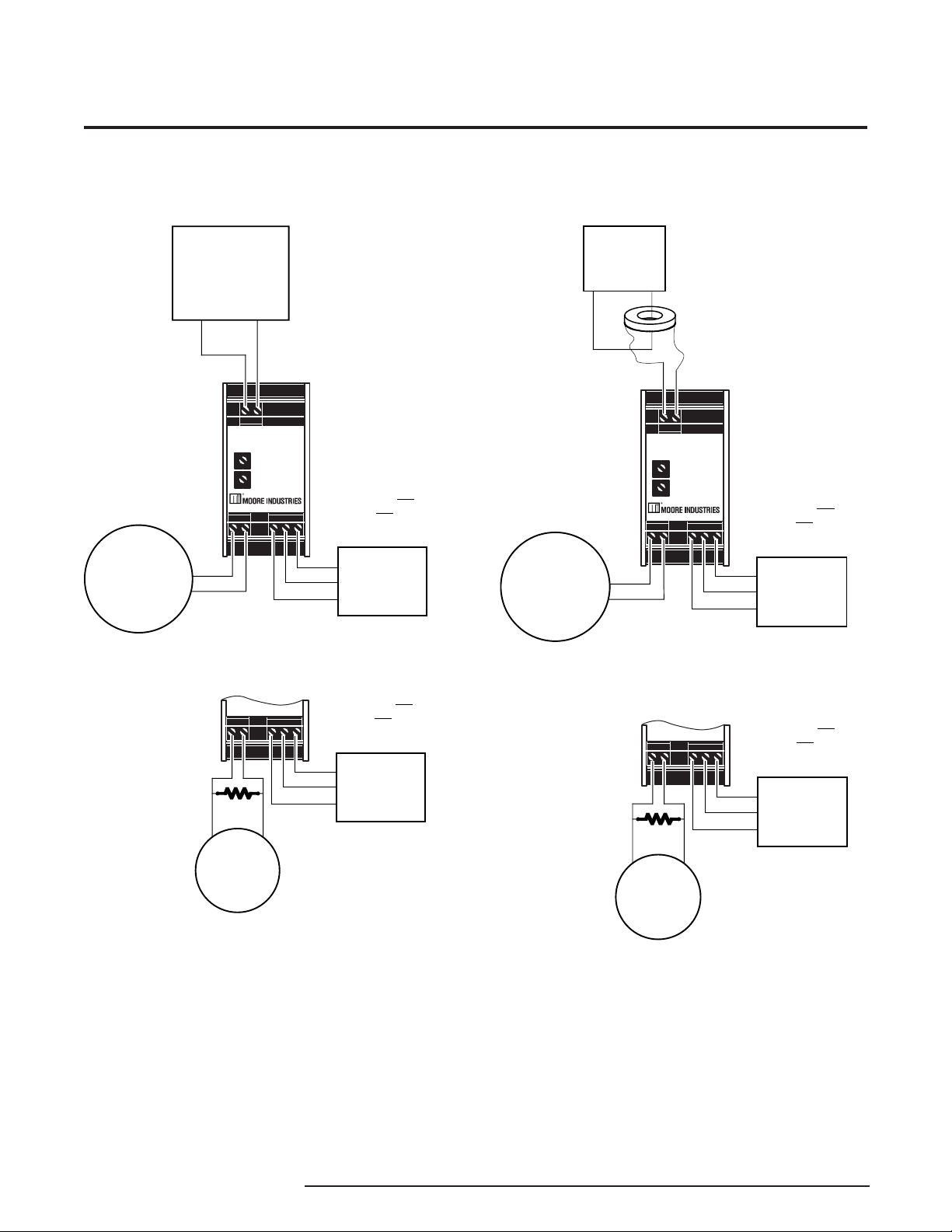

Figures 2 through 5 show the calibration setups for
each type of ECT. Moore Industries recommends
that the procedures in this section be carried out
at a technician’s bench or in a similar, lab-type
environment. Do not calibrate the ECT in the field or
installed in the application.
Calibration Procedure
With the unit incorporated into the setup described in
the appropriate Figure (2, 3, 4 or 5):
1. Apply the appropriate power to the ECT.
2. Set the Voltage or Current Calibrator to 100%
span (full scale input) for the type of ECT being
calibrated. For example, 20mA for a
4-20mA input unit or 5V for a 1-5V input unit.
Table 3. Gathering the equipment for 4-wire ECT calibration
Device Specifications
Voltage/Current
Calibrator
Power
Supply
Load
Resistor
Multimeter
Screwdriver
Adjustable, calibrated to an accuracy
of ±0.025% (EDC Model CR 103 or
MV 105 or equivalent)
Rotek Model 811A (or equivalent)
recommended for calibrating
AC input units.
Calibrated, 24Vdc, ±10%, nominal
250 ohms (±0.01%) precision
Calibrated to an accuracy of ±0.025%,
minimum (Keithley Model 197,
or Fluke Model 8840 or 8842 or
equivalent)
Standard (Blade-type), head width
3.1mm (0.125 in), maximum
3. Adjust the Span potentiometer (pot) until
the multimeter reads 20mA, plus/minus the
stated accuracy specification. If measuring
the voltage drop across the precision resistor,
adjust the pot until output is 5V, plus/minus the
stated accuracy specification.
4. Set the Calibrator to 0% of the rated span for
the type of ECT being calibrated. For example,
4mA for a 4-20mA input unit or 1V for a 1-5V
input unit.
5. Adjust the Zero pot until the multimeter
reads 4mA, plus/minus the stated accuracy
specification. If measuring the voltage drop
across the precision resistor, adjust the
pot until output is 1V, plus/minus the stated
accuracy specification.
6. Repeat steps 2 through 5 for each channel
until the ECT output or the voltage across the
resistor is stable at both 0 and 100% of rated
input span.
The Interface Solution Experts 7
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
ECT
SIGNAL ISOLATOR/
CONVERTER
SPAN
ZERO
+OUT –OUT
AC
CURRENT
SOURCE
OR
CT/PT CT/PT
+OUT –OUT
250
OHMS
VOLTMETER
+–
IF DESIRED, MEASURE VOLTAGE
DROP ACROSS A 250 OHM
PRECISION RESISTOR.
1-5V = 4-20MA
MULTIMETER
(CURRENT OR
VOLTAGE)
+
–
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION)
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION)
+OUT –OUT
ECT
SIGNAL ISOLATOR/
CONVERTER
+IN –IN
SPAN
ZERO
+OUT –OUT
250
OHMS
VOLTMETER
+–
MULTIMETER
(CURRENT OR
VOLTAGE)
CURRENT
OR
VOLTAGE
CALIBRATOR
+–
+
–
+
–
OR
IF DESIRED, MEASURE VOLTAGE
DROP ACROSS A 250 OHM
PRECISION RESISTOR.
1-5V = 4-20MA
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION)
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION)
Figure 2. Calibrating the 4-wire ECT
Figure 3. Calibrating the 4-wire ECT equipped with the -EM option
8 The Interface Solution Experts
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
ECT
DUAL
SIGNAL
ISOLATOR
CONVERTER
SPAN
SPAN
ZERO
ZERO
A
B
A
B
+OUT-OUT +OUT-OUT
+TX +IN -IN
+TX +IN -IN
A B
A
B
+OUT-OUT +OUT-OUT
+–
+–
+
–
MULTIMETER
(CURRENT OR
VOLTAGE)
250
OHMS
VOLTMETER
+
–
VOLTMETER
+
–
250
OHMS
OR
USE TWO METERS
OR CALIBRATE ONE
CHANNEL AT A TIME
USE TWO METERS
OR CALIBRATE ONE
CHANNEL AT A TIME
CURRENT
OR
VOLTAGE
CALIBRATOR
CURRENT
OR
VOLTAGE
CALIBRATOR
IF DESIRED, MEASURE VOLTAGE
DROP ACROSS A 250 OHM
PRECISION RESISTOR.
1-5V = 4-20MA
MULTIMETER
(CURRENT OR
VOLTAGE)
+
–
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION)
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION)
+OUT-OUT+OUT-OUT
ECT
SIGNAL
ISOLATOR
CONVERTER
SPAN
SPAN
ZERO
ZERO
+IN
-IN
A
B
A
B
+OUT-OUT+OUT-OUT
250
OHMS
VOLTMETER
+–
OR
CURRENT
OR
VOLTAGE
CALIBRATOR
+–
USE TWO METERS
OR CALIBRATE ONE
CHANNEL AT A TIME
+TX
IF DESIRED, MEASURE VOLTAGE
DROP ACROSS A 250 OHM
PRECISION RESISTOR.
1-5V = 4-20MA
NOTE:
MULTIMETER
(CURRENT OR
VOLTAGE)
+
–
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION)
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION)
Figure 4. Calibrating the 4-wire ECT Channel Splitter
Figure 5. Calibrating the Dual I/O configured ECT
The Interface Solution Experts 9
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
Installation
Figure 1 shows the physical dimensions of the 4-wire
ECT family. To install an ECT, set the appropriate lip
on the top edge of the DIN rail and pivot downward
until the unit snaps into place.
Electrical Connections
Figures 6 through 11 show typical types of 4-wire ECT
installations. Simply hookup the ECT in the directed
manner, making sure to notice any pertinent notes.
WARNING:
Terminals on this unit may be connected to
hazardous voltages. Before making ANY
connections to this unit, always remove power from
the loop or instrument power terminals.
Installation Category
All terminals are rated CAT I.
Equipment Ratings
The ECT does not generate hazardous voltages, it
provides different current or voltage inputs, including
4-20mA, 10-50mA, 1-5V, 0-10V, 0-150AC, 0-250AC,
and 0-5AAC range and 4-20mA or 0-10V range
outputs. Products connected to the ECT should be
designed to receive this type of input.
WARNING:
If this unit is used in a manner not specified by
Moore Industries, the protection provided by the
equipment may be impaired.
117Vac, 230Vac, and 24Vdc Supply Wiring
All power connections should be made with 12 or 14
AWG (3.3mm2 or 2mm2) wire.
The end of each conductor should be stripped no
more than 0.25in (7mm). The end of the stripped wire
should be tinned with solder, or inserted into a ferrule
and crimped before being placed into a terminal block.
Tighten the screws on the terminal block to 5.0 - 7.0
•
in (0.56 - 0.79 N•m).
lbf
Input/Output Wiring
The Input/Output connections can be made with 12 to
24 AWG (3.3mm2 to 0.2mm2) wire.
The end of each conductor should be stripped no more
than 0.25in (7mm).
Tighten the screws on the terminal block to 5.0 - 7.0
•
lbf
in (0.56 - 0.79 N•m).
Protective Earth Conductor
The Protective Earth Conductor shall be of equal or
larger size wire than the other two power conductors.
The Protective Earth Conductor shall be the first
conductor connected to the unit when the unit is being
wired. It shall be the last conductor removed when the
unit is being un-wired.
Switches and Circuit Breakers
For ECT AC powered units, a switch or circuit breaker
must be wired in series with the AC power conductors.
The switch or circuit breaker used must be located
within three meters of the unit.
The circuit breaker or switch will only remove power to
the unit, hazardous voltages may still be connected to
other terminals on the unit.
10 The Interface Solution Experts
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
Recommended Ground Wiring Practices
Moore Industries recommends the following ground
wiring practices:
• AnyMooreIndustriesproductinametalcaseor
housing should be grounded.
• Theprotectiveearthconductormustbeconnected
to a system safety earth ground before making
other connections.
• Allinputsignalsto,andoutputsignalsfrom,
Moore Industries’ products should be wired using a
shielded, twisted pair wiring technique. Shields
should be connected to an earth or safety ground.
• Forthebestshielding,theshieldshouldberun
all the way from the signal source to the receiving
device. (see Note below)
CE Certification-related Guidelines
The grounding and wiring practices described above
must be followed in order for the unit(s) to meet the
requirements set forth in EMC standard EN61326.
The Low Voltage Directive also applies to AC powered
and high voltage input versions of the ECT. In order
to comply with EN61010-1 (Low Voltage Directive) all
guidelines in this section must be followed.
• The maximum length of unshielded input and
output signal wiring should be 2 inches.
Note:
Some of Moore Industries’ instruments can be
classified as receivers (IPT 2, IPX 2, etc.) and some
can be classified as transmitters (TRX, TRY, etc.)
while some are both a receiver and a transmitter
(SPA 2, HIM, etc). Hence, your shield ground
connections should be appropriate for the type
of signal line being shielded. The shield should
be grounded at the receiver and not at the signal
source.
The Interface Solution Experts 11
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
ECT
SIGNAL ISOLATOR/
CONVERTER
CT/PT CT/PT
SPAN
ECT
SIGNAL ISOLATOR/
CONVERTER
SPAN
ZERO
+OUT –OUT
AC
VOLTAGE
SOURCE
CT/PT CT/PT
AC
CURRENT
SOURCE
OR
RECEIVER
+
–
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION)
ECT
SIGNAL ISOLATOR/
CONVERTER
+IN –IN
SPAN
ZERO
+OUT –OUT
4-WIRE
CURRENT OR
VOLTAGE
TRANSMITTER
+–
OR
ECT
SIGNAL ISOLATOR/
CONVERTER
+IN –IN
SPAN
2-WIRE
CURRENT OR
VOLTAGE
TRANSMITTER
+
–
POWER
SUPPLY
+
–
RECEIVER
+
–
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION)
Figure 6. Installing the 4-wire ECT
Figure 7. Installing the 4-wire ECT with the -EM option
12 The Interface Solution Experts
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
ECT
SIGNAL
ISOLATOR
CONVERTER
SPAN
SPAN
ZERO
ZERO
+IN
-IN
A
B
A
B
+OUT-OUT+OUT-OUT
+TX
2-WIRE
CURRENT
TRANSMITTER
+–
RECEIVER
+
–
RECEIVER
+
–
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION)
ECT
SIGNAL ISOLATOR/
CONVERTER
+IN –IN
SPAN
ZERO
+OUT –OUT
TX
2-WIRE
CURRENT
TRANSMITTER
+–
RECEIVER
+
–
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION)
Figure 8. Installing the 4-wire ECT with the -TX option
Figure 9. Installing the 4-wire ECT Dual I/O Channel Splitter
The Interface Solution Experts 13
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
ECT
DUAL
SIGNAL
ISOLATOR
CONVERTER
SPAN
SPAN
ZERO
ZERO
A
B
A
B
+OUT-OUT +OUT-OUT
+TX +IN -IN
+TX +IN -IN
A B
+–
+–
RECEIVER
+
–
+
–
OR
4-WIRE
CURRENT OR
VOLTAGE
TRANSMITTER
4-WIRE
CURRENT OR
VOLTAGE
TRANSMITTER
RECEIVER
2-WIRE
CURRENT OR
VOLTAGE
TRANSMITTER
+
–
POWER
SUPPLY
+
–
ECT
DUAL
SIGNAL
ISOLATOR
CONVERTER
SPAN
ZERO
A
+TX +IN -IN
+TX +IN -IN
A B
+
–
+
–
POWER
SUPPLY
2-WIRE
CURRENT OR
VOLTAGE
TRANSMITTER
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION
)
ECT
DUAL
SIGNAL
ISOLATOR
CONVERTER
SPAN
SPAN
ZERO
ZERO
A
B
A
B
+OUT-OUT +OUT-OUT
+TX +IN -IN
+TX +IN -IN
A B
+–
+–
RECEIVER
+
–
+
–
2-WIRE
CURRENT
TRANSMITTER
2-WIRE
CURRENT
TRANSMITTER
RECEIVER
+
–
24VDC OR
117VAC OR 230VAC
POWER
SOURCE
GND
(CHECK MODEL NUMBER
FOR UNIT CONFIGURATION
)
Figure 10. Installing the Dual I/O configured ECT
Figure 11. Installing the Dual I/O configured ECT with the -TX
option
14 The Interface Solution Experts
ECT
4-Wire Isolator, Converter, Repeater,
and Splitter in an Aluminum Housing
Installation in Hazardous Locations
This section contains important information regarding
installation of ECT’s in Hazardous Area Locations.
WARNING:
Explosion Hazard. Substitution of components is not
allowed, as it may impair the suitability for Class I,
Division 2.
WARNING:
Explosion Hazard. Do not disconnect equipment
when a flammable or combustible atmosphere is
present.
AVERTISSEMENT:
Risque d’explosion. La subststution de composants
peut render ce materiel inacceptable pour les
emplacements de Classe I, Division 2
AVERTISSEMENT:
Risque d’explosion. Ne pas débrancher tant que le
circuit est sous tension, á moins qu’il ne s’agisse
d’un emplacement non dangereux.
Customer Support
Moore Industries is recognized as the industry leader
in delivering top quality to its customers in products
and services. We perform a battery of stringent quality assurance checks on every unit we ship. If any
Moore Industries product fails to perform up to rated
specifications, call us for help. Our highly skilled staff
of trained technicians and engineers pride themselves on their ability to provide timely, accurate, and
practical answers to your process instrumentation
questions.
Factory phone numbers are listed on the back cover
of this manual.
If problems involve a particular ECT, there are several pieces of information that can be gathered
beforeyoucallthefactory that will help our staff
get the answers you need intheshortesttime
possible. For fastest service, gather the complete
model and serial number(s) of the problem unit(s)
and the job number of the original sale.
Special Conditions of Use
The following instructions must be adhered to when
the ECT is used in hazardous locations and potentially
explosive atmospheres.
The ECT-DIN shall be installed into an enclosure that
utilizes a tool removable door/cover.
The Interface Solution Experts 15
RETURN PROCEDURES
United States • info@miinet.com
Tel: (818) 894-7111 • FAX: (818) 891-2816
Australia • sales@mooreind.com.au
Tel: (02) 8536-7200 • FAX: (02) 9525-7296
Belgium • info@mooreind.be
Tel: 03/448.10.18 • FAX: 03/440.17.97
The Netherlands • sales@mooreind.nl
Tel: (0)344-617971 • FAX: (0)344-615920
China • sales@mooreind.sh.cn
Tel: 86-21-62491499 • FAX: 86-21-62490635
United Kingdom • sales@mooreind.com
Tel: 01293 514488 • FAX: 01293 536852
To return equipment to Moore Industries for repair, follow these four steps:
1. Call Moore Industries and request a Returned Material Authorization (RMA) number.
Warranty Repair –
If you are unsure if your unit is still under warranty, we can use the unit’s serial number
to verify the warranty status for you over the phone. Be sure to include the RMA
number on all documentation.
Non-Warranty Repair –
If your unit is out of warranty, be prepared to give us a Purchase Order number when
you call. In most cases, we will be able to quote you the repair costs at that time. The
repair price you are quoted will be a “Not To Exceed” price, which means that the
actual repair costs may be less than the quote. Be sure to include the RMA number on
all documentation.
2. Provide us with the following documentation:
a) A note listing the symptoms that indicate the unit needs repair
b) Complete shipping information for return of the equipment after repair
c) The name and phone number of the person to contact if questions arise at the factory
3. Use sufficient packing material and carefully pack the equipment in a sturdy shipping container.
4. Ship the equipment to the Moore Industries location nearest you.
The returned equipment will be inspected and tested at the factory. A Moore Industries representative will contact the person designated on your documentation if more information is
needed. The repaired equipment, or its replacement, will be returned to you in accordance
with the shipping instructions furnished in your documentation.
WARRANTY DISCLAIMER
THE COMPANY MAKES NO EXPRESS, IMPLIED OR STATUTORY WARRANTIES (INCLUDING ANY WARRANTY OF MERCHANTABILITY OR
OF FITNESS FOR A PARTICULAR PURPOSE) WITH RESPECT TO ANY
GOODS OR SERVICES SOLD BY THE COMPANY. THE COMPANY DISCLAIMS ALL WARRANTIES ARISING FROM ANY COURSE OF DEALING
OR TRADE USAGE, AND ANY BUYER OF GOODS OR SERVICES FROM
THE COMPANY ACKNOWLEDGES THAT THERE ARE NO WARRANTIES
IMPLIED BY CUSTOM OR USAGE IN THE TRADE OF THE BUYER AND
OF THE COMPANY, AND THAT ANY PRIOR DEALINGS OF THE BUYER
WITH THE COMPANY DO NOT IMPLY THAT THE COMPANY WARRANTS
THE GOODS OR SERVICES IN ANY WAY.
ANY BUYER OF GOODS OR SERVICES FROM THE COMPANY
AGREES WITH THE COMPANY THAT THE SOLE AND EXCLUSIVE REMEDIES FOR BREACH OF ANY WARRANTY CONCERNING THE GOODS OR
SERVICES SHALL BE FOR THE COMPANY, AT ITS OPTION, TO REPAIR
OR REPLACE THE GOODS OR SERVICES OR REFUND THE PURCHASE
PRICE. THE COMPANY SHALL IN NO EVENT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES EVEN IF THE COMPANY FAILS
IN ANY ATTEMPT TO REMEDY DEFECTS IN THE GOODS OR SERVICES
, BUT IN SUCH CASE THE BUYER SHALL BE ENTITLED TO NO MORE
THAN A REFUND OF ALL MONIES PAID TO THE COMPANY BY THE BUYER
FOR PURCHASE OF THE GOODS OR SERVICES.
ANY CAUSE OF ACTION FOR BREACH OF ANY WARRANTY BY
THE COMPANY SHALL BE BARRED UNLESS THE COMPANY RECEIVES FROM THE BUYER A WRITTEN NOTICE OF THE ALLEGED
DEFECT OR BREACH WITHIN TEN DAYS FROM THE EARLIEST DATE
ON WHICH THE BUYER COULD REASONABLY HAVE DISCOVERED
THE ALLEGED DEFECT OR BREACH, AND NO ACTION FOR THE
BREACH OF ANY WARRANTY SHALL BE COMMENCED BY THE
BUYER ANY LATER THAN TWELVE MONTHS FROM THE EARLIEST
DATE ON WHICH THE BUYER COULD REASONABLY HAVE DISCOVERED THE ALLEGED DEFECT OR BREACH.
RETURN POLICY
For a period of thirty-six (36) months from the date of shipment, and under
normal conditions of use and service, Moore Industries (“The Company”)
will at its option replace, repair or refund the purchase price for any of its
manufactured products found, upon return to the Company (transportation
charges prepaid and otherwise in accordance with the return procedures
established by The Company), to be defective in material or workmanship.
This policy extends to the original Buyer only and not to Buyer’s customers
or the users of Buyer’s products, unless Buyer is an engineering contractor
in which case the policy shall extend to Buyer’s immediate customer only.
This policy shall not apply if the product has been subject to alteration,
misuse, accident, neglect or improper application, installation, or operation.
THE COMPANY SHALL IN NO EVENT BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES.
© 2014 Moore Industries-International, Inc.
Specifications and Information subject to change without notice.
Loading...
