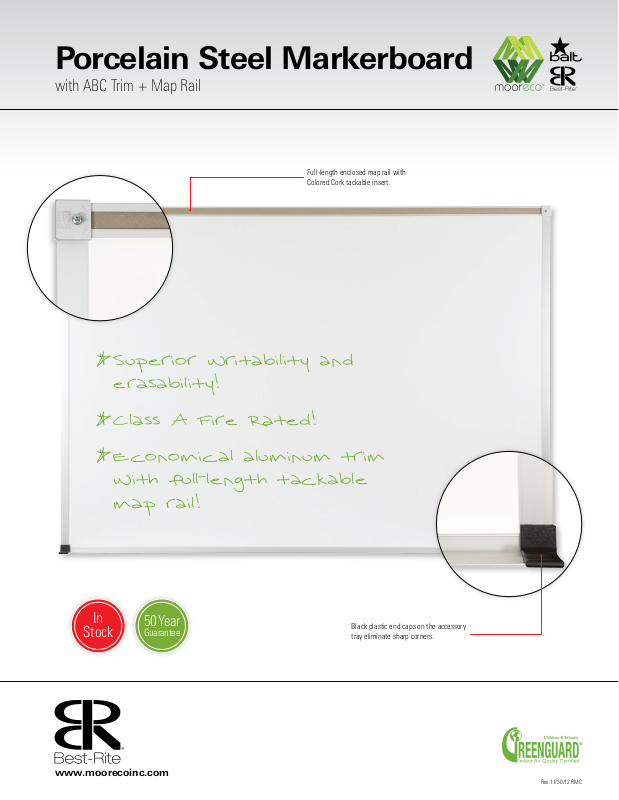

Porcelain Steel Markerboard
with ABC Trim + Map Rail
Full-length enclosed map rail with
Colored Cork tackable insert.
* Superior writability and
erasability!
* Class A Fire Rated!
* Economical aluminum trim
with full-length tackable
map rail!
In
Stock
50 Year
Guarantee
Black plastic end caps on the accessory
tray eliminate sharp corners.
www.moorecoinc.com
Rev 11/30/12 RMC
Balt® & Best-Rite® are brand divisions of
MooreCo Inc.
2885 Lorraine Ave | Temple, TX 76501
p: 800.749.2258 | f: 800.697.6258
www.moorecoinc.com
* Porcelain steel
surface is low
maintenance and
virtually indestructible!
ABC 123
Porcelain Steel Markerboard with ABC Trim + Map Rail
▪ Magnetic porcelain steel markerboards are engineered for superior color
contrast with dry erase markers.
▪ Low gloss porcelain dry erase surface provides superior writability and
erasability with no ghosting. Reduced surface light distortion enhances
visibility to provide optimum eye comfort.
▪ Steel surface is permanently laminated to a particle board substrate for
stability and durability.
▪ Anodized aluminum ABC Trim has a 7⁄8" profile with hairline mitered corners.
Includes full-length tackable map rail with enclosed end stops. Full-length
accessory tray includes plastic end caps to eliminate sharp corners.
▪ Class A Fire Rated board. A full test report copy is available upon request.
▪ Made in the USA. TAA compliant. 50 year guarantee. GREENGUARD Indoor
Air Quality Certified® and GREENGUARD Children & Schools CertifiedSM.
A. Porcelain Steel Markerboard - ABC Trim + Map Rail
Part No. Dimensions Ship Wt.
n 2H2NA-M* 1 1⁄2'H x 2'W 8 lbs
n 2H2NB-M* 2'H x 3'W 14 lbs
n 2H2NC-M** 3'H x 4'W 26 lbs
n 2H2ND-M 4'H x 4'W 55 lbs
n 2H2NE-M 3'H x 5'W 56 lbs
n 2H2NF-M 4'H x 5'W 70 lbs
n 2H2NG-M 4'H x 6'W 74 lbs
n 2H2NH-M 4'H x 8'W 92 lbs
n 2H2NK-M 4'H x 10'W 112 lbs
n 2H2NM-M 4'H x 12'W 153 lbs
n 2H2NP-M 4'H x 16'W 204 lbs
Made in the USA.
*Ships UPS **Ships UPS OS1
Due to shipping restrictions, boards listed as 3'H x 4'W actually measure 33 3⁄4"H x 48"W.
Technical Specifications
▪ Multipurpose magnetic surface with superior writability and erasability
for dry erase markers. Superior contrast and reduced surface light
distortion minimizes glare for optimum eye comfort.
▪ A precisely balanced porcelain enamel ground coat is furnace-fused to
both sides of 28 gauge (standard) or 24 gauge (custom) steel.
▪ The first furnace fuses a ground coat of enamel that is heat-softened at
approximately 1450º F. The second furnace firing fuses a coat of enamel
to the ground coat enamel. Color Fusion ceramic top coat is applied
providing the desired surface color.
▪ A fade resistant waterproof resin glue bonds the porcelain to a
moisture-resistant core and .005" polyester foil backer sheet. Also
available with upgraded sheet aluminum backer. Custom sizes are
available. Off-white is standard.
www.moorecoinc.com
Porcelain Steel Markerboard
with ABC Trim
Trim accented with matching
brushed aluminum corner caps.
* Superior writability and
erasability!
* Class A Fire Rated!
In
Stock
50 Year
Guarantee
* Economical aluminum trim!
Black plastic end caps on the accessory
tray eliminate sharp corners.
Rev 11/30/12 RMC
Balt® & Best-Rite® are brand divisions of
MooreCo Inc.
2885 Lorraine Ave | Temple, TX 76501
p: 800.749.2258 | f: 800.697.6258
www.moorecoinc.com
* Porcelain steel
surface is low
maintenance and
virtually indestructible!
ABC 123
Porcelain Steel Markerboard with ABC Trim
▪ Magnetic porcelain steel markerboards are engineered for superior color
contrast with dry erase markers.
▪ Low gloss porcelain dry erase surface provides superior writability and
erasability with no ghosting. Reduced surface light distortion enhances
visibility to provide optimum eye comfort.
▪ Steel surface is permanently laminated to a particle board substrate for
stability and durability.
▪ Anodized aluminum ABC Trim has a 7⁄8" profile with hairline mitered corners.
Top corners are protected with aluminum end caps. Full-length accessory tray
includes plastic end caps to eliminate sharp corners.
▪ Class A Fire Rated board. A full test report copy is available upon request.
▪ Made in the USA. TAA compliant. 50 year guarantee. GREENGUARD Indoor
Air Quality Certified® and GREENGUARD Children & Schools CertifiedSM.
A. Porcelain Steel Markerboard - ABC Trim
Part No. Dimensions Ship Wt.
n 2H2NA* 1 1⁄2'H x 2'W 8 lbs
n 2H2NB* 2'H x 3'W 14 lbs
n 2H2NC** 3'H x 4'W 26 lbs
n 2H2ND 4'H x 4'W 55 lbs
n 2H2NE 3'H x 5'W 56 lbs
n 2H2NF 4'H x 5'W 70 lbs
n 2H2NG 4'H x 6'W 74 lbs
n 2H2NH 4'H x 8'W 92 lbs
n 2H2NK 4'H x 10'W 112 lbs
n 2H2NM 4'H x 12'W 153 lbs
n 2H2NP 4'H x 16'W 204 lbs
Made in the USA.
*Ships UPS **Ships UPS OS1
Due to shipping restrictions, boards listed as 3'H x 4'W actually measure 33 3⁄4"H x 48"W.
Technical Specifications
▪ Multipurpose magnetic surface with superior writability and erasability
for dry erase markers. Superior contrast and reduced surface light
distortion minimizes glare for optimum eye comfort.
▪ A precisely balanced porcelain enamel ground coat is furnace-fused to
both sides of 28 gauge (standard) or 24 gauge (custom) steel.
▪ The first furnace fuses a ground coat of enamel that is heat-softened at
approximately 1450º F. The second furnace firing fuses a coat of enamel
to the ground coat enamel. Color Fusion ceramic top coat is applied
providing the desired surface color.
▪ A fade resistant waterproof resin glue bonds the porcelain to a
moisture-resistant core and .005" polyester foil backer sheet. Also
available with upgraded sheet aluminum backer. Custom sizes are
available. Off-white is standard.
