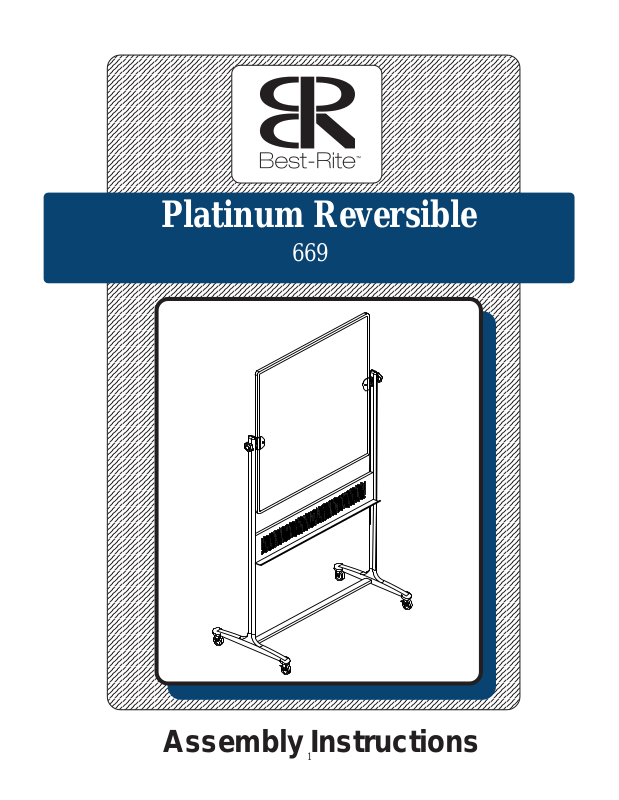

Platinum Reversible

669

Assembly Instructions

WOW

Platinum Reversible

Part Drawing Description Qty

P-1 Right Leg 1 EA

P-2 Left Leg 1 EA

Hardware List

A Long Socket Screw 4 EA

B Short Socket Screw 6 EA

C Flange 2 EA

D Knob 2 EA

P-3 Tray 1 EA

P-4 Cross Bar 1 EA

P-5 Framed Board 1 EA

E 3” Locking Caster 4 EA

H Allen Wrench 1 EA

I Caster Wrench 1 EA

J Lock Washer 4 EA

K Connector 2 EA

L Tapped Rivet 2 EA

Should you require assistance

during assembly, please call our

Customer Service Department

Monday - Friday 8 a.m. - 5 p.m.

Central Standard Time

Toll-Free Customer Service

1-800-749-2258

Platinum Reversible

Assembly Diagram

EAD THROUGH INSTRUCTIONS FROM BEGINNING

TO END

To Assemble:

1. Identify and Separate all the

Parts and Hardware.

Install Cross bar (P-4) to the Legs (P-1) and (P-2) by using Long Socket Screws (A). T ighten with Allen W rench (H). See illustration # 1.

BEFORE

STARTING TO ASSEMBLE UNIT

Illustration # 1

P-1

P-2

P-4

P-1

Illustration # 2

3. Place Lock Washer (J) on threaded stems of Locking Casters (E) and insert into the bottom of each Leg (P-1) and (P-2) and tighten using Caster W rench (I). See illustration #2.

P-2

Missing Parts or UPS Damaged Parts

For Y our Convenience you can

EMAIL us at

support@moorecoinc.com

24HOURS 7 DA YS A WEEK

Snap Connector (K) on each side of

Framed Board (P-5), line up holes and

attach using one Screw (B) and one

T apped Rivet (L).

P-5

Illustration # 3

Screws

4A.

Detach 2 Screws from each side of Framed Board’ s brackets (P-5) with Allen Wrench (H) as shown in illustration # 3.

Install Flange (C) on each side of the

5. board using the same Screws from Step 4 and tighten with Allen Wrench (H). See illustration # 4.

Screws

Illustration # 4

Do not use unless all screws are tight. At least every six months, check all screws to be sure they are tight. If parts are missing, broken, damaged, or worn, stop use of the product until repairs are made by your dealer using factory authorized parts.

Platinum Reversible

P-5

Separate the Legs (P-1) and (P-2) slightly in

6. order to insert the Flange (C) bolts on sides of Framed Board (P-5) through the flange hole on each legs. Fasten the Knobs (D) to secure the board in place. See illustration # 5.

Illustration # 5

P-1

P-3

Illustration # 6

Back V iew

P-2

Assemble T ray (P-3) to the Legs (P-1)

7. and (P-2) with using 4 Short Socket Screws (B) and tighten with Allen Wrench (H). See illustration # 6.

669_11-09-10
