MOORE MW100 User Manual
CALIPERS

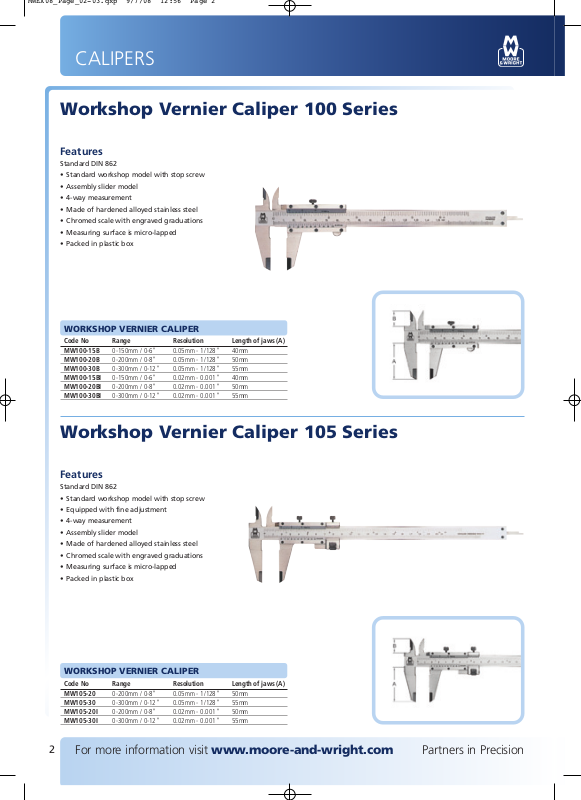

Workshop Vernier Caliper 100 Series
Features
Standard DIN 862
• Standard workshop model with stop screw
• Assembly slider model
• 4-way measurement
• Made of hardened alloyed stainless steel
• Chromed scale with engraved graduations
• Measuring surface is micro-lapped
• Packed in plastic box
WORKSHOP VERNIER CALIPER
Code No Range Resolution Length of jaws (A)
MW100-15B 0-150mm / 0-6" 0.05mm - 1/128" 40mm
MW100-20B 0-200mm / 0-8" 0.05mm - 1/128" 50mm
MW100-30B 0-300mm / 0-12" 0.05mm - 1/128" 55mm
MW100-15BI 0-150mm / 0-6" 0.02mm - 0.001" 40mm
MW100-20BI 0-200mm / 0-8" 0.02mm - 0.001" 50mm
MW100-30BI 0-300mm / 0-12" 0.02mm - 0.001" 55mm
Workshop Vernier Caliper 105 Series
Features
Standard DIN 862
• Standard workshop model with stop screw
• Equipped with fine adjustment
• 4-way measurement
• Assembly slider model
• Made of hardened alloyed stainless steel
• Chromed scale with engraved graduations
• Measuring surface is micro-lapped
• Packed in plastic box
WORKSHOP VERNIER CALIPER
Code No Range Resolution Length of jaws (A)
MW105-20 0-200mm / 0-8" 0.05mm - 1/128" 50mm
MW105-30 0-300mm / 0-12" 0.05mm - 1/128" 55mm
MW105-20I 0-200mm / 0-8" 0.02mm - 0.001" 50mm
MW105-30I 0-300mm / 0-12" 0.02mm - 0.001" 55mm
2
For more information visit www.moore-and-wright.com Partners in Precision
CALIPERS
Precision Miniature Vernier Caliper 110 Series
Features
Standard DIN 862
• Extra small precision vernier caliper
• Mono-block solid slider model
• 4-way measurement
• Made of hardened stainless steel
• Chromed scale with laser engraved graduations
• The scale shows both mm and inch value
• Measuring surface is micro-lapped
• Supplied with leather-look wallet
PRECISION MINIATURE VERNIER CALIPER
Code No Range Resolution Length of jaws (A)
MW110-07 0-70mm 0.05mm 20mm
Precision Vernier Caliper 110 Series
Features
Standard DIN 862
• High precision vernier caliper
• 4-way measurement
• Mono-block solid slider model
• Made of hardened stainless steel
• Chromed scale with laser engraved graduations
• The scale shows both mm and inch value
• Measuring surface is micro-lapped
• Supplied with leather-look wallet
• Optional plastic box
PRECISION VERNIER CALIPER
Code No Range Resolution Length of jaws (A)
MW110-15 0-150mm / 0-6" 0.05mm - 1/128" 40mm
MW110-15I 0-150mm / 0-6" 0.02mm - 0.001" 40mm
MW110-20 0-200mm / 0-8" 0.05mm - 1/128" 40mm
MW110-30 0-300mm / 0-12" 0.05mm - 1/128" 55mm
For more information visit www.moore-and-wright.com Partners in Precision
3
CALIPERS
High Precision Vernier Caliper 112 Series
Features
Standard: DIN 862
• Top model, superior design vernier caliper
• Convex slider shape for easy reading
• 4-way measurement
• Long life guaranteed
• Ultra low friction slider
• Chromed scale with laser engraved
graduations
• Hardened up to 58 HRC
• Made of alloyed stainless steel
• Supplied with leather-look wallet
WORKSHOP VERNIER CALIPER
Code No Range Resolution Length of jaws (A)
MW112-15 0-150mm / 0-6" 0.05mm - 1/128" 40mm
MW112-15I 0-150mm / 0-6" 0.02mm - 0.001" 40mm
Precision Vernier Caliper 115 Series
Features
Standard: DIN 862
• High precision vernier caliper
• Solid slider model, 4-way measurement
• Made of hardened stainless steel
• Chromed scale with laser engraved graduations
• The scale shows both mm and inch value
• Measuring surface is micro-lapped
• Supplied with leather-look wallet
WORKSHOP VERNIER CALIPER
Code No Range Resolution Length of jaws (A)
MW115-15 0-150mm / 0-6" 0.05mm - 1/128" 40mm
MW115-15I 0-150mm / 0-6" 0.02mm - 0.001" 40mm
4
For more information visit www.moore-and-wright.com Partners in Precision
CALIPERS
Vernier Caliper for External Grooves 120 Series
Features
Standard: DIN 862
• Mono-block solid slider model
• Made of hardened stainless steel
• Chromed scale with laser engraved graduations
• Measuring surface is micro-lapped
• Packed in plastic box
VERNIER CALIPER FOR EXTERNAL GROOVES
Code No Range Resolution
MW120-15 0-150mm 0.05mm
Vernier Caliper for Internal Grooves 125 Series
Features
Standard: Factory Standard
• Mono-block solid slider model
• Made of hardened stainless steel
• Measuring surface is micro-lapped
• Packed in plastic box
WORKSHOP VERNIER CALIPER
Code No Range Resolution
MW125-15 0-150mm / 0-6" 0.05mm - 1/128"
For more information visit www.moore-and-wright.com Partners in Precision
5
CALIPERS
Inside Vernier Caliper 145 Series
Features
Standard: Factory Standard
• Features extra long jaws for inside measurement
• High precision model with mono block solid slider
• 4-way measurement possible
• Made of alloyed hardened stainless steel
• Chromed scale with engraved graduations
• Measuring surface is micro-lapped
INSIDE VERNIER CALIPER
Code No Range Resolution Length of jaws (A)
MW145-15 0-150mm / 0-6" 0.05mm / 1/128" 43mm
MW145-15I 0-150mm / 0-6" 0.02mm / 0.001" 43mm
Workshop Vernier Caliper 160 Series
Features
Standard: Factory Standard
• Combination-jaw model
• Separate jaws for internal and external measurement
• Stop screw for locking the slider/jaws
• Made of hardened stainless steel
• Chromed scale with engraved graduations
• Measuring surface is micro-lapped
• With fine adjustment
WORKSHOP VERNIER CALIPER
Code No Range Resolution Length of jaws (A)
MW160-20 0-200mm 0.05mm 60mm
MW160-22 0-200mm 0.02mm 60mm
MW160-30 0-300mm 0.05mm 90mm
MW160-32 0-300mm 0.02mm 90mm
MW160-50 0-500mm 0.05mm 150mm
MW160-52 0-500mm 0.02mm 150mm
6
For more information visit www.moore-and-wright.com Partners in Precision
CALIPERS
Large Workshop Vernier Caliper 150 Series
Features
Standard: Factory Standard
• Standard workshop model with stop screw
• Mono block solid slider
• Made of hardened alloyed stainless steel
• Jaws for internal and external measurement
• Chromed scale with laser engraved graduations
• Measuring surface is micro-lapped
• With fine adjustment
• Packed in wooden box
LARGE WORKSHOP VERNIER CALIPER
Code No Range Resolution Length of jaws (A)
MW150-52 0-500mm / 0-20" 0.02mm - 0.001" 100mm
MW150-55 0-500mm / 0-20" 0.05mm - 1/128" 100mm
MW150-62 0-600mm / 0-24" 0.02mm - 0.001" 100mm
MW150-65 0-600mm / 0-24" 0.05mm - 1/128" 100mm
MW150-72 0-1000mm / 0-40" 0.02mm - 0.001" 125mm
MW150-75 0-1000mm / 0-40" 0.05mm - 1/128" 125mm
MW150-82 0-1500mm / 0-60" 0.02mm - 0.001" 150mm
MW150-85 0-1500mm / 0-60" 0.05mm - 1/128" 150mm
MW150-92 0-2000mm / 0-80" 0.02mm - 0.001" 200mm
MW150-95 0-2000mm / 0-80" 0.05mm - 1/128" 200mm
MW150-96 0-2500mm / 0-100" 0.05mm - 1/128" 200mm
MW150-97 0-3000mm / 0-120" 0.05mm - 1/128" 200mm
Solid Slider Large Workshop Vernier Caliper
152 Series
Features
• Standard workshop model with stop screw
• Mono block solid slider
• Made of hardened alloyed stainless steel
• Jaws for internal and external measurement
• Chromed scale with laser engraved graduations
• Measuring surface is micro-lapped
• With fine adjustment
• Packed in wooden box
SOLID SLIDER LARGE WORKSHOP VERNIER CALIPER
Code No Range Resolution Length of jaws (A)
MW152-55 0-500mm 0.05mm 100mm
MW152-65 0-600mm 0.05mm 100mm
MW152-75 0-1000mm 0.05mm 125mm
MW152-85 0-1500mm 0.05mm 150mm
MW152-95 0-2000mm 0.05mm 200mm
MW152-96 0-2500mm 0.05mm 200mm
MW152-97 0-3000mm 0.05mm 300mm
