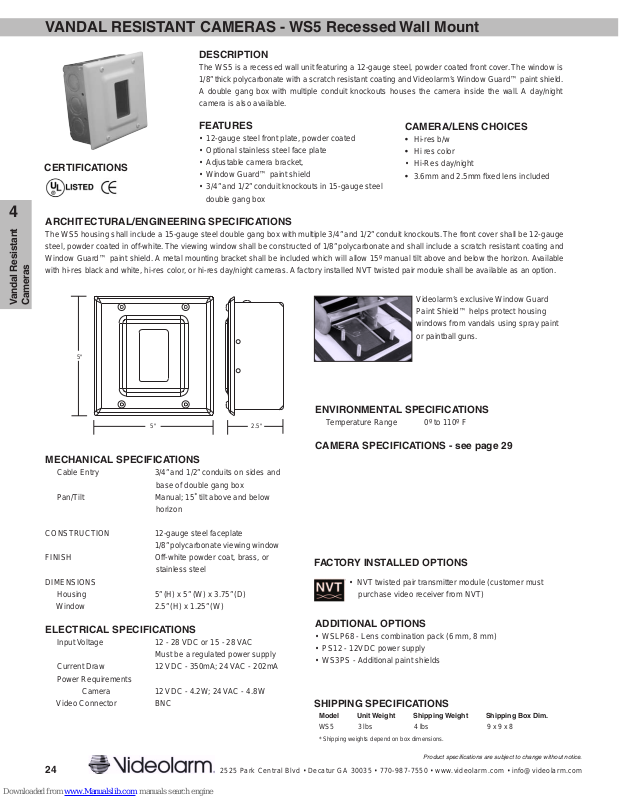

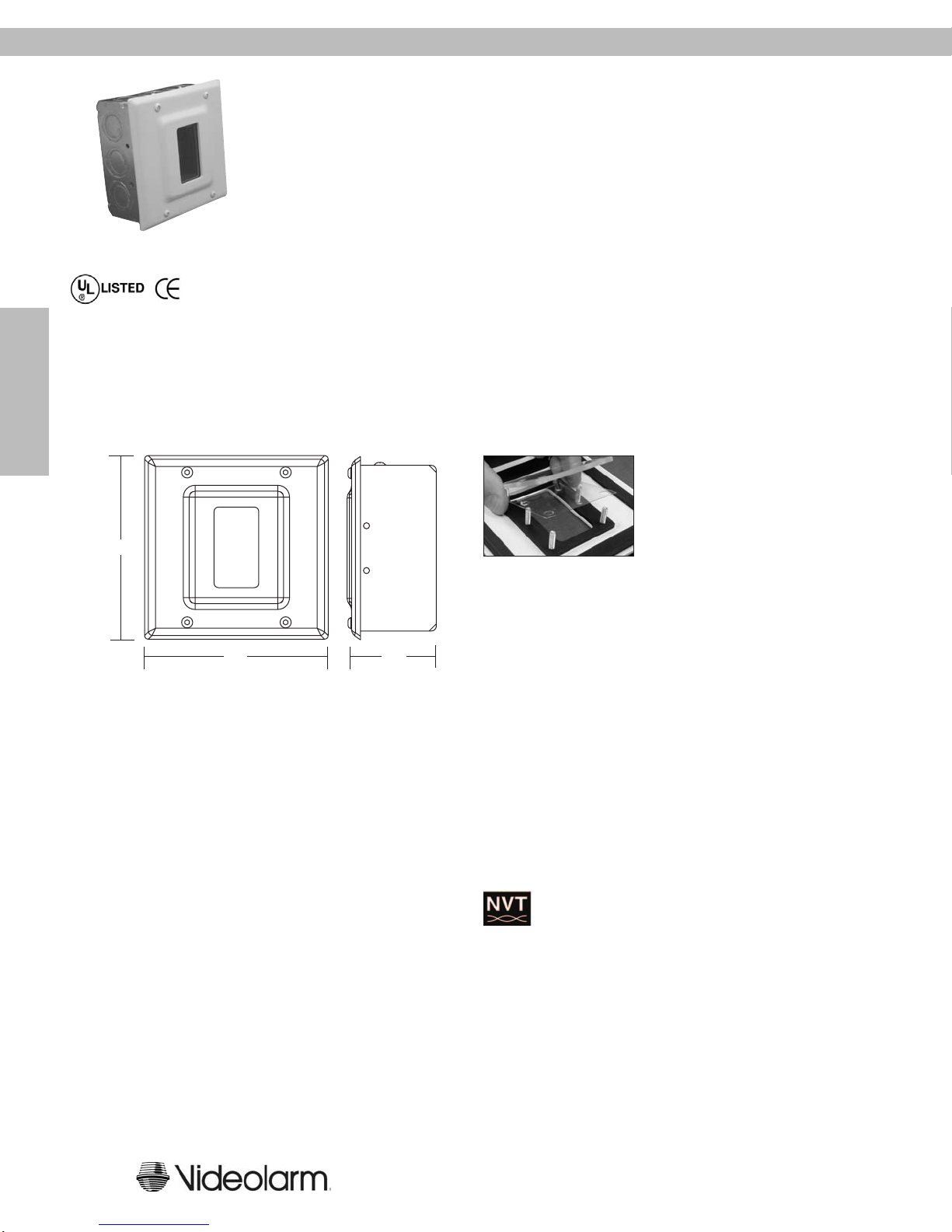

VANDAL RESISTANT CAMERAS - WS5 Recessed Wall Mount
DESCRIPTION
The WS5 is a recessed wall unit featuring a 12-gauge steel, powder coated front cover. The window is
1/8” thick polycarbonate with a scratch resistant coating and Videolarm’s Windo w Guard™ paint shield.
A double gang box with multiple conduit knockouts houses the camera inside the wall. A day/night
camera is also available.
CERTIFICATIONS
4
ARCHITECTURAL/ENGINEERING SPECIFICATIONS
The WS5 housing shall include a 15-gauge steel double gang bo x with multiple 3/4” and 1/2” conduit knockouts. The front cover shall be 12-gauge
steel, powder coated in off-white. The viewing window shall be constructed of 1/8” polycarbonate and shall include a scratch resistant coating and
Window Guard™ paint shield. A metal mounting bracket shall be included which will allow 15º manual tilt above and below the horizon. Available
with hi-res black and white, hi-res color, or hi-res day/night cameras. A factory installed NVT twisted pair module shall be available as an option.
Vandal Resistant
Cameras
FEATURES
• 12-gauge steel front plate, powder coated
• Optional stainless steel face plate
• Adjustable camera bracket,
• Window Guard™ paint shield
• 3/4” and 1/2” conduit knockouts in 15-gauge steel
double gang box
5"
CAMERA/LENS CHOICES
• Hi-res b/w
• Hi res color
• Hi-Res day/night
• 3.6mm and 2.5mm fi xed lens included
Videolarm’s exclusive Window Guard
Paint Shield™ helps protect housing
windows from vandals using spray paint
or paintball guns.
ENVIRONMENTAL SPECIFICATIONS
5"
2.5"
Temperature Range 0º to 110º F
MECHANICAL SPECIFICATIONS
Cable Entry 3/4” and 1/2” conduits on sides and
base of double gang box
Pan/Tilt Manual; 15˚ tilt above and below
horizon
CONSTRUCTION 12-gauge steel faceplate
1/8” polycarbonate viewing window
FINISH Off-white powder coat, brass, or
stainless steel
DIMENSIONS
Housing 5” (H) x 5” (W) x 3.75” (D)
Window 2.5” (H) x 1.25” (W)
ELECTRICAL SPECIFICATIONS
Input Voltage 12 - 28 VDC or 15 - 28 VAC
Must be a regulated power supply
Current Draw 12 VDC - 350mA; 24 VAC - 202mA
Power Requirements
Camera 12 VDC - 4.2W; 24 VAC - 4.8W
Video Connector BNC
CAMERA SPECIFICATIONS - see page 29
FACTORY INSTALLED OPTIONS
• NVT twisted pair transmitter module (customer must
purchase video receiver from NVT)
ADDITIONAL OPTIONS
• WSLP68 - Lens combination pack (6 mm, 8 mm)
• PS12 - 12VDC power supply
• WS3PS - Additional paint shields
SHIPPING SPECIFICATIONS
Model Unit Weight Shipping Weight Shipping Box Dim.
WS5 3 lbs 4 lbs 9 x 9 x 8
* Shipping weights depend on box dimensions.
24
Product specifi cations are subject to change without notice.
2525 Park Central Blvd • Decatur GA 30035 • 770-987-7550 • www.videolarm.com • [email protected]
Page 2
n
VANDAL RESISTANT CAMERAS - Camera and Lens Specifi cations
WARRIOR CAMERA SPECIFICATIONS
Signal System
Imager
Scanning
System
Synchronizing
System
Horizontal
Resolution
Signal-to-Noise
Ratio
Minimum
Illumination
Video
Output
Gain Control
Electronic Iris
Auto Iris
Control
Switchable
Shutter Speed
White Balance
Flickerless
Backlight
Compensation
Lenses
Hi-Resolution
B/W Camera
EIA or CCIR
1/3” CCD
2:1 Interlaced
12 VDC internal
570 TV Lines
More than 48 dB
0.08 Lux (F1.2)
1Vp-p 75 ohm
composite
Auto
Auto
DC Drive Iris Control
w/adjustable level
1/50 1/60 - 1/100,000 sec.
N/A
N/A
Auto
2.5,3.6,6,8,12,16mm Fixed
3.5-8mm Auto-Iris Varifocal
Hi-Resolution
Color Camera
NTSC or PAL
1/4” CCD
2:1 Interlaced
Internal
480 TV Lines
More than 50dB
0.75 Lux (F1.2)
1Vp-p 75 ohm
N/A
ON/OFF
selectable dip switch
DC Drive Iris Control
w/adjustable level
N/A
Auto Trac king White Balance
ON/OFF
selectable dip switch
ON/OFF
selectable dip switch
3
2.5,3.6,6,8,12,16mm Fixed
1,2
Hi-Resolution
Day and Night Camera
NTSC or PAL
1/4” CCD
2:1 Interlaced
Internal
480 TV Lines
More than 50dB
Color - 0.75 Lux (F1.2)
B/W - 0.05 Lux (F1.2)
Switches to B/W at 0.6 Lux
1Vp-p 75 ohm
N/A
ON/OFF
selectable dip switch
DC Drive Iris Control
w/adjustable level
1/60 sec. Fixed (flickerless off)
1/100 sec. Fixed (flickerless on)
Auto Trac king White Balance
ON/OFF
selectable dip switch
ON/OFF
selectable dip switch
3
4-9mm Auto-Iris Varifocal
Pan/Tilt/Zoom Hi-Res
Color Camera
NTSC or PAL
1/3” CCD
2:1 Interlaced
12 VDC internal
480 TV Lines
More than 48 dB
0.4 Lux (F1.2)
1Vp-p 75 ohm
composite
Selectable, RS232C
controllable
N/A
Selectable, RS232C
controllable
Selectable, RS232C
controllable
ON/OFF
selectable dip switch
Selectable, RS232C
controllable
1,2
2.5,3.6,6,8,12,16mm Fixed
3x Digital Zoom
4
4
Vandal Resistant
Cameras
1 - Not available on Warrior 5 and 6 2- Not available on Warrior Pan/Tilt 3 - W arrior 5 and 6 2.5mm and 3.6mm only 4 - Warrior 1, 7, and 8 only
WARRIOR LENS SPECIFICATIONS
FIXED LENSES
2.5mm
Focal Length
Format Size
Relative
1/3"
2.0
3.6mm
1/3"
2.0
6mm
1/3"
2.0
8mm
1/3"
2.0
12mm
1/3"
2.0
16mm
1/3"
2.0
WARRIOR 1-4, 7-8 MODEL CHART
WS1C-20NF3-X12
Warr ior Series
C - Clear Dome
T - Tinted Dome
Warrior 1, 2, 7, & 8
Aperture (F)
VARIFOCAL LENSES
Focal Length
Format Size
Relative
4-8mm
fixed
1/3"
2 - 2.6
4-9mm
auto iris
1/3"
1.6 - 2.4
Aperture (F)
WARRIOR 5 AND 6 MODEL CHART
WS5(B)-20NF-X2
Warrior Series
E - Satin Brass Faceplate
S - Stainless Steel Faceplate
2 - NVT
Twisted Pair
Option
20 - Hi-Res B/W
50 - Hi-Res Color
70 - Hi-Res Day/Night
N - NTSC
P - PAL
Some options may not be available on all models
WARRIOR PAN/TILT MODEL CHART
WP7C-20NF3
Warr ior Pan/Tilt
1 - Surface Mount
7 - Pendant Mount
8 - Ceiling Mount
C - Clear Dome
F - Fixed Lens
T - Tinted Dome
20 - Hi-Res B/W
50 - Hi-Res Color
N - NTSC
P - PAL
20 - Hi-Res B/W
50 - Hi-Res Color
55 - Hi-Res Color Digital Zoom
70 - Hi-Res Day/Night (Fixed only)
1 - Heater
2 - NVT Twisted Pair
3 - IFS Fiber Board
Option
2 - 2.5mm Lens
3 - 3.6mm Lens
6 - 6mm Lens
8 - 8mm Lens
12 - 12mm Lens
16 - 16mm Lens
F - Fixed Lens (20 and 50 only)
A - Auto Iris Vari-focal (All models)
2 - 2.5mm Lens
3 - 3.6mm Lens
6 - 6mm Lens
8 - 8mm Lens
12 - 12mm Lens
16 - 16mm Lens
F - Fixed Lens (20 and 50 O
A - Auto Iris*
* Not available with Day/Night
or Digital Zoom
N - NTSC
P - PAL
Product specifi cations are subject to change without notice.
2525 Park Central Blvd • Decatur GA 30035 • 770-987-7550 • www.videolarm.com • [email protected]
