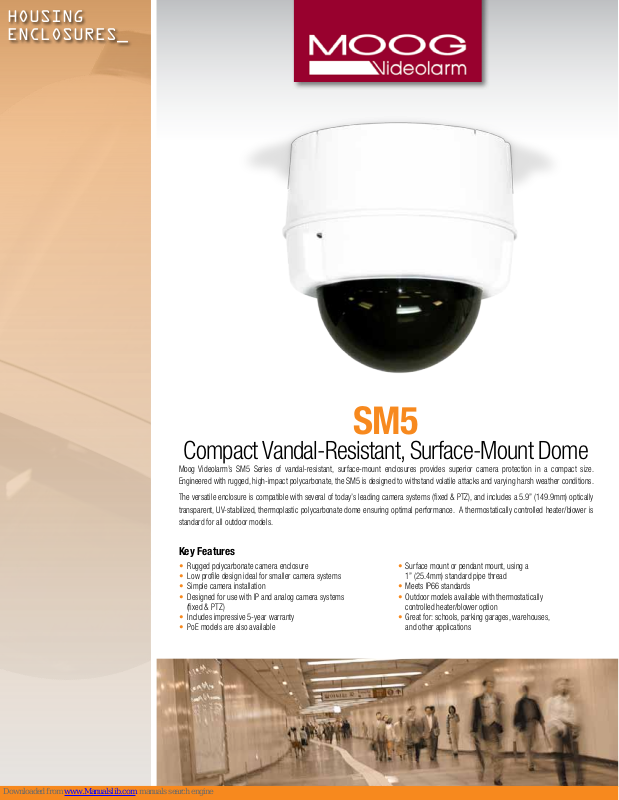

SM5
Compact Vandal-Resistant, Surface-Mount Dome
Moog Videolarm’s SM5 Series of vandal-resistant, surface-mount enclosures provides superior camera protection in a compact size.
Engineered with rugged, high-impact polycarbonate, the SM5 is designed to withstand volatile attacks and varying harsh weather conditions.
The versatile enclosure is compatible with several of today’s leading camera systems (xed & PTZ), and includes a 5.9” (149.9mm) optically
transparent, UV-stabilized, thermoplastic polycarbonate dome ensuring optimal performance. A thermostatically controlled heater/blower is
standard for all outdoor models.
Key Features
•
•
Rugged polycarbonate camera enclosure
•
Low prole design ideal for smaller camera systems
•
Simple camera installation
•
Designed for use with IP and analog camera systems
(xed & PTZ)
•
Includes impressive 5-year warranty
•
PoE models are also available
Surface mount or pendant mount, using a
1” (25.4mm) standard pipe thread
•
Meets IP66 standards
•
Outdoor models available with thermostatically
controlled heater/blower option
•
Great for: schools, parking garages, warehouses,
and other applications
SM5_
Arecont Vision
SM5_
© 2011, Moog Videolarm, Inc. All Rights Reserved
Product and company names listed are trademarks or trade names of their respective companies.
OUTDOOR / INDOOR PTZ MODELS:
SM5C2N / ISM5CN
The SM5C2N is the outdoor model for a PTZ camera.
Compact vandal-resistant polycarbonate surface mount
dome. Clear dome, heater/blower, and a 24Vac / 12Vdc
power supply ideal for a network IP PTZ camera. Includes
a bracket for xed cameras. 50 watt wall transformer
ISM5CN Indoor version with no electronics
Tinted and clear domes available. Specify “C” for Clear or “T” for Tinted
SM5C24N
The SM5C24N is the outdoor model for a PTZ camera.
Compact vandal-resistant polycarbonate surface mount
dome. Clear dome, heater/blower, and 24Vac input,
ideal for a network IP PTZ camera. Includes a bracket for
xed cameras
COMPATIBLE CAMERAS:
Mounting brackets are included and can accommodate most of today’s popular cameras.
To view the latest listing of compatible cameras please visit
www.videolarm.com/thirdparty.jsp
PTZ:
ACM-8201/8211,ACM-8511
AVS100
213, 215, 216
VB-300, VB-C10R, VCB-C50iR
FIXED COMPATIBLE CAMERAS ALSO AVAILABLE:
For detailed list see visit www.videolarm.com/3rdParty.pdf. Accepts maximum camera
length (MCL) 5”
WV-NS202A, WV-SC385, WV-SF300 Series
BB-HCM381,BB-HCM580, WV-CF294, WVCF284, WV-NF284, WV-NF302, WN-NS202
SNC-RZ50
IK-WB21A
SM5C8N
Compact, outdoor surface-mount dome housing for
PoE enabled xed and PTZ cameras. DPA system,
30W, 100-240Vac input, midspan included (see
supported cameras)
SM5C8NE Does not include midspan
ACCESSORIES:
WM10G
Aluminum gooseneck wall mount (shown with SM5 attached), with a 1” NPT thread
PMSM5
Sunshield (shown with optional WM20G wall mount attachment), with a 1½” NPT thread
SPECIFICATIONS:
Mechanical Specications
Size (h*w*d):
Weight:
BODY:
Construction
TRIM RING:
DOME:
Certications and Ratings
Heater and Blower:
Camera:
Environmental Specications
Operating Temperature:
Heater activates at:
Operating Humidity:
Meets IK10 Specications
Model Shipping Weight Box Dimensions
SM5 5 Lbs. (2.27 Kg) 9” x 9” x 11.375” (228.6 x 228.6 x 288.92mm)
500 -677 0 8-08 -2011
8” x 8.5” x 8.4” (203.2 x 215.9 x 213.36mm)
2.3 Lbs. (1.04 Kg)
Polycarbonate
Polycarbonate
Polycarbonate
RoHS
Electrical Specications
Power Requirements:
40W max
24Vac
-40ºF to 122ºF (-40ºC to 50ºC)
60ºF (15ºC)
Up to 100%
Shipping Specications
Dimensions / Architectural Drawings
8.49
215.8
8.36
212.2
2.90
73.7
1/2" Conduit Knockou t
8.49
215.8
1" NPT Pipe Enterance
Dimensions are in inches and (mm)
