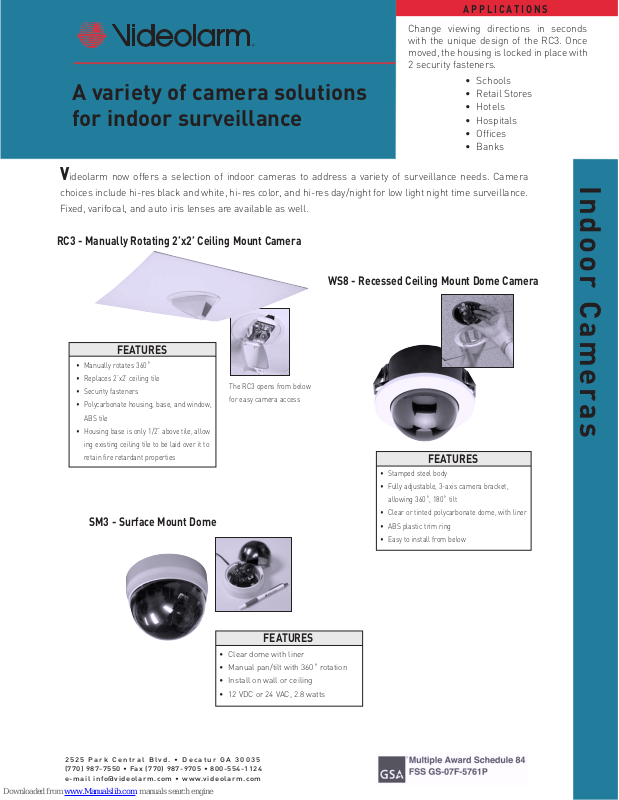

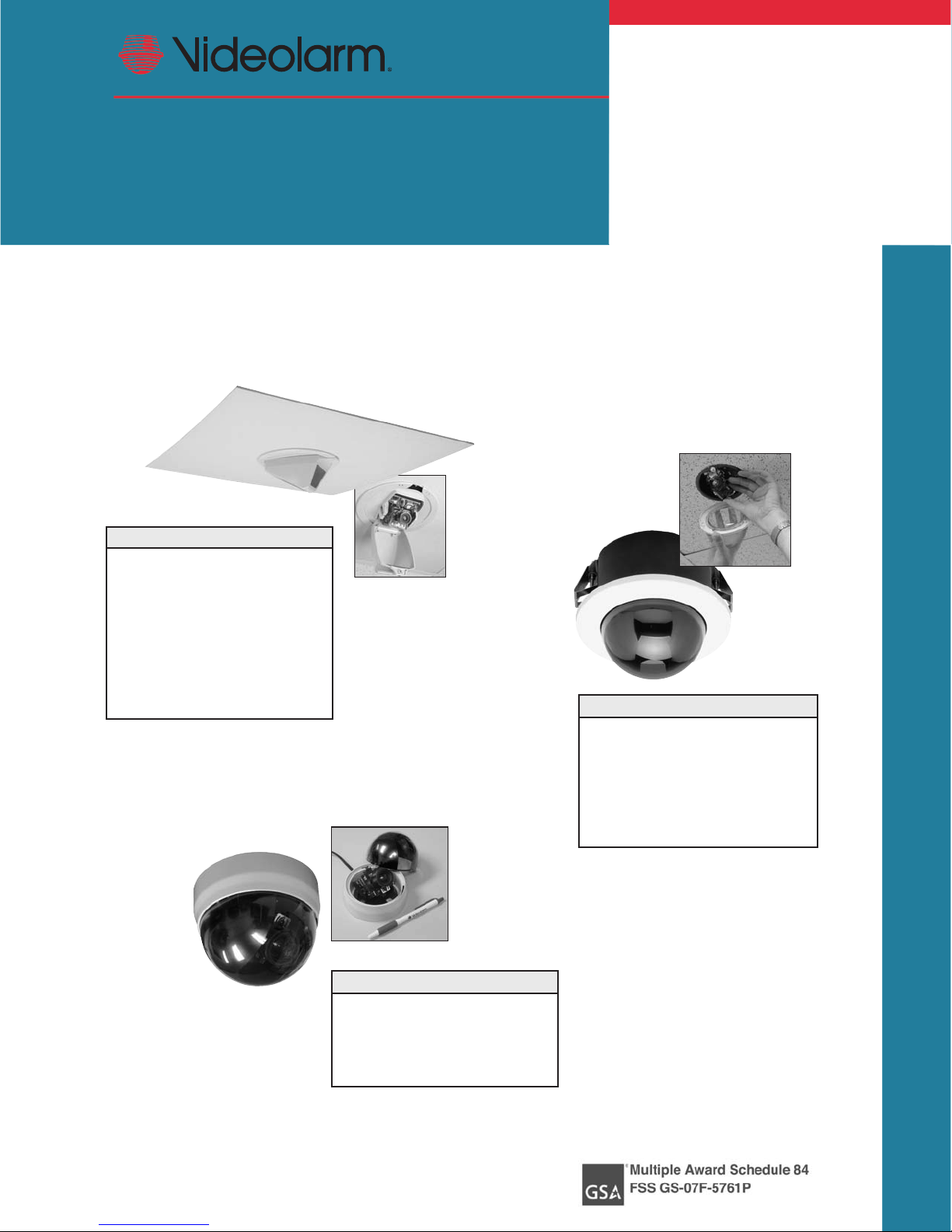

Page 1
APPLICATIONS
Change viewing directions in seconds
with the unique design of the RC3. Once
moved, the housing is locked in place with
2 security fasteners.
• Schools
A variety of camera solutions
for indoor surveillance
V
ideolarm now offers a selection of indoor cameras to address a variety of surveillance needs. Camera
choices include hi-res black and white, hi-res color, and hi-res day/night for low light night time surveillance.
Fixed, varifocal, and auto iris lenses are available as well.
• Retail Stores
• Hotels
• Hospitals
• Offices
• Banks
RC3 - Manually Rotating 2’x2’ Ceiling Mount Camera
WS8 - Recessed Ceiling Mount Dome Camera
Indoor Cameras
FEATURES
• Manually rotates 360˚
• Replaces 2’x2’ ceiling tile
• Security fasteners
• Polycarbonate housing, base, and window,
ABS tile
• Housing base is only 1/2” above tile, allow
ing existing ceiling tile to be laid over it to
retain fire retardant properties
SM3 - Surface Mount Dome
The RC3 opens from below
for easy camera access
FEATURES
• Stamped steel body
• Fully adjustable, 3-axis camera bracket,
allowing 360˚, 180˚ tilt
• Clear or tinted polycarbonate dome, with liner
• ABS plastic trim ring
• Easy to install from below
FEATURES
• Clear dome with liner
• Manual pan/tilt with 360˚ rotation
• Install on wall or ceiling
• 12 VDC or 24 VAC, 2.8 watts
2525 Park Central Blvd. • Decatur GA 30035
(770) 987-7550 • Fax (770) 987-9705 • 800-554-1124
e-mail [email protected] • www.videolarm.com
Page 2
WS8 and RC3 Specifications
CAMERA/LENS SPECIFICATION CHART
Hi-Resolution
Day and Night Camera
1/4” CCD
480 TV Lines
More than 50 dB
Color - 0.75 Lux (F1.2)
B/W - 0.05 Lux (F1.2)
Switches to B/W at 0.6 Lux
ON/OFF
selectable dip switch
N/A
2.5,3.6,6,8,12,16mm Fixed
4-8mm Fixed Iris Varifocal
4-9mm Auto-Iris Varifocal
Imager
Horizontal
Resolution
Signal-to-Noise
Ratio
Minimum
Illumination
Backlight
Compensation
Lenses
WS5 & WS6
WS8
Hi-Resolution
B/W Camera
1/3” CCD
570 TV Lines
More than 48 dB
0.08 Lux (F1.2)
Auto
2.5mm and 3.6mm Fixed
2.5,3.6,6,8,12,16mm Fixed
4-8mm Fixed Iris V arif ocal
Hi-Resolution
Color Camera
1/4” CCD
480 TV Lines
More than 50 dB
0.75 Lux (F1.2)
ON/OFF
selectable dip switch
N/A
2.5,3.6,6,8,12,16mm Fixed
3.5-8mm Auto-Iris Varifocal
ELECTRICAL SPECIFICATIONS
Input Voltage 12 - 28 VDC or 15 - 28 VAC
Must be a regulated power supply
Current Draw 12 VDC - 350mA; 24 VAC - 202mA
Power Requirements
Camera 12 VDC - 4.2W; 24 VAC - 4.8W
Video Connector BNC
ORDERING CHART
WS8C-20NF(3)-X2
Warr ior Series
C - Clear Dome
T - Tinted Dome
20 - Hi-Res B/W
50 - Hi-Res Color
70 - Hi-Res Day/Night
N - NTSC
P - PAL
RC3-30NF3
20 - Hi-Res B/W
50 - Hi-Res Color
70 - Hi-Res Day/Night
N - NTSC
P - PAL
F - Fixed Lens
V - Manual Vari-focal
A - Auto Iris Vari-focal
2 - NVT Twisted Pair
Option
2 - 2.5mm Lens
3 - 3.6mm Lens
6 - 6mm Lens
8 - 8mm Lens
12 - 12mm Lens
16 - 16mm Lens
F - Fixed Lens (20 and 50 only)
A - Auto Iris Vari-focal
2 - 2.5mm Lens
3 - 3.6mm Lens
6 - 6mm Lens
8 - 8mm Lens
12 - 12mm Lens
16 - 16mm Lens
SM3 - Surface Mount Dome Specifications
CAMERA/LENS SPECIFICATION CHART
Signal System: EIA
Imager: 1/3” interline CCD
Effective Pixels: 768H x 494V, approx. 250,000 pixels
Scanning System: 2:1 interlaced
Synchronizing System: Internal/line-lock selectable
Horizontal Resolution: 480 TV lines
Signal to Noise Ratio: 48dB
Minimum Illumination: 1.12 Lux (F1.2)
Video Output: 1.0Vp-p 75 Ohm composite
Gain Control: AGC on/off selectable
Auto Iris Control: DC drive lens
White Balance: Auto
Flickerless: On/off selectable
Backlight Compensation: On/off
Lens: 4-9mm Auto iris
Angle of View: Diagonal - 92.6˚ to 39.4˚
Horizontal - 71.0˚ to 31.6˚
Vertical - 51.8˚ to 23.6˚
ELECTRICAL SPECIFICATIONS
Input Voltage 12 VDC or 24 VAC
Power Requirements 2.8 watts
Video Connector BNC
FACTORY INSTALLED OPTIONS
• NVT twisted pair transmitter module
(customer must purchase video receiver from NVT)
5 Year Warranty on housing,
cameras and fixed lenses
3 Year Warranty on auto iris lenses
2525 Park Central Blvd. • Decatur GA 30035
(770) 987-7550 • Fax (770) 987-9705 • 800-554-1124
e-mail [email protected] • www.videolarm.com
For complete specifications and
other information visit our web
site - www.videolarm.com
