Moog Videolarm RC200C Specifications

HOUSING
ENCLOSURES_

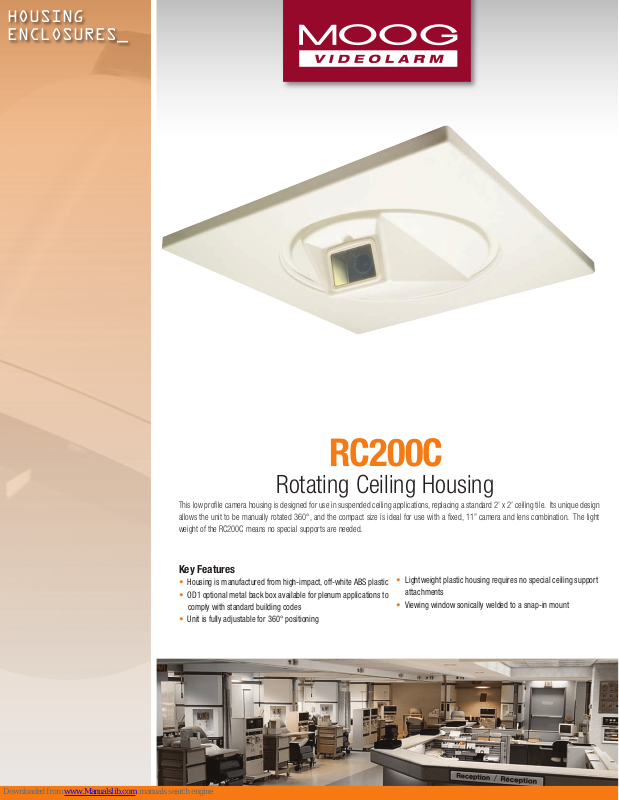

RC200C

Rotating Ceiling Housing

This low profile camera housing is designed for use in suspended ceiling applications, replacing a standard 2’ x 2’ ceiling tile. Its unique design
allows the unit to be manually rotated 360°, and the compact size is ideal for use with a fixed, 11” camera and lens combination. The light
weight of the RC200C means no special supports are needed.

Key Features

•

•

Housing is manufactured from high-impact, off-white ABS plastic

•

OD1 optional metal back box available for plenum applications to

comply with standard building codes

•

Unit is fully adjustable for 360° positioning

Lightweight plastic housing requires no special ceiling support

attachments

•

Viewing window sonically welded to a snap-in mount

RC200C_

23.98

609.1

23.98

609.1

3.71

94.2

.09

2.2

3.85

97.8

4.15

105.5

6.42

163.1

RC200C_

© 2012, Moog Videolarm, Inc. All Rights Reserved

Product and company names listed are trademarks or trade names of their respective companies.

2’ x 2’ ROTATING CEILING HOUSING:

IP Fixed Network:

RC200C

The RC200C is constructed from a high-impact, off white plastic. The IP
network ready rotating xed ceiling camera housing is meant to replace a
2’ x 2’ ceiling tile. No special ceiling support attachments needed. Fully
adjustable for 360° positioning

Camera as it appears in the RC200C housing

COMPATIBLE CAMERAS:

To view the latest listing of compatible cameras please visit:
http://www.videolarm.com/camera-compatability/

FIXED:

(ACTi) KCM-5111, TCM-5211,TCM-5111, 5311, 5611

(American Dynamics) ADC733 series, Discover 600

Series, ADCIPEB series, Illustra 400 Series

(Arecont) AV10005, AV10115, AV1115, AV1300, AV1305,

AV1310, AV2100, AV2105, AV2110, AV2115, AV2805, AV3100,

AV3105, AV3110, AV3115, AV5100, AV5105, AV5110, AV5115

(Avigilon) H3-B2, HD-DN, HD-H264-B1, HD-PRO

(Axis) P13 series, Q16 series, 221, M11 series, Q1755

(Bosch) Dinion LTC Series, NBC-225P, NBC-255P, NBC-256P

(Cisco) 2600, 4300E, 4500E

(Interlogix [UTC]) TVC-M*, TVC-N*

(iQinVision) IQeye 3 Series, IQeye 700 Series, IQeye 7 Series

(JVC) VN-H137U, VN-H37U, VN-H57U, VN-T16U, TK-C1530U

TK-C9200UA, TK-C9300UA,TK-C9510U

(Panasonic) WV-NP244, WV-SP102, WV-SP105, WV-SP302,

WV-SP305, WV-SP306, WV-SP508, WV-SP509

(Pelco) C20, Sarix IX series

(Samsung) SCB-1000, SCB-2000, SCB-2001,

SCB-3000, SCB-3001, SCB-4000, SCB-6000,

SCZ-2370, SCZ-3250, SCZ-3370, SCZ-3430,

SNB-1001, SNB-5200, SNB-2000, SNB-3000,

SNB-3002, SNB-5000, SNB-7000

(Siqura) BC14, BC62, BC64, BC820, BC620

(Sony) SNC-CH120, SNC-CH140, SNC-CH220,

SNC-CH240, SSC-FB530, SSC-FB560, SSC-G103,

SSC-G113A, SSC-G203, SSC-G213A

(Toshiba) IK-6210A, IK-6410A, IK-6420A,

IK-64DNA, IK-6550A, IK-65WDA, IK-WB30A

(UTC Security) UltraView, UltraView IP

(Verint) S5000, S5120

(Vivotek) IP71xx series, IP81xx series

SPECIFICATIONS:

Mechanical Specications

Size (h*w):

Housing:

Construction

Dust Cover (Optional):

Viewing Window:

The housing shall be capable of 360° manual rotation without the use of secondary
brackets or plates. The view panning adjustment shall be unlimited, with locking tabs
provided to secure desired viewing angle. An adjustable stainless steel camera bracket
shall be included.

Operating Temperature:

Brackets:

Snap-in Mount:

Environmental Specications

2’ x 2’

94HB ABS plastic

Stainless steel

4” x 2.9”

Metal

Clear acrylic

-20ºF to 120ºF (-29°C to 49°C)

Architectural Drawings

500 -688 10-2 6-2012

Dimensions are in inches (mm)

Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA +1.770.987.7550 www.moogvideolarm.com
