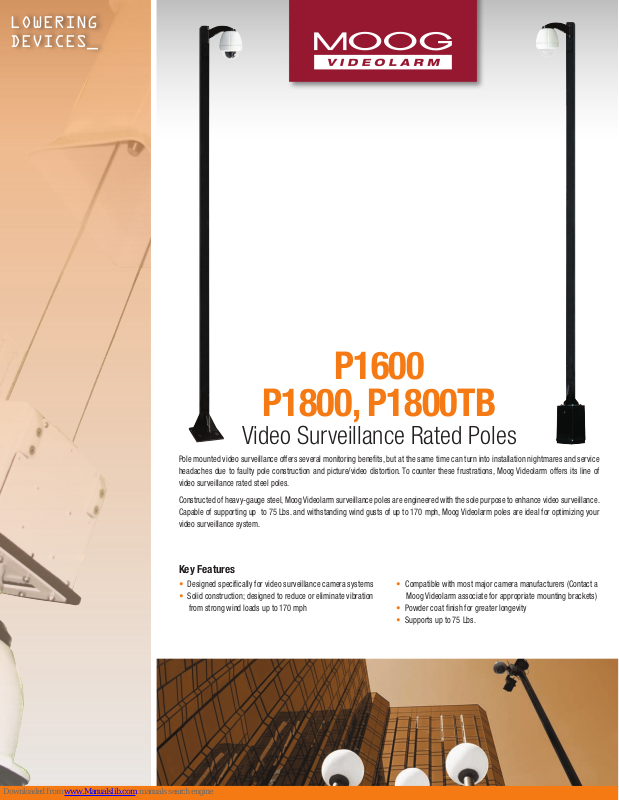

Moog Videolarm P1600, P1800, P1800TB Specifications

LOWERING
DEVICES_

P1600

P1800, P1800TB

Video Surveillance Rated Poles

Pole mounted video surveillance offers several monitoring benets, but at the same time can turn into installation nightmares and service
headaches due to faulty pole construction and picture/video distortion. To counter these frustrations, Moog Videolarm offers its line of
video surveillance rated steel poles.

Constructed of heavy-gauge steel, Moog Videolarm surveillance poles are engineered with the sole purpose to enhance video surveillance.
Capable of supporting up to 75 Lbs. and withstanding wind gusts of up to 170 mph, Moog Videolarm poles are ideal for optimizing your
video surveillance system.

Key Features

•

•

Designed specically for video surveillance camera systems

•

Solid construction; designed to reduce or eliminate vibration

from strong wind loads up to 170 mph

Compatible with most major camera manufacturers (Contact a

Moog Videolarm associate for appropriate mounting brackets)

•

Powder coat nish for greater longevity

•

Supports up to 75 Lbs.

•

VIDEO SURVEILLANCE POLES_

SURVEILLANCE POLES_

© 2012, Moog Videolarm, Inc. All Rights Reserved

Product and company names listed are trademarks or trade names of their respective companies.

Fixed Steel Poles - 4”x4” Square Supports
up to 75 Lbs.:

16’ Fixed Steel Pole:

P1600

Standard 16’ steel pole (4” x 4” tubing) with access panels on top and
bottom, square base with a maximum load of 75 Lbs.

18’ Fixed Steel Pole:

P1800

Solid construction 16’ steel pole with 2’ transformer base NEMA
enclosure. Base includes terminal strip, 115Vac to 24Vac transformer
and surge protection

P1800TB

P1800 without NEMA Box or electronics

ACCESSORIES:

PV1

Lightning Rod for
Free-standing
poles

PV4

Anchoring Jig
(recommended for
each pole ordered)

PV6

Dual illuminator
bracket
(IR not included)

PV8

Pole mount for two
dome installation
(Gooseneck bracket(s)
not included)

Additional Benets of Pole
Mounted Video Surveillance:

• Video Surveillance Rated

• High-Wind Resistance

• Multi-Functionality

Video Surveillance Rated

Applications:

• Parking lots

• Warehouses

• Truck terminals

• Cargo areas

• Jails and prisons

High-Wind Resistance

Multi-Functionality

SPECIFICATIONS:

Product Specications

Construction P1600/P1800:

Dimensions

Weight

Loading

Mounting
Plate

Max
Housing
Height

MODEL SHIPPING WEIGHT BOX DIMENSIONS

P1600

P1800

Terminal Base

** Call Moog Videolarm for complete dimensional information on separately boxed items.

P1600:

P1800:

1600/1800:

Base:

Max Load
Capacity:

Max Wind
Load:

Mounting
Pattern:

Size:

P1600:

P1800:

250 Lbs. (113 Kg.) 16’ x 12” x 12” (406.4 x 304.8 x 304.8mm)

250 Lbs. (113 Kg.) 18’ x 12” x 12” (483 x 304.8 x 304.8mm)

The P1800 also includes the following items, separately boxed:

34 Lbs. (15.42 Kg.) **

Steel

16 Feet Height (4.75” x 4.75” Pole + 12” x 12” Base)

18 Feet Height (4.75” x 4.75” Pole + 13” x 13” Base)

200 Lbs. (90.72 Kg.)

34 Lbs. (15 Kg.)

75 Lbs. (90.72 Kg.)

170 mph ( 16’ pole without base. Up to 3 cameras)

5.5” x 2” (4) 3/8”-16 threaded inserts

7” x 3.5”

16.5’

18.1’

Shipping Specications

196.04

( 4979.3 )

(139.7)

Architectural Drawings

5.17

(131.3 )

4.50

(114.3)

5.50
R

2.00

( 50.8 )

216.68

( 5503.8 )

4.75

( 120.6 )

21.00

( 533.4 )

Dimensions are in (in”) and (mm)

500-687 06-06-2012

Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA +1 770.987.7550 www.videolarm.com
