NIGHT
VISION CAMERA
SYSTEMS_
NiteTrac™
PTZ Camera System & Intelligent Infrared Light

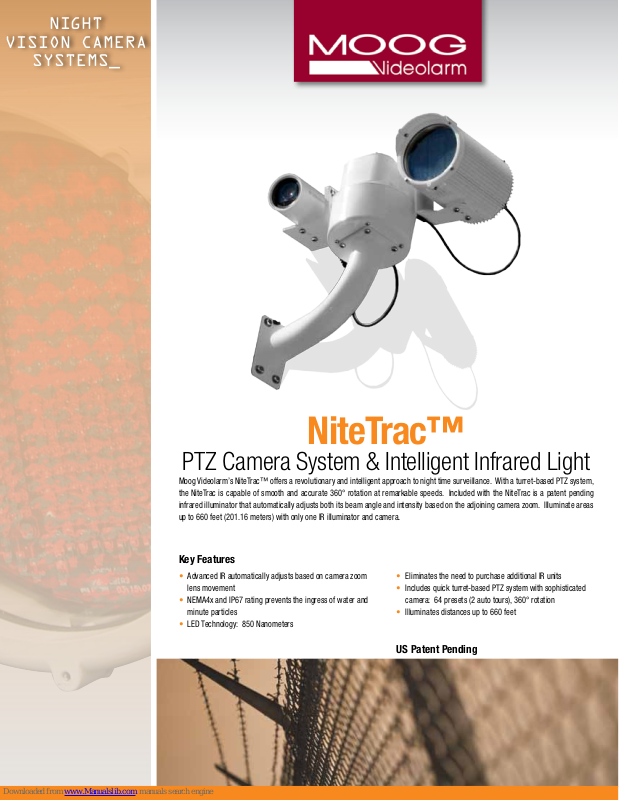

Moog Videolarm’s NiteTrac™ offers a revolutionary and intelligent approach to night time surveillance. With a turret-based PTZ system,
the NiteTrac is capable of smooth and accurate 360° rotation at remarkable speeds. Included with the NiteTrac is a patent pending
infrared illuminator that automatically adjusts both its beam angle and intensity based on the adjoining camera zoom. Illuminate areas
up to 660 feet (201.16 meters) with only one IR illuminator and camera.
Key Features
•
•
Advanced IR automatically adjusts based on camera zoom
lens movement
•
NEMA4x and IP67 rating prevents the ingress of water and
minute particles
•
LED Technology: 850 Nanometers
Eliminates the need to purchase additional IR units
•
Includes quick turret-based PTZ system with sophisticated
camera: 64 presets (2 auto tours), 360° rotation
•
Illuminates distances up to 660 feet
US Patent Pending
Page 2
NITETRAC™_
NITETRAC™_
© 2011, Moog Videolarm, Inc. All Rights Reserved
Product and company names listed are trademarks or trade names of their respective companies.
Night Vision Dust Proof Pan/Tilt Camera
Systems with IR:
NTK-SD-3N / NT-SD-3
The NTK-SD-3N is an outdoor nightvision PT system,
with IR illuminator automatically adjusts based on
the camera’s zoom level, dust-proof camera housing
with 36x day/night camera, 360° rotation, includes IP
network Axis card. The NT-SD-3 unit meets RS422
Pelco D & P protocols
NTK-SD-3
Outdoor PT system with dust proof camera housing,
36x day/night camera, 360° rotation, RS422 Pelco D
& P protocols. (No IR)
Pan/Tilt Camera System with IR:Dust Proof Pan/Tilt Camera System:
NTK-SD-N
Outdoor nightvision PT system with environmental
camera housing, 360° rotation, no camera included.
Call for compatible cameras
WHAT ARE INFRARED ILLUMINATORS?
For surveillance applications where light is not sufcient, i.e. Night-time scenarios, an infrared illuminator is strongly recommended for enhancing your view of sight.
Composed of multiple light emitting diodes (LEDs), the infrared illuminators produce an infrared beam of light that when paired with either a day/night or black & white
camera will illuminate the surrounding area for increased visibility
INTELLIGENT INFRARED ILLUMINATOR & PTZ CAMERA SYSTEM:
Dust-Proof Tubular Housing & Camera System or Environmental Housing:
IP66 housing thermostatically controlled heater/blower, extruded aluminum case. 36x day/night
camera, 380,000 pixels. Environmental housing system does not come equipped with a camera.
Compatible with Axis Q1755
Fully Adjustable Infrared Illuminator:
One model for all applications! Infrared illuminator incorporating advanced LED technology - 850
nanometers. Capable of automatically adjusting beam angle and intensity based on adjoining camera
zoom lens. User replaceable fuse and automatic fan for heat dissipation
ACCESSORIES:
VLAY8
Sunshield
WMNT12
Wall Mount for
NiteTrac Series
PTZ / Turret System:
PTZ turrest - style system capable of 360° rapid, accurate rotation. Incorporating 64 presets and 2
auto tours, rugged industrial design
SPECIFICATIONS:
Mechanical Specications PAN/TILT
Pan Movement:
Pan Speeds:
Tilt Speeds:
Electrical Specications
Input Voltage:
Power Consumption:
Heater/Defroster:
Protocols:
Operating Temperature:
Construction Pan/Tilt:
Finish:
Weather Resistance:
360° Continuous pan rotation
0.5°-40°/sec manual operation
0.5°-30°/sec manual operation
24Vac / DC, 50/60 Hz Range ±10%
80W (Pan/Tilt, Enclosure, Camera)
Thermostatically controlled, 10W
Pelco P+D
Image Sensor:
Lens:
Min. Illumination Color: B&W:
Signal System:
Signal-to-Noise Ratio:
Protocols:
Network Interface:
Environmental Specications
-40°F to 122°F (-40°C to 50°C)
Product Specications
Cast aluminum base and yoke, stainless steel hardware Extruded aluminum housing, aluminum rear end and front cap
White powder coat
IP67
Camera Specications
¼” Exview HAD CCD
3.4-122.4mm, F1.6 to F4.5, Auto-Iris, 36x Zoom
3 lux 0.02 lux
NTSC, PAL available call Factory
Auto/Manual
Pelco P&D
10/100 Base-T Ethernet
HTTP, HTTPS, SSL/TLS*, TCP, SNMPv1/v2cv/v3 (MIB-II), RTSP, RTP, UDP,
IGMP, RTCP, SMTP, FTP, DHCP, UPnP, ARP, DNS, DynDNS
500-667 08 -09-2010
Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA 1.800.554.1124 www.videolarm.com
Page 3
NIGHT
VISION CAMERA
SYSTEMS_
TM
NiteTrac2

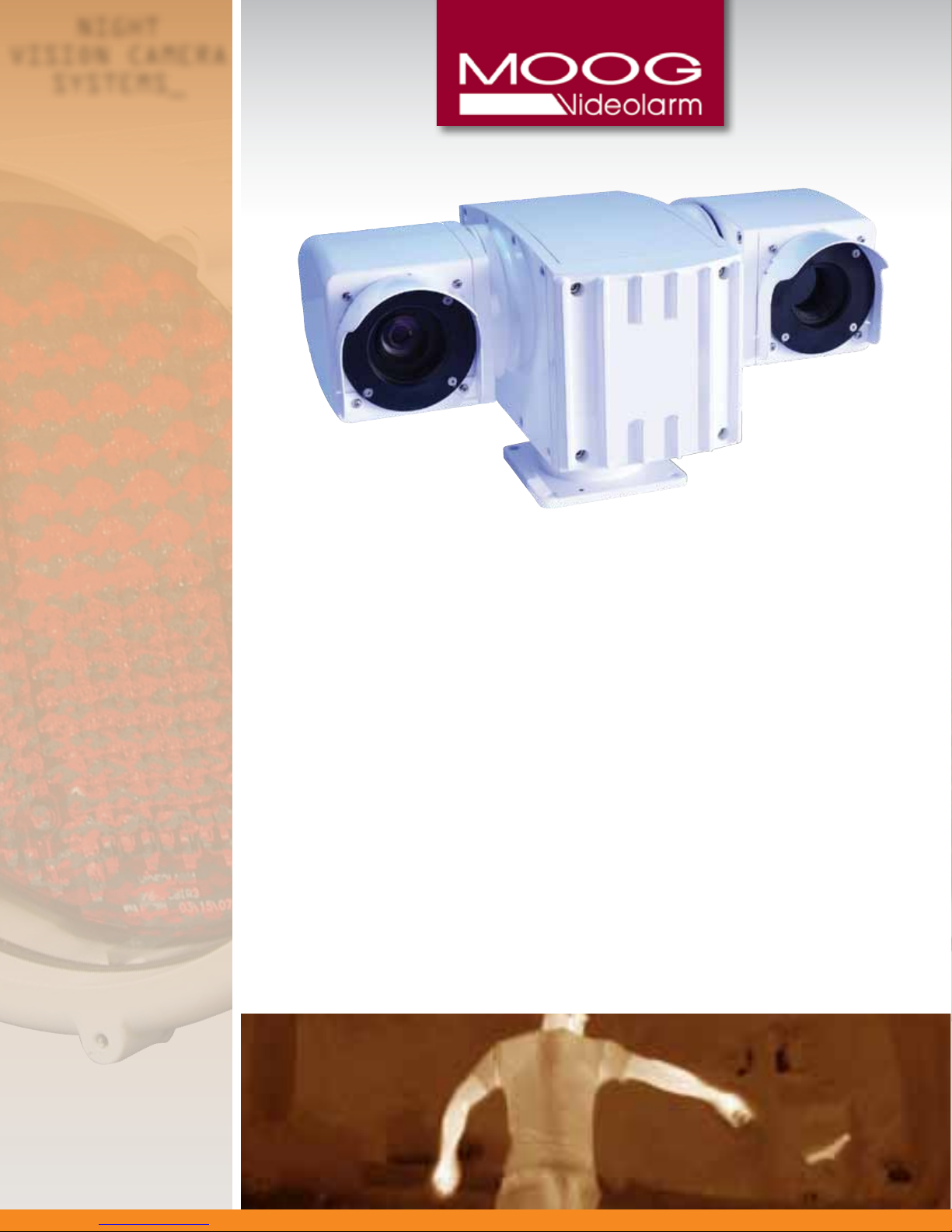

Modular Pan/Tilt Imaging System with Thermal Detection
The demand for high performance day/night surveillance is pressing for smaller, smarter, less expensive products. At the same time,
the environments in which imaging products must function are increasingly hostile. Responding to this demand, the NiteTrac2 modular
pan/tilt imaging system was developed.
Completely upgradable, the NiteTrac2 consists of a modular system of imager blocks that can be easily updated with your
specic camera.
The NiteTrac2 is available as a standalone pan/tilt unit or can paired with advanced state-of-the-art thermal detection for optimal
night surveillance.
Key Features
•
•
Compact / light weight
•
Quick-change camera modules (blocks) with true plug ‘n play feature
•
Mil-STD-810F, IP67 (Certied), sealed and pressurized camera housings
•
Multiple protocol translation - and support
•
Pole and mounts
•
36x day/night optical zoom
•
Continuous high-speed 360º rotation
Mobile and invertible
•
No exposed wiring
•
Full two-way communication
•
Mounting kits
•
Image stabilization
SENSOR INTEGRATION
•
Visible spectrum cameras
•
Thermal imagers available
Page 4
NITETRAC2™_
NITETRAC2™_
© 2011, Moog Videolarm, Inc. All Rights Reserved
Product and company names listed are trademarks or trade names of their respective companies.
NiteTrac2 with/out Thermal Imaging:
NTK2TH-SD-3
Outdoor PT system with dust proof camera housing with 36x day/night camera,
360° rotation, RS422 Pelco D & P protocols. (No IR)
• Thermal camera: high resolution, 30 micron detector (320 x 240)
• Day/night camera, 36x optical and 12x digital zoom
NTK2-SD-9
• Day/night camera, 36x optical and 12x digital zoom
• Additional camera block slot available for IR or second camera system
Camera Blocks:
The camera blocks are unique and are
designed for quick (one lever) disconnect
from the positioning platform. Customers
can recongure systems from day to night
payloads or install both at the same time.
Cameras can be “swapped” without any
change to the system commands. Each
camera block is fully sealed and pressurized to assure moisture free operation
and long lifetime.

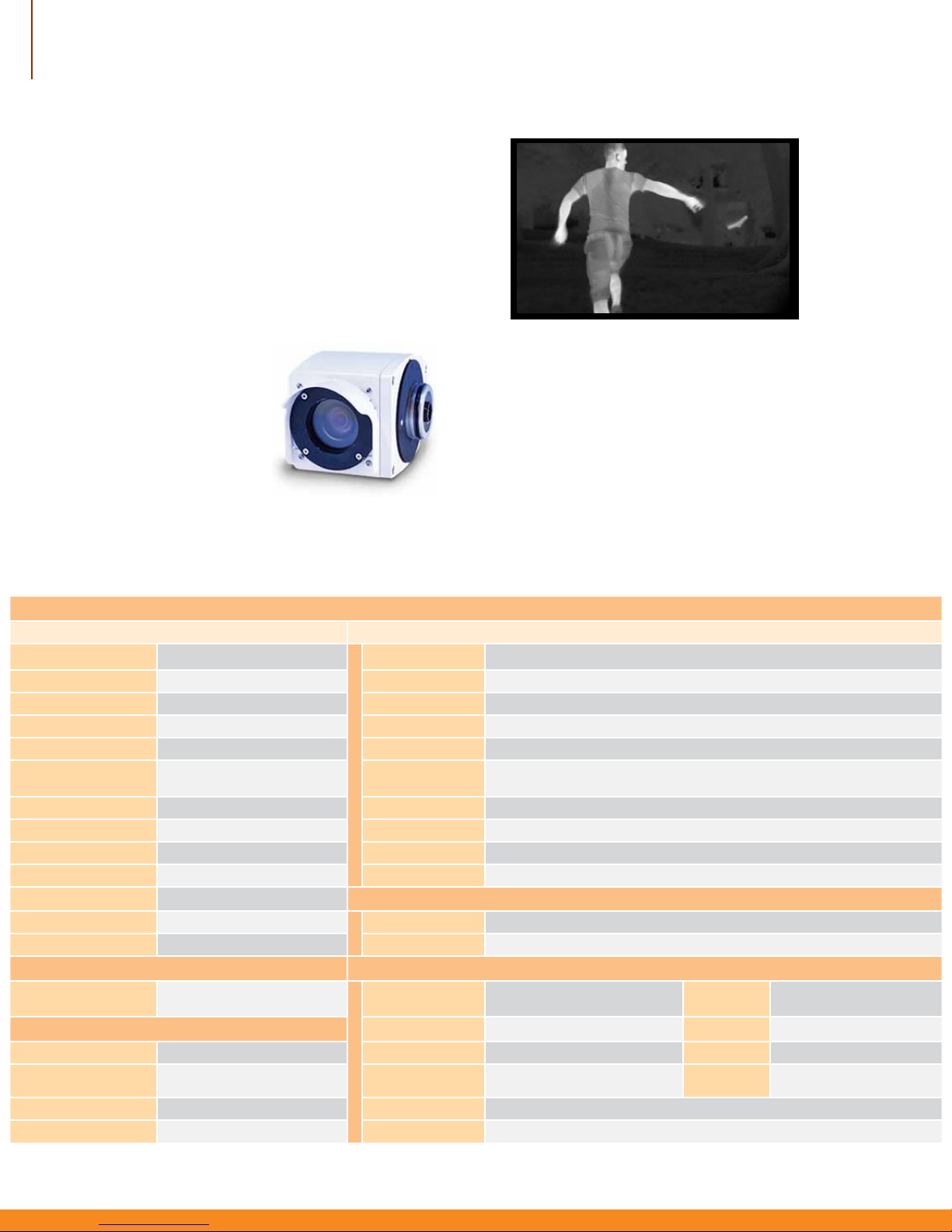

THERMAL IMAGING BENEFITS:
Are you nding yourself
hindered by the ever
present need for a night
or low light surveillance
application? Moog
Videolarm now provides
a perfect solution in the
form of the NiteTrac2.
The NiteTrac2 is a
state-of-the-art modular
imaging system that will
combat night surveillance by incorporating both an advanced thermal and day/
night camera system to a high performance pan/tilt device. Thermal imaging
provides a wealth of benets / features that far surpass alternate night surveillance
products.
Some of the major benet from the versatility of thermal video surveillance,
including a more covert monitoring experience verses standard lighting or infrared
illumination. Thermal grants you the ability to see through several types of
obstacles, including fog, rain, and brush. Maximize detection by targeting items
that emit heat, resulting in quick detection and counter reactions.
Offering 360° of continuous rotation and a sealed / pressurized enclosure, the
NiteTrac2 comes factory-wired for a true "Plug n' Play" experience.
SPECIFICATIONS:
Camera Specications: Day and Night Thermal
NiteTrac2 Camera Specications Chart NiteTrac2 Thermal Camera Specications Chart
Image Sensor: ¼” FPA: Uncooled Microbolometer
Signal Format: NTSC, PAL Spectral Range: 7-14 µm
Horizontal Resolution: 470 TVL - NTSC Resolution: 320 x 240
Digital Zoom: 10x (260x with optical zoom) FOV: 12°/H x 9°/V
Angle of View 54° (wide) to 2.5° (tele) Frame Rate: 30 Hz (NTSC)
Min. Illumination Color:
B&W:
S/N ratio: 50 dB Controls: Digital Zoom, Video Polarity, Video Format
Shutter Speed: Auto/Manual (manual ½s - 1/30,000s) Sensitivity: ‹ 0.50 mK
White Balance: Auto/Manual Anti- blooming: Active
Iris Control: Auto/Manual Lens: 12°W Athermalized, External Manual Focus Adjustment
Focusing System: Auto/Manual
Low Light IR: Auto/Manual Input Voltage: 10 to 30 VDC with reverse polarity
Backlight Compensation: On / Off Microprocessor Control: 32 presets and 2 preset tours
Environmental Specications Product Specications
Operating Temperature: (-30°C to 55°C) Weight:
Mechanical Specications (Pan/Tilt)
Pan Movement: 360° Continuous pan rotation Motor Type/Drive: Steppers with belt drive Control Formats: Serial RS422/RS485
Pan Speeds: 0.25˚ – 100˚/sec
Tilt Speeds: .25˚ – 60˚/sec Materials: Aluminum housing, stainless steel hardware
Tilt Range: -90° to 90˚ non-continuous Enclosure: IP67, sealed and pressurized camera housings
3 kux @ 1/60s, .2 lux @ ¼s
0.02 lux (¼s, IR cut lter removed)
Analog Video Output: PAL (768 x 574 pixels) or NTSC (640 x 480 pixels
Electrical Specications
Less than 22 Lbs. (10 Kg.) with dual
cameras
Marine Resistant: Paint, bearings and gaskets Repeatability: .25˚
Position Feedback
Resolution and Readout:
.01˚ Connector: Mil spec, bottom pigtail
Limits:
Fixed tilt hard limit, adjustable
soft limits
500-685 08-10-2010
2525 Park Central Boulevard, Decatur, GA 30035 USA 1.800.554.1124 www.videolarm.com
