HOUSING
ENCLOSURES_
WS1
WS5
WS2
WS9
WS6
WARRIOR™ SERIES
Discrete Vandal-Resistant Camera Systems
Moog Videolarm’s Warrior™ Series offers a inconspicuous solution to video surveillance. The discrete and rugged vandal-resistant body of the
Warrior Series is ideal for monitoring a high risk area in a compact and durable package. Dispite the units size the xed or auto-iris lens camera
models pack a denate punch ranging from 3.6mm to 8mm utilizing a high resolution color camera system.
Key Features
•
•
Rugged vandal-resistant cast aluminum body
•
3” polycarbonate dome
•
Outdoor models available with heater/blower system
High resolution color camera system; with xed or
auto-iris lens models
•
NVT twisted pair models available
•
Variety of mounts and accessories available
CERTIFIED
WARRIOR SERIES_
3” Dome Surface Mount:
Key Features
•
Includes a choice of cameras
•
Heavy-duty cast aluminum construction
•
Fully adjustable 3-axis camera bracket, allowing 360º
pan,180º tilt
•
Environmentally sealed - designed for NEMA 4, IP65
•
Clear or tinted polycarbonate dome with liner
•
WS1
The Warrior WS1 is built to take punishment and give years of dependable service. Perfect for indoor
or outdoor locations such as schools, correctional facilities, airports, hospitals and more. The WS1 is
available with either xed or vari-focal lens. And the camera itself is protected by a high-impact,
polycarbonate dome with liner that can withstand the impact of a sledgehammer.
Engineering Specications (WS1)
The WS1 housing is manufactured from 3/16” thick cast aluminum with an off-white powder coat nish and is environmentally
sealed. One 3/4” conduit opening is located on a side of the housing and one 1/2” conduit opening is located on the back. The
dome is constructed of 1/8” thick polycarbonate measuring 3.875” in diameter. A including a liner, along with a lanyard to
keep the dome from dropping when opened for service. A camera bracket with three-way adjustment is included. Adjustments
include 360º pan of the entire bracket, 180º tilt of the lens bracket, and a 90º tilt of the lower portion of the bracket in instances
where the entire housing must be mounted at an angle.
Tamper-resistant fasteners
SPECIFICATIONS:
Electrical Specications
Input Voltage:
Video Connector:
General Specications
Cable Entry:
Pan/Tilt:
Environmental Specications
Temperature Range:
3/16” thick cast aluminum 1/8” polycarbonate dome
Finish:
Base:
Dome:
15 - 30 VDC or 20 - 28 VAC
BNC
One 3/4” threaded side conduit opening One 1/2”
threaded base conduit opening
Manual; 360º pan / 180º tilt
0º to 120º F
Construction
Off-white powder coat
Dimensions
5.25” (H) x 5.25” (W) x 4” (D)
3.875” diameter
3” Dome Recessed Mount:
Key Features
•
Includes a choice of cameras
•
Cast aluminum construction
•
Fully adjustable 3-axis camera bracket, allowing 360º pan,180º tilt
•
Environmentally sealed
•
Clear or tinted dome with liner
•
Mounts to standard double gang box (not provided)
•
Tamper-resistant fasteners
WS2
The WS2 is the recessed version of the WS1. It’s designed for ceiling or wall mounting and, with its
recessed body, offers a low prole. Besides use in indoor applications such as schools or hospitals, the
environmentally sealed body allows outdoor use in areas such as loading docks or parking garages.
The back box and lower body of the WS2 are constructed of cast aluminum, while the dome is made
from high-impact polycarbonate and comes with liner. The WS2 comes complete with a color camera,
available with either xed or vari-focal lens.
Engineering Specications (WS1)
The WS2 housing back box and lower body are both manufactured from 3/16” thick cast aluminum with an off-white powder
coat nish. The housing is environmentally sealed. The dome is constructed of 1/8” thick polycarbonate. A camera bracket with
three-way adjustment is included. Adjustments include 360º pan of the entire bracket, 180º tilt of the lens bracket, and a 90º
tilt of the lower portion of the bracket in instances where the entire housing must be mounted at an angle. To fully conceal the
back box the use of a standard double gang box is recommended. Available with a high resolution color camera; xed, xed iris
vari-focal or auto iris vari-focal lens.
SPECIFICATIONS:
Electrical Specications
Input Voltage:
Video Connector:
General Specications
Pan/Tilt:
Environmental Specications
Temperature Range:
3/16” thick cast aluminum 1/8” polycarbonate dome
Finish:
Base:
Dome:
15 - 30 VDC or 20 - 28 VAC
BNC
Manual; 360º pan / 180º tilt
0º to 120º F
Construction
Off-white powder coat
Dimensions
5.25” (H) x 5.25” (W) x 4” (D)
3.875” diameter
WARRIOR SERIES_
© 2009-2010, Moog Videolarm, Inc. All Rights Reserved
Product and company names listed are trademarks or trade names of their respective companies.
Recessed Wall Mount:
Key Features
•
Includes a choice of cameras
•
12-gauge steel front plate, powder coated
•
Adjustable camera bracket, allowing 15º tilt above and below horizon
•
Optional stainless steel or brass face plate
•
Window Guard™ paint shield
•
3.6mm and 2.5mm xed lens
•
3/4” and 1/2” conduit knockouts in 15-gauge steel double gang box
•
Tamper-resistant fasteners
WS5
The WS5 is a recessed wall unit featuring a 15-gauge steel double gang box or a 12-gauge steel front
plate, powder coated front cover. The window is 1/8” thick polycarbonate with a scratch resistant
coating and Moog Videolarm’s Window Guard™ paint shield. These combine to offer durable protection
for camera equipment. A double gang box with multiple conduit knockouts houses the camera inside
the wall. The WS5 includes a choice of cameras. This housing is perfect for indoor locations in schools,
hospitals, police and correctional facilities...anywhere tough but discreet surveillance is needed.
Engineering Specications (WS1)
The WS5 housing includes a 15-gauge steel double gang box with multiple 3/4” and 1/2” conduit knockouts. The front cover is
a 12-gauge steel, powder coated in off-white. The viewing window is constructed of 1/8” polycarbonate and includes a scratch
resistant coating and Window Guard™ paint shield. A metal mounting bracket is included which will allow 15º manual tilt above
and below the horizon. Available with a high resolution color xed lens camera.
Available with off-white, stainless steel
or brass face plate!
SPECIFICATIONS:
Electrical Specications
Input Voltage:
Video Connector:
Cable Entry:
Pan/Tilt:
Environmental Specications
Temperature Range:
12-gauge steel front cover 15-gauge steel double gang box
Metal mounting bracket 1/8” polycarbonate viewing window
Finish:
Unit:
Window:
15 - 30 VDC or 20 - 28 VAC
BNC
General Specications
3/4” and 1/2” conduits on sides and base of
double gang box
Manual; 15º tilt above and below horizon
0˚ - 110˚ F
Construction
Off-white powder coat
Dimensions
5 (H) x 5” (W) x.375” (D)
2.25” (H) x 1.25” (W)
Corner Mount Housing:
Key Features
•
Compact design
•
Includes a choice of cameras
•
12-gauge steel front plate, powder coated
•
Optional stainless steel or brass face plate
•
16-gauge steel back box
•
Adjustable camera bracket, allowing tilt
•
Tough, 1/8” polycarbonate viewing window
•
Conduit knockouts in the top, side, and bottom
•
WS6
Designed for indoor applications, the Warrior 6 offers discreet surveillance in a compact package.
A 12-gauge steel front cover and polycarbonate window with a scratch resistant coating protect
camera equipment, while the 16-gauge steel back box allows wiring access through either the top,
side or bottom. The Warrior 6 comes complete with a choice of cameras. The sturdy construction
and small size make it perfect in applications such as hospitals, schools, government buildings, and
correctional facilities.
Engineering Specications (WS1)
The Warrior 6 housing includes a 16-gauge steel backbox with 3/4” conduit knockouts. The front cover is 12-gauge steel,
powder coated in off-white. There is an optional stainless steel or brass front plage. The viewing window is constructed of 1/8”
polycarbonate and includes a scratch resistant coating and paint shield for high vandalism installations. A metal camera
mounting bracket is included, allowing from 10º to 50º viewing angle. Available with a high resolution color xed lens camera.
Vandal-proof paint shield (patent pending)
Available with off-white, stainless steel
or brass face plate!
SPECIFICATIONS:
Electrical Specications
Input Voltage:
Video Connector:
Cable Entry:
Pan/Tilt:
Environmental Specications
Temperature Range:
12-gauge steel front cover 16-gauge steel back box
Metal mounting bracket 1/8” polycarbonate viewing window
Finish:
Unit:
Window:
15 - 30 VDC or 20 - 28 VAC
BNC
General Specications
Conduits on top, side, and bottom
Manual
0˚ - 110˚ F
Construction
Off-white powder coat
Dimensions
3” (H) x 6.5” (W) x 5” (D)
2.25” diameter
500-698 + 08 -06-2010
Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA + 1.800.554.1124 www.videolarm.com
WARRIOR SERIES_

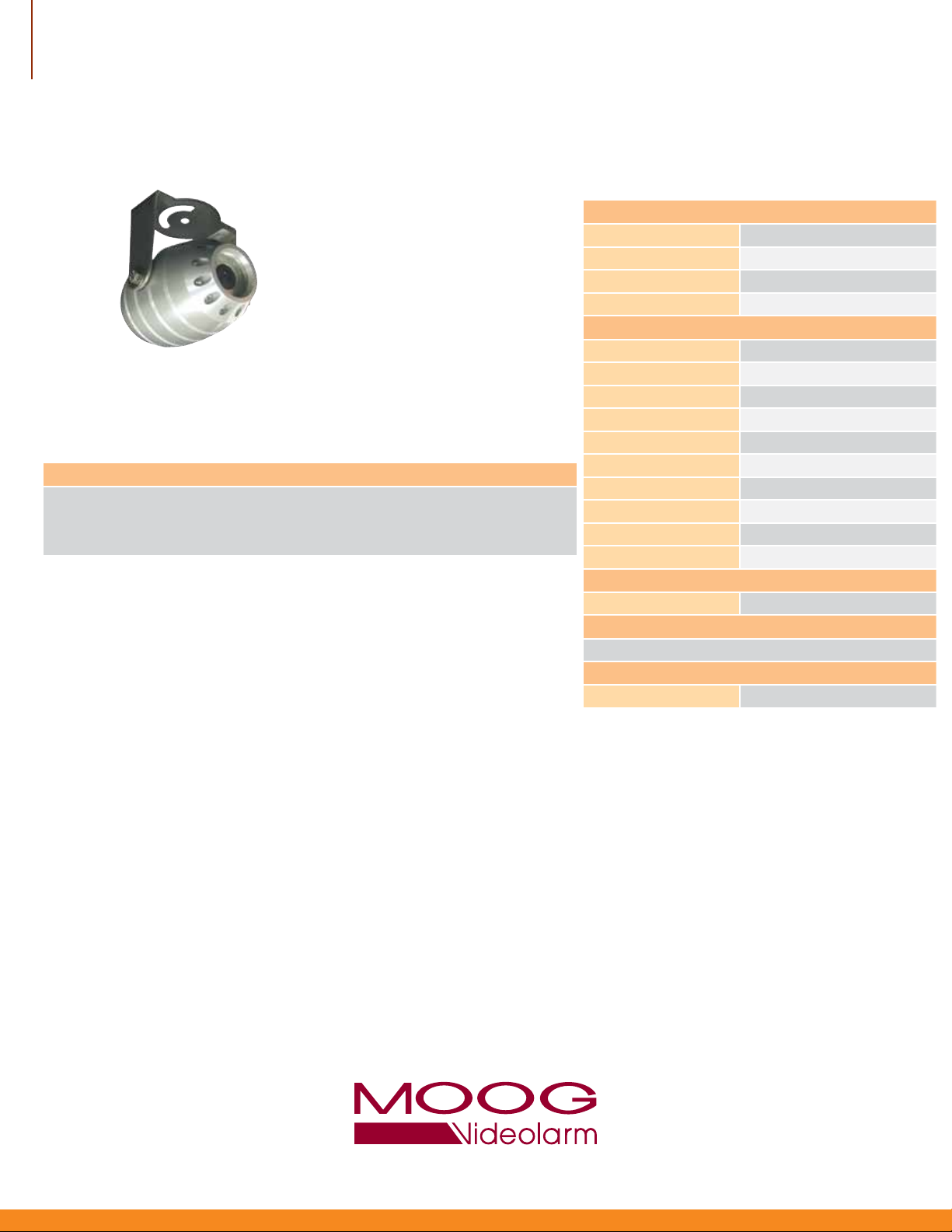

Bullet-Resistant, Outdoor IR Camera System:
Key Features
•
Hi-res color camera, 470 lines of resolution
•
IR LED array for nighttime viewing
•
Ultra hard grade aluminum body, bullet resistant
•
IP55 for water resistance
WS9
Moog Videolarm’s Warrior WS9 is perfect for outdoor applications where tough, bullet-resistant
protection is needed. The ultra hard grade aluminum body of the WS9 protects the camera from assault
by a 12-gauge shotgun or 9mm pistol. The housing is also weather resistant, with an IP55 rating. A hires color camera is included with the WS9, an IR LED array surrounding the window allows nighttime
viewing up to 50 feet. The mount bracket can be congured for either wall or ceiling applications.
Engineering Specications (WS1)
The outdoor housing is constructed of hard grade aluminum, and is capable of withstanding re from a 12-gauge shotgun or
9mm handgun. It’s weather resistant, with an IP55 rating. The camera is a high resolution color, with 470 TV lines of resolution.
An infrared LED array is included with the housing to allow night viewing by the camera. The mount of the housing is capable of
either wall or ceiling mount conguration.
SPECIFICATIONS:
Electrical Specications
Input Voltage:
Video Connector:
Power Consumption:
Current Draw:
Camera Specications
Imager:
Sync System:
Horizontal Resolution
Signal to Noise Ratio
Minimum Illumination
Video Output
Lens:
Gain Control:
IR Distrance:
White Balance:
Environmental Specications
Temperature Range:
Ultra hard grade aluminum
Base:
12VDC
BNC
9.6W
400 mA
1/3” CCD
Internal
470 TV Lines
More than 56 dB (AGC off)
0.8 Lux (f1.2), 0 Lux (IR on)
1.0 Vp-p 75 ohm composite
4.3mm
Auto
50 feet (15 meters)
Auto
-4˚ to +122˚ F
Construction
Dimensions
4.75” (H) x 5.625” (W) x 3.5” (D)
2525 Park Central Boulevard, Decatur, GA 30035 USA
(800) 554.1124 Fax: 770.987.9705
videolarm.com
