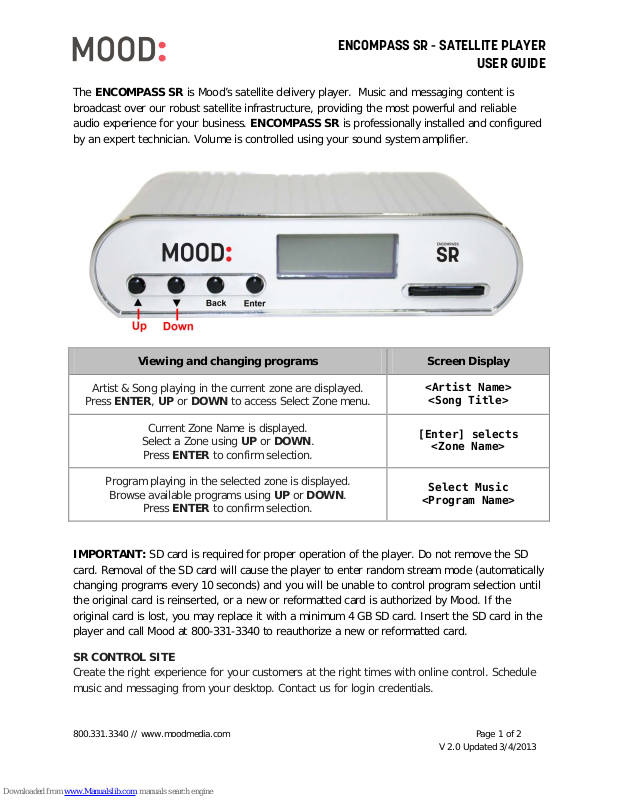

MOOD ENCOMPASS SR User Manual

ENCOMPASS SR - SATELLITE PLAYER

USER GUIDE

The ENCOMPASS SR is Mood’s satellite delivery player. Music and messaging content is
broadcast over our robust satellite infrastructure, providing the most powerful and reliable
audio experience for your bu s iness. ENCOMPASS SR is professionally installed and configured
by an expert technician. Volume is controlled using your sound system amplifier.

Viewing and changing programs Screen Display

Artist & Song playing in the current zone are displayed.

Press ENTER, UP or DOWN to access Sel e ct Zone menu.

Current Zone Name is displayed.

Select a Zone using UP or DOWN.

<Artist Name>

<Song Title>

[Enter] selects

<Zone Name>

Press ENTER to confirm selection.

Program playing in the selected zone is displayed.

Browse available programs using UP or DOWN.

Select Music

<Program Name>

Press ENTER to confirm selection.

IMPORTANT: SD card is required for proper operation of the player. Do not remove the SD

card. Removal of the SD card will cause the player to enter random stream mode (automatically
changing programs every 10 seconds) and you will be unable to control program selection until
the original card is reinserted, or a new or reformatted card is authorized by Mood. If the
original card is lost, you may replace it with a minimum 4 GB SD card. Insert the SD card in the
player and call Mood at 800-331-3340 to reauthorize a new or reformatted card.

SR CONTROL SITE

Create the right experience for you r customers at the right times with online control. Schedule
music and messaging from your desktop. Contact us for login credentials.

800.331.3340 // www.moodmedia.com Page 1 of 2
V 2.0 Updated 3/4/2013

ENCOMPASS SR - SATELLITE PLAYER

USER GUIDE

ENVIRONMENTAL OPERAT ION CONDITIONS & PHYSICAL SPECIFICATIONS

General

Use: Indoor
Altitude: Up to 10,000 feet (3000 m) above sea level
Temperature Range: 32° to 131°F (0° to 55°C)
Humidity: 0% to 90% noncondensing
Weight (with power supply): 1.25 lbs (.57 kg)
Dimensions (W x H x D): 5.50" x 1.13" x 2.75" (13.97 x 2.86 x 6.99 cm)
Power Requirements: DC in +5.0 VDC at less than 4 watts
Power Consumption: Max 1 amps
Power Supply: Input: 100-240 VAC, 50/60 Hz; Output: 5 VDC at 3 amps max
Device Approval: FCC Class A
Power Supply Approval: FCC Class A, UL, CE, TUV
Enclosure Style: Extruded aluminum main case, tooled aluminum sheet metal front and rear
panels, all exposed su r f aces powder coated

Audio Properties

Outputs: Analog; dual independent mono
Dynamic range: 98 dB typical
THD plus noise: -92 dB
Frequency response: +/- 0.1 dB 10 Hz to 20 kHz
Volume control: ½ dB steps, 0 dB to -127.5 dB, plus mute
Full scale output: 2.0 VRMS
AC load resistance: 5.0 K ohms minimum
Rain Fade: 60 minutes for single zone config./30 minutes each for dual zone config.

Front Panel

32 character (2x16) monochrome back-lit LCD display
Four push-button switches (up, down, back, enter)
"Push push" style latching SD card socket

Rear Panel

2.5 mm power connector
LED power fault indicator
Recessed push-button reset switch
Two single-ended RCA connectors
Type-F female connector

Memory Support

256 MB internal serial flash memory
SD card for expandable storage
