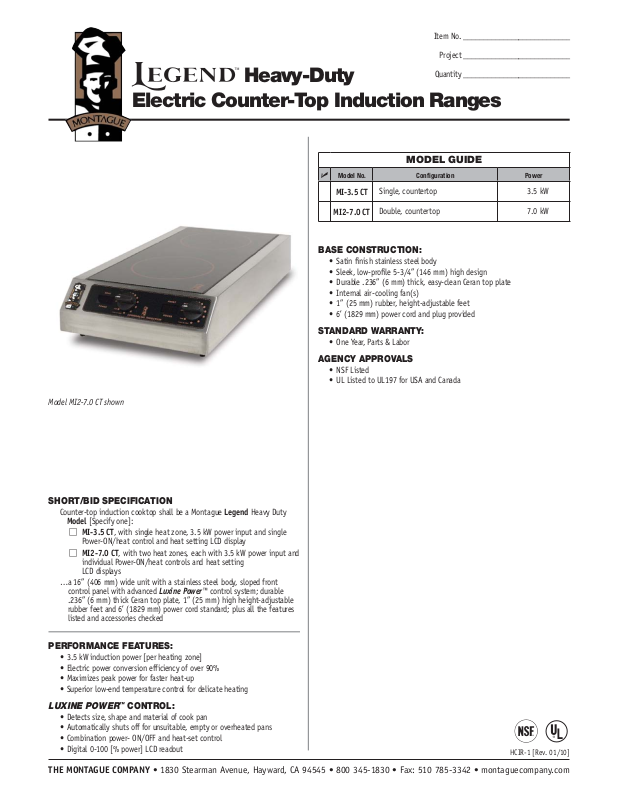

Montague MI-3.5CT User Manual
Item No. ___________________________
Project ___________________________
Heavy-Duty
Quantity ___________________________
Electric Counter-Top Induction Ranges
MODEL GUIDE
U
Model No. Configuration Power
MI-3.5 CT
MI2-7.0 CT
BASE CONSTRUCTION:
• Satin finish stainless steel body
• Sleek, low-profile 5-3/4” (146 mm) high design
• Durable .236” (6 mm) thick, easy-clean Ceran top plate
• Internal air-cooling fan(s)
• 1” (25 mm) rubber, height-adjustable feet
• 6’ (1829 mm) power cord and plug provided
STANDARD WARRANTY:
• One Year, Parts & Labor
AGENCY APPROVALS
• NSF Listed
• UL Listed to UL197 for USA and Canada
Single, countertop 3.5 kW
Double, countertop 7.0 kW
Model MI2-7.0 CT shown
SHORT/BID SPECIFICATION
Counter-top induction cooktop shall be a Montague Legend Heavy Duty
Model [Specify one]:
M
MI-3.5 CT, with single heat zone, 3.5 kW power input and single
Power-ON/heat control and heat setting LCD display
M
MI2-7.0 CT, with two heat zones, each with 3.5 kW power input and
individual Power-ON/heat controls and heat setting
LCD displays
… a 16” (406 mm) wide unit with a stainless steel body, sloped front
control panel with advanced Luxine Power™ control system; durable
.236” (6 mm) thick Ceran top plate, 1” (25 mm) high height-adjustable
rubber feet and 6’ (1829 mm) power cord standard; plus all the features
listed and accessories checked
PERFORMANCE FEATURES:
• 3.5 kW induction power [per heating zone]
• Electric power conversion efficiency of over 90%
• Maximizes peak power for faster heat-up
• Superior low-end temperature control for delicate heating
LUXINE POWER
• Detects size, shape and material of cook pan
• Automatically shuts off for unsuitable, empty or overheated pans
• Combination power- ON/OFF and heat-set control
• Digital 0-100 [% power] LCD readout
™
CONTROL:
HCIR-1 [Rev. 01/10]
THE MONTAGUE COMPANY • 1830 Stearman Avenue, Hayward, CA 94545 • 800 345-1830 • Fax: 510 785-3342 • montaguecompany.com
Item No. ___________________________
Heavy Duty Electric
Counter-Top Induction Ranges
Project ___________________________
Quantity ___________________________
Dimensions in brackets are millimeters
MI-3.5 CT
MI2-7.0 CT
INDUCTION COOKTOP ACCESSORIES:
General:
M
___ ea. 8-1/2” (216 mm) diameter fry pan*
Other sizes available [Consult Factory]
*Minimum pan diameter - 4-1/2” (114.3 mm), Maximum pan diameter - 12” (304.8 mm)
INSTALLATION REQUIREMENTS & SHIPPING INFORMATION
1. Induction cooktop should be installed on a level table or counter.
2. An adequate Ventilation System is required. Refer to NFPA 96, Standard for Ventilation Control and Fire
Protection of Commercial Cooking Operations.
3. Unit designed for operating in ambient air temperatures between 40-110°F (5-40°C).
4. Do not expose unit to jet spray or high pressure steam.
5. Load Capacity: Maximum weight of pan and contents is 55 lbs (25 kg).
6. Unit requires use of ferrous metal pans. [See Accessories Guide]
Electric Requirements — All Models — Per Cooktop
Model
MI-3.5 CT
MI2-7.0 CT
*NEMA 6-50P provided for Canada.
Heat
Zone Voltage Phase Hz kW Input AMPS
1 240/208 1 50/60 3.5/3.0 14.5 6-20P
2 240/208 1 50/60 7.0/6.0 29 6-30P
NEMA
Plug*
Shipping Information:
1830 Stearman Avenue, Hayward, CA 94545
800 345-1830 • Fax: 510 785-3342
www.montaguecompany.com
From Back Wall 4” (102 mm)
Provide unobstructed access to control
knob(s).
Model Weight
MI-3.5 CT
MI2-7.0 CT
28 lbs (12.7 kg) 85 2/.05
48 lbs (21.8 kg) 85 4/.1
Due to continuous product improvements,
specifications are subject to change without notice.
Minimum Clearances
Shipping
Class
HCIR-1 [Rev. 01/10]
Cube
(Crated)
ft³/m³
