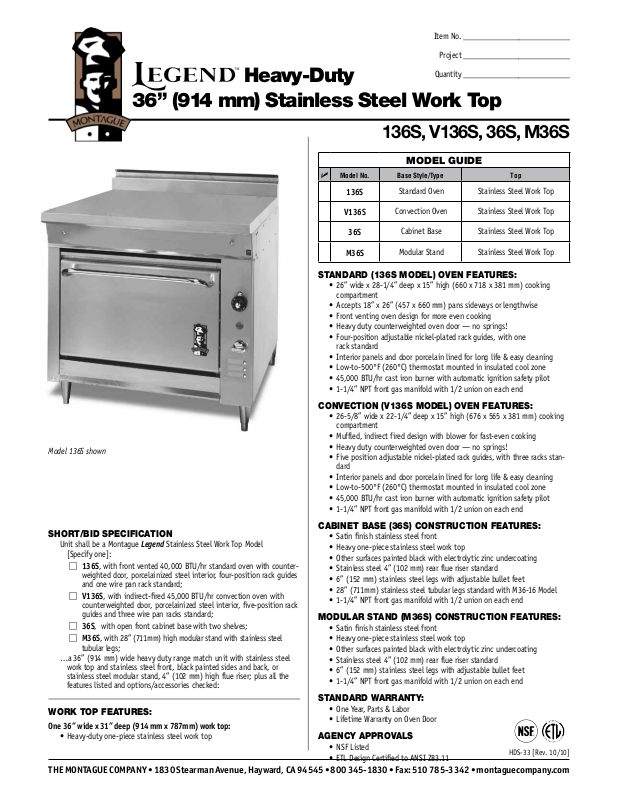

Montague M36S Specifications
Item No. ___________________________
Project ___________________________
Heavy-Duty
Quantity ___________________________
36” (914 mm) Stainless Steel Work Top
136S, V136S, 36S, M36S
MODEL GUIDE
Model No. Base Style/Type Top
136S
V136S
36S
M36S
STANDARD (136S MODEL) OVEN FEATURES:
• 26” wide x 28-1/4” deep x 15” high (660 x 718 x 381 mm) cooking
compartment
• Accepts 18” x 26” (457 x 660 mm) pans sideways or lengthwise
• Front venting oven design for more even cooking
• Heavy duty counterweighted oven door — no springs!
• Four-position adjustable nickel-plated rack guides, with one
rack standard
• Interior panels and door porcelain lined for long life & easy cleaning
• Low-to-500°F (260°C) thermostat mounted in insulated cool zone
• 45,000 BTU/hr cast iron burner with automatic ignition safety pilot
• 1-1/4” NPT front gas manifold with 1/2 union on each end
CONVECTION (V136S MODEL) OVEN FEATURES:
• 26-5/8” wide x 22-1/4” deep x 15” high (676 x 565 x 381 mm) cooking
compartment
• Muffled, indirect fired design with blower for fast-even cooking
Model 136S shown
SHORT/BID SPECIFICATION
Unit shall be a Montague Legend Stainless Steel Work Top Model
[Specify one]:
M
136S, with front vented 40,000 BTU/hr standard oven with counter-
weighted door, porcelainized steel interior, four-position rack guides
and one wire pan rack standard;
M
V136S, with indirect-fired 45,000 BTU/hr convection oven with
counterweighted door, porcelainized steel interior, five-position rack
guides and three wire pan racks standard;
M
36S, with open front cabinet base with two shelves;
M
M36S, with 28” (711mm) high modular stand with stainless steel
tubular legs;
…a 36” (914 mm) wide heavy duty range match unit with stainless steel
work top and stainless steel front, black painted sides and back, or
stainless steel modular stand, 4” (102 mm) high flue riser; plus all the
features listed and options/accessories checked:
• Heavy duty counterweighted oven door — no springs!
• Five position adjustable nickel-plated rack guides, with three racks standard
• Interior panels and door porcelain lined for long life & easy cleaning
• Low-to-500°F (260°C) thermostat mounted in insulated cool zone
• 45,000 BTU/hr cast iron burner with automatic ignition safety pilot
• 1-1/4” NPT front gas manifold with 1/2 union on each end
CABINET BASE (36S) CONSTRUCTION FEATURES:
• Satin finish stainless steel front
• Heavy one-piece stainless steel work top
• Other surfaces painted black with electrolytic zinc undercoating
• Stainless steel 4” (102 mm) rear flue riser standard
• 6” (152 mm) stainless steel legs with adjustable bullet feet
• 28” (711mm) stainless steel tubular legs standard with M36-16 Model
• 1-1/4” NPT front gas manifold with 1/2 union on each end
MODULAR STAND (M36S) CONSTRUCTION FEATURES:
• Satin finish stainless steel front
• Heavy one-piece stainless steel work top
• Other surfaces painted black with electrolytic zinc undercoating
• Stainless steel 4” (102 mm) rear flue riser standard
• 6” (152 mm) stainless steel legs with adjustable bullet feet
• 1-1/4” NPT front gas manifold with 1/2 union on each end
STANDARD WARRANTY:
WORK TOP FEATURES:
One 36” wide x 31” deep (914 mm x 787mm) work top:
• Heavy-duty one-piece stainless steel work top
• One Year, Parts & Labor
• Lifetime Warranty on Oven Door
AGENCY APPROVALS
• NSF Listed
• ETL Design Certified to ANSI Z83.11
THE MONTAGUE COMPANY • 1830 Stearman Avenue, Hayward, CA 94545 • 800 345-1830 • Fax: 510 785-3342 • montaguecompany.com
Standard Oven Stainless Steel Work Top
Convection Oven Stainless Steel Work Top
Cabinet Base Stainless Steel Work Top
Modular Stand Stainless Steel Work Top
HDS-33 [Rev. 10/10]
Item No. ___________________________
Heavy-Duty
36” (914 mm) Stainless Steel Work Top
136S, V136S, 36S, M36S
OPTIONS GUIDE:
Finish:
M
Stainless steel left side panel
M
Stainless steel right side panel
M
Stainless steel back panel
M
Stainless steel exterior bottom
Back Panels/Shelves:
M
18” (457 mm) high back
M
Single high shelf
M
Double high shelf
M
6” (152 mm) wide stainless steel plate shelf
M
8” (203 mm) wide stainless steel plate shelf
Electrical (V136):
M
120 V, 1-phase, 60 Hz, 3.4 A
(standard, with 6’ (1.8m) NEMA 5-15P power cord)
M
208-240 V, 1-phase, 60 Hz, 1.7 A
General:
M
Casters — set of four 5” (127 mm) casters
Flex Connector Kit [1”]: NPT
M
3’ (914 mm) M 4’ (1219 mm)
M
Curb mounting:
Security Options/Prison Package
[Consult Factory]
Project ___________________________
Quantity ___________________________
Dimensions in brackets are millimeters
Oven:
M
Cast iron oven bottom [136S Model only]
M
Extra oven racks: ____ea.
Manifolds: [Right rear with pressure regulator]:
M
1” NPT
Manifold Cap:
Stainless Manifold Cover:
M
left side M right side
M
left side M right side
INSTALLATION REQUIREMENTS & SHIPPING INFORMATION
1. Ovens must be installed in accordance with local codes or in their absence with the
National Fuel Gas Code: ANSI Z223.1; Natural Fuel Gas Code: CAN/CGA-B149.1 or Propane
Installation Code: CAN/CGA-B149.2, as applicable. Compliance with codes is the
responsibility of the Owner and Installer.
2. An adequate ventilation system is required. Refer to National Fire Protection Association
Standard No. 96, “Vapor Removal from Cooking Equipment.”
3. This appliance is intended for commercial use by professionally trained personnel.
NOT intended for Residential Use.
4. Specify installation elevation: _____________ if above 2,000 ft (610m).
5. GAS INLET SIZE (All Models): 1-1/4 NPT front manifold with 1/2 union on each end
provided for battery connection. A properly sized gas pressure regulator must be furnished
Minimum
Clearances
Combustible
Construction
From Back Wall* 2” (51 mm) 0”
Left & Right Side 6” (152 mm) 0”
With 6” (152 mm) legs Suitable for installation
on combustible floors
*V136 models require 2” (51 mm) for motor clearance at rear
by the Installer.
6. The incoming gas line pressure into the regulator should be 8”-14” w.c. for natural gas,
and 12”-14” w.c. for propane gas.
M Natural M Propane
6.0” WC 10.0” WC
Electrical
120V
Amperage
---
3.4
Shipping
Weight
403 lbs (183 kg)
478 lbs (217 kg)
Shipping
Class
85 32/.9
85 32/.9
Models:
136S
V136S
Specify Type of Gas:
Manifold Pressure:
Burners BTU/hr (kW) BTU/hr (kW)
1 40,000 (11.8) 40,000 (11.8)
1 45,000 (13.2) 45,000 (13.2)
36S 0 n/a n/a --- 478 lbs (217 kg) 85 32/.9
M36S 0 n/a n/a --- 478 lbs (217 kg) 85 32/.9
Entry Clearance: 30” (762 mm) uncrated, with legs removed [All Models]
Due to continuous product improvements,
specifications are subject to change without notice.
Noncombustible
Construction
Cube
(Crated)
3/m3
ft
1830 Stearman Avenue, Hayward, CA 94545
800 345-1830 • Fax: 510 785-3342
www.montaguecompany.com
HDS-33 [Rev. 10/10]
