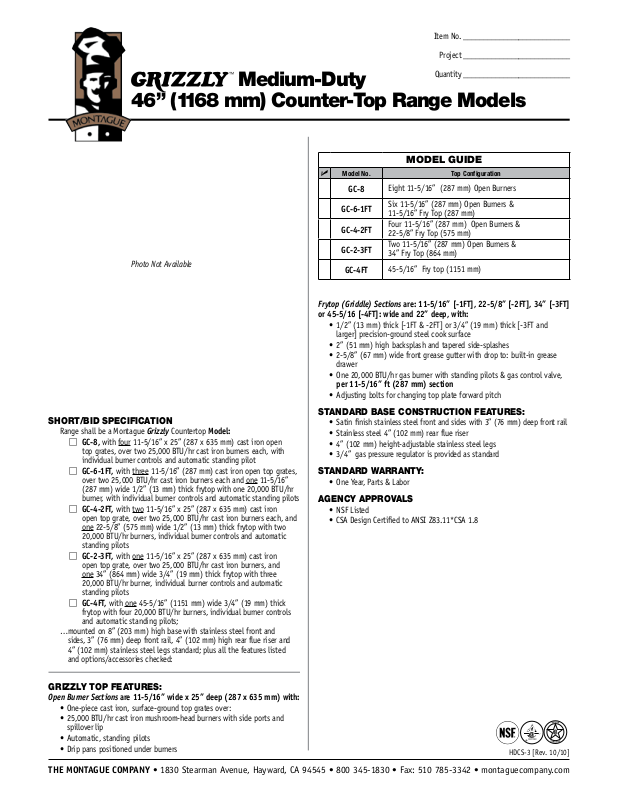

Montague GC-2-3FT Specifications
Item No. ___________________________
Project ___________________________
Medium-Duty
46” (1168 mm) Counter-Top Range Models
Photo Not Available
SHORT/BID SPECIFICATION
Range shall be a Montague Grizzly Countertop Model:
M
GC-8, with four 11-5/16” x 25” (287 x 635 mm) cast iron open
top grates, over two 25,000 BTU/hr cast iron burners each, with
individual burner controls and automatic standing pilot
M
GC-6-1FT, with three 11-5/16” (287 mm) cast iron open top grates,
over two 25,000 BTU/hr cast iron burners each and one 11-5/16”
(287 mm) wide 1/2” (13 mm) thick frytop with one 20,000 BTU/hr
burner, with individual burner controls and automatic standing pilots
M
GC-4-2FT, with two 11-5/16” x 25” (287 x 635 mm) cast iron
open top grate, over two 25,000 BTU/hr cast iron burners each, and
one 22-5/8” (575 mm) wide 1/2” (13 mm) thick frytop with two
20,000 BTU/hr burners, individual burner controls and automatic
standing pilots
M
GC-2-3FT, with one 11-5/16” x 25” (287 x 635 mm) cast iron
open top grate, over two 25,000 BTU/hr cast iron burners, and
one 34” (864 mm) wide 3/4” (19 mm) thick frytop with three
20,000 BTU/hr burner, individual burner controls and automatic
standing pilots
M
GC-4FT, with one 45-5/16” (1151 mm) wide 3/4” (19 mm) thick
frytop with four 20,000 BTU/hr burners, individual burner controls
and automatic standing pilots;
… mounted on 8” (203 mm) high base with stainless steel front and
sides, 3” (76 mm) deep front rail, 4” (102 mm) high rear flue riser and
4” (102 mm) stainless steel legs standard; plus all the features listed
and options/accessories checked:
Quantity ___________________________
MODEL GUIDE
Model No. Top Configuration
GC-8
GC-6-1FT
GC-4-2FT
GC-2-3FT
GC-4FT
Frytop (Griddle) Sections are: 11-5/16” [-1FT], 22-5/8” [-2FT], 34” [-3FT]
or 45-5/16 [-4FT]: wide and 22” deep, with:
• 1/2” (13 mm) thick [-1FT & -2FT] or 3/4” (19 mm) thick [-3FT and
larger] precision-ground steel cook surface
• 2” (51 mm) high backsplash and tapered side-splashes
• 2-5/8” (67 mm) wide front grease gutter with drop to: built-in grease
drawer
• One 20,000 BTU/hr gas burner with standing pilots & gas control valve,
per 11-5/16” ft (287 mm) section
• Adjusting bolts for changing top plate forward pitch
Eight 11-5/16” (287 mm) Open Burners
Six 11-5/16” (287 mm) Open Burners &
11-5/16” Fry Top (287 mm)
Four 11-5/16” (287 mm) Open Burners &
22-5/8” Fry Top (575 mm)
Two 11-5/16” (287 mm) Open Burners &
34” Fry Top (864 mm)
45-5/16” Fry top (1151 mm)
STANDARD BASE CONSTRUCTION FEATURES:
• Satin finish stainless steel front and sides with 3” (76 mm) deep front rail
• Stainless steel 4” (102 mm) rear flue riser
• 4” (102 mm) height-adjustable stainless steel legs
• 3/4” gas pressure regulator is provided as standard
STANDARD WARRANTY:
• One Year, Parts & Labor
AGENCY APPROVALS
• NSF Listed
• CSA Design Certified to ANSI Z83.11*CSA 1.8
GRIZZLY TOP FEATURES:
Open Burner Sections are 11-5/16” wide x 25” deep (287 x 635 mm) with:
• One-piece cast iron, surface-ground top grates over:
• 25,000 BTU/hr cast iron mushroom-head burners with side ports and
spillover lip
• Automatic, standing pilots
• Drip pans positioned under burners
HDCS-3 [Rev. 10/10]
THE MONTAGUE COMPANY • 1830 Stearman Avenue, Hayward, CA 94545 • 800 345-1830 • Fax: 510 785-3342 • montaguecompany.com
Item No. ___________________________
Medium-Duty 46” (1168 mm)
Counter-Top Range Models
OPTIONS GUIDE:
For Frytop (Griddle) Sections:
M
Mount Frytop on left [Add to Suffix: -FTL]
Adds 2” (51 mm) to width for grease container
M
3/4”(19 mm) thick plate for 1ft or 2 ft options
M
1” (25.4 mm) thick plate
M
Thermostat control(s) [Add to Suffix: -FTT]
M
4” (102 mm) removable side splash:
M
left M right
INSTALLATION REQUIREMENTS & SHIPPING INFORMATION
1. Range must be installed in accordance with local codes or in their absence with the
National Fuel Gas Code: ANSI Z223.1. Compliance with codes is the responsibility of the
Owner and Installer.
2. An adequate ventilation system is required. Refer to National Fire Protection Association
Standard No. 96, “Vapor Removal from Cooking Equipment.”
3. This appliance is intended for commercial use by professionally trained personnel.
NOT intended for Residential Use.
4. Specify installation elevation: _____________ if above 2000 feet (610 m).
5. GAS INLET SIZE (All Models): 3/4” NPT (19 mm) at right rear. 3/4” NPT (19 mm) gas
pressure regulator is provided. The gas supply pressure to the regulator must be 8”-14”
WC for natural gas or 12”-14” WC for propane gas. Consult factory for different gas types
and pressures.
General:
M
Substitute Work Surface Top for Open
Burners —
Use Suffix: -__WS [Specify number: 1, 2, etc.]
M
Substitute Hot Top for Open Burners —
Use Suffix: -__HT [Specify number: 1, 2, etc.]
M
Stainless steel back panel
Project ___________________________
Quantity ___________________________
Dimensions in brackets are millimeters
Minimum
Clearances
Combustible
Construction
Noncombustible
Construction
From Back Wall 2” (51 mm) 0”
Left & Right Side 11” (279 mm) 0”
With or without
4” (102 mm) legs
Suitable for installation
on non-combustible counters ONLY
Specify Type of Gas:
Manifold Pressure: 6.0” WC 10.0” WC
Models: Burners BTU/hr (kW) BTU/hr (kW)
GC-8
GC-6-1FT
GC-4-2FT
GC-2-3FT
GC-4FT
8 200,000 (58.6) 160,000 (58.6) 282 lbs (128 kg) 70 16/.45
7 170,000 (49.8) 140,000 (49.8) 298 lbs (135 kg) 70 16/.45
6 140,000 (41) 120,000 (41) 310 lbs (141 kg) 70 16/.45
5 110,000 (32.2) 100,000 (32.2) 378 lbs (171 kg) 70 16/.45
4 80,000 (23.4) 80,000 (23.4) 411 lbs (186 kg) 70 16/.45
M Natural M Propane
1830 Stearman Avenue, Hayward, CA 94545
800 345-1830 • Fax: 510 785-3342
www.montaguecompany.com
Shipping
Weight
Shipping
Class
Cube
(Crated)
3/m3
ft
Due to continuous product improvements,
specifications are subject to change without notice.
HDCS-3 [Rev. 10/10]
