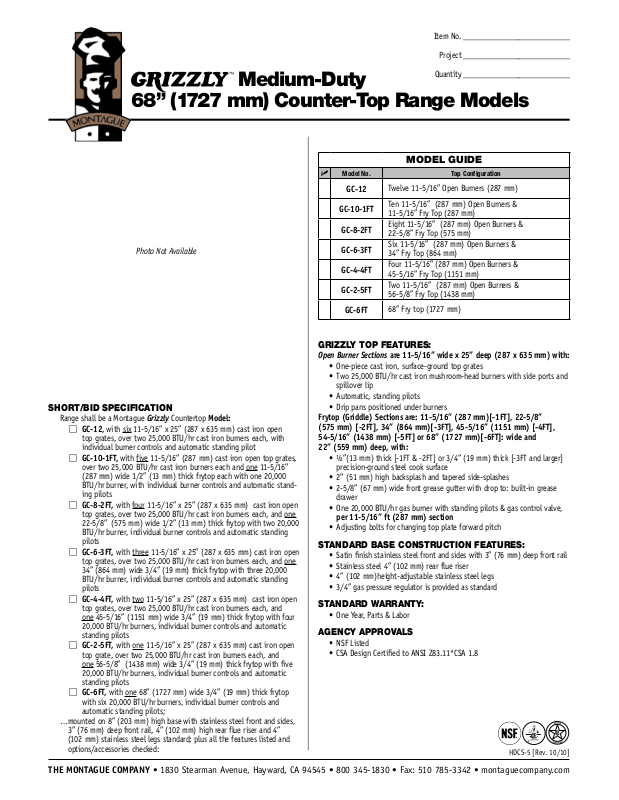

Montague GC-10-1FT Specifications

Item No. ___________________________

Project ___________________________

Medium-Duty

68” (1727 mm) Counter-Top Range Models

Photo Not Available

SHORT/BID SPECIFICATION

Range shall be a Montague Grizzly Countertop Model:

GC-12, with six 11-5/16” x 25” (287 x 635 mm) cast iron open

top grates, over two 25,000 BTU/hr cast iron burners each, with individual burner controls and automatic standing pilot

GC-10-1FT, with five 11-5/16” (287 mm) cast iron open top grates,

over two 25,000 BTU/hr cast iron burners each and one 11-5/16” (287 mm) wide 1/2” (13 mm) thick frytop each with one 20,000 BTU/hr burner, with individual burner controls and automatic standing pilots

GC-8-2FT, with four 11-5/16” x 25” (287 x 635 mm) cast iron open

top grates, over two 25,000 BTU/hr cast iron burners each, and one 22-5/8” (575 mm) wide 1/2” (13 mm) thick frytop with two 20,000 BTU/hr burner, individual burner controls and automatic standing pilots

GC-6-3FT, with three 11-5/16” x 25” (287 x 635 mm) cast iron open

top grates, over two 25,000 BTU/hr cast iron burners each, and one 34” (864 mm) wide 3/4” (19 mm) thick frytop with three 20,000 BTU/hr burner, individual burner controls and automatic standing pilots

GC-4-4FT, with two 11-5/16” x 25” (287 x 635 mm) cast iron open

top grates, over two 25,000 BTU/hr cast iron burners each, and one 45-5/16” (1151 mm) wide 3/4” (19 mm) thick frytop with four 20,000 BTU/hr burners, individual burner controls and automatic standing pilots

GC-2-5FT, with one 11-5/16” x 25” (287 x 635 mm) cast iron open

top grate, over two 25,000 BTU/hr cast iron burners each, and one 56-5/8” (1438 mm) wide 3/4” (19 mm) thick frytop with five 20,000 BTU/hr burners, individual burner controls and automatic standing pilots

GC-6FT, with one 68” (1727 mm) wide 3/4” (19 mm) thick frytop

with six 20,000 BTU/hr burners, individual burner controls and automatic standing pilots;

… mounted on 8” (203 mm) high base with stainless steel front and sides,

3” (76 mm) deep front rail, 4” (102 mm) high rear flue riser and 4” (102 mm) stainless steel legs standard; plus all the features listed and options/accessories checked:

Quantity ___________________________

MODEL GUIDE



Model No. Top Configuration

GC-12

GC-10-1FT

GC-8-2FT

GC-6-3FT

GC-4-4FT

GC-2-5FT

GC-6FT

Twelve 11-5/16” Open Burners (287 mm)

Ten 11-5/16” (287 mm) Open Burners & 11-5/16” Fry Top (287 mm)

Eight 11-5/16” (287 mm) Open Burners & 22-5/8” Fry Top (575 mm)

Six 11-5/16” (287 mm) Open Burners & 34” Fry Top (864 mm)

Four 11-5/16” (287 mm) Open Burners & 45-5/16” Fry Top (1151 mm)

Two 11-5/16” (287 mm) Open Burners & 56-5/8” Fry Top (1438 mm)

68” Fry top (1727 mm)

GRIZZLY TOP FEATURES:

Open Burner Sections are 11-5/16” wide x 25” deep (287 x 635 mm) with:

• One-piece cast iron, surface-ground top grates

• Two 25,000 BTU/hr cast iron mushroom-head burners with side ports and spillover lip

• Automatic, standing pilots

• Drip pans positioned under burners

Frytop (Griddle) Sections are: 11-5/16” (287 mm)[-1FT], 22-5/8” (575 mm) [-2FT], 34” (864 mm)[-3FT], 45-5/16” (1151 mm) [-4FT], 54-5/16” (1438 mm) [-5FT] or 68” (1727 mm)[-6FT]: wide and 22” (559 mm) deep, with:

• ½”(13 mm) thick [-1FT & -2FT] or 3/4” (19 mm) thick [-3FT and larger] precision-ground steel cook surface

• 2” (51 mm) high backsplash and tapered side-splashes

• 2-5/8” (67 mm) wide front grease gutter with drop to: built-in grease drawer

• One 20,000 BTU/hr gas burner with standing pilots & gas control valve,

per 11-5/16” ft (287 mm) section

• Adjusting bolts for changing top plate forward pitch

STANDARD BASE CONSTRUCTION FEATURES:

• Satin finish stainless steel front and sides with 3” (76 mm) deep front rail

• Stainless steel 4” (102 mm) rear flue riser

• 4” (102 mm)height-adjustable stainless steel legs

• 3/4” gas pressure regulator is provided as standard

STANDARD WARRANTY:

• One Year, Parts & Labor

AGENCY APPROVALS

• NSF Listed

• CSA Design Certified to ANSI Z83.11*CSA 1.8

HDCS-5 [Rev. 10/10]

THE MONTAGUE COMPANY • 1830 Stearman Avenue, Hayward, CA 94545 • 800 345-1830 • Fax: 510 785-3342 • montaguecompany.com

Item No. ___________________________

Medium-Duty 68” (1727 mm)

Counter-Top Range Models

OPTIONS GUIDE:

For Frytop (Griddle) Sections:

Mount Frytop on left [Add to Suffix: -FTL] Adds

2” (51 mm) to width for grease container

3/4”(19 mm) thick plate for 1ft or 2 ft options

1” (25.4 mm) thick plate

Thermostat control(s) [Add to Suffix: -FTT]

4” (102 mm) removable side splash:

left M right

General:

Substitute Work Surface Top for Open

Burners — Use Suffix: -__WS [Specify number: 1, 2, etc.]

Substitute Hot Top for Open Burners —

Use Suffix: -__HT [Specify number: 1, 2, etc.]

Stainless steel back panel

Project ___________________________

Quantity ___________________________

Dimensions in brackets are millimeters

INSTALLATION REQUIREMENTS & SHIPPING INFORMATION

1. Range must be installed in accordance with local codes or in their absence with the

National Fuel Gas Code: ANSI Z223.1. Compliance with codes is the responsibility of the Owner and Installer.

2. An adequate ventilation system is required. Refer to National Fire Protection Association

Standard No. 96, “Vapor Removal from Cooking Equipment.”

3. This appliance is intended for commercial use by professionally trained personnel.

NOT intended for Residential Use.

4. Specify installation elevation: _____________ if above 2000 feet (610 m).

5. GAS INLET SIZE (All Models): 3/4” NPT at right rear. 3/4” NPT gas pressure regulator is

provided. The gas supply pressure to the regulator must be 8”-14” WC for natural gas or 12”-14” WC for propane gas. Consult factory for different gas types and pressures.

Specify Type of Gas:

Manifold Pressure: 6.0” WC 10.0” WC

Models: Burners BTU/hr (kW) BTU/hr (kW)

GC-12

GC-10-1FT

GC-8-2FT GC-6-3FT GC-4-4FT GC-2-5FT

GC-6FT

12 300,000 (87.9) 240,000 (87.9) 410 lbs (186 kg) 70 28/.8 11 270,000 (79.1) 220,000 (79.1) 426 lbs (193 kg) 70 28/.8 10 240,000 (70.3) 200,000 (70.3) 438 lbs (199 kg) 70 28/.8

9 210,000 (61.5) 180,000 (61.5) 506 lbs (229 kg) 70 28/.8 8 180,000 (52.7) 160,000 (52.7) 539 lbs (244 kg) 70 28/.8 7 150,000 (43.9) 140,000 (43.9) 571 lbs (259 kg) 70 28/.8 6 120,000 (35.2) 120,000 (35.2) 604 lbs (274 kg) 70 28/.8

M Natural M Propane

Minimum

Clearances

Combustible Construction

Noncombustible

Construction

From Back Wall 2” (51 mm) 0”

Left & Right Side 11” (279 mm) 0”

With or without 4” (102 mm) legs

Shipping

Weight

Suitable for installation

on non-combustible counters ONLY

Shipping

Class

Cube

(Crated)

3/m3

1830 Stearman Avenue, Hayward, CA 94545 800 345-1830 • Fax: 510 785-3342 www.montaguecompany.com

Due to continuous product improvements, specifications are subject to change without notice.

HDCS-5 [Rev. 10/10]
