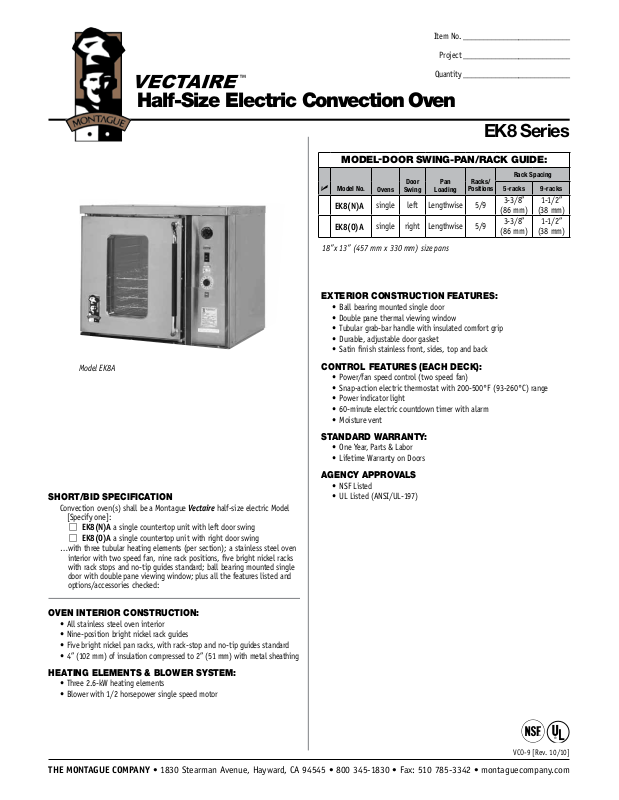

Montague EK8 (0) A Specifications
Half-Size Electric Convection Oven
Model EK8A
SHORT/BID SPECIFICATION
Convection oven(s) shall be a Montague Vectaire half-size electric Model
[Specify one]:
M
EK8(N)A a single countertop unit with left door swing
M
EK8(O)A a single countertop unit with right door swing
… with three tubular heating elements (per section); a stainless steel oven
interior with two speed fan, nine rack positions, five bright nickel racks
with rack stops and no-tip guides standard; ball bearing mounted single
door with double pane viewing window; plus all the features listed and
options/accessories checked:
Item No. ___________________________
Project ___________________________
Quantity ___________________________
EK8 Series
MODEL-DOOR SWING-PAN/RACK GUIDE:
Model No.
EK8(N)A
EK8(O)A
18”x 13” (457 mm x 330 mm) size pans
Door
Ovens
Swing
Loading
single left Lengthwise 5/9
single right Lengthwise 5/9
Pan
Racks/
Positions
EXTERIOR CONSTRUCTION FEATURES:
• Ball bearing mounted single door
• Double pane thermal viewing window
• Tubular grab-bar handle with insulated comfort grip
• Durable, adjustable door gasket
• Satin finish stainless front, sides, top and back
CONTROL FEATURES (EACH DECK):
• Power/fan speed control (two speed fan)
• Snap-action electric thermostat with 200-500°F (93-260°C) range
• Power indicator light
• 60-minute electric countdown timer with alarm
• Moisture vent
STANDARD WARRANTY:
• One Year, Parts & Labor
• Lifetime Warranty on Doors
AGENCY APPROVALS
• NSF Listed
• UL Listed (ANSI/UL-197)
Rack Spacing
5-racks 9-racks
3-3/8”
(86 mm)
3-3/8”
(86 mm)
1-1/2”
(38 mm)
1-1/2”
(38 mm)
OVEN INTERIOR CONSTRUCTION:
• All stainless steel oven interior
• Nine-position bright nickel rack guides
• Five bright nickel pan racks, with rack-stop and no-tip guides standard
• 4” (102 mm) of insulation compressed to 2” (51 mm) with metal sheathing
HEATING ELEMENTS & BLOWER SYSTEM:
• Three 2.6-kW heating elements
• Blower with 1/2 horsepower single speed motor
VCO-9 [Rev. 10/10]
THE MONTAGUE COMPANY • 1830 Stearman Avenue, Hayward, CA 94545 • 800 345-1830 • Fax: 510 785-3342 • montaguecompany.com
Item No. ___________________________
Project ___________________________
Half-Size Electric Convection Oven
EK8
OPTIONS GUIDE:
Installation Alternatives:
M
Set of four 4” (102 mm) stainless steel legs
Electric, Control & Motor Alternatives:
M
Two speed fan motor [208/240]
Finish:
Racks & Security:
Quantity ___________________________
Dimensions in brackets are millimeters
M
Stainless steel back
M
Extra Racks: ____ ea.
M
Solid Doors [in place of windows]
M
Security Options [Consult Factory]
M
11-position rack guides
M
Stainless Steel Drip Tray
INSTALLATION REQUIREMENTS & SHIPPING INFORMATION
1. Oven must be installed in accordance with local codes or in their absence with the
National Electric Code: ANSI/NFPA 70. Compliance with codes is the responsibility of the
Owner and Installer.
2. An adequate ventilation system is required. Refer to National Fire Protection Association
Standard No. 96, “Vapor Removal from Cooking Equipment.”
3. This appliance is intended for commercial use by professionally trained personnel.
NOT intended for Residential Use.
Electric Requirements* — All Models — Per Oven/Deck
Nominal AMP/Line
Voltage Phase Hz Total kW
208 1 60 7.9 38 48
240 1 60 7.9 33 48
208 3 60 7.9 26 26 24 33
240 3 60 7.9 23 23 21 33
*Other Voltage/Hz models available. Consult factory.
Minimum
Circuit
CapacityL1 L2 L3
Minimum
Clearances
From Back Wall 0” 0”
Left & Right Side* 0” 0”
* With or without 4” (102 mm) legs, EK8 Models on
non-combustible tables or counters only.
Shipping Information:
Models Weight
EK8 [all]
229lbs (104 kg) 70 15/.4
Entry clearance 26” (660 mm) uncrated
Due to continuous product improvements,
specifications are subject to change without notice.
Combustible
Construction
Noncombustible
Construction
Shipping
Class
Cube
(Crated)
ft³/m³
1830 Stearman Avenue, Hayward, CA 94545
800 345-1830 • Fax: 510 785-3342
www.montaguecompany.com
VCO-9 [Rev. 10/10]
