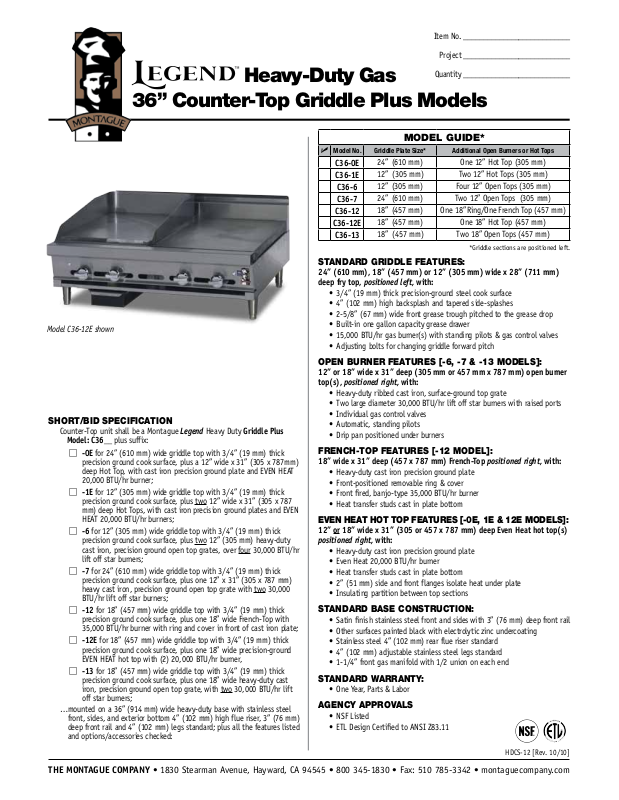

Montague C36-0E Specifications

Item No. ___________________________

Project ___________________________

Heavy-Duty Gas

36” Counter-Top Griddle Plus Models

Model C36-12E shown

SHORT/BID SPECIFICATION

Counter-Top unit shall be a Montague Legend Heavy Duty Griddle Plus

Model: C36__ plus suffix:

-0E for 24” (610 mm) wide griddle top with 3/4” (19 mm) thick

precision ground cook surface, plus a 12” wide x 31” (305 x 787mm) deep Hot Top, with cast iron precision ground plate and EVEN HEAT 20,000 BTU/hr burner;

-1E for 12” (305 mm) wide griddle top with 3/4” (19 mm) thick

precision ground cook surface, plus two 12” wide x 31” (305 x 787 mm) deep Hot Tops, with cast iron precision ground plates and EVEN HEAT 20,000 BTU/hr burners;

-6 for 12” (305 mm) wide griddle top with 3/4” (19 mm) thick

precision ground cook surface, plus two 12” (305 mm) heavy-duty cast iron, precision ground open top grates, over four 30,000 BTU/hr lift off star burners;

-7 for 24” (610 mm) wide griddle top with 3/4” (19 mm) thick

precision ground cook surface, plus one 12” x 31” (305 x 787 mm) heavy cast iron, precision ground open top grate with two 30,000 BTU/hr lift off star burners;

-12 for 18” (457 mm) wide griddle top with 3/4” (19 mm) thick

precision ground cook surface, plus one 18” wide French-Top with 35,000 BTU/hr burner with ring and cover in front of cast iron plate;

-12E for 18” (457 mm) wide griddle top with 3/4” (19 mm) thick

precision ground cook surface, plus one 18” wide precision-ground EVEN HEAT hot top with (2) 20,000 BTU/hr burner,

-13 for 18” (457 mm) wide griddle top with 3/4” (19 mm) thick

precision ground cook surface, plus one 18” wide heavy-duty cast iron, precision ground open top grate, with two 30,000 BTU/hr lift off star burners;

… mounted on a 36” (914 mm) wide heavy-duty base with stainless steel

front, sides, and exterior bottom 4” (102 mm) high flue riser, 3” (76 mm) deep front rail and 4” (102 mm) legs standard; plus all the features listed and options/accessories checked:

Quantity ___________________________

MODEL GUIDE*



Model No. Griddle Plate Size* Additional Open Burners or Hot Tops

C36-0E C36-1E

C36-6 C36-7

C36-12

C36-12E

C36-13

24” (610 mm) One 12” Hot Top (305 mm) 12” (305 mm) Two 12” Hot Tops (305 mm) 12” (305 mm) Four 12” Open Tops (305 mm) 24” (610 mm) Two 12” Open Tops (305 mm) 18” (457 mm) One 18” Ring/One French Top (457 mm) 18” (457 mm) One 18” Hot Top (457 mm) 18” (457 mm) Two 18” Open Tops (457 mm)

*Griddle sections are positioned left.

STANDARD GRIDDLE FEATURES:

24” (610 mm), 18” (457 mm) or 12” (305 mm) wide x 28” (711 mm) deep fry top, positioned left, with:

• 3/4” (19 mm) thick precision-ground steel cook surface

• 4” (102 mm) high backsplash and tapered side-splashes

• 2-5/8” (67 mm) wide front grease trough pitched to the grease drop

• Built-in one gallon capacity grease drawer

• 15,000 BTU/hr gas burner(s) with standing pilots & gas control valves

• Adjusting bolts for changing griddle forward pitch

OPEN BURNER FEATURES [-6, -7 & -13 MODELS]:

12” or 18” wide x 31” deep (305 mm or 457 mm x 787 mm) open burner top(s), positioned right, with:

• Heavy-duty ribbed cast iron, surface-ground top grate

• Two large diameter 30,000 BTU/hr lift off star burners with raised ports

• Individual gas control valves

• Automatic, standing pilots

• Drip pan positioned under burners

FRENCH-TOP FEATURES [-12 MODEL]:

18” wide x 31” deep (457 x 787 mm) French-Top positioned right, with:

• Heavy-duty cast iron precision ground plate

• Front-positioned removable ring & cover

• Front fired, banjo-type 35,000 BTU/hr burner

• Heat transfer studs cast in plate bottom

EVEN HEAT HOT TOP FEATURES [-0E, 1E & 12E MODELS]:

12” or 18” wide x 31” (305 or 457 x 787 mm) deep Even Heat hot top(s) positioned right, with:

• Heavy-duty cast iron precision ground plate

• Even Heat 20,000 BTU/hr burner

• Heat transfer studs cast in plate bottom

• 2” (51 mm) side and front flanges isolate heat under plate

• Insulating partition between top sections

STANDARD BASE CONSTRUCTION:

• Satin finish stainless steel front and sides with 3” (76 mm) deep front rail

• Other surfaces painted black with electrolytic zinc undercoating

• Stainless steel 4” (102 mm) rear flue riser standard

• 4” (102 mm) adjustable stainless steel legs standard

• 1-1/4” front gas manifold with 1/2 union on each end

STANDARD WARRANTY:

• One Year, Parts & Labor

AGENCY APPROVALS

• NSF Listed

• ETL Design Certified to ANSI Z83.11

HDCS-12 [Rev. 10/10]

THE MONTAGUE COMPANY • 1830 Stearman Avenue, Hayward, CA 94545 • 800 345-1830 • Fax: 510 785-3342 • montaguecompany.com

Item No. ___________________________

FRONT VIEW RIGHT SIDE VIEW TOP VIEW

Heavy-Duty Gas

36” Counter-Top Griddle Plus Models

OPTIONS GUIDE:

General:

Stainless steel back panel

18” (457 mm) high riser

6” (152 mm) wide stainless steel plate shelf

Equipment Stand [Consult Factory]

Security Options/Prison Package

[Consult Factory]

Special finish options

[Consult Factory]

INSTALLATION REQUIREMENTS & SHIPPING INFORMATION

1. Counter-Top Unit must be installed in accordance with local codes or in their absence

with the National Fuel Gas Code: ANSI Z223.1; Natural Fuel Gas Code: CAN/CGA-B149.1 or Propane Installation Code: CAN/CGA-B149.2, as applicable. Compliance with codes is the responsibility of the Owner and Installer.

2. An adequate ventilation system is required. Refer to National Fire Protection Association

Standard No. 96, “Vapor Removal from Cooking Equipment.”

3. This appliance is intended for commercial use by professionally trained personnel.

NOT intended for Residential Use.

4. Specify installation elevation: _____________ if above 2,000 ft (610 m).

5. GAS INLET SIZE (All Models): 1-1/4 (32mm) front manifold with 1/2 union on each end

provided for battery connection. A properly sized gas pressure regulator must be furnished by the Installer.

6. The incoming gas line pressure into the regulator should be 8”-14” w.c. for natural gas,

and 12”-14” w.c. for propane gas.

Specify Type of Gas:

Manifold Pressure: 6.0” WC 10.0” WC

Models: Burners BTU/hr (kW) BTU/hr (kW)

C36-0E C36-1E

C36-6 C36-7

C36-12

C36-12E

C36-13

4 65,000 (19) 65,000 (19) 380 lbs (172 kg) 85 14/.4 3 55,000 (16.1) 55,000 (16.1) 350 lbs (159 kg) 85 14/.4 5 135,000 (39.6) 135,000 (39.6) 330 lbs (150 kg) 85 14/.4 5 105,000 (30.8) 105,000 (30.8) 370 lbs (168 kg) 85 14/.4 3 65,000 (19) 65,000 (19) 478 lbs (217 kg) 85 14/.4 4 70,000 (20.5) 70,000 (20.5) 478 lbs (217 kg) 85 14/.4 4 90,000 (26.4) 90,000 (26.4) 512 lbs (232 kg) 85 14/.4

Manifolds:

[Specify left or right rear with pressure regulator]:

1” NPT

Manifold Cap:

left side M right side

Stainless Manifold Cover:

left side M right side

Open Burner Top Sections:

30,000 BTU lift off burner with a rear solid hot

top 15,000 BTU/hr each [add -59 to suffix]

Cast Iron Ribbon Grate

304 stainless steel burner box assembly

20,000 BTU burners [reqd w/ Ribbon Grate]

M Natural M Propane

Project ___________________________

Quantity ___________________________

Dimensions in brackets are millimeters

Griddle/Fry Top:

450° Thermostatic Control [one for 24” (610 mm) top]

550° Thermostatic Control [one for 24” (610mm) top]

1” (25 mm) thick griddle plate

1” (25 mm) thick grooved griddle plate

34” (864 mm) deep plate [Add Suffix -40]

Reversed Frytop [Add Suffix -R]

1” Chrome Griddle (thermostats required)

Minimum

Clearances

Combustible Construction

Noncombustible

Construction

From Back Wall 2” (51 mm) 0”

Left & Right Side 6” (152 mm)* 0”

With or without 4” (102 mm) legs

*15” clearance with open burners.

Shipping

Weight

Suitable for installation

on non-combustible counters ONLY

Shipping

Class

Cube

(Crated)

3/m3

Due to continuous product improvements, specifications are subject to change without notice.

1830 Stearman Avenue, Hayward, CA 94545 800 345-1830 • Fax: 510 785-3342 www.montaguecompany.com

HDCS-12 [Rev. 10/10]
