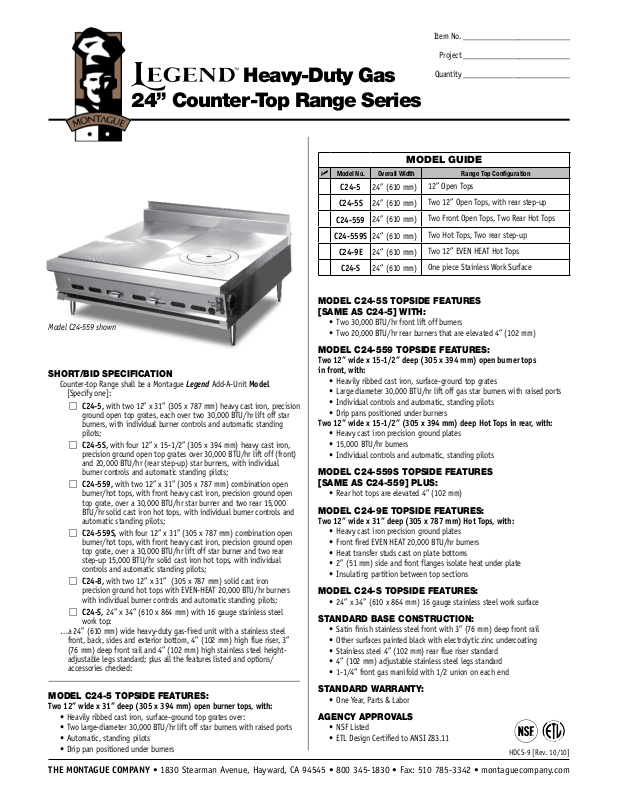

Montague C24-5 Specifications
Item No. ___________________________
Project ___________________________
Heavy-Duty Gas
24” Counter-Top Range Series
Model C24-559 shown
SHORT/BID SPECIFICATION
Counter-top Range shall be a Montague Legend Add-A-Unit Model
[Specify one]:
M
C24-5, with two 12” x 31” (305 x 787 mm) heavy cast iron, precision
ground open top grates, each over two 30,000 BTU/hr lift off star
burners, with individual burner controls and automatic standing
pilots;
M
C24-5S, with four 12” x 15-1/2” (305 x 394 mm) heavy cast iron,
precision ground open top grates over 30,000 BTU/hr lift off (front)
and 20,000 BTU/hr (rear step-up) star burners, with individual
burner controls and automatic standing pilots;
M
C24-559, with two 12” x 31” (305 x 787 mm) combination open
burner/hot tops, with front heavy cast iron, precision ground open
top grate, over a 30,000 BTU/hr star burner and two rear 15,000
BTU/hr solid cast iron hot tops, with individual burner controls and
automatic standing pilots;
M
C24-559S, with four 12” x 31” (305 x 787 mm) combination open
burner/hot tops, with front heavy cast iron, precision ground open
top grate, over a 30,000 BTU/hr lift off star burner and two rear
step-up 15,000 BTU/hr solid cast iron hot tops, with individual
controls and automatic standing pilots;
M
C24-8, with two 12” x 31” (305 x 787 mm) solid cast iron
precision ground hot tops with EVEN-HEAT 20,000 BTU/hr burners
with individual burner controls and automatic standing pilots;
M
C24-S, 24” x 34” (610 x 864 mm) with 16 gauge stainless steel
work top:
… a 24” (610 mm) wide heavy-duty gas-fired unit with a stainless steel
front, back, sides and exterior bottom, 4” (102 mm) high flue riser, 3”
(76 mm) deep front rail and 4” (102 mm) high stainless steel heightadjustable legs standard; plus all the features listed and options/
accessories checked:
MODEL C24-5 TOPSIDE FEATURES:
Two 12” wide x 31” deep (305 x 394 mm) open burner tops, with:
• Heavily ribbed cast iron, surface-ground top grates over:
• Two large-diameter 30,000 BTU/hr lift off star burners with raised ports
• Automatic, standing pilots
• Drip pan positioned under burners
Quantity ___________________________
MODEL GUIDE
Model No. Overall Width Range Top Configuration
C24-5
C24-5S
C24-559
C24-559S
C24-9E
C24-S
24” (610 mm)
24” (610 mm)
24” (610 mm)
24” (610 mm)
24” (610 mm)
24” (610 mm)
12” Open Tops
Two 12” Open Tops, with rear step-up
Two Front Open Tops, Two Rear Hot Tops
Two Hot Tops, Two rear step-up
Two 12” EVEN HEAT Hot Tops
One piece Stainless Work Surface
MODEL C24-5S TOPSIDE FEATURES
[SAME AS C24-5] WITH:
• Two 30,000 BTU/hr front lift off burners
• Two 20,000 BTU/hr rear burners that are elevated 4” (102 mm)
MODEL C24-559 TOPSIDE FEATURES:
Two 12” wide x 15-1/2” deep (305 x 394 mm) open burner tops
in front, with:
• Heavily ribbed cast iron, surface-ground top grates
• Large diameter 30,000 BTU/hr lift off gas star burners with raised ports
• Individual controls and automatic, standing pilots
• Drip pans positioned under burners
Two 12” wide x 15-1/2” (305 x 394 mm) deep Hot Tops in rear, with:
• Heavy cast iron precision ground plates
• 15,000 BTU/hr burners
• Individual controls and automatic, standing pilots
MODEL C24-559S TOPSIDE FEATURES
[SAME AS C24-559] PLUS:
• Rear hot tops are elevated 4” (102 mm)
MODEL C24-9E TOPSIDE FEATURES:
Two 12” wide x 31” deep (305 x 787 mm) Hot Tops, with:
• Heavy cast iron precision ground plates
• Front fired EVEN HEAT 20,000 BTU/hr burners
• Heat transfer studs cast on plate bottoms
• 2” (51 mm) side and front flanges isolate heat under plate
• Insulating partition between top sections
MODEL C24-S TOPSIDE FEATURES:
• 24” x 34” (610 x 864 mm) 16 gauge stainless steel work surface
STANDARD BASE CONSTRUCTION:
• Satin finish stainless steel front with 3” (76 mm) deep front rail
• Other surfaces painted black with electrolytic zinc undercoating
• Stainless steel 4” (102 mm) rear flue riser standard
• 4” (102 mm) adjustable stainless steel legs standard
• 1-1/4” front gas manifold with 1/2 union on each end
STANDARD WARRANTY:
• One Year, Parts & Labor
AGENCY APPROVALS
• NSF Listed
• ETL Design Certified to ANSI Z83.11
HDCS-9 [Rev. 10/10]
THE MONTAGUE COMPANY • 1830 Stearman Avenue, Hayward, CA 94545 • 800 345-1830 • Fax: 510 785-3342 • montaguecompany.com
Item No. ___________________________
FRONT VIEW RIGHT SIDE VIEW TOP VIEW
Heavy-Duty Gas
24” Counter-Top Range Series
OPTIONS GUIDE:
General:
M
42” (1067 mm) Range Depth
M
Stainless steel burner box assembly
M
Equipment Stand [Consult Factory]
Security Options/Prison Package
[Consult Factory]
Panels & Shelves:
M
Stainless steel back
M
18” (457 mm) high riser
M
6” (152 mm) wide stainless steel plate shelf
Special finish options
[Consult Factory]
For Open Burner Top Sections Only:
M
Cast Iron Ribbon Grates [Model C24-5 only]
(requires 20,000 BTU burners)
M
20,000 BTU/hr lift off Star Burner
M
304 stainless steel burner box assembly
Project ___________________________
Quantity ___________________________
Dimensions in brackets are millimeters
Manifolds: [Left rear with pressure regulator]:
M
1” NPT
Manifold Cap:
M
left side M right side
Stainless Manifold Cover:
M
left side M right side
INSTALLATION REQUIREMENTS & SHIPPING INFORMATION
1. Counter-Top Unit must be installed in accordance with local codes or in their absence
with the National Fuel Gas Code: ANSI Z223.1; Natural Fuel Gas Code: CAN/CGA-B149.1 or
Propane Installation Code: CAN/CGA-B149.2, as applicable. Compliance with codes is the
responsibility of the Owner and Installer.
2. An adequate ventilation system is required. Refer to National Fire Protection Association
Standard No. 96, “Vapor Removal from Cooking Equipment.”
3. This appliance is intended for commercial use by professionally trained personnel.
NOT intended for Residential Use.
4. Specify installation elevation: _____________ if above 2000 feet (610 m).
5. GAS INLET SIZE (All Models): 1-1/4 (32mm) front manifold with 1/2 union on each end
provided for battery connection. A properly sized gas pressure regulator must be furnished
by the Installer.
6. The incoming gas line pressure into the regulator should be 8”-14” w.c. for natural gas,
and 12”-14” w.c. for propane gas.
Specify Type of Gas:
Manifold Pressure: 6.0” WC 10.0” WC
Models: Burners BTU/hr (kW) BTU/hr (kW)
C24-5
C24-5S
C24-559
C24-559S
C24-9E
C24-S
4 120,000 (35.2) 120,000 (35.2) 260 lbs (118 kg) 85 7/.2
4 100,000 (29.3) 100,000 (29.3) 260 lbs (118 kg) 85 7/.2
4 90,000 (26.4) 90,000 (26.4) 260 lbs (118 kg) 85 7/.2
4 90,000 (26.4) 90,000 (26.4) 260 lbs (118 kg) 85 7/.2
2 40,000 (11.8) 40,000 (11.8) 236 lbs (107 kg) 85 7/.2
none 130 lbs (81kg) 85 7/.2
M Natural M Propane
Minimum
Clearances
Combustible
Construction
Noncombustible
Construction
From Back Wall 2” (51 mm) 0”
Left & Right Side 6” (152 mm)* 0”
With or without
4” (102 mm) legs
*15” side clearance with open tops
Shipping
Weight
Suitable for installation
on non-combustible counters ONLY
Shipping
Class
Cube
(Crated)
3/m3
ft
Due to continuous product improvements,
specifications are subject to change without notice.
1830 Stearman Avenue, Hayward, CA 94545
800 345-1830 • Fax: 510 785-3342
www.montaguecompany.com
HDCS-9 [Rev. 10/10]
