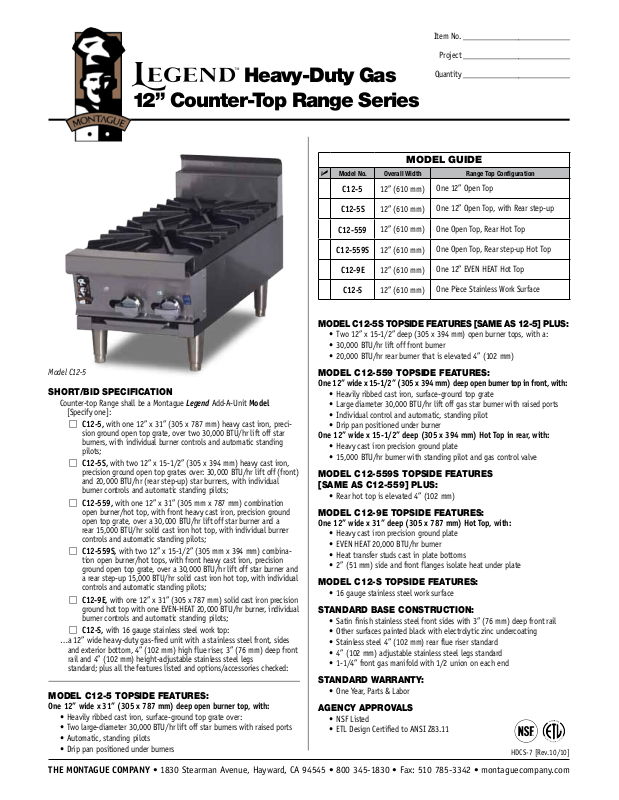

Montague C12-5 Specifications
Item No. ___________________________
Project ___________________________
Heavy-Duty Gas
12” Counter-Top Range Series
Model C12-5
SHORT/BID SPECIFICATION
Counter-top Range shall be a Montague Legend Add-A-Unit Model
[Specify one]:
M
C12-5, with one 12” x 31” (305 x 787 mm) heavy cast iron, preci-
sion ground open top grate, over two 30,000 BTU/hr lift off star
burners, with individual burner controls and automatic standing
pilots;
M
C12-5S, with two 12” x 15-1/2” (305 x 394 mm) heavy cast iron,
precision ground open top grates over: 30,000 BTU/hr lift off (front)
and 20,000 BTU/hr (rear step-up) star burners, with individual
burner controls and automatic standing pilots;
M
C12-559, with one 12” x 31” (305 mm x 787 mm) combination
open burner/hot top, with front heavy cast iron, precision ground
open top grate, over a 30,000 BTU/hr lift off star burner and a
rear 15,000 BTU/hr solid cast iron hot top, with individual burner
controls and automatic standing pilots;
M
C12-559S, with two 12” x 15-1/2” (305 mm x 394 mm) combina-
tion open burner/hot tops, with front heavy cast iron, precision
ground open top grate, over a 30,000 BTU/hr lift off star burner and
a rear step-up 15,000 BTU/hr solid cast iron hot top, with individual
controls and automatic standing pilots;
M
C12-9E, with one 12” x 31” (305 x 787 mm) solid cast iron precision
ground hot top with one EVEN-HEAT 20,000 BTU/hr burner, individual
burner controls and automatic standing pilots;
M
C12-S, with 16 gauge stainless steel work top:
… a 12” wide heavy-duty gas-fired unit with a stainless steel front, sides
and exterior bottom, 4” (102 mm) high flue riser, 3” (76 mm) deep front
rail and 4” (102 mm) height-adjustable stainless steel legs
standard; plus all the features listed and options/accessories checked:
MODEL C12-5 TOPSIDE FEATURES:
One 12” wide x 31” (305 x 787 mm) deep open burner top, with:
• Heavily ribbed cast iron, surface-ground top grate over:
• Two large-diameter 30,000 BTU/hr lift off star burners with raised ports
• Automatic, standing pilots
• Drip pan positioned under burners
Quantity ___________________________
MODEL GUIDE
Model No. Overall Width Range Top Configuration
C12-5
C12-5S
C12-559
C12-559S
C12-9E
C12-S
12” (610 mm)
12” (610 mm)
12” (610 mm)
12” (610 mm)
12” (610 mm)
12” (610 mm)
One 12” Open Top
One 12” Open Top, with Rear step-up
One Open Top, Rear Hot Top
One Open Top, Rear step-up Hot Top
One 12” EVEN HEAT Hot Top
One Piece Stainless Work Surface
MODEL C12-5S TOPSIDE FEATURES [SAME AS 12-5] PLUS:
• Two 12” x 15-1/2” deep (305 x 394 mm) open burner tops, with a:
• 30,000 BTU/hr lift off front burner
• 20,000 BTU/hr rear burner that is elevated 4” (102 mm)
MODEL C12-559 TOPSIDE FEATURES:
One 12” wide x 15-1/2” (305 x 394 mm) deep open burner top in front, with:
• Heavily ribbed cast iron, surface-ground top grate
• Large diameter 30,000 BTU/hr lift off gas star burner with raised ports
• Individual control and automatic, standing pilot
• Drip pan positioned under burner
One 12” wide x 15-1/2” deep (305 x 394 mm) Hot Top in rear, with:
• Heavy cast iron precision ground plate
• 15,000 BTU/hr burner with standing pilot and gas control valve
MODEL C12-559S TOPSIDE FEATURES
[SAME AS C12-559] PLUS:
• Rear hot top is elevated 4” (102 mm)
MODEL C12-9E TOPSIDE FEATURES:
One 12” wide x 31” deep (305 x 787 mm) Hot Top, with:
• Heavy cast iron precision ground plate
• EVEN HEAT 20,000 BTU/hr burner
• Heat transfer studs cast in plate bottoms
• 2” (51 mm) side and front flanges isolate heat under plate
MODEL C12-S TOPSIDE FEATURES:
• 16 gauge stainless steel work surface
STANDARD BASE CONSTRUCTION:
• Satin finish stainless steel front sides with 3” (76 mm) deep front rail
• Other surfaces painted black with electrolytic zinc undercoating
• Stainless steel 4” (102 mm) rear flue riser standard
• 4” (102 mm) adjustable stainless steel legs standard
• 1-1/4” front gas manifold with 1/2 union on each end
STANDARD WARRANTY:
• One Year, Parts & Labor
AGENCY APPROVALS
• NSF Listed
• ETL Design Certified to ANSI Z83.11
HDCS-7 [Rev.10/10]
THE MONTAGUE COMPANY • 1830 Stearman Avenue, Hayward, CA 94545 • 800 345-1830 • Fax: 510 785-3342 • montaguecompany.com
Item No. ___________________________
FRONT VIEW RIGHT SIDE VIEW TOP VIEW
Heavy-Duty Gas
12” Counter-Top Range Series
OPTIONS GUIDE:
General:
M
42” (1067 mm) Range Depth
M
Stainless steel burner box assembly
M
Equipment Stand [Consult Factory]
Security Options/Prison Package
[Consult Factory]
Special finish
[Consult Factory]
Panels & Shelves:
M
Stainless steel back
M
18” (457 mm) high riser
M
6” (152 mm) wide stainless steel plate shelf
Open Burner Top Sections:
M
Cast Iron Ribbon Grate [Model C12-5 only]
(20,000 BTU burners required)
M
20,000 BTU/hr lift off Star Burners [C12-5 only]
M
304 stainless steel burner box assembly
Project ___________________________
Quantity ___________________________
Dimensions in brackets are millimeters
Manifolds: [Left rear with pressure regulator]:
M
1” NPT
Manifold Cap:
M
left side M right side
Stainless Manifold Cover:
M
left side M right side
INSTALLATION REQUIREMENTS & SHIPPING INFORMATION
1. Counter-Top Unit must be installed in accordance with local codes or in their absence
with the National Fuel Gas Code: ANSI Z223.1; Natural Fuel Gas Code: CAN/CGA-B149.1 or
Propane Installation Code: CAN/CGA-B149.2, as applicable. Compliance with codes is the
responsibility of the Owner and Installer.
2. An adequate ventilation system is required. Refer to National Fire Protection Association
Standard No. 96, “Vapor Removal from Cooking Equipment.”
3. This appliance is intended for commercial use by professionally trained personnel.
NOT intended for Residential Use.
4. Specify installation elevation: _____________ if above 2000 feet (610 m).
5. GAS INLET SIZE (All Models): 1-1/4 (32mm) front manifold with 1/2 union on each end
provided for battery connection. A properly sized gas pressure regulator must be furnished
by the Installer.
6. The incoming gas line pressure into the regulator should be 8”-14” w.c. for natural gas,
and 12”-14” w.c. for propane gas.
Specify Type of Gas:
Manifold Pressure: 6.0” WC 10.0” WC
Models: Burners BTU/hr (kW) BTU/hr (kW)
C12-5
C12-5S
C12-559
C12-559S
C12-9E
C12-S
2 60,000 (17.6) 60,000 (17.6) 105 lbs (48 kg) 85 4/.1
2 50,000 (14.7) 50,000 (14.7) 105 lbs (48 kg) 85 4/.1
2 45,000 (13.2) 45,000 (13.2) 105 lbs (48 kg) 85 4/.1
2 45,000 (13.2) 45,000 (13.2) 105 lbs (48 kg) 85 4/.1
1 20,000 (5.9) 20,000 (5.9) 134 lbs (61 kg) 85 4/.1
none 90 lbs (41kg) 85 4/.1
M Natural M Propane
Minimum
Clearances
Combustible
Construction
Noncombustible
Construction
From Back Wall 2” (51 mm) 0”
Left & Right Side 6” (152 mm)* 0”
With or without
4” (102 mm) legs
*15” side clearance with open tops
Shipping
Weight
Suitable for installation
on non-combustible counters ONLY
Shipping
Class
Cube
(Crated)
3/m3
ft
Due to continuous product improvements,
specifications are subject to change without notice.
1830 Stearman Avenue, Hayward, CA 94545
800 345-1830 • Fax: 510 785-3342
www.montaguecompany.com
HDCS-7 [Rev. 10/10]
