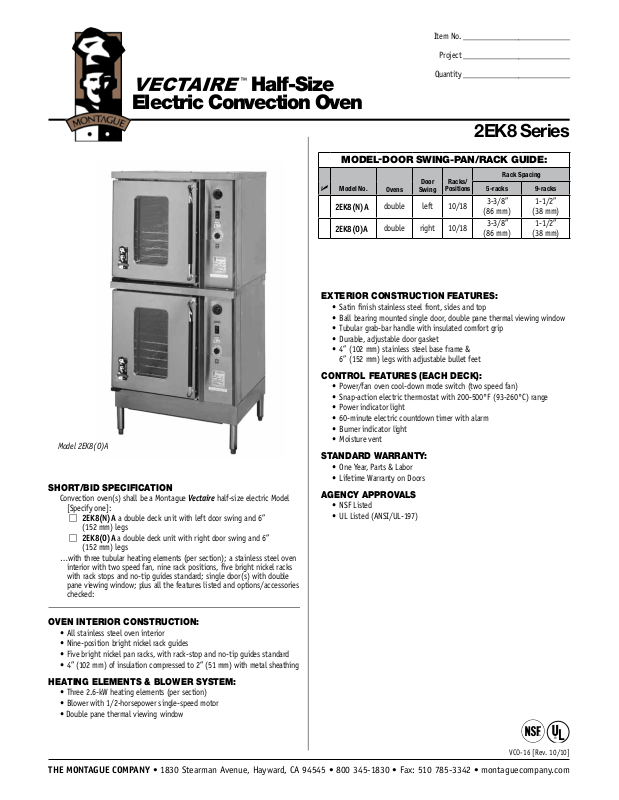

Montague 2EK8 (0) A Specifications

Half-Size

Electric Convection Oven

Model 2EK8(O)A

SHORT/BID SPECIFICATION

Convection oven(s) shall be a Montague Vectaire half-size electric Model

[Specify one]:

M

2EK8(N)A a double deck unit with left door swing and 6”

(152 mm) legs

M

2EK8(O)A a double deck unit with right door swing and 6”

(152 mm) legs

…with three tubular heating elements (per section); a stainless steel oven

interior with two speed fan, nine rack positions, five bright nickel racks
with rack stops and no-tip guides standard; single door(s) with double
pane viewing window; plus all the features listed and options/accessories
checked:

Item No. ___________________________

Project ___________________________

Quantity ___________________________

2EK8 Series

MODEL-DOOR SWING-PAN/RACK GUIDE:

Racks/



Model No.

2EK8(N)A

2EK8(O)A

Ovens

double left 10/18

double right 10/18

Door

Swing

Positions

EXTERIOR CONSTRUCTION FEATURES:

• Satin finish stainless steel front, sides and top

• Ball bearing mounted single door, double pane thermal viewing window

• Tubular grab-bar handle with insulated comfort grip

• Durable, adjustable door gasket

• 4” (102 mm) stainless steel base frame &
6” (152 mm) legs with adjustable bullet feet

CONTROL FEATURES (EACH DECK):

• Power/fan oven cool-down mode switch (two speed fan)

• Snap-action electric thermostat with 200-500°F (93-260°C) range

• Power indicator light

• 60-minute electric countdown timer with alarm

• Burner indicator light

• Moisture vent

STANDARD WARRANTY:

• One Year, Parts & Labor

• Lifetime Warranty on Doors

AGENCY APPROVALS

• NSF Listed

• UL Listed (ANSI/UL-197)

Rack Spacing

5-racks 9-racks

3-3/8”

(86 mm)

3-3/8”

(86 mm)

1-1/2”

(38 mm)

1-1/2”

(38 mm)

OVEN INTERIOR CONSTRUCTION:

• All stainless steel oven interior

• Nine-position bright nickel rack guides

• Five bright nickel pan racks, with rack-stop and no-tip guides standard

• 4” (102 mm) of insulation compressed to 2” (51 mm) with metal sheathing

HEATING ELEMENTS & BLOWER SYSTEM:

• Three 2.6-kW heating elements (per section)

• Blower with 1/2-horsepower single-speed motor

• Double pane thermal viewing window

VCO-16 [Rev. 10/10]

THE MONTAGUE COMPANY • 1830 Stearman Avenue, Hayward, CA 94545 • 800 345-1830 • Fax: [phone] • montaguecompany.com

Item No. ___________________________

Project ___________________________

Half-Size Electric Convection Oven

2EK8 Series

OPTIONS GUIDE:

Electric & Motor Alternatives:

M

Two speed fan motor [208/240]

Racks & Security:

M

Extra Racks: ____ ea.

M

Solid Doors [in place of windows]

M

Security Options [Consult Factory]

M

11-position rack guides

Quantity ___________________________

Dimensions in brackets are millimeters

INSTALLATION REQUIREMENTS & SHIPPING INFORMATION

1. Oven must be installed in accordance with local codes or in their absence with the

National Electric Code: ANSI/NFPA 70. Compliance with codes is the responsibility of the
Owner and Installer.

2. An adequate ventilation system is required. Refer to National Fire Protection Association

Standard No. 96, “Vapor Removal from Cooking Equipment.”

3. This appliance is intended for commercial use by professionally trained personnel.

NOT intended for Residential Use.

4. Two separate electric connections are required on double deck 2EK8 Models. Individual

terminal blocks provided inside each oven. (See Diagram)

Electric Requirements* — Per Oven/Deck

Nominal AMP/Line

Voltage Phase Hz Total kW

208 1 60 7.9 38 48

240 1 60 7.9 33 48

208 3 60 7.9 26 26 24 33

240 3 60 7.9 23 23 21 33

*Other Voltage/Hz models available. Consult factory.

Minimum

Circuit

CapacityL1 L2 L3

Minimum

Clearances

From Back Wall 0” 0”

Left & Right Side* 0” 0”

With 6” (152 mm) legs
[2EK8]

Shipping Information:

Models Weight

2EK8

515 lbs (233 kg) 70 2 x 15/.4

Entry clearance 26” (660 mm) uncrated

Due to continuous product improvements,
specifications are subject to change without notice.

Combustible
Construction

Suitable for installation

on combustible floors

Noncombustible

Shipping

Class

Construction

Cube

(Crated)

ft³/m³

1830 Stearman Avenue, Hayward, CA 94545
800 345-1830 • Fax: [phone]
www.montaguecompany.com

VCO-16 [Rev. 10/10]
