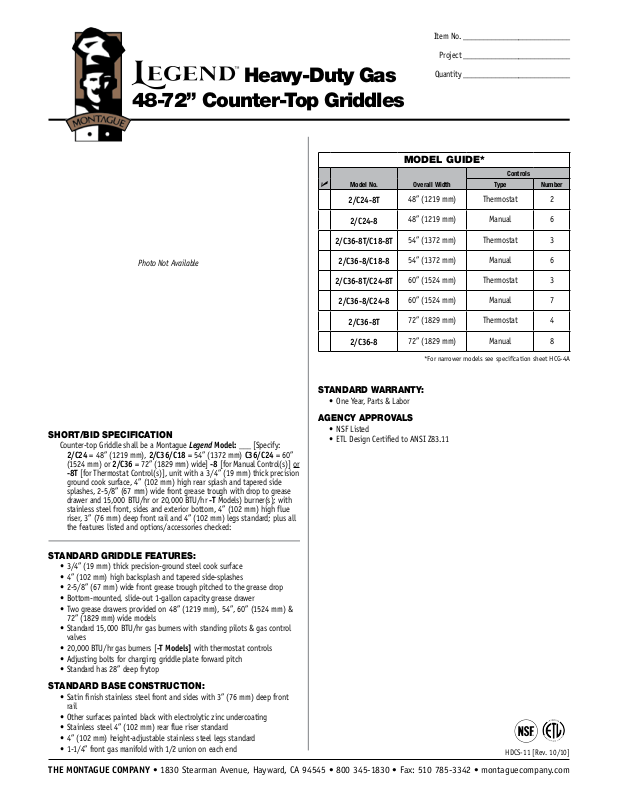

Montague 2-C24-8 Specifications
Item No. ___________________________
Project ___________________________
Heavy-Duty Gas
48-72” Counter-Top Griddles
Model No. Overall Width
2/C24-8T
2/C24-8
2/C36-8T/C18-8T
Photo Not Available
2/C36-8/C18-8
2/C36-8T/C24-8T
2/C36-8/C24-8
2/C36-8T
2/C36-8
Quantity ___________________________
MODEL GUIDE*
Controls
Type Number
48” (1219 mm) Thermostat 2
48” (1219 mm) Manual 6
54” (1372 mm) Thermostat 3
54” (1372 mm) Manual 6
60” (1524 mm) Thermostat 3
60” (1524 mm) Manual 7
72” (1829 mm) Thermostat 4
72” (1829 mm) Manual 8
*For narrower models see specification sheet HCG-4A
SHORT/BID SPECIFICATION
Counter-top Griddle shall be a Montague Legend Model: ___ [Specify:
2/C24 = 48” (1219 mm), 2/C36/C18 = 54” (1372 mm) C36/C24 = 60”
(1524 mm) or 2/C36 = 72” (1829 mm) wide] -8 [for Manual Control(s)] or
-8T [for Thermostat Control(s)], unit with a 3/4” (19 mm) thick precision
ground cook surface, 4” (102 mm) high rear splash and tapered side
splashes, 2-5/8” (67 mm) wide front grease trough with drop to grease
drawer and 15,000 BTU/hr or 20,000 BTU/hr -T Models) burner(s); with
stainless steel front, sides and exterior bottom, 4” (102 mm) high flue
riser, 3” (76 mm) deep front rail and 4” (102 mm) legs standard; plus all
the features listed and options/accessories checked:
STANDARD GRIDDLE FEATURES:
• 3/4” (19 mm) thick precision-ground steel cook surface
• 4” (102 mm) high backsplash and tapered side-splashes
• 2-5/8” (67 mm) wide front grease trough pitched to the grease drop
• Bottom-mounted, slide-out 1-gallon capacity grease drawer
• Two grease drawers provided on 48” (1219 mm), 54”, 60” (1524 mm) &
72” (1829 mm) wide models
• Standard 15,000 BTU/hr gas burners with standing pilots & gas control
valves
• 20,000 BTU/hr gas burners [-T Models] with thermostat controls
• Adjusting bolts for changing griddle plate forward pitch
• Standard has 28” deep frytop
STANDARD BASE CONSTRUCTION:
• Satin finish stainless steel front and sides with 3” (76 mm) deep front
rail
• Other surfaces painted black with electrolytic zinc undercoating
• Stainless steel 4” (102 mm) rear flue riser standard
• 4” (102 mm) height-adjustable stainless steel legs standard
• 1-1/4” front gas manifold with 1/2 union on each end
STANDARD WARRANTY:
• One Year, Parts & Labor
AGENCY APPROVALS
• NSF Listed
• ETL Design Certified to ANSI Z83.11
HDCS-11 [Rev. 10/10]
THE MONTAGUE COMPANY • 1830 Stearman Avenue, Hayward, CA 94545 • 800 345-1830 • Fax: 510 785-3342 • montaguecompany.com
Item No. ___________________________
Heavy-Duty Gas
48-72” Counter-Top Griddles
OPTIONS GUIDE:
General:
M
42” (1067 mm) Griddle Depth [Add Suffix -40]
M
4” (102 mm) special base with grease drawer [M
Prefix]
M
Equipment Stand [Consult Factory]
Security Options/Prison Package [Consult Factory]
Panels/Risers/Shelves:
M
Stainless steel back panel
M
18” (457 mm) high riser
M
6” (152 mm) wide stainless steel plate shelf
M
8” plate shelf
Special finish options [Consult Factory]
INSTALLATION REQUIREMENTS & SHIPPING INFORMATION
1. Griddle must be installed in accordance with local codes or in their absence with the
National Fuel Gas Code: ANSI Z223.1; Natural Fuel Gas Code: CAN/CGA-B149.1 or Propane
Installation Code: CAN/CGA-B149.2, as applicable. Compliance with codes is the
responsibility of the Owner and Installer.
2. An adequate ventilation system is required. Refer to National Fire Protection Association
Standard No. 96, “Vapor Removal from Cooking Equipment.”
3. This appliance is intended for commercial use by professionally trained personnel.
NOT intended for Residential Use.
4. Specify installation elevation: _____________ if above 2,000 ft (610 m).
5. GAS INLET SIZE (All Models): 1-1/4 (32mm) front manifold with 1/2 union on each end
provided for battery connection. A properly sized gas pressure regulator must be furnished
by the Installer.
6. The incoming gas line pressure into the regulator should be 8”-14” w.c. for natural gas,
and 12”-14” w.c. for propane gas.
Specify Type of Gas:
Manifold Pressure: 6.0” WC 10.0” WC
Models: Burners BTU/hr (kW) BTU/hr (kW)
2/C24-8T
2/C24-8
2/C36-8T/C18-8T
2/C36-8/C18-8
2/C36-8T/C24-8T
2/C36-8/C24-8
2/C36-8T
2/C36-8
6 120,000 (35.2) 120,000 (35.2) 620 lbs (281 kg) 85 18/.5
6 90,000 (26.4) 90,000 (26.4) 620 lbs (281 kg) 85 18/.5
6 120,000 (35.2) 120,000 (35.2) 672 lbs (305 kg) 85 21/.6
6 90,000 (26.4) 90,000 (26.4) 672 lbs (305 kg) 85 21/.6
7 140,000 (41) 140,000 (41) 742 lbs (336 kg) 85 23/.64
7 105,000 (30.8) 105,000 (30.8) 742 lbs (336 kg) 85 23/.64
8 160,000 46.9) 160,000 (46.9) 864 lbs (392 kg) 85 28/.8
8 120,000 (35.2) 120,000 (35.2) 864 lbs (392 kg) 85 28/.8
For Griddle/Fry Top:
M
1” (25 mm) thick griddle plate
M
1” (25 mm) thick grooved griddle plate
M
1” (25 mm) Chrome plate [ thermostats
required]
M
34” (864 mm) deep plate [Add Suffix -40]
(Standard depth 28”)
M
Thermostatically controlled [Add Suffix -T]
M
450° and 550° thermostat options
M Natural M Propane
Project ___________________________
Quantity ___________________________
Dimensions in brackets are millimeters
Manifolds:
[Specify left or right rear with pressure regulator]:
M
1” NPT
Manifold Cap:
M
left side M right side
Stainless Manifold Cover:
M
left side M right side
Minimum
Clearances
Combustible
Construction
Noncombustible
Construction
From Back Wall 2” (51 mm) 0”
Left & Right Side 6” (152 mm) 0”
With or without
4” (102 mm) legs
Shipping
Weight
Suitable for installation
on non-combustible counters ONLY
Shipping
Class
Cube
(Crated)
3/m3
ft
Due to continuous product improvements,
specifications are subject to change without notice.
1830 Stearman Avenue, Hayward, CA 94545
800 345-1830 • Fax: 510 785-3342
www.montaguecompany.com
HDCS-11 [Rev. 10/10]
