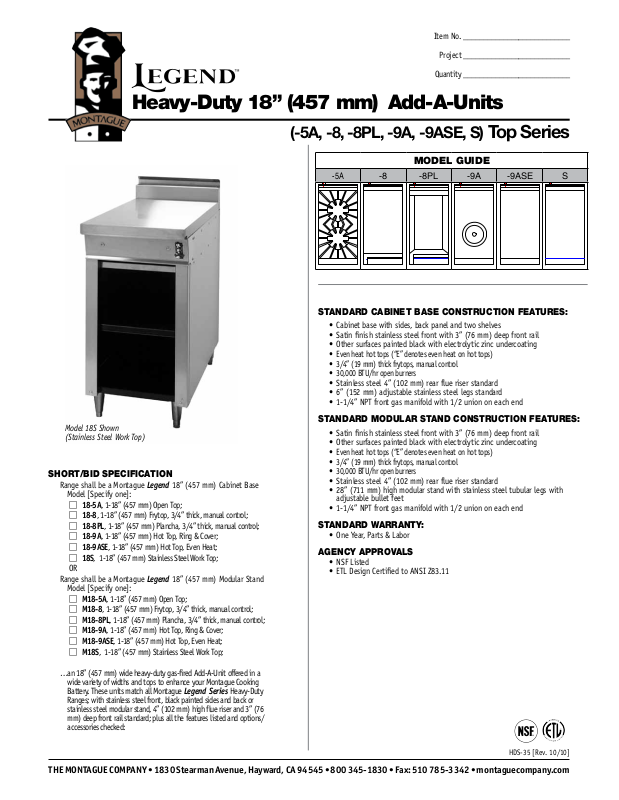

Montague 18-5A Specifications
Item No. ___________________________
Project ___________________________
Heavy-Duty 18” (457 mm) Add-A-Units
Model 18S Shown
(Stainless Steel Work Top)
SHORT/BID SPECIFICATION
Range shall be a Montague Legend 18” (457 mm) Cabinet Base
Model [Specify one]:
M
18-5A, 1-18” (457 mm) Open Top;
M
18-8, 1-18” (457 mm) Frytop, 3/4” thick, manual control;
M
18-8PL, 1-18” (457 mm) Plancha, 3/4” thick, manual control;
M
18-9A, 1-18” (457 mm) Hot Top, Ring & Cover;
M
18-9ASE, 1-18” (457 mm) Hot Top, Even Heat;
M
18S, 1-18” (457 mm) Stainless Steel Work Top;
OR
Range shall be a Montague Legend 18” (457 mm) Modular Stand
Model [Specify one]:
M
M18-5A, 1-18” (457 mm) Open Top;
M
M18-8, 1-18” (457 mm) Frytop, 3/4” thick, manual control;
M
M18-8PL, 1-18” (457 mm) Plancha, 3/4” thick, manual control;
M
M18-9A, 1-18” (457 mm) Hot Top, Ring & Cover;
M
M18-9ASE, 1-18” (457 mm) Hot Top, Even Heat;
M
M18S, 1-18” (457 mm) Stainless Steel Work Top;
Quantity ___________________________
(-5A, -8, -8PL, -9A, -9ASE, S) Top Series
MODEL GUIDE
-5A
STANDARD CABINET BASE CONSTRUCTION FEATURES:
• Cabinet base with sides, back panel and two shelves
• Satin finish stainless steel front with 3” (76 mm) deep front rail
• Other surfaces painted black with electrolytic zinc undercoating
• Even heat hot tops (“E” denotes even heat on hot tops)
• 3/4” (19 mm) thick frytops, manual control
• 30,000 BTU/hr open burners
• Stainless steel 4” (102 mm) rear flue riser standard
• 6” (152 mm) adjustable stainless steel legs standard
• 1-1/4” NPT front gas manifold with 1/2 union on each end
STANDARD MODULAR STAND CONSTRUCTION FEATURES:
• Satin finish stainless steel front with 3” (76 mm) deep front rail
• Other surfaces painted black with electrolytic zinc undercoating
• Even heat hot tops (“E” denotes even heat on hot tops)
• 3/4” (19 mm) thick frytops, manual control
• 30,000 BTU/hr open burners
• Stainless steel 4” (102 mm) rear flue riser standard
• 28” (711 mm) high modular stand with stainless steel tubular legs with
adjustable bullet feet
• 1-1/4” NPT front gas manifold with 1/2 union on each end
STANDARD WARRANTY:
• One Year, Parts & Labor
AGENCY APPROVALS
• NSF Listed
• ETL Design Certified to ANSI Z83.11
-8 -8PL -9A -9ASE S
… an 18” (457 mm) wide heavy-duty gas-fired Add-A-Unit offered in a
wide variety of widths and tops to enhance your Montague Cooking
Battery. These units match all Montague Legend Series Heavy-Duty
Ranges; with stainless steel front, black painted sides and back or
stainless steel modular stand, 4” (102 mm) high flue riser and 3” (76
mm) deep front rail standard; plus all the features listed and options/
accessories checked:
HDS-35 [Rev. 10/10]
THE MONTAGUE COMPANY • 1830 Stearman Avenue, Hayward, CA 94545 • 800 345-1830 • Fax: 510 785-3342 • montaguecompany.com
Item No. ___________________________
Project ___________________________
Heavy-Duty 18” (457 mm) Add-A-Units
(-5A ,-8 ,-8PL ,-9A ,-9ASE , S) Top Series
OPTIONS GUIDE:
M
Griddle:
M
450° Thermostatic Control [one for 18” griddle]
M
550° Thermostatic Control [one for 18” griddle]
M
1” (25 mm) thick griddle plate
M
1” (25 mm) thick grooved griddle plate
M
34” (864 mm) deep plate [Add Suffix -40]
M Extending griddle over two ranges [72” max.]
M
42” (1067 mm) range depth [Add Suffix: -40]
Top Range:
M
42” (1067mm) range depth [Add Suffix: -40]
M
304 stainless steel burner box assembly
Back Panels/Shelves:
M
18” (457 mm) high back
M
Single high shelf
M
Double high shelf
6” (152 mm) wide stainless steel plate shelf
M
8” (203 mm) wide stainless steel plate shelf
Manifolds: [Left rear with pressure regulator]:
M
1” NPT up to 400,000 BTU/hr
Manifold Cap:
M
left side M right side
Stainless Manifold Cover:
M
left side M right side
Finish:
M
Stainless steel left side panel
M
Stainless steel right side panel
M
Stainless steel back panel
M
Stainless steel shelves and sides
Quantity ___________________________
Dimensions in brackets are millimeters
General:
M
Casters — set of four 5” (127 mm) casters
M
Flex Connector Kit
M
3’ (914 mm) M 4’ (1219 mm)
[1”] NPT:
Security Options/Prison Package [Consult Factory]
Doors
:
M
Stainless Steel door for cabinet base
HIGH SHELVES ARE NOT RECOMMENDED FOR MODULAR STAND UNITS.
INSTALLATION REQUIREMENTS & SHIPPING INFORMATION
1. Ranges must be installed in accordance with local codes or in their absence with the
National Fuel Gas Code: ANSI Z223.1; Natural Fuel Gas Code: CAN/CGA-B149.1 or Propane
Installation Code: CAN/CGA-B149.2, as applicable. Compliance with codes is the responsibility of the Owner and Installer.
Minimum
Clearances
Combustible
Construction
Noncombustible
Construction
From Back Wall* 2” (51 mm) 0”
2. An adequate ventilation system is required. Refer to National Fire Protection Association
Standard No. 96, “Vapor Removal from Cooking Equipment.”
Left & Right Side 6” (152 mm) 0”
3. This appliance is intended for commercial use by professionally trained personnel. NOT
intended for Residential Use.
4. Specify installation elevation: _____________ if above 2,000 ft (610m).
5. GAS INLET SIZE (All Models): 1-1/4 (32mm) front manifold with 1/2 union on each end
With 6” (152 mm) legs Suitable for installation
on combustible floors
provided for battery connection. A properly sized gas pressure regulator must be furnished
by the Installer.
Specify Type of Gas:
Gas Delivery Pressure: 6.0” WC 10.0” WC
Models: Burners BTU/hr* (kW) BTU/hr* (kW)
o
Natural
o
Propane
Shipping
Weight
Shipping
Class
Cube
(Crated)
3/m3
ft
18-5A & M18-5A 2 60,000 (17.6) 60,000 (17.6) 250 lbs (113 kg) 85 15/.4
18-8 & M18-8 2 30,000 (8.8) 30,000 (8.8) 370 lbs (168 kg) 85 17/.5
18-8PL & M18-8PL 1 15,000 (4.4) 15,000 (4.4) 370 lbs (168 kg) 85 17/.5
18-9A & M18-9A 1 35,000 (10.3) 35,000 (10.3) 270 lbs (123 kg) 85 15/.4
18-9ASE & M18-9ASE 2 40,000 (11.7) 40,000 (11.7) 270 lbs (123 kg) 85 17/.5
18S & M18S 0 0 0 145 lbs (66 kg) 85 15/.4
*Add 10,000 BTU/hr (3.0 kW) for 42” (1067 mm) deep Griddle Top [-40] and thermostatically controlled griddle. Entry Clearance: 30” (762 mm) uncrated, with legs removed [All Models]
Due to continuous product improvements, specifications are subject to change without notice.
1830 Stearman Avenue, Hayward, CA 94540
800 345-1830 • Fax: 510 785-3342
www.montaguecompany.com
HDS-35 [Rev. 10/10]
