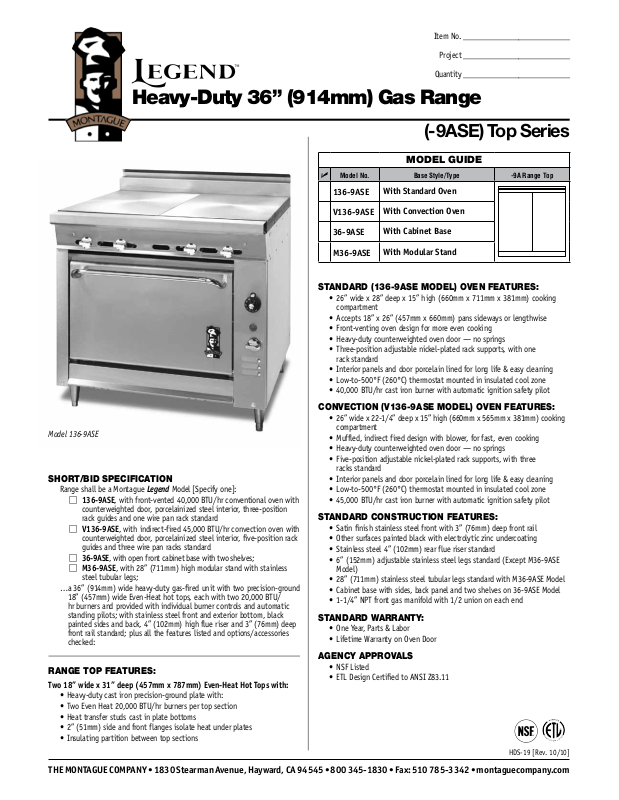

Montague 136-9ASE Specifications
Item No. ___________________________
Project ___________________________
Heavy-Duty 36” (914mm) Gas Range
Model 136-9ASE
SHORT/BID SPECIFICATION
Range shall be a Montague Legend Model [Specify one]:
M
136-9ASE, with front-vented 40,000 BTU/hr conventional oven with
counterweighted door, porcelainized steel interior, three-position
rack guides and one wire pan rack standard
M
V136-9ASE, with indirect-fired 45,000 BTU/hr convection oven with
counterweighted door, porcelainized steel interior, five-position rack
guides and three wire pan racks standard
M
36-9ASE, with open front cabinet base with two shelves;
M
M36-9ASE, with 28” (711mm) high modular stand with stainless
steel tubular legs;
… a 36” (914mm) wide heavy-duty gas-fired unit with two precision-ground
18” (457mm) wide Even-Heat hot tops, each with two 20,000 BTU/
hr burners and provided with individual burner controls and automatic
standing pilots; with stainless steel front and exterior bottom, black
painted sides and back, 4” (102mm) high flue riser and 3” (76mm) deep
front rail standard; plus all the features listed and options/accessories
checked:
RANGE TOP FEATURES:
Two 18” wide x 31” deep (457mm x 787mm) Even-Heat Hot Tops with:
• Heavy-duty cast iron precision-ground plate with:
• Two Even Heat 20,000 BTU/hr burners per top section
• Heat transfer studs cast in plate bottoms
• 2” (51mm) side and front flanges isolate heat under plates
• Insulating partition between top sections
Quantity ___________________________
(-9ASE) Top Series
MODEL GUIDE
Model No. Base Style/Type -9A Range Top
136-9ASE
V136-9ASE
36-9ASE
M36-9ASE
STANDARD (136-9ASE MODEL) OVEN FEATURES:
• 26” wide x 28” deep x 15” high (660mm x 711mm x 381mm) cooking
compartment
• Accepts 18” x 26” (457mm x 660mm) pans sideways or lengthwise
• Front-venting oven design for more even cooking
• Heavy-duty counterweighted oven door — no springs
• Three-position adjustable nickel-plated rack supports, with one
rack standard
• Interior panels and door porcelain lined for long life & easy cleaning
• Low-to-500°F (260°C) thermostat mounted in insulated cool zone
• 40,000 BTU/hr cast iron burner with automatic ignition safety pilot
CONVECTION (V136-9ASE MODEL) OVEN FEATURES:
• 26” wide x 22-1/4” deep x 15” high (660mm x 565mm x 381mm) cooking
compartment
• Muffled, indirect fired design with blower, for fast, even cooking
• Heavy-duty counterweighted oven door — no springs
• Five-position adjustable nickel-plated rack supports, with three
racks standard
• Interior panels and door porcelain lined for long life & easy cleaning
• Low-to-500°F (260°C) thermostat mounted in insulated cool zone
• 45,000 BTU/hr cast iron burner with automatic ignition safety pilot
STANDARD CONSTRUCTION FEATURES:
• Satin finish stainless steel front with 3” (76mm) deep front rail
• Other surfaces painted black with electrolytic zinc undercoating
• Stainless steel 4” (102mm) rear flue riser standard
• 6” (152mm) adjustable stainless steel legs standard (Except M36-9ASE
Model)
• 28” (711mm) stainless steel tubular legs standard with M36-9ASE Model
• Cabinet base with sides, back panel and two shelves on 36-9ASE Model
• 1-1/4” NPT front gas manifold with 1/2 union on each end
STANDARD WARRANTY:
• One Year, Parts & Labor
• Lifetime Warranty on Oven Door
AGENCY APPROVALS
• NSF Listed
• ETL Design Certified to ANSI Z83.11
With Standard Oven
With Convection Oven
With Cabinet Base
With Modular Stand
HDS-19 [Rev. 10/10]
THE MONTAGUE COMPANY • 1830 Stearman Avenue, Hayward, CA 94545 • 800 345-1830 • Fax: 510 785-3342 • montaguecompany.com
Item No. ___________________________
Project ___________________________
Heavy-Duty 36” (914mm) Gas Range
(-9ASE) Top Series
OPTIONS GUIDE:
Top Range:
M
42” (1067mm) range depth [Add Suffix: -40]
For Oven:
M
Cast iron oven bottom
M
Extra oven racks: ____ea.
Back Panels/Shelves:
M
18” (457mm) high back
M
Single high shelf
M
Double high shelf
M
6” (152mm) wide stainless steel plate shelf
M
8” (203mm) wide stainless steel plate shelf
Finish:
M
Stainless steel left side panel
M
Stainless steel right side panel
M
Stainless steel back panel
M
Stainless steel exterior bottom
M
Stainless steel shelves and sides
[36-9ASE Cabinet Model]
Manifolds: [Left rear with pressure regulator]:
M
1” NPT up to 400,000 BTU/hr
Manifold Cap:
M
left side M right side
Stainless Manifold Cover:
M
left side M right side
Quantity ___________________________
Dimensions in brackets are millimeters
Electrical (V136):
M
120 V, 1-phase, 60 Hz, 3.4 A
(standard, with 6’ (1.8m) NEMA 5-15P power cord)
M
208-240 V, 1-phase, 60 Hz, 1.7 A
General:
M
Casters — set of four 5” (127mm) casters
Flex Connector Kit
M
3’ (914mm) M 4’ (1219mm)
M
[1”] NPT:
Security Options/Prison Package
[Consult Factory]
INSTALLATION REQUIREMENTS & SHIPPING INFORMATION
1. Ovens & ranges must be installed in accordance with local codes or in their absence with
the National Fuel Gas Code: ANSI Z223.1; Natural Fuel Gas Code: CAN/CGA-B149.1 or
Propane Installation Code: CAN/CGA-B149.2, as applicable. Compliance with codes is the
responsibility of the Owner and Installer.
2. An adequate ventilation system is required. Refer to National Fire Protection Association
Standard No. 96, “Vapor Removal from Cooking Equipment.”
3. This appliance is intended for commercial use by professionally trained personnel. NOT
intended for Residential Use.
4. Specify installation elevation: _____________ if above 2,000 ft (610m).
5. GAS INLET SIZE (All Models): 1-1/4 NPT front manifold with 1/2 union on each end pro-
vided for battery connection. A properly sized gas pressure regulator must be furnished
by the Installer.
6. The incoming gas line pressure into the regulator should be 8”-14” w.c. for natural gas,
and 12”-14” w.c. for propane gas.
M Natural M Propane
6.0” WC 10.0” WC
Models:
136-9ASE
V136-9ASE
36-9ASE
M36-9ASE
Specify Type of Gas:
Gas Delivery Pressure:
Burners BTU/hr (kWh) BTU/hr (kWh)
5 120,000 (35.2) 120,000 (35.2)
5 125,000 (36.6) 125,000 (36.6)
4 80,000 (23.4) 80,000 (23.4)
4 80,000 (23.4) 80,000 (23.4)
1830 Stearman Avenue, Hayward, CA 94545
800 345-1830 • Fax: 510 785-3342
www.montaguecompany.com
