Monster SUPERTHIN Large Articulating MOUNT User Manual

SUPERTHIN™ LARGE ARTICULATING MOUNT

SECURE, EASY TO INSTALL, LOWPROFILE MOUNT WITH EXTENDING SWING ARMS

INSTALLATION MANUAL

AND WARRANTY

"

42"-63

(106-160cm)

120

(54.43kg)

lbs.

SUPERTHIN™ LARGE ARTICULATING MOUNT

This SuperThin mount is designed to mount 42"– 63"
(106 – 160 cm) atscreen televisions to vertical walls.
Maximum weight capacity is 120 lbs. (54.43 kg).

SAFETY WARNING

Before installing, carefully review the instructions
to ensure that no parts are missing or defective.
Improper installation can cause damage or serious
injury. Do not use this product for any purpose not
explicitly specied by Monster or the manufacturer.
Neither Monster nor the manufacturer can be liable
for damage or injury caused by incorrect assembly,
incorrect mounting or incorrect use.

All hardware is supplied for the following wall
conditions: Wood stud, brick, solid concrete and
concrete block.

Note: The supplied hardware is not for steel stud
walls. If you are uncertain about the nature of your
wall construction, consult an installation contractor.

Important Notice

Monster intends to make this manual accurate and
complete, however, Monster makes no claim that
the information contained herein covers all details,
conditions or variations, nor does it provide for
every possible contingency in connection with the
installation or use of this product. The information
contained in this document is subject to change
without notice or obligation of any kind. Monster
makes no representation of warranty, expressed
or implied, regarding the information contained
herein. Monster assumes no responsibility for
accuracy, completeness or suciency of the
information contained in this document.

If you don’t understand these directions, or are
unsure of how to install this product installation,
please call a qualied contractor or contact Monster
Cable Products, Inc.

If you bought the Product in the United States, Latin
America (Mexico 011-882-800-8989), or Asia Pacic
(China 400-820-8973), contact Monster, LLC (455
Valley Drive, Brisbane, CA 94005) at 1 877 800-8989.
If you bought the Product anywhere else, contact
Monster Technology International Ltd., Ballymaley
Business Park, Ennis, Co. Clare, Ireland. You can write
or use one of the following telephone numbers:
Canada 866-348-4171, Ireland 353 65 68 69 354,
Austria 0800296482, Belgium 0800-79201, Czech
Republic 800-142471, Denmark 8088-2128, Finland
800-112768, France 0800-918201, Germany
0800-1819388, Greece 00800-353-12008, Italy
800-871-479, Netherlands 0800-0228919, Norway
800-10906, Russia 810-800-20051353, Spain
900-982-909, Sweden 020-792650, Switzerland
0800834659, United Kingdom 0800-0569520.

2

32.48" (82.5cm)

4.92" to 31.5" (12.5cm to 80cm)

1.60" (4.06cm)

9.01" (22.9cm)
25" (63.5cm)

16.54" (42cm)

8.58" (214cm)

12.4" (31.5cm)

18.78" (47.4cm)

16.54" (42cm)

Specifications and Notes

VESA™ 200×200 / 300×300 / 400×200 / 400×400 / 600×400 / 800×400 Compliant

Monster is constantly striving to improve its products. Specications are subject to change without notice.

3

1 Wall Mounting Plate

with Articulating Arm

1 Upper

TV Mounting Bracket

1 Lower

TV Mounting Bracket

1 Cardboard

Installation Template

4 Rectangular

Washers

2 Allen Keys

4 Concrete Anchors 4 Lag Bolts 4 Round Washers

Screws
4 each M5×10 / M5×15 / M5×25
4 each M6×10 / M6×15 / M6×25
4 each M8×10 / M8×15 / M8×25

1 Hex Wrench

1 Bubble Level

1 Electronic

Studnder

Package Contents

If any parts are missing, please call the appropriate Monster number for your location.
See page 2 for phone numbers.

4

Important!
Read Before Installing

WARNINGS

A WARNING alerts you to the possibility of serious
injury or death if you do not follow the instructions.

(1) DO NOT install on a sloping surface. Install
exclusively on a vertical surface.

(2) DO NOT mount to cabinetry made of
particleboard.

(3) DO NOT install in a room with excessively high
temperatures or high humidity. Install at least 3 ft.
from all water sources. Refer to TV manufacturer’s
manual for specic information regarding
temperature and humidity.

(4) DO NOT install near an air conditioner.

(5) DO NOT install in a location where there is
excessive dust, smoke or moisture. These sources
can create a re.

(6) NEVER apply unnecessary stress or load on the
installed unit. Never hang on the unit.

CAUTIONS

A CAUTION alerts you the possibility of damage or
destruction of equipment if you do not follow the
corresponding instruction.

(1) To prevent eye fatigue, do not install where there
is direct sunlight or excessive light.

(2) When carrying out maintenance, disconnect the
TV’s power supply to avoid electrical shock.

(3) If planning to route AV cable in wall, only use
cable that is approved for this use.

Masonry Mounting

While masonry materials (bolts and concrete
anchors) are included, masonry mounting requires
specialized knowledge, skills and tools. Monster
highly recommends that you seek the assistance of
a professional installer when mounting to masonry.

DO NOT drill holes in masonry mortar joints.

(7) DO NOT install unit alone. Safe installation
requires at least two people.

(8) DO NOT route your atscreen TV’s power cord
in wall. Check local building/electrical codes for
more information.

(9) DO NOT over tighten screws or bolts. This can
damage the wall plate or the surface of your wall.
Thread screws or bolts carefully by hand before
tightening. If you feel any resistance, remove the
screw or bolt immediately.

(10) DO NOT release the wall plate until you are
absolutely sure it is secured to the wall.

5

Required Tools

Pre-Installation Checklist

Wall Stud Mounting

Level (included)
Electronic studnder (included)
Electric hand drill

" drill bit

³
Phillips screwdriver

Wrench or socket set
Masking tape

Masonry Mounting
(brick, concrete, concrete blocks)

Above tools
Replace ³" drill bit with ½" masonry drill bit
Hammer

For wood stud mounting, your mounting



location must have at least two wall studs.

Your view of the mounting location must be



free of glare or other obstructions.

Your mounting location must be near an AC



power outlet. Ideally the outlet should be
behind your TV. This allows you to conceal your
display’s power cord.

Your mounting location must be at least 3 ft.



from any source of heat or water.

TIP: To hide your TV’s power cord and AV cables,
install a Monster FlatScreen™ CleanView™ Cable
Manager.

6

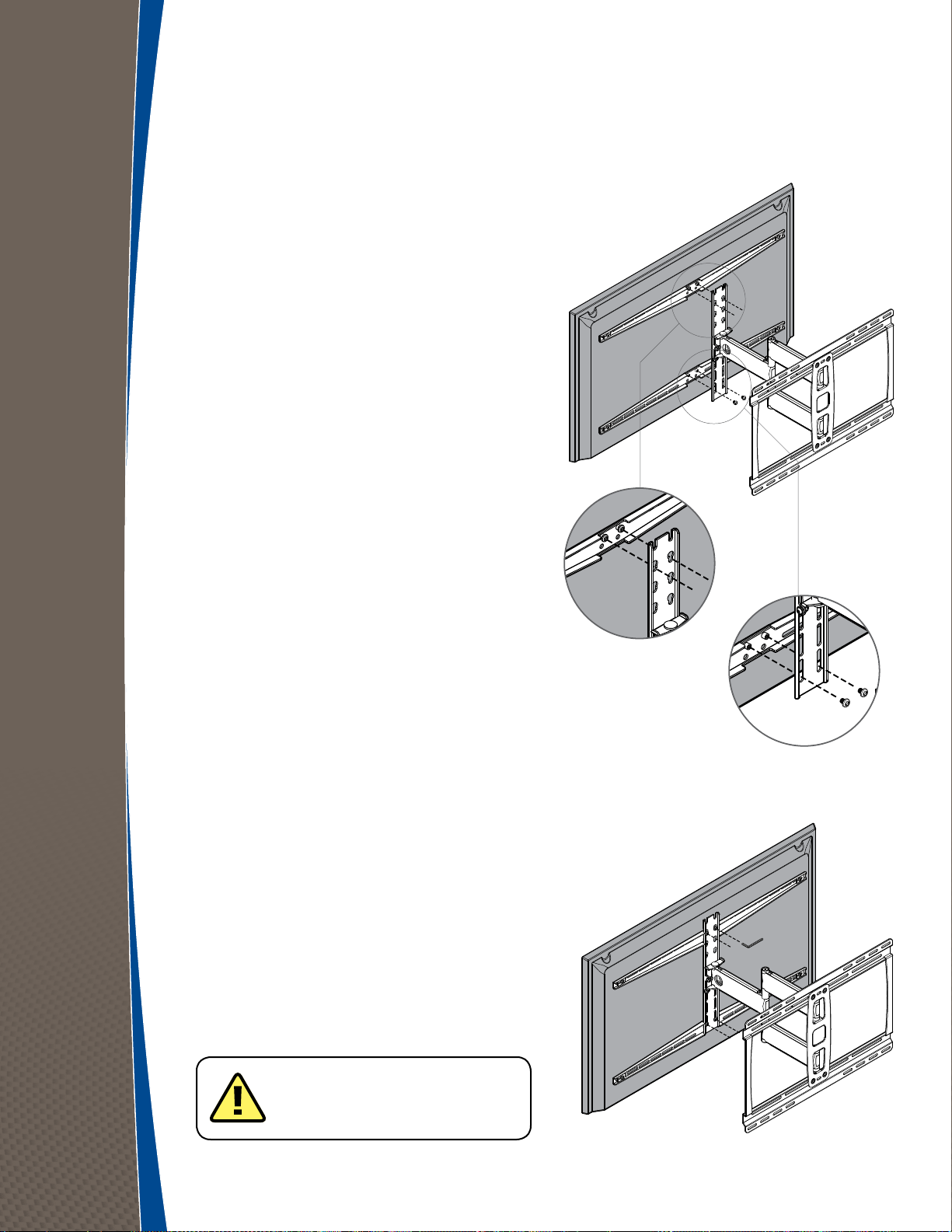

Installing the Wall Mounting Plate

Remove all pieces of the wall mounting system to
ensure you have all necessary parts.

Adjust Wall Plate Location

With supplied Allen key, loosen bolts on wall plate
and position wall plate in the desired sliding slots
of wall plate rails. You may have to remove the 4
bolts and 4 washers. Once you have bolted the rails
to the wall, it will be dicult to slide the wall plate
sideways.

7
