Monsoon Multimedia Vulkano User Manual

MONSOON MULTIMEDIA

User Guide

Contents

INTRODUCTION ................................................................................................................................................ 2

HOOK UP THE CABLES ...................................................................................................................................... 4

CONFIGURE YOUR VULKANO ............................................................................................................................. 7

USING YOUR VULKANO FEATURES ................................................................................................................... 15

LIVE TV .......................................................................................................................................................... 15

GUIDE ........................................................................................................................................................... 16

MY RECORDINGS ............................................................................................................................................. 19

INTERNET APPS ............................................................................................................................................... 21

SETTINGS ....................................................................................................................................................... 22

SETUP ........................................................................................................................................................... 23

ADVANCED SETUP .......................................................................................................................................... 23

FREQUENTLY ASKED QUESTIONS ...................................................................................................................... 26

User Guide

Vulkano unit

HDD

(Select models only)

10/100/1000 Ethernet cable

Power adapter

SD card

(Select models only)

2 Composite cables

HDMI cable

Remote control 2 Component cables IR blaster cable

INTRODUCTION

Vulkano is a sleek and stylish consumer device that connects to your television STB (Set Top Box), and enables a complete television and Internet media experience on your Smartphone, iPhone, iPad, PC, Mac and big screen television. Vulkano allows you to enjoy live and recorded television, videos, photos and music on multiple devices.

WHAT’S IN THE BOX

User Guide

21 3

54 6

87 9

Back MENU

PWR

MUTE

APPS

VOL+

CH+

DVRVOL- CH-

GUIDEMEDIA

PREV STOP

>/||

Mute

Exit / Previous screen

Start/Stop

Cancel

My Recordings

Channel guide

Number keys

Power

Main Menu

Refresh

Show Information

Live TV

Stop video

Internet applications

Rewind

Play/Pause Fast Forward

IR Blaster

Power

HDMI Output

Component Input SD

Video In / Audio In

Composite Input SD

Video In / Audio In

Component Output

HD Video Out

Composite Output SD

Video Out / Audio Out

Ethernet

HDD Data

HD Power

Reset

SD Card

Aux USB

REMOTE CONTROL

VULKANO UNIT

User Guide

HOOK UP THE CABLES

CONNECT YOUR SET TOP BOX (STB) TO VULKANO

When connecting Vulkano to your STB (Satellite or Cable), you can either connect using Component or Composite video outputs located on the back of the STB. If your STB has both, use Component for better video quality. Connect the STB video and audio outputs to the video and audio inputs on the back of the Vulkano. Connect your Vulkano to your STB as shown in the Component or Composite diagram.

CONNECT VULKANO TO YOUR TV

Connect either the Component or HDMI output cables from the back of the Vulkano to the video inputs on your TV. If you use Component cables, you will also need to connect the Composite audio (white and red) cable from the Vulkano output to the TV audio input. If your TV supports both Component and HDMI input, use HDMI for better video quality. Connect your Vulkano to your TV as shown in the HDMI or Component diagram.

User Guide

STORAGE OPTIONS

Your Vulkano comes with either an SD memory card or an external hard disk drive, depending on the model.

SD Card – Insert the SD card into your Vulkano as shown, if it is not pre-installed.

Hard Disk Drive – Connect your Vulkano to the supplied Hard Disk as shown.

POWER

Connect the included power supply as shown.

User Guide

HOME NETWORK CONNECTIONS

Vulkano can work on your home network, whether it is WiFi or Ethernet.

 If Using WiFi – You do not have to do anything, we’ll take care of it for you  If Using Ethernet – Connect your Vulkano to your router as shown

SOFTWARE SETUP OPTIONS

 Turn on your television  Use your television remote control to select the HDMI or Component input from the

television setup or settings menu. This connection should be consistent with the cable connection from Vulkano to the television input (ie: HDMI or Component to your television)

 Plug the Vulkano power adapter into a wall plug  Wait for the green light to appear on the Vulkano, and then for an image to appear on

your television screen (this can take 45 seconds)

 Using the Vulkano remote control, follow the on-screen instructions  If you encounter a problem using the TV Setup or choose to use a PC to setup your

Vulkano, please go to http://www.myvulkano.com/support_downloads.html to download the PC Player/Setup Wizard.

User Guide

| | |

| |

Numbers

CONFIGURE YOUR VULKANO

After switching on your Vulkano, the Get Started screen will be displayed on your television.

If you have connected your Vulkano to your TV with the HDMI input:

 Press “1” on your Vulkano remote

Note: Make sure you do not press OK.

If you have connected your Vulkano to your TV with the Component input:

 Press OK on your Vulkano remote

Note: Make sure you do not press “1”.

ETHERNET (WIRED) HOME NETWORKS

If you connected your Vulkano to your router using Ethernet, the Network Configuration screen will be displayed.

 Press OK

User Guide

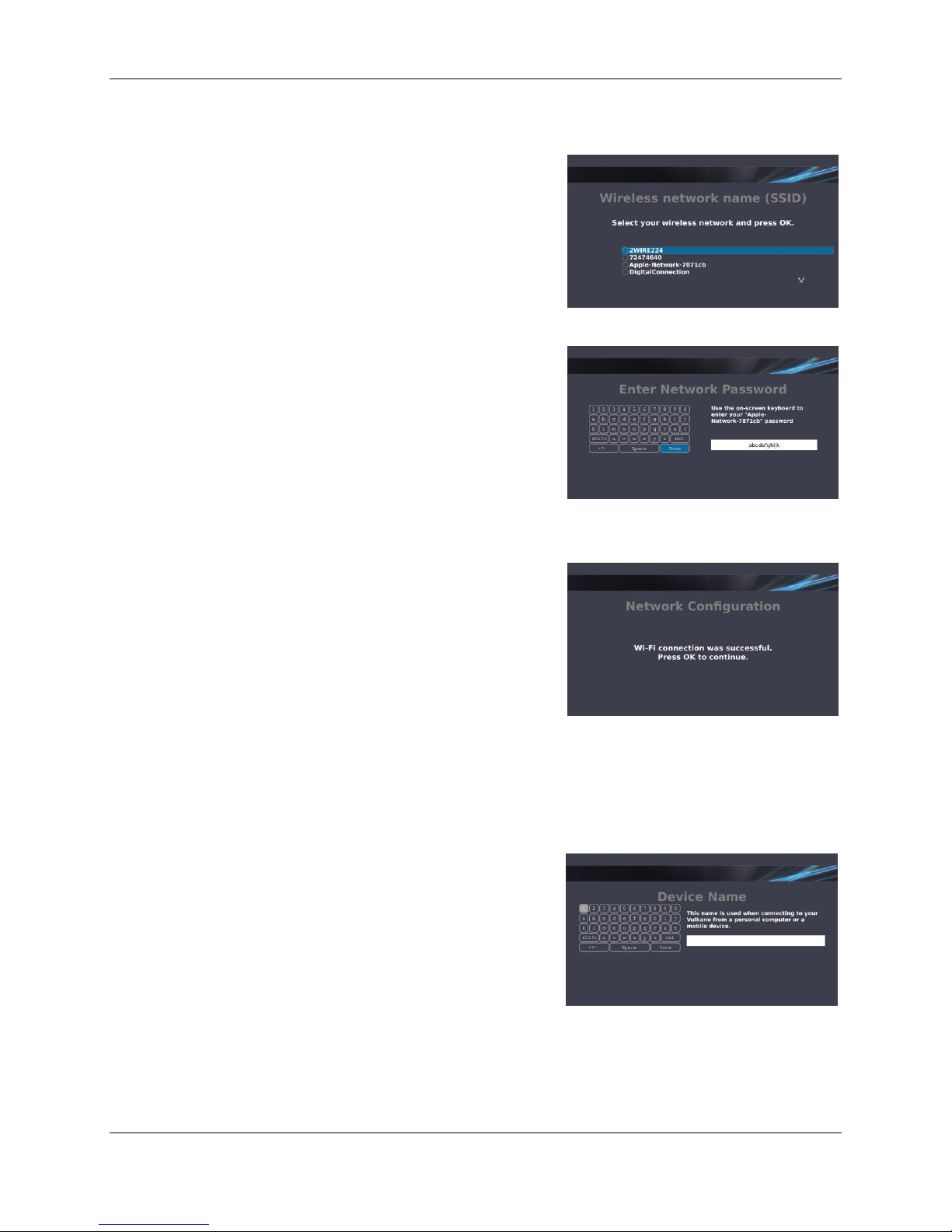

WIRELESS NETWORK NAME

Using the Arrow buttons on your Vulkano remote:

1. Select your wireless network

2. Press OK

Use the Arrow and OK buttons on your Vulkano remote to select characters from the on-screen keyboard:

1. Enter your Network Password or Router Key

2. Select Done

3. Press OK

DELETE ARROW ICONS

A Network Configuration confirmation screen will be displayed.

 Press OK

VULKANO NAME

You will need to give your Vulkano a name and password. This name and password will allow you access to your Vulkano from your PC or mobile device.

Use the Arrow and OK buttons on your Vulkano remote to select characters from the on-screen keyboard:

1. Enter your own Vulkano name

2. Select Done

3. Press OK

User Guide

| | |

| |

Numbers

VULKANO PASSWORD

Use the Arrow and OK buttons on your Vulkano remote to select characters from the on-screen keyboard:

1. Enter your password

2. Select Done

3. Press OK

Note: The Vulkano name and password are case sensitive. If you enter a name that has already been assigned to someone else, you will be asked to choose another name.

CONFIGURE VIDEO INPUT

Using the Arrow buttons on your Vulkano remote:

1. Select the appropriate video input

configuration that corresponds to how you connected Vulkano to your STB:

o Composite – if you used Red/White/Yellow

cables

o Component – if you used Red/Green/Blue & Red/White cables

2. Press OK

The video will appear in the lower-left part of your TV screen when you have selected the right input.

CONFIGURE EPG (ELECTRONIC PROGRAM GUIDE)

Using the Number buttons on your Vulkano remote:

1. Enter your zip code

2. Press OK

Note: You can use the Left Arrow button on your Vulkano remote to backspace if you make a mistake.

User Guide

SERVICE TYPE

Using the Arrow buttons on your Vulkano remote:

1. Select Cable or Satellite

2. Press OK

Note: If you select the Cable option, you may be asked to select either: Analog Device (if you receive only standard definition television with no high-definition channels) or Digital (if you receive high definition channels).

SERVICE PROVIDER

Using the Arrow buttons on your Vulkano remote:

1. Select your TV service provider from the list

2. Press OK

TV PACKAGE (S)

Using the Arrow buttons on your Vulkano remote:

1. Select one or more package items

2. Press OK for each item you select

3. Select the Done selecting the package(s)

option

4. Press OK

Note: This option helps to configure your Electronic Program Guide. If you are not sure which options to select, then select all of the options.

User Guide

| | |

| |

Channel Up/Down

IR (INFRARED) BLASTER

Using the Arrow buttons on your Vulkano remote:

1. Select your STB type

2. Press OK

Using the Arrow buttons on your Vulkano remote:

1. Select your STB manufacturer

2. Press OK

Using the Arrow buttons on your Vulkano remote:

1. Select the STB model

2. Press OK

Note: If your exact device model is not listed, choose a similar model number if possible. If the code does not work, you will have the opportunity to change it later.

To test the remote commands:

1. Press the CH+ and CH- buttons

2. Press OK

User Guide

| | |

| |

Numbers

Using the Arrow buttons on your Vulkano remote:

 Select It worked if the remote commands work  Select It didn’t work if the remote commands

failed, and follow the instructions

 Select Try again to test the remote commands

again

 Select Continue anyway to skip the test and try

again later

 Press OK

REMOTE CONTROL

Using the Arrow buttons on your Vulkano remote:

1. Select the format you use when entering

single-digit channels on your regular television remote.

2. Press OK

Note: Some STB Cable and Satellite boxes require users

to enter leading zeros in front of single-digit channels. For example: 7, 07, 007, 0007.

Using the Arrow buttons on your Vulkano remote:

1. Select Yes or No to specify whether or not you

need to press the Enter button on your regular television remote when selecting a channel using the Number buttons

2. Press OK

Using the Number buttons on your Vulkano remote:

1. Enter a valid two or three digit channel

2. Press OK

User Guide

| | |

| |

Numbers

Using the Arrow buttons on your Vulkano remote:

 Select It worked if the remote commands work  Select It didn’t work if the remote commands

failed, and follow the instructions

 Select Try again to test the remote commands

again

 Select Continue anyway to skip the test and try

again later

 Press OK

TIME ZONE

Using the Arrow buttons on your Vulkano remote:

1. Select your time zone

2. Press OK

STORAGE

Your Vulkano needs to format the attached storage device (hard drive or SD card) for recording. The First-Time you configure your Vulkano, the Storage screen may indicate that the attached device is “not compatible”. This is normal.

 Press OK to proceed with formatting the

storage device

CONFIRM FORMATTING

Using the Number buttons on your Vulkano remote:

1. Enter the code number displayed on the screen

2. Press OK

Disk formatting may take up to ten minutes. The Formatting Progress dialog box will be displayed.

User Guide

VULKANO CONFIGURED SUCCESSFULLY

Congratulations! You have successfully set up your Vulkano!

 Press OK to go to the Menu screen

DOWNLOAD THE CLIENTS

Mobile Players

Vulkano Mobile Players for various smartphones are available on Monsoon Multimedia’s website: http://www.myvulkano.com/mobile_players.html and from the Apple App Store.

PC and Mac Players

A Vulkano PC Player is available for download at:

http://www.myvulkano.com/support_downloads.html.

Troubleshooting

For additional information or technical assistance for your Vulkano product, go to Monsoon’s

Technical Support Website at: http://www.myvulkano.com/support.html.

User Guide

| | |

| |

Numbers

Channel Up/Down

USING YOUR VULKANO FEATURES

This section covers the following:

 Live TV  Guide  My Recordings  Internet Apps  Settings  Help

LIVE TV

To watch Live TV, you can:

 Use the Arrow buttons on your Vulkano

remote to select the Live TV option from the Menu screen and press OK or

 Press TV

A television picture will be displayed on your screen. When viewing Live TV, you can perform any of the following functions:

 Press the up/down Arrows or CH+ and CH- to

select and view a specific channel

 Use the Number buttons to select and view a

specific channel

Note: Some STB Cable and Satellite boxes require users to enter leading zeros in front of single-digit channels. For example: 7, 07, 007, 0007.

User Guide

| | |

| |

Numbers

Record/

Cancel

Stop

| | |

| |

Back

Schedule

Delete

View Info

Guide

To record a program from Live TV:

1. Press to initiate a 30-minute recording of

the program you are currently viewing

2. Press again and select Stop this recording

to cancel the recording

3. Press Back or Stop to return to the Menu

If you selected a Live TV channel from the Guide, the Back or Stop button will return you back to the Guide.

GUIDE

To access the Guide, you can:

 Use the Arrow buttons on your Vulkano

remote to select the Guide option from the Menu screen and press OK or

 Press Guide

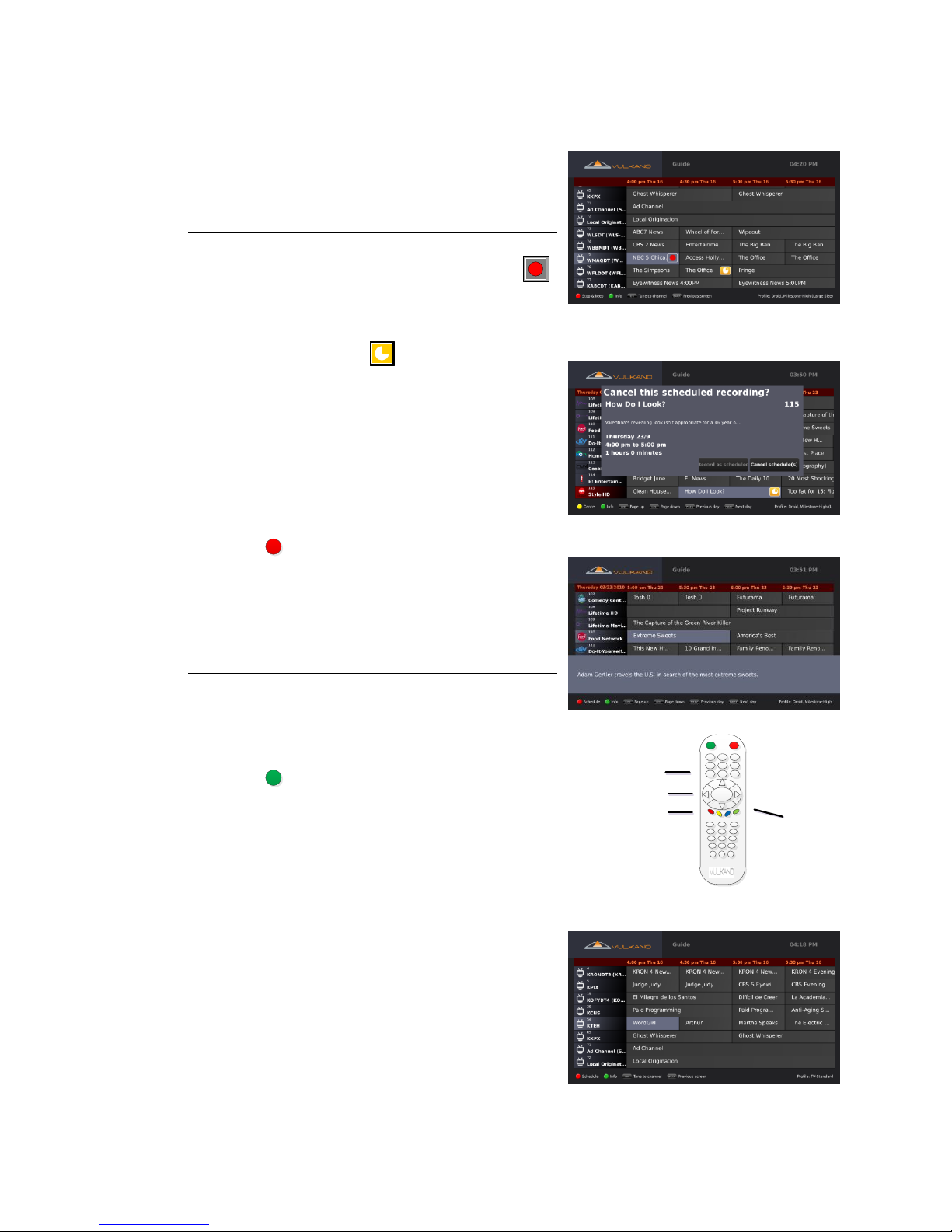

When viewing the Guide, you can perform any of the following functions:

 Press to schedule a recording  Press to delete a recording  Press to view information about a specific

program

 Use the Arrow buttons on your Vulkano

remote to select a specific program and press OK

 Press Back to return to the Menu

User Guide

| | |

| |

Schedule

Recording

Schedule a recording

To schedule a recording from the Guide:

1. Use the Arrow buttons on your Vulkano remote

to select the program you wish to schedule

2. Press

An information dialog box will be displayed.

From the Information dialog box, you can perform one of the following options:

 Select Modify Settings to manually specify the start time, end

time, profile format and quality of the recording

 Select Record this show to manually schedule a recording  Select Don’t record to cancel the scheduling option

Modify settings

In the Modify Settings dialog box, you can perform any of the following options:

 Use the left and right Arrow buttons on your

Vulkano remote to navigate to the Start Time, End Time, Profile and Quality setting options

 Use the up and down Arrow buttons on your

Vulkano remote to adjust the Start Time, End Time, Profile and Quality settings options

Using the Arrow buttons on your Vulkano remote:

1. Select Save to make the Profile and Quality settings the default settings for future

recordings scheduled from the Guide. This will return you to the previous screen

2. Select Record this show to manually schedule a recording

3. Select Don’t record if you choose to cancel the scheduling option

Note: Profile options include the following: TV; iPhone, iPad; Droid, Milestone; PC/Mac/TV. Quality options

include the following: Standard; High (Large Size).

If the amount of space required for a recording exceeds your available space, an information dialog box will be displayed.

 Press OK

User Guide

| | |

| |

Stop

Back

View Info

Note: If you wish to free up available space, you can delete existing or scheduled recordings from the storage. For additional information, please refer to the My Recordings section.

Recording a show from the Guide

When viewing the Guide, the Red Circle Indicator is displayed for recordings that are currently in progress.

The Orange Clock Indicator is displayed for scheduled recordings.

Canceling a recording

To cancel a recording in progress:

1. Use the Arrow buttons on your Vulkano

remote to select the program

2. Press to stop the recording and keep the

part which has already been recorded

A confirmation dialog box will be displayed.

 Press OK

Viewing program information

To view specific information about a program:

1. Use the Arrow buttons on your Vulkano remote to

select the scheduled program

2. Press

Information will be displayed at the bottom of the screen.

Viewing a channel / Returning to the previous screen

To view a specific program from the Guide:

1. Use the Arrow buttons on your Vulkano

remote to select the program

2. Press OK to tune to the channel

To return back to the previous screen:

 Press Back

User Guide

>/||

| | |

| |

Delete

Refresh

Back

DVR

Pause/

Play

MY RECORDINGS

To access My Recordings, you can:

 Use the Arrow buttons on your Vulkano

remote to select the My Recordings option from the Menu screen and press OK or

 Press DVR

Ready to watch

Using the Arrow buttons on your Vulkano remote:

1. Select Ready to watch to view recordings that

have been completed

2. Press OK

The Ready to watch screen displays a list of programs that have already been recorded. When viewing the Ready to watch screen, you can perform any of the following functions:

1. Use the Arrow buttons on your Vulkano

remote to select a recorded program

2. Press OK

The name of the program, program description, record profile and file size will be displayed on the left side of the screen.

 Press to delete the selected recording  Press to refresh the list  Press or OK to view the selected recording  Press Back to return to the previous screen

Recorded programs can be viewed in your PC, Mac or Mobile device Ready to Transfer list, if they have been recorded in the correct format for that device.

User Guide

| | |

| |

Stop

Delete

Refresh

Back

Scheduled

Using the Arrow buttons on your Vulkano remote:

1. Select Scheduled to view scheduled recordings

and recordings in progress

2. Press OK

The Scheduled screen displays a list of programs that are currently being recorded and are scheduled to be recorded.

When viewing the Scheduled screen, you can perform any of the following functions:

1. Use the Arrow buttons on your Vulkano remote

to select a recorded program

2. Press OK

The name of the program, program description, record profile and file size will be displayed on the left side of the screen.

 Press to stop a recording in progress and keep the part which has already been

recorded

 Press to delete a scheduled recording that is not in progress  Press to refresh the list  Press Back to return to the previous screen

User Guide

>/||

| | |

| |

Apps

Back

Rewind Play

Pause/ Play

INTERNET APPS

To access Internet Apps, you can:

 Use the Arrow buttons on your Vulkano

remote to select the Internet Apps option and press OK or

 Press Apps

To access the Internet Apps > YouTube feature, you can:

 Use the Arrow buttons on your Vulkano

remote to select YouTube

 Press OK

The Internet Apps > YouTube feature contains the following options that can be accessed using the Arrow buttons on your Vulkano remote:

 Recently Featured  Top Rated  Most Viewed  Top Favorited  Search

When viewing the Recently Featured, Top Rated, Most Viewed or Top Favorited options:

 Use the Arrow buttons on your Vulkano remote to select a YouTube video clip on the

left

 Press OK to play back a YouTube video clip  Press to rewind to the beginning of the video clip  Press to pause and play the video clip  Press to view the video clip in 3x speed  Press Back to return to the previous screen

User Guide

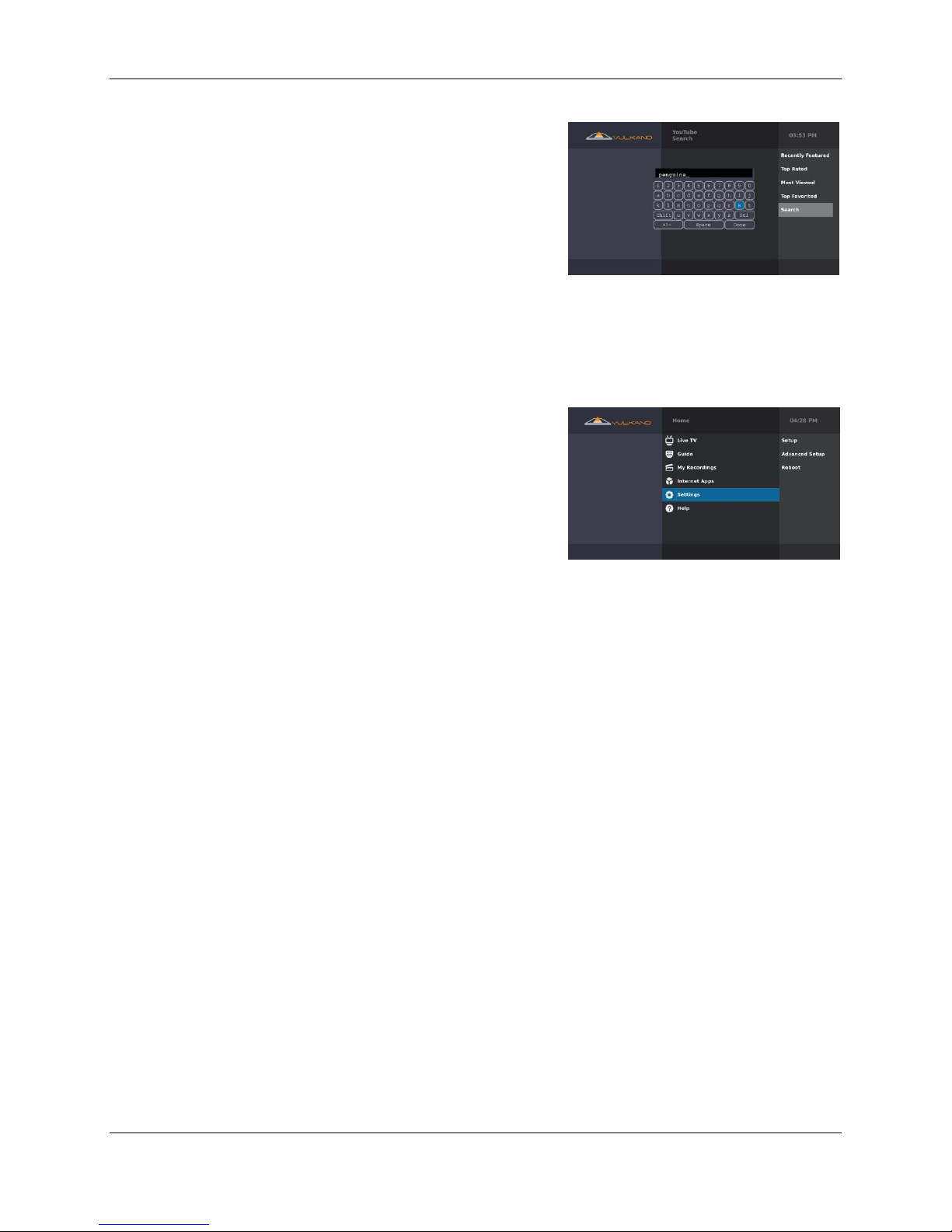

To search for a specific YouTube video clip:

1. Use the Arrow and OK buttons on your Vulkano

remote to select the Search option

2. Enter your search terms using the on-screen

keyboard

3. Select Done when finished

4. Press OK

YouTube videos that fit your search parameters will be displayed.

SETTINGS

To view and adjust your settings, you can:

1. Use the Arrow buttons on your Vulkano

remote to select the Internet Settings option from the Menu screen

2. Press OK

The Settings menu contains the following options:

 Setup  Advanced Setup  Reboot

The Setup option allows you to configure the device Setup Wizard. The Advanced Setup option allows you to choose specific settings to edit in the following categories:

 Network  Video Input  IR Blaster  Video Output  EPG  Vulkano Name and Password  Time Zone  Remote Access  Storage  Firmware Update

The Reboot option allows you to restart your Vulkano.

User Guide

| | |

| |

SETUP

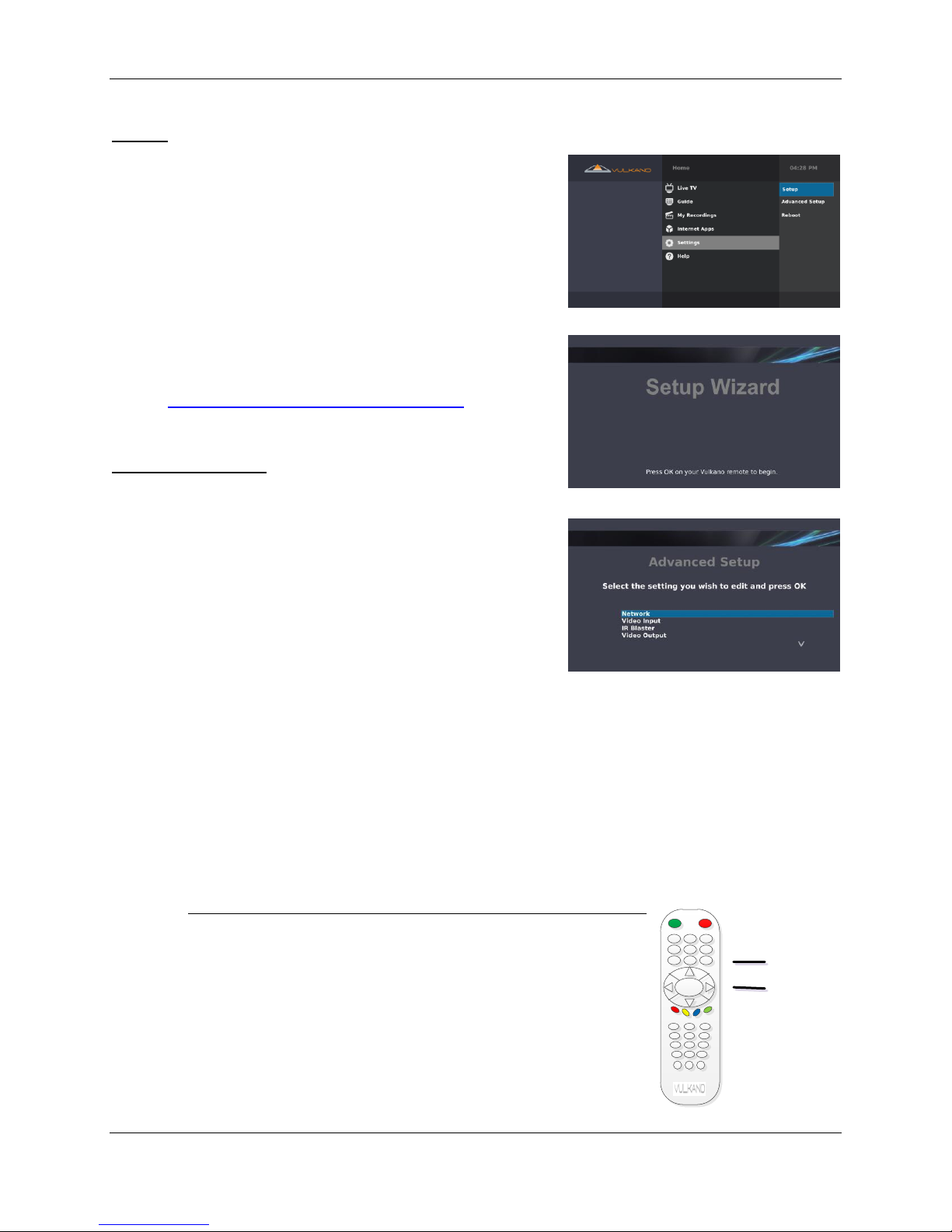

To access the Setup Wizard, you can:

1. Use the Arrow buttons on your Vulkano

remote to select the Setup option

2. Press OK

Troubleshooting

For additional information or technical assistance for

your Vulkano product, go to Monsoon’s Technical

Support Website at:

http://www.myvulkano.com/support.html.

ADVANCED SETUP

The Advanced Setup option allows you to choose specific settings to edit in the following categories:

 Network  Video Input  IR Blaster  Video Output  EPG  Vulkano Name and Password  Time Zone  Remote Access  Storage  Firmware Update

To access the Advanced Setup, you can:

1. Use the Arrow buttons on your Vulkano remote to select the Advanced Setup option

2. Press OK

Main Menu

In the Advanced Setup screen, use the Arrow buttons on your Vulkano remote to:

1. Select Main Menu to return to the Menu screen

2. Press OK

 Press Menu

User Guide

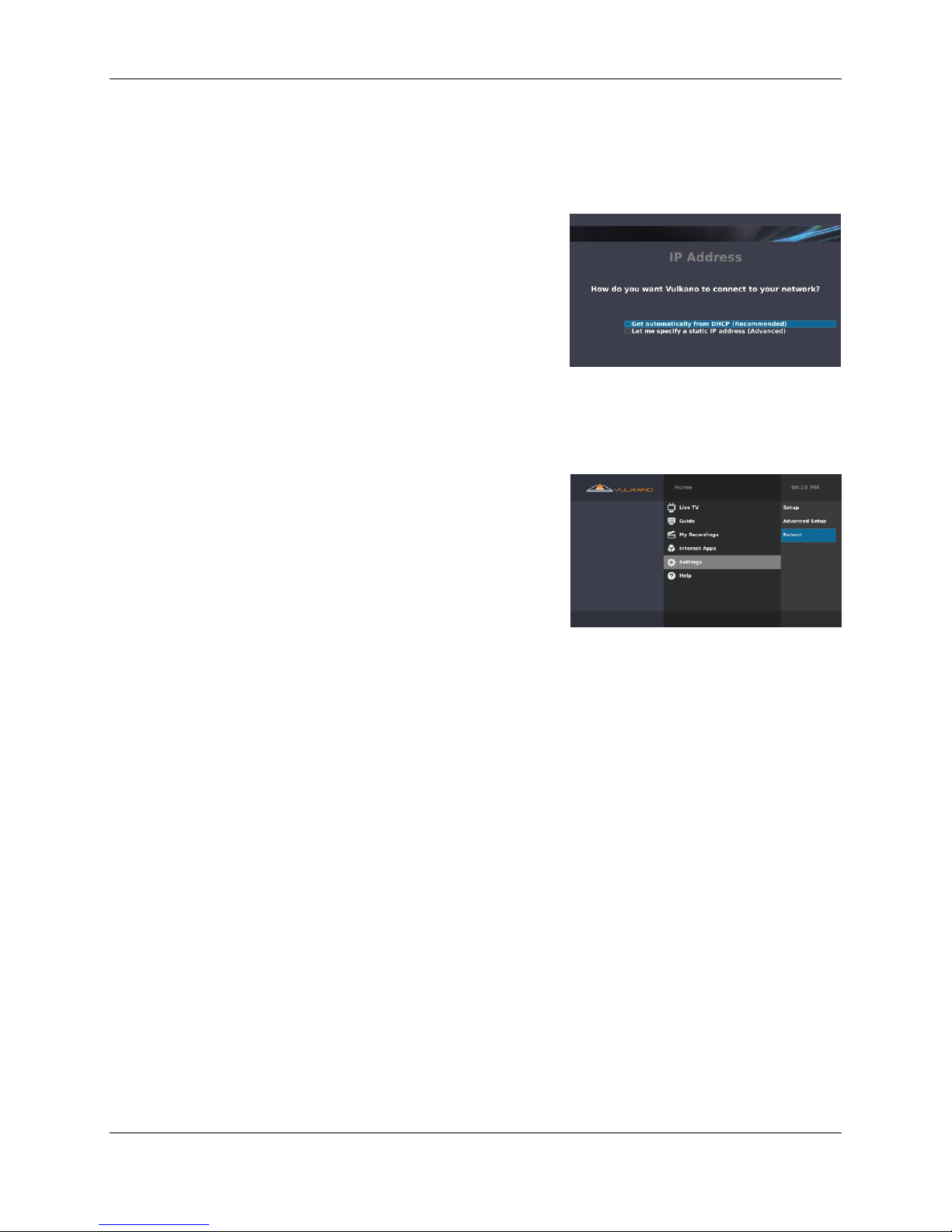

IP ADDRESS

For wireless users, you have the option to automatically or manually connect your Vulkano to your network.

Using the Arrow buttons on your Vulkano remote:

1. Select the Get automatically from DHCP

(Recommended) option

2. Press OK

Note: Select the Let me specify a static IP address (Advanced) option if you specifically know that you are

using a static IP address.

REBOOT

The Reboot option allows you to restart Vulkano. To reboot your device:

1. Use the Arrow buttons on your Vulkano remote

to select the Reboot option

2. Press OK

Vulkano will restart and return you to the Menu screen.

Note: It is recommended that you reboot your Vulkano after performing a Firmware Update.

User Guide

| | |

| |

Back

HELP

To access the Help screen:

1. Use the Arrow button on your Vulkano remote

to select the Help option

2. Press OK

The Help screen provides tips and tricks for getting the most out of your Vulkano.

1. Use the Arrow buttons on your Vulkano

remote to select a Help topic

2. Press OK

Topic tips and tricks will be displayed.

1. Press the Arrow buttons to navigate to the next or previous pages

2. Press Back to return to the Menu screen

User Guide

FREQUENTLY ASKED QUESTIONS

Q: WOULD VULKANO SUPPORT WINDOWS MCE?

A: Vulkano has its own EPG Support for Scheduled recordings, therefore there would be no need to use Windows MCE with Vulkano. In another words Windows MCE is not supported by Vulkano.

Q: I HAVE FORGOT MY VULKANO PASSWORD. IS THERE ANYWAY TO RETRIEVE IT?

A: You can retrieve the User Name and Password of your Vulkano from PlayerSettings.xml File of your Old Laptop.

You may follow these Steps:

For Windows XP

Go to C:\Documents and Settings\User Account\Local Settings\Application Data\Monsoon Multimedia\Vulkano\PlayerSettings.xml

For Vista & Win7

Go to C:\Users\<Your Account>\AppData\Local\Monsoon Multimedia\Vulkano\PlayerSettings.xml

Kindly Note: Local Settings and AppData are Hidden Folders. Kindly Unhide them to get to the PlayerSettings.xml file.

Follow these Steps to unhide Folders in XP

http://www.howtogeek.com/howto/windows/display-hidden-folders-in-xp/

Follow these Steps to Unhide Folders in Vista & Win7

http://www.howtogeek.com/howto/windows-vista/show-hidden-files-and-folders-in-windowsvista/

Q: I WANT TO ADD SECOND VULKANO IN MY NETWORK, HOW CAN I DO IT?

A: In order to set up Second Vulkano Unit in a Single Network, you have to configure One Vulkano Unit at one Point of time. Your first Vulkano Unit should not be plugged to the power source during the basic Configuration. Once you configure your Second Vulkano Unit, you can Plug in the first Vulkano unit as well.

User Guide

However, only one Vulkano can be seen as Local Vulkano unit. It depends on the IP Address assigned to your Vulkano devices by your Network Router. For example if the IP Address Assigned to one of your Vulkano is 192.168.1.15 and the IP Address assigned to your other Vulkano is 192.168.1.16, in this case the Vulkano with .15 IP address will be seen as the Local Vulkano as per the IP Stack.

Now to make your preferred Vulkano as your First Vulkano, you need to disconnect the other Vulkano for a While, Reboot your Router then the Vulkano which is connected to it, it will rearrange the IP address. You can then Turn on other Vulkano as well.

Q: WHAT ARE THE DIFFERENT TYPES OF INPUT & OUTPUT PORTS ON VULKANO?

A: Audio/Video Inputs and output Ports on Vulkano are as follows:

 RCA Composite Video (In and Out)  RCA Left and Right Audio (In and Out)  Component Y-Pb-Pr (In and Out)  HDMI Out

Q: HOW CAN I SET UP MY VULKANO PLAYER ON PC AT A REMOTE LOCATION, I AM UNABLE TO

COMPLETE THE WIZARD?

A: You do not need to Run Wizard to configure Vulkano at your office computer. For remote viewing you just have to Open PC Player > Then Click on "Player" in the Tool Bar on Top of the PC Player > Then Click on "Add/Select Vulkano"> Enter your Vulkano Name and Password under Remote Vulkano by Clicking on Add.

Once you are done, you can simply click on "Connect" to watch your Favorite Programs from the remote location.

Q: CAN I SET MY VULKANO UP USING A PC?

A: Vulkano can be configured using PC and MAC Setup Wizard. In addition to this you can use the Vulkano Remote Control for TV Setup Wizard to configure it on your TV.

Q: HOW DO I PORT FORWARD MY ROUTER?

A: You may go to http://www.portforward.com. Select Make and Model of your Router, (Skip the Advertisement) Search for Monsoon Vulkano and Click on it.

Follow the instructions as how to forward the ports for Vulkano. You may call Monsoon Technical Support for any assistance, if needed.

User Guide

Q: WILL MY 802.11 G ROUTER WORK WITH A VULKANO?

A: Yes, it will work with 802.11g router. Vulkano supports 802.11a, g & n Wireless Standards.

Q: CAN I UPGRADE MY VULKANO’S STORAGE?

A: Connecting any Peripheral to VULKANO is not as cut and dried as it would be with PC - on Windows, you can go to any PC store and buy any Device and get proper drivers with it. On VULKANO, we have to carefully select Devices and drivers to match the Linux operating system used on the unit. As of now Only a few storage devices has been tested with VULKANO and that is what will work with VULKANO. You may go upto 1TB of Storage on Vulkano which can be purchased from http://shop.monsoonmultimedia.com/shop/products.aspx?c=3

Q: IS STATIC IP SETUP FOR VULKANO REQUIRED?

A: Since Vulkano renegotiates UPnP port forwarding rules whenever it gets an IP address, it should not need to have a static IP set if your router supports UPnP (and UPnP is enabled). However, there is no harm in having the IP set for static either – just the standard warnings about making sure that the static IP chosen is not in the DHCP allocation range set by the router or used by another device using static IP on the same LAN.

If Vulkano is being used on a router that does NOT support UPnP, and as a result port

forwarding had to be set manually using the router’s web interface, then static IP assignment for

Vulkano is recommended. Some routers feature a way to assign the same IP address to a device repeatedly, which can be used instead of setting static IP on the Vulkano.

This can be called (depending on the router):

 DHCP reservation  Static DHCP  Reserved IP address

And requires you to enter both the IP address you wish to use and the MAC address of the device in question (Vulkano). See your router’s documentation for more information on this feature.

Monsoon Multimedia Vulkano User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
