Monoprice MP-SL11-0882 User Manual

About This Manual

This manual is designed to assist you in installing and using

the Bluetooth Keyboard. Information in this document has

been carefully checked for accuracy; however, no

guarantee is given in this regard. The information in this

document is subject to change without notice.

Edition

nd

Edition,

2

Copyright

© Copyright 2011-2012

This document contains proprietary information protected

by copyright. All rights are reserved. No part of this manual

may be reproduced by any mechanical, electronic or other

means, in any form, without prior written permission of

the manufacturer.

Trademarks

All trademarks and registered trademarks are the property

of their respective owners.

1

FEDERAL COMMUNICATIONS COMMISSION
S

TATEMENT

You are cautioned that changes or modifications not

expressly approved by the party responsible for

compliance could void the user’s authority to operate the

equipment.

This Equipment has been tested and found to comply with

the limits for a class B digital device, pursuant to Part 15 of

the Federal Communications Commission (FCC) rules.

These limits are designed to provide reasonable protection

against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a

particular installation. If this equipment does cause

2

harmful interference to radio or television reception,

which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

♦ Reorient or relocate the receiving antenna.
♦ Increase the separation between the equipment and

receiver.

♦ Connect the equipment into a power outlet on a

circuit different from that to which the receiver is

connected.

♦ Consult the dealer or an experienced radio/TV

technician for help.

Operation is subject to the following two conditions:

1) This device may not cause interference, and

3

2) This device must accept any interference, including

interference that may cause undesired operation of the

device.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment. End users

must follow the specific operating instructions for

satisfying RF exposure compliance. This transmitter must

not be co-located or operating in conjunction with any

other antenna or transmitter.

4

System Requirements:

iOS

Installation Process:

Insert the phone into the case:

5

Device pairing:

1. Turn on the phone's Bluetooth discovery mode.

2. Turn on the keyboard power and press the "CONN"

button. (Please make sure the blue LED is flashing)

3. You will see the device "Bluetooth Keyboard" on your

phone. Choose "Connect".

4. Input the pin code that displays on your phone then

press "Enter".

5. Your Bluetooth keyboard is now ready for use!

Note: 1. After 30 minutes of non-operation, the keyboard

will go into sleep mode. Press any key to wake it
up.

2. After the keyboard has been powered off then
back on, press any key to reconnect.

6

Hot key function:

Note: The characters or functions represented in blue on

the button require the use of the "Fn" key to produce

that character or enable that function.

Function Name Function Description

Language Change the input language.

Keyboard Call the virtual keyboard.

Menu Back to main screen.

Switches between Play and

Play/Pause

V-

Pause. Once Pause is
pressed, pressing this button
again resumes play.

Decreases the device's sound
volume. Hold down to
decrease volume more
quickly.

7

Increases the device's sound

V+

Mute

Next track

Pre-track

The "Control", "Option", and "

the US keyboard layout.

volume. Hold down to
increase volume more
quickly.

Mutes the device's sound
volume. Press it again to turn
the system volume back on.

Switches to the next media
track. Press once for each
subsequent media track.

Switches to the previous
media track. Press once for
each preceding media track.

" are not functional with

8

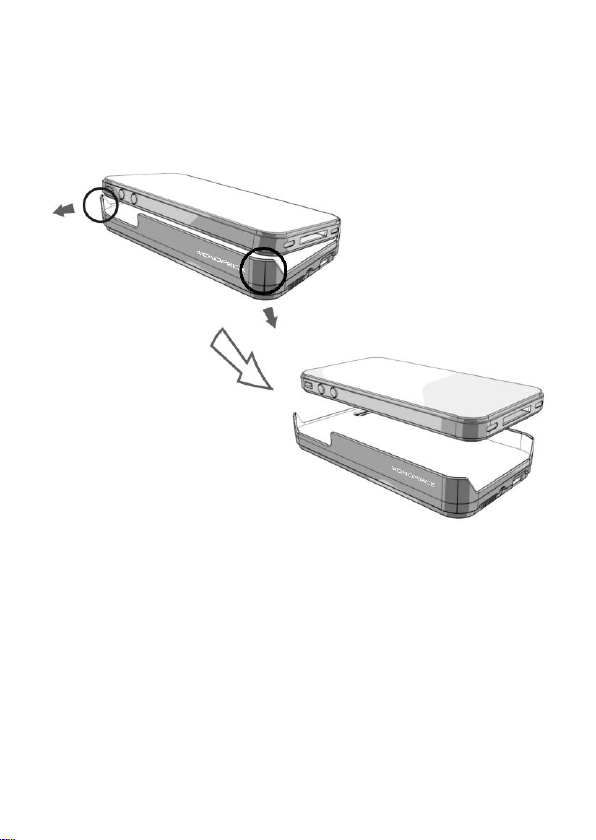

Removing the Phone:

Rechargeable Battery:

◆ Before use, please charge the battery until the red LED

turns off.

◆ Power On: Press any key to reconnect. Wait for the

LED to stop flashing before use.

9
