MP Mini Delta 3D Printer
User Manual
22 pgs965.75 Kb0

Monoprice MP Mini Delta 3D Printer User Manual

Download
MP Mini Delta 3D Printer
P/N 21666
User's Manual
2
CONTENTS
Installing Cura for Windows® .......................................................................................................................................................... 12
Repetier-Host .................................................................................................................................................................................................. 19
Notice for FCC ................................................................................................................................................................................................ 21
Notice for Industry Canada ............................................................................................................................................................... 21
3
SAFETY WARNINGS AND GUIDELINES
• Do not remove the insulating tape on the heater block, which is directly above the
nozzle.
• Take care to avoid touching hot parts, including heat blocks, extruder nozzle,
extruded filament, and the heated bed.
• Do not wear gloves when operating or repairing to avoid entanglement.
• Keep the printer and all accessories out of reach of children.
• Do not remove or disconnect the USB cable when printing from a computer.
• Do not pull or twist the black cable at any time.
• Do not force or tear anything when unpacking and during setup. This may cause
damage to the printer and/or its accessories.
• Do not reach inside the printer during operation.
• Always allow the printer and extruded filament to cool before reaching inside.
• Ensure that the printer is turned off and unplugged from its power source before
making repairs or performing service.
• Do not install this device on an unstable surface where it could fall and cause either
personal injury or damage to the device and/or other equipment.
• Do not subject the product to extreme force, shock, or fluctuations in temperature
or humidity.
• This device is intended for indoor use only.
• Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
• Do not touch the device, the power cord, or any other connected cables with wet
hands.
• Use only in a well-ventilated area. Do not use in close, confined spaces.
4
• Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
• Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
• Unplug this device from the power source when not in use.
• Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.
• Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
INTRODUCTION
Thank you for purchasing this MP Mini Delta 3D printer from Monoprice! This printer
features a single extruder, which is capable of printing in PLA, ABS, wood, copper fill, steel
fill, bronze fill, and other materials. You can print from a Windows® or Mac® PC using a USB
connection or can print from 3D model files stored on a microSD™ card, without the need
for a PC connection of any kind. This printer is easy to setup and easy to use following the
instructions in this manual.
FEATURES
• Can print PLA, ABS, wood, copper fill, steel fill, bronze fill, and other materials
• Open frame design for ease of use and maintenance
• USB, microSD™, and Wi-Fi® connectivity options
• Free WiFi Connect app available from the Google Play™ store or from iTunes®
• Includes 128MB microSD card with Cura, Repetier-Host, and a sample 3D model
(auto00.g)
• One-button printing of any file named auto00.g on an installed microSD card
5
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at support@monoprice.com
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x MP Mini Delta 3D printer
1x Filament holder
1x Plastic scraper
1x USB cable
1x MicroSD™ card
3x Hex wrench
1x Power adapter
1x AC power cord (NEMA 5-15 to
IEC 60320 C13)
6
PRODUCT OVERVIEW
1. Extruder
2. Nozzle
3. Micro USB Port
4. DC Power Connector
5. Quick Access LED Button
6. MicroSD™ Card Slot
7. Filament Holder Slots
USING THE MENU SYSTEM
• The menu system is displayed on a lighted LCD screen.
• The menu selection highlight or pointer is moved by pressing the top and bottom
buttons to the right of the display.
• Press the top button to move the highlight/pointer to the left and up.
• Press the bottom button to move the highlight/pointer to the right and down.
• Press the top button while editing a value to increase that value.
• Press the bottom button while editing a value to decrease that value.
• Press the center button to activate the selected menu item or to save an edited
value.
7
USING THE QUICK ACCESS LED BUTTON
The Quick Access LED Button (5) is located between the USB port and microSD™ card slot.
• Ensure that the included microSD card is inserted into the MicroSD Card Slot (6)
prior to using the Quick Access LED Button (5).
• Press the Quick Access LED Button (5) to automatically start printing the auto00.g
sample model file on the included microSD card (formerly cat.gcode). The LED inside
the button will blink green three times, then will remain illuminated green while
printing is in progress. Note that any file named auto00.g will print automatically
when the Quick Access LED Button (5) is pressed.
• Press the Quick Access LED Button (5) while printing is in progress to pause printing.
Printing may continue for 5-10 seconds before it becomes paused. The LED inside
the button will extinguish when the print task is paused and will remain
extinguished until printing is resumed.
• Press the Quick Access LED Button (5) while a print task is paused to resume
printing.
• Press and hold the Quick Access LED Button (5) for 4 seconds while printing is in
progress to cancel the print task. The LED inside the button will extinguish when the
print task is cancelled.
• While the printer is idle, press and hold the Quick Access LED Button (5) for 4
seconds to initialize the built-in Wi-Fi® Smart Config function for use with the free
MP 3D Printer WiFi Connect app from the Google Play™ store or from iTunes®. The
LED inside the button will blink blue three times, then will extinguish. The Wi-Fi
Smart Config function will remain active until the button is pressed again or the
printer is powered off.
8
PRINTER SETUP
Warning! Take care not to remove or damage the black PEI build mat on the build platform. This mat is essential to ensure the 3D model properly adheres to the build platform during printing. If this mat becomes damaged or wears out, replace it with painter's tape, Kapton® tape, or ordinary masking tape.
Perform the following steps to prepare the printer for use.
1. Remove the printer from its packaging and place it on a flat, stable surface with
plenty of ventilation and a nearby AC power outlet.
2. Open the Accessories box and remove the Filament Holder. Slide
the tab at the flat end into the Filament Holder Slots (7) on the
rear of the printer frame.
3. Insert the included microSD™ card into the MicroSD Card Slot (6)
on the side of the printer.
4. Plug the DC barrel connector on the included AC power adapter into the power
connector on the side of the printer. Next, plug the C13 end of the included AC
Power Cable into the C14 panel connector on the AC Power Adapter, then plug the
other end into a nearby AC power outlet.
5. Press the bottom button once to highlight the Temperature entry, then press the
center button to select it.
6. Press the center button to select the Nozzle (2) temperature value, then use the top
and bottom buttons to set the target temperature. Set it to 230°C for ABS filament
or set it to 190°C for PLA filament. Press the center button to save the target
temperature and begin heating the extruder.
9
7. While the printer is heating, open your filament. Using a pair of scissors or side
cutters, diagonally snip the end of the filament to make a point, as shown in the
images below. Place the spool on the Filament Holder.
8. Once the target temperature is reached, press the bottom button three times to
select the Exit option, then press the center button to return to the previous menu
page.
9. Press the bottom button to highlight the Move option, then press the center
button to enter the Move menu.
10. The Extruder option should be highlighted. Press the center button to select it.
11. While squeezing the lever on the Extruder (1), insert the filament
and push it into the opening. Keep pushing until you feel
resistance, then release the lever.
12. Press the top button to feed filament into the printer. Allow the
motor to run until it stops feeding. Repeat this process until
filament starts to extrude out of the Nozzle (2).
13. Using the included plastic scraper, clean the filament from the nozzle and bed.
14. Press the center button to deselect the Extruder entry.
15. Press the bottom button twice to highlight the Exit entry, then press the center
button to return to the previous menu.
16. Press the top button twice to highlight the Print option, then press the center
button. The printer will read the microSD™ card and display the contents on screen.
10
17. Use the top and bottom buttons to highlight the auto00.g file (formerly cat.gcode),
then press the center button to start printing the model.
Congratulations, your 3D printer is setup and you are printing your first model!
COMPLETED PRINT REMOVAL
Perform the following steps to remove a completed print.
1. Wait until the heated bed has cooled to room temperature.
2. Using the included Plastic Scraper, try to wedge it under the print.
3. Continue pushing until the print begins to lift off the bed, try to push the scraper
further under the print.
4. If you encounter difficulty pushing the scraper under the print, try approaching it
from another side or try working the scraper around the perimeter of the print.
Continue pushing until you can slide the scraper all the way under the print, then lift
the printed model off the bed surface.
WI-FI SETUP
You can connect the printer wirelessly to a 2.4Ghz Wi-Fi® network to print models from
your Android™ or iOS® phone or tablet. Perform the following steps to setup the Wi-Fi
connection for your device.
1. Download and install the free MP 3D Printer WiFi Connect app from the Google
Play™ store or from iTunes®, depending on which type of mobile device you have.
2. Disconnect the USB cable from the printer. You cannot use USB and Wi-Fi
connections at the same time.
3. Power on the printer.
4. Start the MP 3D Printer WiFi Connect app on your mobile device.
11
5. The SSID of your Wi-Fi® network should be displayed on the screen of your device. If
a different SSID is displayed, open your device's Wi-Fi settings and select the
appropriate Wi-Fi network.
6. Enter your WiFi network password.
7. With the printer idle, press and hold the Quick Access LED Button (5) for 4 seconds
to initialize the built-in Wi-Fi Smart Config function. Continue holding the button
until Smart config started is displayed on the screen of your mobile device.
8. Press the Connect to WiFi button on your mobile device. The connection will be
completed within 10 ~ 60 seconds and the message MP 3D Printer is now
connected to Wi-Fi will be displayed on your device's screen and the IP address will
be displayed at the top of the printer's LCD screen.
Note that you may have difficulty connecting to the Wi-Fi network if you have a 2.4GHz and 5GHz network with the same SSID. Try changing the SSID of the 5GHz network if this occurs. For best results, move the printer to a location closer to the Wi-Fi router or access point.
SOFTWARE INSTALLATION AND SETUP
As you've seen, you can print a model directly from a gcode file on a microSD™ card and
this is the preferred method, as it does not require a continuous connection to your
computer. You can download gcode files to the microSD card and print them without
having to build any model files.
However, you can create your own gcode files using an open source program, such as Cura
or Repetier-Host, which are pre-installed on the microSD card that comes with the printer.
These programs use M200 models (typically .STL or .OBJ files) and, using machine specific
information, generate a gcode file with detailed instructions for the printer to create the
selected model. We recommend you start with Cura, since it includes a Slicing Engine.
12
Installing Cura for Windows®
1. Use a card reader to read the contents on the
included microSD™ card. Locate and double-
click the Cura_15.04.2.exe file to start the setup
program.
2. You may choose a new location for the
program files or accept the default
(recommended). Click Next to continue.
3. Ensure that all boxes are checked, then click Install to continue.
4. Once the files have been extracted and the Cura installation is complete, the driver
installation wizard will launch. Click Next to continue.
13
5. Click Finish to complete the driver installation.
6. Click Next to continue.
7. Ensure that the box next to the Start Cura 15.04.2 option is checked, then click Finish
to complete the installation and launch the program.
14
8. Wait for Cura to finish launching. If this is the first time you have run Cura on this
machine, Cura will automatically launch the First time run wizard. Otherwise, you
will need to select Machine > Add new machine.
9. Click the button next to the Other option, then click the Next button to continue.
15
10. Select the Custom... option, then click Next to continue.
11. Click the button to the left of the Other entry, then click Next to continue.
16

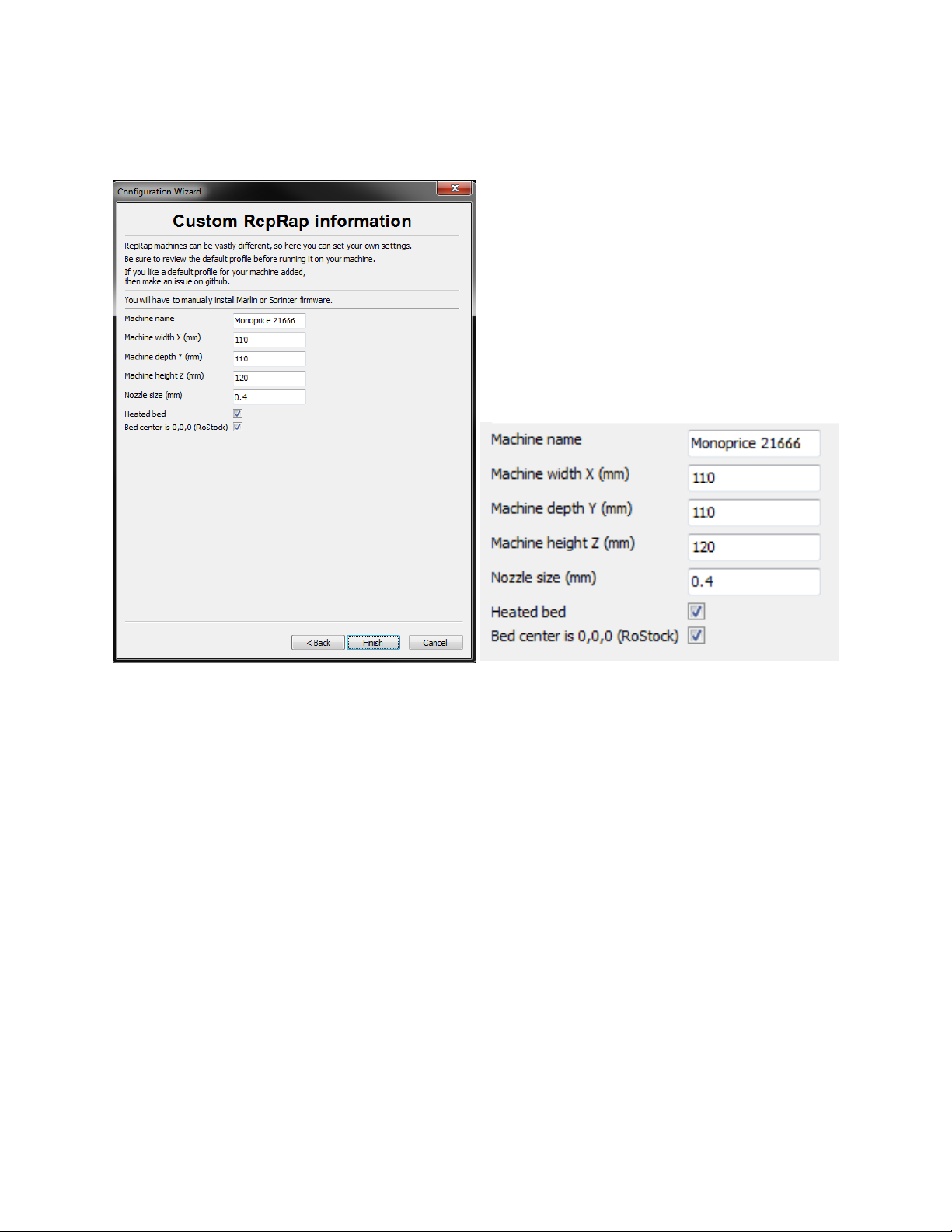

12. Change the settings to match those shown in the images below, then click Finish to
continue.
17
13. The program will finish launching
and leave you on the main screen.
Select the Basic tab, then change
the settings to match those in the
accompanying image for PLA
filament.
Note that the Fill density, Support
type, and Platform adhesion type
options should be set according to
the needs of the model you are
printing.
The Fill density will determine the
overall strength of the finished
object. If printing a decorative
object, a low fill density is
appropriate. However, if printing an
object that will be used as a tool or
part (e.g., a gear), a high fill density
will impart maximum structural strength to the finished object.
If printing something with no overhang, such as a cube, you can set the Support
type to None. If the model has areas that overhang the build plate, but which are
not overhanging a lower section, you can use the Touching buildplate option. The
Everywhere option is usually only necessary for very complex models with parts
that overhang other parts.
In most cases, the Brim option for the Platform adhesion type is sufficient and is
easier to remove and clean up. The Raft option builds a flat layer on which the
model is then built and will need to be removed once the print is complete.
Feel free to experiment with these options to achieve the best possible print.

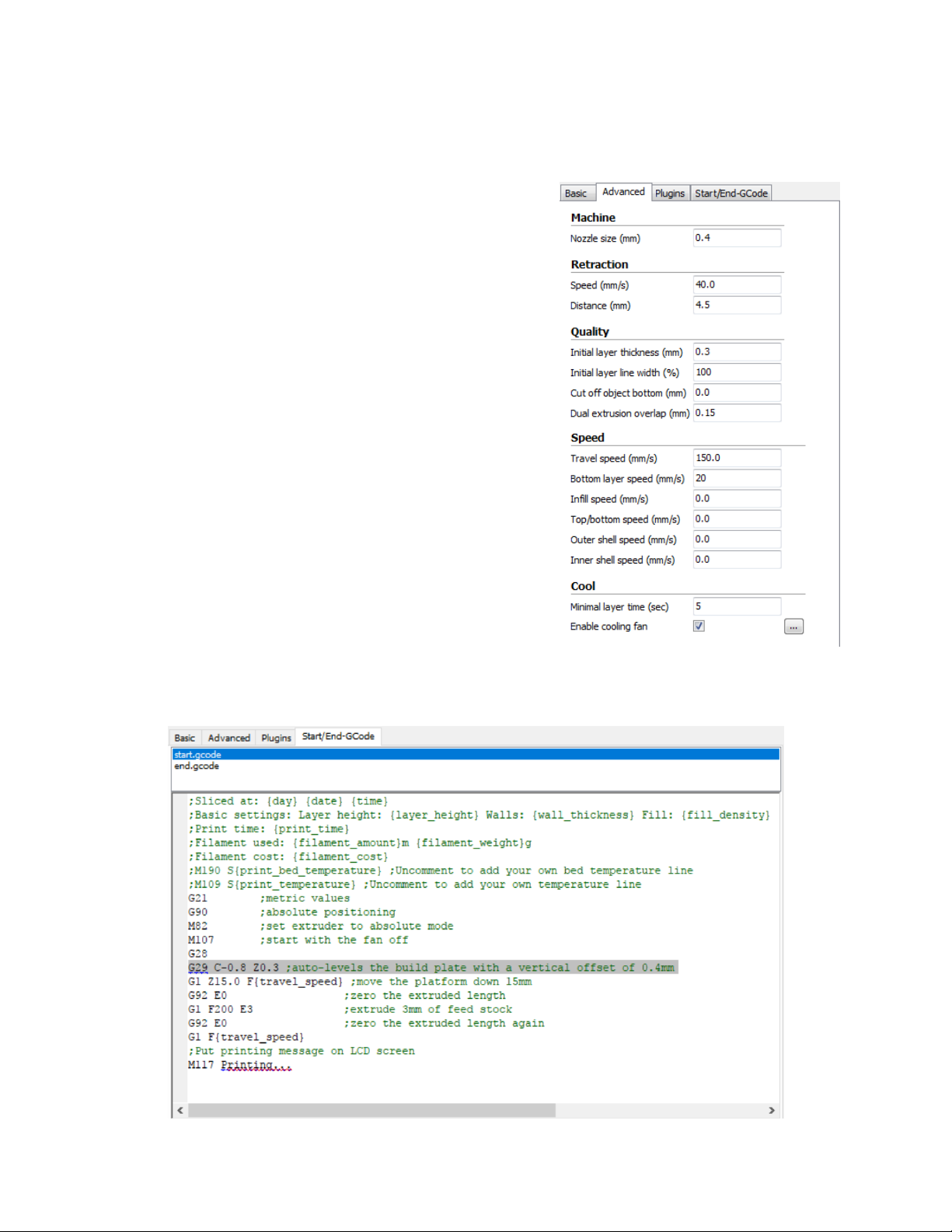

14. Click the Advanced tab, then change the settings to match those in the
accompanying image. Note that if you have a very high fill density (from the
18
previous step), you will want to increase the Cool down time (Minimal layer time) to
10 seconds.
15. Click the Start/End-GCode tab.
16. Add the following line to the start.gcode code,
after the 2nd G28 line (the new line is
highlighted in the image below):
G29 C-0.8 Z0.3 auto-levels the build
plate with a vertical offset of 0.3mm
and a center offset of -0.8mm
The models on the included microSD™ card
have this line already inserted, but if you will
be making your own model files, you will need
this line to instruct the printer to activate the
auto-leveling feature. The 0.3 value represents
the amount of vertical offset intended to
compensate for the thickness of the build
plate mat. If the first layer is too tight, you can
increase this value, while if the first layer is too loose, you can decrease it. This value
has a 0.1mm tolerance.
19
17. Finally, using the included Micro USB cable, plug one end into the USB port on the
printer, then plug the other end into an available USB port on your computer.
Watch the right hand corner of the screen. A bubble will appear in the lower right
corner of your desktop, which is telling you that Windows® is installing the
necessary printer drivers. Click the bubble and verify that the drivers have been
properly installed.
Congratulations, you have installed Cura and connected your PC to your new 3D printer. Refer to Cura's documentation for operating details and information on the various options.
Repetier-Host
You can also install Repetier-Host from the file on the included microSD™ card or from a
download from the internet. The screenshots below show the proper settings to use for
this printer in Repetier-Host.
20
21
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to tech@monoprice.com
REGULATORY COMPLIANCE
Notice for FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
22
Microsoft® and Windows® are registered trademarks of Microsoft Corporation in the United States and/or other countries.
Apple®, Mac®, and OS X® are trademarks of Apple Inc., registered in the U.S. and other countries.
SD™ and microSD™ are trademarks of SD-3C, LLC in the United States, other countries, or both.
DuPont™ and Kapton® are trademarks or registered trademarks of E.I. du Pont de Nemours and
Company.
Wi-Fi® is a registered trademark of Wi-Fi Alliance.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
