INSTALLATION GUIDE
Ceiling TV Mount
MHP-40
Max Load Capacity: 80 lbs (36kg)
Page 2
Note: Read entire instruction sheet before you start installation and assembly.
WARNING
Be sure to read this entire manual thoroughly and you fully understand all the instructions and warning before
attempting to begin your installation.
This product should only be installed by someone who has a basic knowledge of buiding construction,in stallations
and fully understands these instructions.
Make sure that the supporting surface will safely support the combined load of the mount, the display and all
attached hardware and components.
This wall bracket will only support flat panel displays(LCD,Plasma).The maximum load capacity is 80 pounds.
If mounting to a wall of wood stud construction, be sure that mounting bolts are anchored to the center of the
studs.
Always have someone assist you to lift and position your equipment.
Tighten screws and bolts firmly, but do not over tighten. Over tightening can damage the items and greatly reduce
their ability to hold. Please refer to suggested torque values where applicable in these instructions.
Tools Needed for Assembly
stud finder ("edge to edge" stud finder is recommended)
phillips screwdriver
drill with 1/4", 3/8", and 5/32" drill bits
Table of Contents
Parts List .............................................................................................................................................................................. 3
Installation to Wood Joist Ceiling .......................................................................................................................................... 4
Installation to Concrete Ceiling ............................................................................................................................................. 5
Installation of Extension Column ........................................................................................................................................... 6
Attaching display mounting plate to a screen with a VESA Mounting Pattern ........................................... ......................... 7
Tilt Adjustment and Wire Managment ...................................................................................................... ......................... 8
®
2 of 8
Page 3
Before you begin, make sure all parts shown are included
with your product.
Parts may appear slightly different than illus trated.
Parts List
Des cription
C
D
E
F
G
H
allen wrench
philips pan head screw
philips pan head screw
philips pan head screw
philips pan head screw
philips pan head screw
philips pan head screw
I
spacer
J
concrete anchor
K
washer
L
hex bolt screw
L
Hexagon fillister head screw
M
nonskid nut
N
Hexagon fillister head screw
N
1
8
8
8
8
8
8
8
4
4
4
2
4
4
M2
M4x10
M4x20
M5x15
M5x30
M6x12
M6x30
Ø12.7xØ6.0x12.7
M8x50
Ø8.2xØ16x1.5
M8x50
M4x3
M8
M8x60
C
D
E
F
K
NN
GHI J
LL M
plate (x1)
CC (x1)
AA (x1) BB (x1)
DD (x1)
3 of 8
Page 4
Installation to Wood Joist Finished Ceilings,
Exposed Wood Joists, or Wood Beam Ceilings
Drill four 1/4" (6 mm) dia. holes to a minimum
depth of 1.57" (40 mm). Attach ceiling plate
with four hex bolt screws M8x50 ( L ) as shown
using 1/2" (13mm) socket wrench.Tighten wood
screws ( L ). so ceiling plate
is firmly attached.
WARNING
Tighten wood screws so that ceiling plate is firmly
attached, but do not overtighten. Overtightening can
damage the screws, greatly reducing their holding
power.
Make sure that mounting screws are anchored into the
center of the joist. The use of an "edge to edge" stud
finder is highly recommended.
L
4 of 8
Page 5
Installation to Concrete Ceilings
Drill four 3/8" (10 mm) dia. holes to a minimum depth of
1.57" (40 mm). Attach ceiling plate using four concrete
anchors ( KK) and M8x50 hex bolt screws ( L
in Illustration A
Tighten all fasteners.
and 1, 2, and 3 (below).
) as shown
WARNING
Tighten wood screws firmly, but do not overtighten.
Overtightening can damage the bolt, greatly reducing
its holding power.
WARNING
Concrete anchors are not intended for attachment to
concrete wall covered with a layer of plaster, drywall,
or other finishing material. If mounting to concrete wall
covered with plaster/drywall is unavoidable, plaster/
drywall (up to 5/8" thick) must be counterbored as
shown below. If plaster/drywall is thicker than 5/8",
custom fasteners must be supplied by installer.
metal
bracket
INCORRECT
concrete
metal
bracket
CORRECT
concrete
L
Illustration A
1
concrete
ceiling
K
Drill hole and insert anchor
2
L
Place ceiling plate over anchor and secure with screw
3
K
CUTAWAY VIEW
plaster/
dry wall
plaster/
dry wall
5 of 8
L
After repeating step one tighten all fasteners
K
Page 6
Installation of Extension Column
Attach threaded end of adjuster tube (AA) to threaded
fitting in ceiling plate
slot in end of adjuster tube (AA ) with one of the holes
in the side of threaded fitting. Insert and tighten one
M4 x 3 mm hexagon fillister screw ( M ) to lock adjuster
tube (AA) to threaded fitting.
. Tighten securely aligning
WARNING
Installer must verify that the ceiling will safely support
the combined weight of all attached equipment and
hardware.
Slide extension pipe (BB) over adjuster tube (AA)
to the desired height. Attach with two M8 x 60 mm
hexagon fillister head screws (
Slide extension pipe (CC ) over adjuster tube (BB)
to the desired height. Attach with two M8 x 60 mm
hexagon fillister head screws (N) and lock nut ( N).
Attach threaded end of adjuster tube (DD
fitting in ( ) and lock nut ( ).
DD
K) and lock nut (
) to threaded
M
WARNING
Adjuster tube must be fully threaded (six or seven
full turns) onto threaded fitting in ceiling plate and then
locked with screw (C).
M
AA
N
K ).
BB
N
CC
DD
6 of 8
M
Page 7

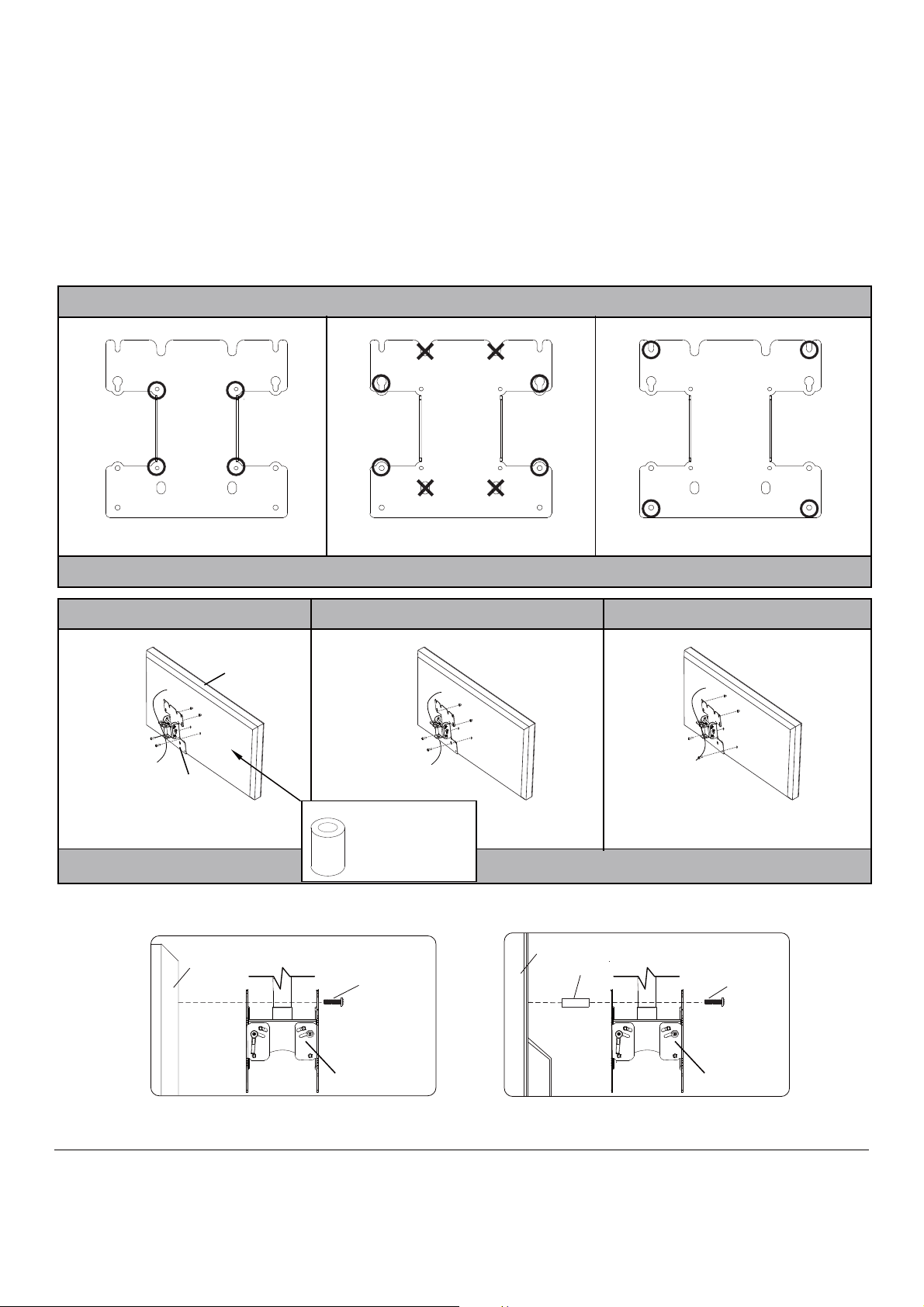

Attaching display mounting plate to a Screen with a VESA® Mounting Pattern
Choose hole pattern as shown in detail 3 for VESA mounting pattern. Begin with the shortest length screw, hand thread
through adapter plate into screen as shown in detail 4. Screw must make at least three full turns into the mounting hole
and fit snug into place. Do not over tighten. If screw cannot make three full turns into the screen, select a longer length
screw from the fastener pack. Repeat for remaining mounting holes. Securely tighten screws.
NOTE: Spacers do not have to be used, depending upon the type of screen.
Mounting Patterns
VESA
VESA
®
100 x 100
®
100 x 100
SCREEN
ADAPTER
PLATE
For Flat Back Screen
SCREEN
VESA
VESA
NOTE: For screens with a hole
pattern in a pocket,
spacers go between
adapter plate and
screen.
fig C.1 fig C.2
SCREW
®
200 x 100
®
200 x 100 VESA® 200 x 200
SCREEN
SPACER
VESA
®
200 x 200
DETAIL 3
DETAIL 4
SCREW
OR
DD DD
Select the small,medium,large or extra large screws from the baffled .Fastener pack then attach
screen brackets(DD) to screen following figure C.1 or C.2 on page 7.
7 of 8
Page 8
Insert two for 200x200 & 200x100 VESA patterns appropriate sized bolts into the top two mounting holes
on the back of your display as shown in fig.1 Leave
approx. 1/4" of exposed thread.
Lift the display and hook it on to the display mounting plate by lowering the exposed portion of the top
screws down the notches on the top edge of the
plate for a 200x200 pattern or into the key hole.
Once in position, attach the bottom two for a
200x200 pattern bolts to secure the display to
the mounting plate as shown in fig.2
WARNING
top screw
fig.2
Do not lift more weight than you can handle. Use
additional man power or mechanical lifting equipment
to safely handle placement of the screen.
Tilt Adjustmentd
Adjust tension knob on side of mount as shown infig.
to desired tension to balance your screen size
1
and weight.
The tension knob, without changing the bracket tension,
can be pulled out, away from the bracket and turned
independently of the knob post for readjustment as
shown in
Push or pull from top or bottom of screen to adjust
tilt as shown. The tilt can be adjusted to a maximum
of -5° forward or +15°backward.
fig
2
CAUTION
Be careful not to pinch fingers when opening and
closing mount from the wall.
Wire Management
( D . E .
F . G or H)
fig1
0.25"
fig.1
fig 2
pull cables up and through conduit .
WARNING
Do not remove or loosen screw
while the mount is in use.
so may cause the
screen to fall.
Doing
8 of 8
