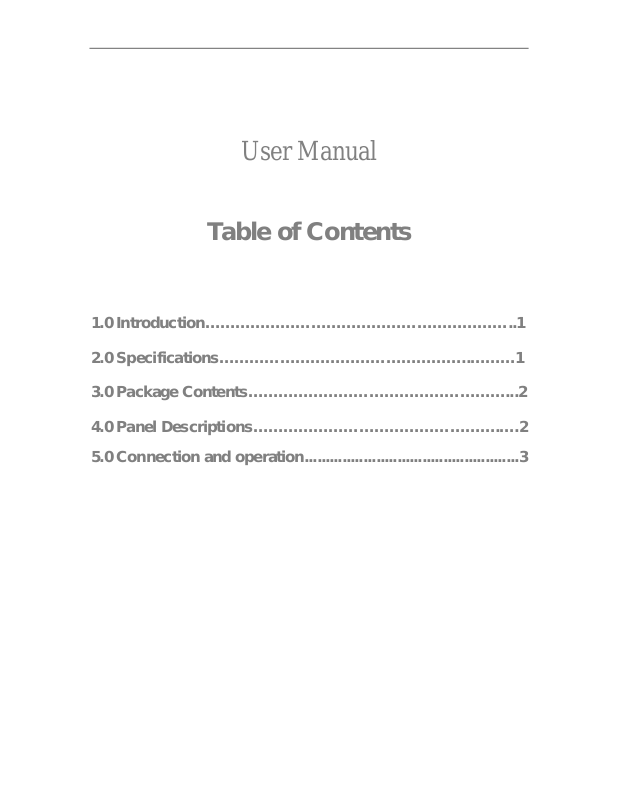

User Manual
Table of Contents
1.0 Introduction……………………………………………………..1
2.0 Specifications…………………………………………..………1
3.0 Package Contents……………………………………………...2
4.0 Panel Descriptions………………………………………….….2
5.0 Connection and operation...................................................3
Bluetooth Audio Receiver
１
Bluetooth Audio Receiver
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
1.0 INTRODUCTION
This is a portable Bluetooth Audio Receiver that simply enables you to wirelessly
control and listen to all your favorite music from your device through your home
Stereo speaker or Amplifier receiver with one piece of stereo cable, and then pairs
your device to the Bluetooth receiver. You'll not only enjoy superior quality music
on your stereo speakers or Amplifier Receiver, but also the convenience of a
wireless connection. When the battery is run out, you can use one piece of Micro
USB to USB cable to connect to power Adapter or computer for recharging.
It is ideal for your mobile phones, portable devices, or personal computers.
1.1 FEATURES
Convenient and portable: Enjoy the convenience of portability anywhere you
go;
Stream directly to an existing stereo, a friend's home and entertainment
center;
Control and listen to your favorite music wirelessly using this product through
your home-theater receiver or powered speakers using an audio cable;
Support Bluetooth signal output;
Compatible with supported Bluetooth device;
Stream wirelessly to control and listen to your music from up to 10m away,
and can play music 10 hours;
Compatible with Bluetooth-enabled personal computers;
Connects to compatible AV products and supports A2DP audio streaming.
2.0 SPECIFICATIONS
Bluetooth version
V2.1
Output Channels
2.0CH Stereo
Connector Type
Stereo Female
Micro USB Female
Charging time
3 hours to 4 hours
Battery
Internal rechargeable lithium battery
Bluetooth Audio Receiver
２
Charging voltage
5V
Operating current
≤25mA
Working Hours
Up to 10 Hours
Frequency range
2.4GHz - 2.4835GHz
Transmission distance
10M
Environment Temperature
Working: -20℃ to +60℃
Charging: 0℃ to 45℃
Warranty
Limited Warranty
1 Year Parts and Labor
Accessories Adapter
User Manual
English Version
Note: Specifications are subject to change without notice.
3.0 Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
Main unit x1
User's Manual x1
4.0 PANEL DESCRIPTIONS
Interface function：
①Power button:
Press and hold down this button five seconds, can open and close the power.
②. V+
Increase volume
③ VDecrease volume
④LED
This LED is double color, and checks the power and working status.
⑤Stereo Female:
Connect this port to Stereo Speaker or Amplifier Receiver via one piece of stereo
Bluetooth Audio Receiver
３
cable.
⑥Micro USB Female
Using one piece of Micro USB to USB cable connects this port to computer or
Apple USB power adapter for charging and syncing data for Apple devices.
5.0 CONNECTION AND OPERATION
(1) Checking the battery is enough. When the battery is run out, you can use one
piece of Micro USB to USB cable to connect to power Adapter or computer for
recharging. Using a stereo cable connects to Amplifier Receiver.
(2) Matching and connection:
(a) If haven’t matched, press and hold down power button five seconds until the
blue-red LED alternately flash is to start up. Then open the phone’s Bluetooth
mode, search the “BT Audio” to match with it. If having the password, password is
0000. After connected, it can work well.
(b) If have matched already, press and hold down power button three second until
the blue LED rapid flashing is to start up. Then devices will be memory to connect
as before, and it can’t connect to other equipment.
(3) “+ “and "-" can adjust the volume. Press and hold down power button until the
flashing blue LED stopped is shutdown.
Attention: Insert / Extract cable gently.
5.1 CONNECTION DIAGRAM
Bluetooth Audio Receiver
４
