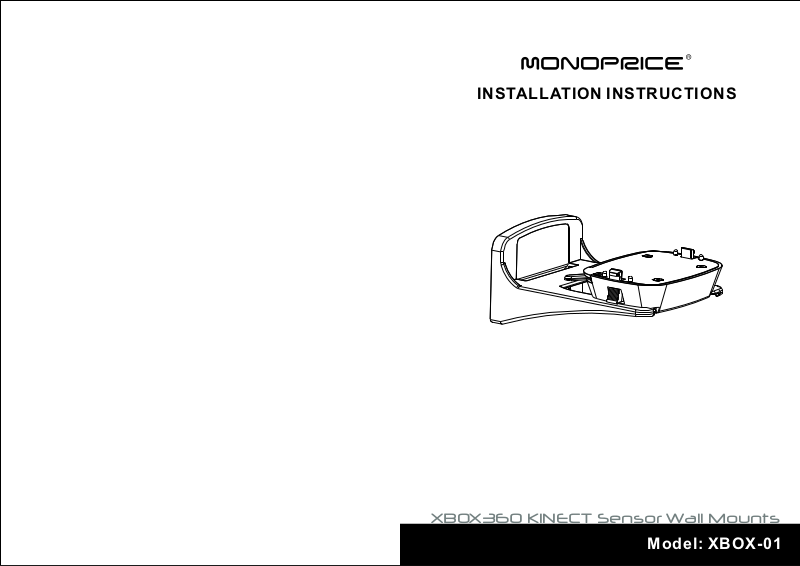

Page 1
INSTALLATION INSTRUCTIONS
XBOX360 KINECT Sensor Wall Mounts
Model: XBOX-01
Page 2
NOTE: Please read Instruction Manual prior to installation.
WARNING
• Do not begin installation until you have read and understood the instructions and
warnings contained in this manual. If you need further assistance, please contact
your local distributor.
• Please refer to manufacture’s installation guide for recommended distance from
wall to avoid risk of property damage.
• This product should only be installed by someone of good mechanical aptitude and
basic building experience to avoid malfunction.
• Make sure that the supporting surface will safely support the combined load of the
equipment and all attached hardware and components.
Component Checklist
Pleas e ens ur e you h ave rec eived a ll pa rt s lis ted on th e compo nen t ch eck list pr ior t o in sta lling . If any pa rts a re
missi ng or f au lty, c ont ac t you r local d istri but or for re place men t.
wall pl at e A(x1)
Package W
base pl at form B(x1)
senso r ba se C(x1)
• Always use an assistant or mechanical lifting equipment to safely lift and position
equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can damage the items,
greatly reducing their holding power.
• This product is for indoor use only. (Use of this product outdoors could lead to product
failure and personal injury).
ST3.5 x3 2 (x4)
W-A
concr et e ancho r
Tools required
·
Phillips Head Screw driver(200mm length exclude the handle)
·
Electric drill and 6mm masonry bit for concrete wall installation
·
Marking Pen
·
Hammer
W-B
(x4)
21
Page 3
WOOD WALL MOU NTING:
1a
WARNING
• Make sure that the supporting surface will safely support the combined load of the
equipment and all attached hardware and components.
• Tighten screws firmly, but do not over tighten. Over tightening can damage the
screws, greatly reducing their holding power.
SOLID B RICK AND CONCRETE B LOCK MO UNTING:
1b
WARNING
• When installing wall mounts on cinder block, verify that you have a minimum of
1-3/8” of actual concrete thickness in the hole to be used for the concrete anchors.
Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally
1” minimum from the side of the block. It is suggested electric drill on slow setting
is used to drill the hole instead of a hammer drill to avoid breaking out the back of
the hole when entering a void or cavity.
• Make sure to have a minimum of 1/3" thickness for the wood wall.
• Place wall plate on wall as a template. And mark the center of the four mounting holes.
• Drill four 1/12” (2mm) dia. Holes 3/5” (15mm) deep. Secure the wall plate using four screws (W-A) as shown
in fig. 1.1.
W-A
• Installer must verify that the supporting surface will safely support the combined
load of the equipment and all attached hardware and components.
• Use t he wa ll pl ate as a tem plate to mark four holes locat ion s on th e wal l as sh own i n fig .1. 2. Make sure
the w all p lat e is le vel.
• Pre -drill these holes w ith a 6mm mason ry bi t to at l eas t 40m m in de pth . Ins ert a concrete ancho r (W-B)
int o eac h of th ese holes. Attach the wall plate to the wall using fo ur sc rew s (W- A) as show n in fi g.1 .3.
W-B
W-A
fig. 1.1
fig. 1.3fig. 1.2
43
Page 4
Installing The Base Platform
2
After the wall pl ate h as been safe ly se cured to the wall . Ins ert the base p lat for m into the wal l pla te as shown
in fig.2.1.
fig. 2.1
Installing XBOX360 KINECT Sensor
3
• Take the sen sor b ase a nd line it up wi th th e base of the
• Press in both gri ps on t he sensor ba se an d fit the sensor ba se on to the botto m of th e
. Release the gri ps of t he sensor ba se to l ock the two toget her a s shown in fig . . .
Sensor 3 1
XBOX360 KINEC T Sen sor .
XBOX360 KINEC T
Inser t th e senso r base wi th a ttach ed into th e ba se plat form un ti l you hea r a
as show n in f ig.3. 2.
“clic k”
XBOX3 60 K INECT Sens or
XBOX360 KINEC T Sen sor .
is not included
Note: t he s ensor b ase
switc h is p ointe d at the
back.
fig. 3.1
fig. 3.2
Removing The Sensor Base With Attached XBOX360 KINECT Sensor.
4
To remo ve th e sensor bas e wit h attached pull the sensor b ase s witch forw ard
and remove the se nso r base with at tac hed from the base pla tfo rm
fig.4.1.
XBOX360 KINEC T Sen sor ,
XBOX360 KINEC T Sen sor
as shown in
fig. 4.1
65
