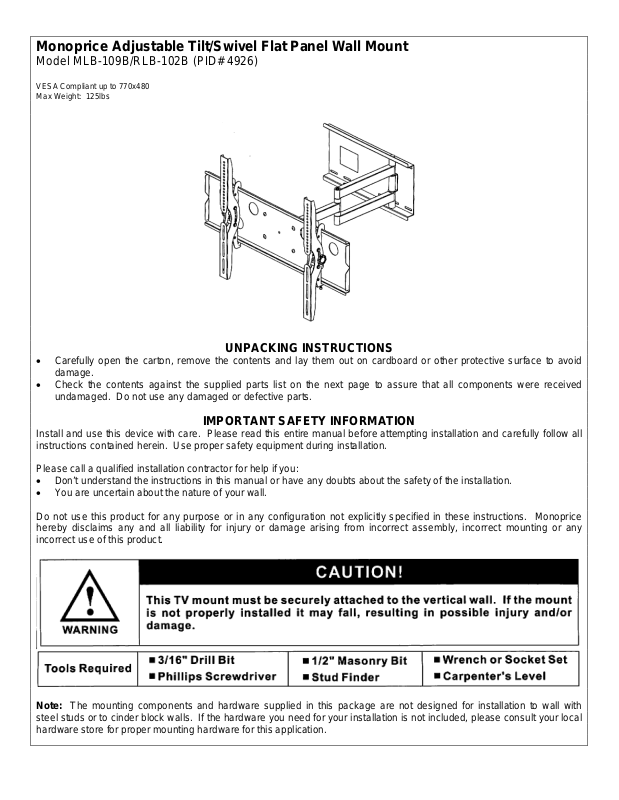

Monoprice 8588 User Manual

Monoprice Adjustable Tilt/Swivel Flat Panel Wall Mount

Model MLB-109B/RLB-102B (PID# 4926)

VESA Compliant up to 770x480
Max Weight: 125lbs

UNPACKING INSTRUCTIONS

• Carefully open the carton, remove the contents and lay them out on cardboard or other protective surface to avoid
damage.

• Check the contents against the supplied parts list on the next page to assure that all components were received
undamaged. Do not use any damaged or defective parts.

IMPORTANT SAFETY INFORMATION

Install and use this device with care. Please read this entire manual before attempting installation and carefully follow all
instructions contained herein. Use proper safety equipment during installation.

Please call a qualified installation contractor for help if you:

• Don’t understand the instructions in this manual or have any doubts about the safety of the installation.

• You are uncertain about the nature of your wall.

Do not use this product for any purpose or in any configuration not explicitly specified in these instructions. Monoprice
hereby disclaims any and all liability for injury or damage arising from incorrect assembly, incorrect mounting or any
incorrect use of this product.

Note: The mounting components and hardware supplied in this package are not designed for installation to wall with
steel studs or to cinder block walls. If the hardware you need for your installation is not included, please consult your local
hardware store for proper mounting hardware for this application.

(2) Adjustment Knob –y (2) Tilt Adjustment Bolt – z
