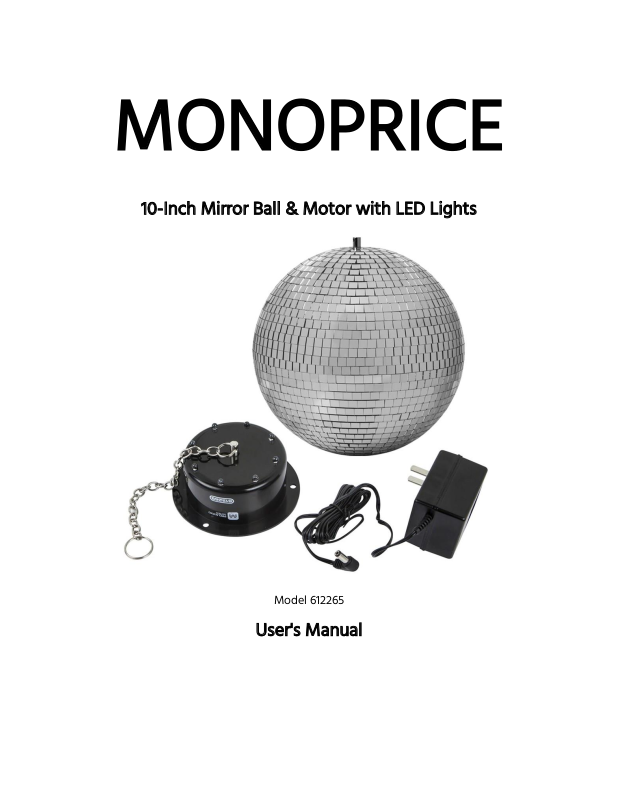

Page 1
MONOPRICE
10-Inch Mirror Ball & Motor with LED Lights
Model 612265
User's Manual
Page 2
SAFETY WARNINGS AND GUIDELINES
For indoor use only. Do not use the unit in wet or humid environments.
When mounting the unit, leave enough space for ventilation.
Do not use the unit close to heat sources or in direct sunlight.
Do not use if the power adapter and/or cord is damaged.
If the unit is damaged to an extent that you can see internal parts, do not plug the
unit into a power outlet.
Make sure that no liquids or small components can enter the housing.
Use a damp, dust-free cloth to clean the unit. Do not use cleaners or solvents!
The unit contains no user serviceable parts. Do not attempt to open, repair, or
modify it.
Install the motor and mirror ball at a distance of at least 20" (0.5m) from flammable
materials (decorations, bunting, etc.).
Inspect the motor and mirror ball installation prior to first use and at least once per
year.
Regularly check the chain between the motor and the mirror ball, including the
connection points on the motor and the mirror ball.
Only use appropriate materials for the installation of the motor.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x 10-inch mirror ball
1x Motor assembly
1x AC power adapter
2
Page 3
INSTALLATION
Power Supply
12VAC, 500mA, 6W AC adapter
DC Connector Characteristics
5.5mm barrel, 2.1mm pin, center positive
Power Consumption
4 watts
Max. Load
6.6 lbs. (3.0 kg)
Max. Diameter of Mirror Ball
11.8" (30cm)
Rotation Speed
1.5 rpm
Diameter of Motor Base Plate
4.33" (110mm)
Motor Height
2.2" (58mm)
Motor Weight
0.66 lbs. (0.3 kg)
Mirror Ball Weight
2.5 lbs. (1.14 kg)
NOTE: Follow the instructions carefully and use common sense when mounting the motor
and mirror ball.
WARNING: A falling mirror ball can cause serious injury!
The installation must be done in such a way that it can support 10 times the weight
of the mirror ball for at least 1 hour without showing any distortion.
The motor needs to be installed perfectly horizontally. Check the position with a
level. The motor and mirror ball must be installed out of the reach of persons.
Use all three screw openings to secure the housing to the mounting surface.
Use a chain of sufficient strength for the installation of the mirror ball below the
motor. The included chain will support the load limit of the motor.
Secure the cord of the AC adapter so that it is out of the path of the turning motor,
chain, and mirror ball.
SPECIFICATIONS
3
