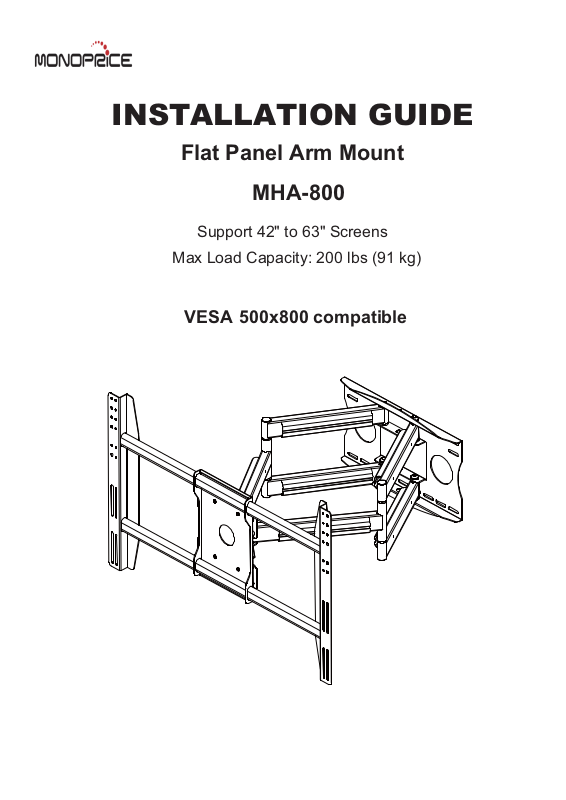

INSTALLATION GUIDE
Flat Panel Arm Mount
MHA-800
Support 42" to 63" Screens
Max Load Capacity: 200 lbs (91 kg)
VESA 500x800 compatible
WARNING
• Be sure to read this entire manual thoroughly and you fully understand all the instructions and warning before
attempting to begin your installation.
• This product should only be installed by someone who has a basic knowledge of buiding construction,installations and fully
understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the mount, the display and all
attached hardware and components.
• This wall bracket will only supporting flat panel displays(LCD,Plasma).The maximum load capacity is 200 pounds.
• If mounting to a wall of wood stud construction, be sure that mounting bolt are anchored to the center of the
studs.
• Always have someone assist you to lift and position your equipment.
• Tighten screws and bolts firmly, but do not over tighten. Over tightening can damage the items and greatly reduce
their ability to hold. Please refer to suggested torque values where applicable in these instructions.
Tools Needed for Assembly
• stud finder ("edge to edge" stud finder is recommended)
• phillips screwdriver
• ¢6.0 drill bit and ¢10.0 masonry drill bits
Table of Contents
Parts List ........................................................................................................................................................................ 3
Installation to Wood Stud Wall ....................................................................................................................................... 4
Installation to Solid Concrete and Cinder Block .............................................................................................................. 5
Mounting the
Tilt Adjustment and Cord Covers
Attaching adapter plate to Screen
............................................................................................................
............................................................................................................ ........................ ...
2of8
...
6ǃ7
8
Before you begin, make sure all parts shown are included
with your product.
Parts may appear slightly different than illustrated.
Parts List
Des cription
A
B
C
D
E
F
G
H
J
K
M
N
philips / washer
washer
washer
philips pan head screw
philips pan head screw
philips pan head screw
philips pan head screw
philips pan head screw
allen cap screw
I
square spacer
spacer ( 1. 2. )
allen wrench
L
concrete anchor
hex bolt screw
4
M6x12 / 6x13x1.2
4
6
4
4
4
4
4
4
4
4
1
6
6
8.2x1.5x16
8.2x2.0x16
M5x16
M5x30
M6x16
M6x30
M8x45
M8x15
25.65x25.65x2.5
19x8.2x19.6 / 12.7x6.0x12.7
M5
M8x50
M8x70
A
B
C
EF G HD
I
M
JK
N AA(mount)
3 of 8
L
12
