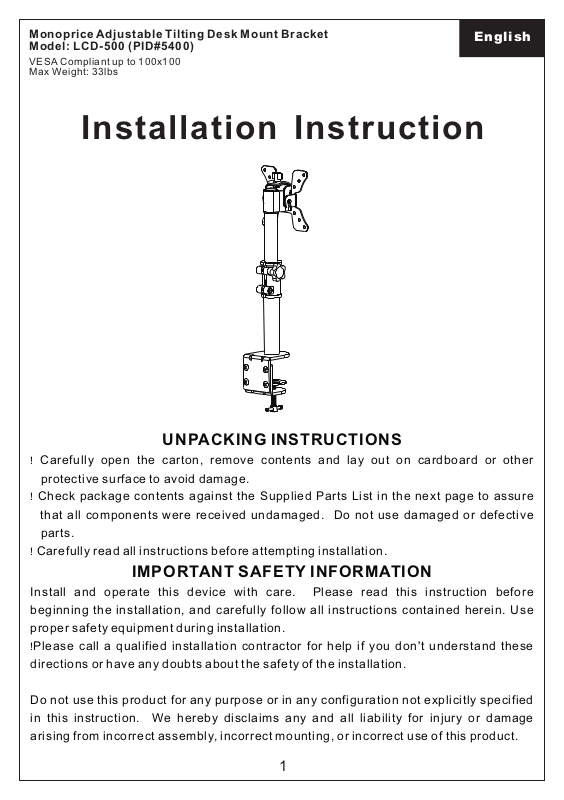

Monop rice Adj ustable Tilti ng Desk Moun t Bracket
Model : LCD-500 (P ID#5400)

VESA Compliant up to 100 x10 0
Max Weig ht: 3 3lb s

Installation Instruction

En glish

UNPACKING INSTRUCTIONS

! Carefully open the carton, remov e co ntent s an d la y ou t on cardboa rd o r ot her

protective s urface to avoid damage.

! Check pa ckage content s aga inst the Supp lied Parts Li st in the nex t page to ass ure

that all c omponents were recei ved u ndama ged. Do not use dama ged or defective

parts.

! Carefully re ad all in structions befo re attempting ins talla tion.

IMPORTANT SAFETY INFORMATION

Install and operate this device with ca re. P lease re ad this instruct ion be fore

beginning the installatio n, an d car efull y fol low a ll in structions contained herein. Use

proper safet y equip ment during insta llation.

!Please call a qual ified instal latio n contr actor for help if yo u don't understand these

directions o r have an y doubts about the sa fety of the install ation .

Do not use this produc t for any p urpos e or in any configuration not expli citly specified

in this in struction. We hereby discla ims any and all liabi lity for inju ry or da mage

arising from i ncorr ect assembly, incorre ct moun ting, or incorrec t use of this product.

1

Su pp li ed Par ts List

(1) Desk Bracket Assembl ed-a

(4)M4x12 Bolt-c (4)M4x30 Bolt-d (8)M4 Washer-e

(4)M4 Space-f

(1)Safety Knob-g

(1)Mornitor Bracket-b

Tools Required

!

WARNING

Phillips Screwdriver

CAUTION!

This TV Desk mount must be securely attached to
the horizontal desk. If the mount is not properly
installed it may fall, resulting in possible injury
and/or damage.
