Monoprice 4856 User Manual
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O

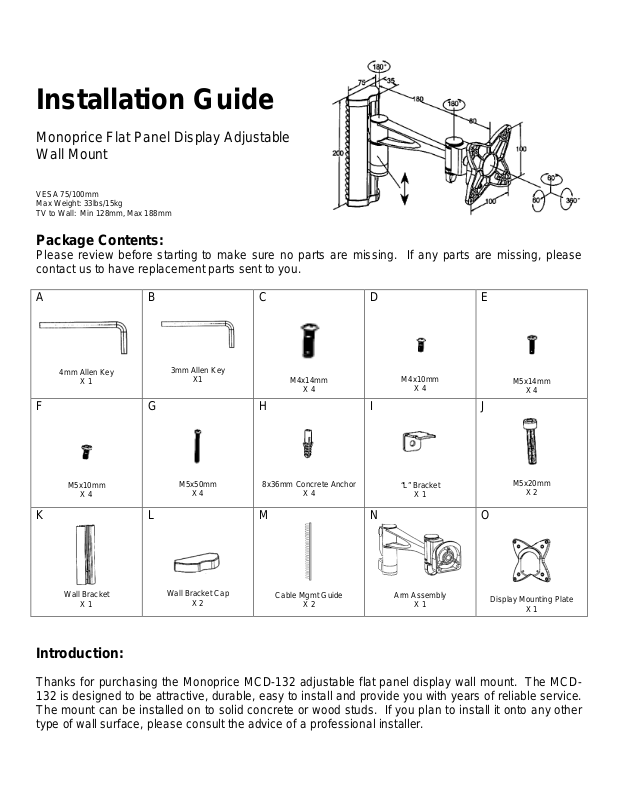

Installation Guide
Monoprice Flat Panel Display Adjustable
Wall Mount
VESA 75/100mm
Max Weight: 33lbs/15kg
TV to Wall: Min 128mm, Max 188mm
Package Contents:
Please review before starting to make sure no parts are missing. If any parts are missing, please
contact us to have replacement parts sent to you.
4mm Allen Key
X 1
3mm Allen Key
X1
M4x14mm
X 4
M4x10mm
X 4
M5x14mm
X 4
M5x10mm
X 4
X 4
M5x50mm
X 4
8x36mm Concrete Anchor
“L” Bracket
X 1
M5x20mm
X 2
X 1
Wall Bracket
Wall Bracket Cap
X 2
Cable Mgmt Guide
X 2
Arm Assembly
X 1
Display Mounting Plate
X 1
Introduction:
Thanks for purchasing the Monoprice MCD-132 adjustable flat panel display wall mount. The MCD132 is designed to be attractive, durable, easy to install and provide you with years of reliable service.
The mount can be installed on to solid concrete or wood studs. If you plan to install it onto any other
type of wall surface, please consult the advice of a professional installer.
Installation:
Step One:
Concrete:
1a. If you are installing on to concrete or solid brick, you will need to use the included concrete
anchors (part H). Use a level to positions the wall bracket (part K) at the place on the wall you want
to install the mount and make sure the bracket is vertically straight. Holding the wall bracket to the
wall, use a pencil to mark the 4 points the mount will attached to the wall. Drill 8mm pilot holes
approximately 50mm deep. Insert the anchors into each of the holes. Line up the wall bracket with
the pilot holes and attach the bracket to the wall with the lag bolts (part G). Before inserting the 2
bottom lag bolts, insert the “L” bracket (part I) up through the groove in the wall bracket from the
bottom aligning it as shown in the illustration. Use the top of the two bottom bolts to secure the “L” to
the bracket and wall.
Figure 1a
Wood Studs:
1b. If you are installing on to a wood stud wall, you will need to use a stud finder to locate the location
of a stud in the wall. Mark your stud. Use a level to positions the wall bracket (part K) along the stud
and make sure the bracket is vertically straight. Holding the wall bracket to the wall, use a pencil to
mark the 4 points the mount will attached to the wall. Mount directly over a stud. Never mount directly
to unsupported drywall. Drill 5mm pilot holes approximately 50mm deep int o the stud. Line up the
wall bracket with the pilot holes and attach the bracket to the wall with the lag bolts (part G). Before
inserting the 2 bottom lag bolts, insert the “L” bracket (part I) up through the groove in the wall bracket
from the bottom aligning it as shown in the illustration. Use the top of the two bottom bolts to secure
the “L” to the bracket and wall.
Figure 1b
