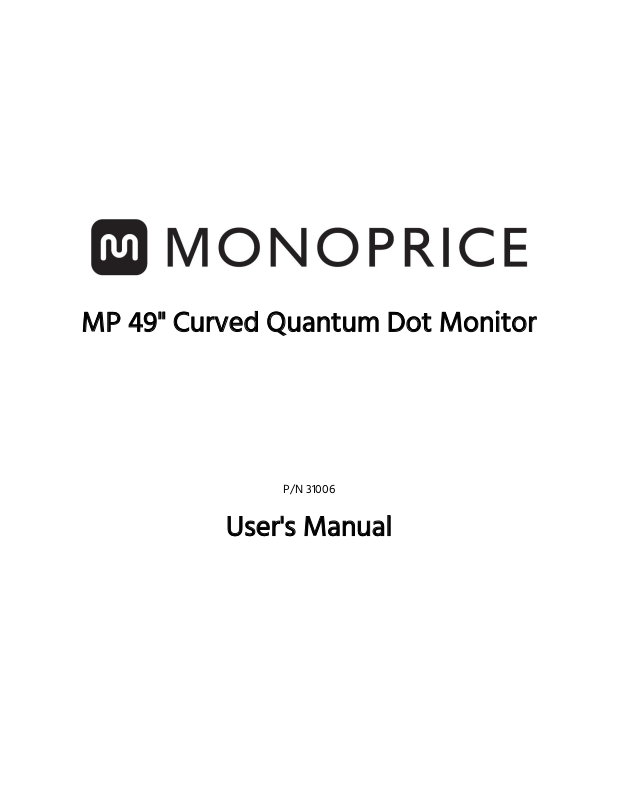

Page 1
MP 49" Curved Quantum Dot Monitor
P/N 31006
User's Manual
Page 2
CONTENTS
SAFETY WARNINGS AND GUIDELINES ....................................................................................................................................... 3
CUSTOMER SERVICE .................................................................................................................................................................................... 5
SYSTEM REQUIREMENTS ......................................................................................................................................................................... 5
PACKAGE CONTENTS ................................................................................................................................................................................. 5
PRODUCT OVERVIEW ................................................................................................................................................................................. 6
PICTURE IN PICTURE (PIP) MODE ..................................................................................................................................................... 8
OSD MENU MAP ............................................................................................................................................................................................. 8
TROUBLESHOOTING .................................................................................................................................................................................. 12
TECHNICAL SUPPORT ............................................................................................................................................................................... 13
SPECIFICATIONS ............................................................................................................................................................................................ 14
REGULATORY COMPLIANCE .............................................................................................................................................................. 15
2
Page 3
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
This device is intended for indoor use only. Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
Do not touch the device, the power cord, or any other connected cables with wet
hands.
Do not place the monitor on an unstable surface where it could fall and cause either
personal injury or damage to the monitor and/or other equipment.
Do not expose this device to excessive vibration. Do not subject the product to extreme force, shock, or fluctuations in temperature
or humidity.
Do not expose this device to excessively high temperatures. Do not place it in, on,
or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it in direct
sunlight.
This device ventilates excessive heat through the slots and openings in the case. Do
not block or cover these openings. Ensure that the device is in an open area where
it can get sufficient airflow to keep from overheating.
Do not block the ventilation holes in the monitor's casing. Do not place the monitor
in a confined space with inadequate ventilation. Periodically check the ventilation
holes to ensure they do not become clogged with dust, debris, or nearby items.
Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
Unplug this device from the power source when not in use.
3
Page 4
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.
This device uses a grounded power cord and requires a ground connection for safe
operation. Ensure that the power source has a proper ground connection. Do not
modify the plug or use a "cheater" plug to bypass the ground connection.
Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
Remove the batteries from the controller if it will go unused for a lengthy period of
time.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This monitor has no user serviceable parts. Do not open the case or otherwise
attempt to modify this monitor.
Do not leave a single image on the display for a long period of time. Doing so could
cause "burn-in" of the image. It is recommended to use a variable desktop
background and to use a screen saver to prevent "burn-in". Alternatively, ensure
that the monitor is powered off for at least 2 hours out of every 12.
4
Page 5
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at support@monoprice.com
SYSTEM REQUIREMENTS
Operating System: Windows® 7/8/10 64-bit or higher
Processor (CPU): Intel® Core™ i5 or AMD Phenom™ II X3 or higher
Graphics Card: NVIDIA® GeForce® GTX 950 or AMD Radeon™ R9 380 or higher
Memory: 6GB RAM
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x 49" Curved Monitor
1x High Speed HDMI® Cable
1x AC Power Cord
1x User's Manual
5
Page 6
PRODUCT OVERVIEW
Monitor
1. MENU: If the OSD menu is not displayed, press the MENU button to access the OSD
menu. If the OSD menu is displayed, press the MENU button to enter a submenu. If
editing a value, press the MENU button to save the edited value.
2. DOWN: If the OSD menu is displayed, press the DOWN button to move the menu
highlight down. If editing a value in the OSD menu, press the DOWN button to
decrease the value.
3. UP: If the OSD menu is displayed, press the UP button to move the menu highlight
up. If editing a value in the OSD menu, press the UP button to increase the value. If
the OSD menu is not displayed, press the UP button to toggle FPS gaming
crosshairs in the middle of the screen on or off and to cycle through the four
different crosshair styles.
4. EXIT: If a submenu in the OSD menu is displayed, press the EXIT button to go back
to the previous menu level. If the top level of the OSD menu is displayed, press the
EXIT button to close the OSD menu. If editing a value in the OSD menu, press the
EXIT button to cancel any changes made and exit editing.
5. POWER: Press the POWER button to turn the monitor on or off.
6. LED INDICATOR: The LED indicates various monitor states. If the LED INDICATOR is
solid blue, green, or white, the monitor is power on and is operating normally. It
flashes blue when no video source has been detected. It is solid red when no signal
is detected or there is insufficient power received.
6
Page 7
7. AC POWER SOCKET: NEMA 5-15 socket for connecting the included AC power cord.
8. AUDIO: 3.5mm stereo jack for connecting headphones, powered speakers, etc.
9. DISPLAYPORT: DisplayPort video input.
10. HDMI 1: HDMI® 2.0 video input.
11. HDMI 2: HDMI 1.4 video input.
12. HDMI 3: HDMI 1.4 video input.
Remote Control
1. POWER: Press the POWER button to turn the monitor
on or off.
2. LEFT/UP/RIGHT: When editing a value, press the LEFT
button to decrease the value. If the OSD menu is
displayed, press the UP button to move the menu
highlight up. When editing a value, press the RIGHT
button to increase the value.
3. HDR: Press the HDR button to turn the HDR function
on or off.
4. GAME: Press the GAME button to toggle gaming
crosshairs on or off and to cycle through the four different crosshair styles.
5. SOURCE: Press the SOURCE button to cycle through the available inputs.
7
Page 8
6. OK: If the OSD menu is not displayed, press the OK button to access the OSD menu.
Main Menu
Submenu
Options
Description
Input Source
DP
None
Select the DP input
HDMI 1 (2.0)
Select an HDMI®
input HDMI 2 (1.4)
HDMI 3 (1.4)
Brightness/Contrast
Brightness
0-100
Adjust display
brightness
Contrast
0-100
Adjust display
contrast
DCR
On, Off
Turn DCR on or off
If the OSD menu is displayed, press the OK button to enter submenus. If editing a
value, press the OK button to save the edited value.
7. DOWN: If a submenu in the OSD menu is displayed, press the DOWN button to go
back to the previous menu level. If the top level of the OSD menu is displayed, press
the DOWN button to close the OSD menu. If editing a value in the OSD menu, press
the DOWN button to cancel any changes made and exit editing.
8. CYCLE: Press the CYCLE button to cycle through the six Picture Modes (Standard,
Text, Movie, Game, FPS, RTS).
9. VOLUME: Use the VOLUME buttons to increase or decrease the volume level.
PICTURE IN PICTURE (PIP) MODE
Picture in Picture (PiP) mode is supported with any secondary connection separate from
the primary connection being used (e.g., secondary DisplayPort with primary HDMI®). The
recommended configuration is 2x 1440p @144Hz.
OSD MENU MAP
8
Page 9
Main Menu
Submenu
Options
Description
Color Setting
Gamma
Gamma 1.8
Set gamma
Gamma 2.0
Gamma 2.2
Gamma 2.4
Gamma 2.6
Picture Mode
Standard, Photo,
Movie, Game, FPS,
RTS
Set a preset display
mode
Color Temperature
Warm, Cool, User
Set the display color
temperature mode
Low Blue Light
0-100
Set the display blue
light filtering
Hue
0-100
Set the hue
Saturation
0-100
Set the saturation
Picture Quality
Setting
Sharpness
0-100
Set the display
sharpness
Response Time
Off, High, Middle,
Low
Change the
response time
Noise Reduction
Off, High, Middle,
Low
Reduce image noise
caused by signal
interference
Super Resolution
Off, High, Middle,
Low
Enhance image
resolution
Dynamic Luminous
Control
On, Off
Strengthen
grayscale expression
9
Page 10
Main Menu
Submenu
Options
Description
Display
Aspect Ratio
Wide Screen, 4:3, 1:1,
Auto
Set the display ratio
Audio
Mute
On, Off
Toggle Mute on/off
Volume
0-100
Set the audio
volume level
Audio Source
HDMI 1 (2.0)
Display the input
signals from HDMI®
or DP
HDMI 2 (1.4)
HDMI 3 (1.4)
DP
Multi-Window
Multi-Window
Off, PIP Mode, PBP
2Win
Set Picture-in-
Picture or Picture-
by-Picture display
mode
Sub Win2 input
HDMI 1 (2.0 60Hz)
HDMI 2 (1.4 30Hz)
HDMI 3 (1.4 30Hz)
PIP Size
Small, Medium,
Large
Adjust PIP/PBP
display window size
PIP Position
Top Right, Top Left,
Bottom Right,
Bottom Left
Set Picture-in-
Picture or Picture-
by-Picture window
position
Swap
None
Swap primary and
secondary inputs
10
Page 11
Main Menu
Submenu
Options
Description
OSD
Language
English, Chinese,
Korean, Russian,
Spanish, Japanese,
French
Set the OSD menu
language OSD H-Position
0-100
Adjust OSD
horizontal position
OSD V-Position
0-100
Adjust OSD vertical
position
OSD Transparency
0-100
Set OSD
transparency
OSD Time Out
5-100
Set OSD timeout in
seconds
OSD Rotation
Normal, 90, 180, 270
Rotate OSD for ease
of use on rotated
displays
Other
DP Version
DP 1.1, DP 1.2
Set DisplayPort
version
FreeSync™
(AdaptiveSync)
On, Off HDR
On, Off, Auto Detect
Reset
Reset configuration
Restore factory
defaults
Note: When choosing the PIP/PBP function, make the default resolution in split screen
mode 1920x1080 by hand.
11
Page 12
TROUBLESHOOTING
Q1: The screen is blank.
A1: Ensure that power is turned on. Check the brightness/contrast. Check the LED
indicator, if it is flashing, no video signal is being received. Check the display settings
of the connected device.
Q2: The image is out of focus.
A2: Check the video cable connection.
Q3: The screen is flashing.
A3: There is an issue with the power source. Ensure devices which could cause magnetic
disturbance are a safe distance away.
Q4: There is color bleeding, distortion, or other unusual effects.
A4: Check the video cable connection. Connect to another video source for comparison.
Inspect the condition of the ports on the monitor and graphics card. Adjust the color
settings in the monitor and the PC display settings.
Q5: The screen is scrolling, rolling, or moving.
A5: Check that the source frequency is in the range 55-76 Hz. Check the video cable
connection.
Q6: The LED indicator light is not illuminated.
A6: Check the power connection. Check that power has been turned on.
12
Page 13
Q7: There is no video signal.
A7: Confirm the PC and graphics card compatibility. Inspect the condition of the ports on
the monitor and graphics card.
Q8: The image is dim.
A8: Adjust the brightness/contrast.
Q9: The image has jitter/moire pattern.
A9: Nearby electronic equipment may be causing interference.
Q10: The LED indicator is on or flashing, but there is no image on the screen.
A10: Confirm the monitor has been turned on. Confirm the graphics card is installed. Check
the video cable connection. Inspect the condition of the ports on the monitor and
graphics card. Check to see if the PC is asleep, in standby mode, etc.
Q11: The image position or size is incorrect.
A11: Check the settings in the monitor OSD menu and PC display settings.
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to tech@monoprice.com
13
Page 14
SPECIFICATIONS
Model
31006
Video Inputs
1x DisplayPort, 1x HDMI® 2.0, 2x HDMI 1.4
Screen Size
49"
Curvature
1800R
Viewing Angles (H/V)
178°/178°
Aspect Ratio
32:9
Resolution
3840x1080p
Backlight
E-LED
Default Color Temperature
6500
Typical Brightness
up to 320 cd/m2
Contrast Ratio
3000:1
Dot Pitch (HxV)
0.1038 x 0.3115 mm
Response Time
8ms (OD 4ms)
Refresh Rate
up to 144Hz
OSD Languages
English, Chinese, Korean, Russian, Spanish,
Japanese, French
Input Power
100 ~ 240 VAC, 50/60 Hz, 2A
Operating Temperature
+32 ~ +104°F (0 ~ +40°C)
Storage Temperature
-4 ~ +140°F (-20 ~ +60°C)
Operating Humidity
10 ~ 90% RH, noncondensing
14
Page 15
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice’s authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
15
Page 16
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Intel® Core™ i5 is a trademark of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
AMD®, Phenom®, Radeon®, and FreeSync™ are trademarks of Advanced Micro Devices, Inc.
NVIDIA®, the NVIDIA logo, and NVIDIA® GeForce® are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries.
HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
16
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
