Monoprice 29434 User Manual

USB-C Dual Monitor Docking Station

P/N 29434

User’s Manual

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra

attention to these safety warnings and guidelines. Please keep this

manual in a safe place for future reference.

 This device is intended for indoor use only.
 Do not expose this device to water or moisture of any kind. Do

not place drinks or other containers with moisture on or near the

device. If moisture does get in or on the device, immediately

unplug it from the power source(s) and allow it to fully dry

before reapplying power.

 Do not touch the device, the power cord, or any other

connected cables with wet hands.

 Never unplug the unit by pulling on the power cord. Always

grasp the connector head or adapter body.

 Clean using a soft, dry cloth only. Do not use chemical cleaners,

solvents, or detergents. For stubborn deposits, moisten the cloth

with warm water.

 This device has no user serviceable parts. Do not attempt to

open, service, or modify this device.

2

INTRODUCTION

Thank you for purchasing this USB Type-C Docking Station! This

docking station provides an integrated solution for audio, video, USB

data, Ethernet connectivity, and USB Power Delivery for both Type-A

and Type-C connections. It supports HDMI® and DisplayPort video

resolutions up to 4K@30Hz and VGA resolutions up to

1920x1200@60Hz, as well as dual monitor setups. It also provides

stereo audio output and microphone input, as well as Gigabit

Ethernet connectivity.

FEATURES

 Supports dual monitor setups
 Supports HDMI® and DisplayPort resolutions up to 4K@30Hz
 Supports VGA resolutions up to 1900x1200@60Hz
 Supports 10/100/1000 Mbps Gigabit Ethernet connectivity
 Includes four USB 3.0 Type-A and one USB-C I/O ports
 Supports simultaneous AC adapter (included) and USB Type-C

(not included) external power sources

3

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring

that your ordering, purchasing, and delivery experience is second to

none. If you have any problem with your order, please give us an

opportunity to make it right. You can contact a Monoprice Customer

Service representative through the Live Chat link on our website

www.monoprice.com during normal business hours (Mon-Fri: 5am-

7pm PT, Sat-Sun: 9am-6pm PT) or via email at

[e-mail]

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have

all the items listed below. If anything is missing or damaged, please

contact Monoprice Customer Service for a replacement.

1x USB Type-C docking station

1x Male-to-male USB Type-C cable

1x AC power adapter (20 VDC, 3.6A, 72W)

1x User's manual

4

SAMPLE CONNECTION DIAGRAMS

5

POWER CONSIDERATIONS

This docking station is capable of operating with or without an

external power source. It includes a DC barrel connection for use with

the included 72-watt AC power adapter. It also includes a USB Type-C

power input port for use with a USB Type-C wall charger capable of

delivering up to 100 watts of power. Both power sources can be used

at the same time. The dock provides different levels of functionality

depending on the total power level and the order in which power is

connected.

No External Power Source

 When operated without any external power source, the dock

can provide audio, video, and Ethernet connections.

 The USB Type-A and Type-C ports will not function when no

external power is supplied.

AC Power Adapter Only

 You can connect an AC power adapter that provides 5 VDC (15

watts or more) or 20 VDC (75 watts or more).

 When provided with at least 15 watts of power, the dock will

provide full audio, video, Ethernet, and USB connectivity.

6

 When provided with at least 75 watts of power, the dock will

first deliver up to 60 watts of power to the USB Type-C I/O port,

then will dedicate up to 15 watts to provide full audio, video,

Ethernet, and USB connectivity.

USB Type-C Charging Port Only

 When connected to a USB Type-C charger capable of supporting

the Power Delivery (PD) feature with up to 100 watts of power,

the first 15 watts of power will be dedicated to providing full

audio, video, Ethernet, and USB connectivity. The rest of the

power will be used to charge the connected PC host.

Two Power Sources

 If an AC power adapter with at least 75 watts of power is

connected to the dock before a USB Type-C power source is

connected, the dock will be powered primarily by the AC power

adapter with the USB Type-C power source serving as the

backup.

 If an AC power adapter with at least 15 watts of power is

connected to the dock before a USB Type-C power source is

connected, the primary power source will be switched from the

AC adapter to the USB Type-C power source.

7

 If a USB Type-C charger capable of supporting the Power

Delivery (PD) feature is connected before an AC power adapter

is connected, the USB Type-C connection will be the primary

power source, with the AC adapter serving as the backup.

 If both an AC power adapter and USB Type-C power source are

connected prior to connecting the dock to the host PC, power

will be handled as follows:
o If an AC power adapter with at least 75 watts of power is

connected, the dock's functionality and PC host charging will

be handled primarily by the AC adapter, with the USB Type-C

power source serving as the backup.

o If an AC power adapter with at least 15 watts of power is

connected, the dock's functionality and PC host charging will

be powered primarily by the USB Type-C power source, with

the AC adapter servicing as the backup.

o If an active power source is unplugged, the dock will

automatically switch to the alternate power source.

WINDOWS MULTI-MONITOR CONFIGURATION

A display connected to the HDMI® port can be configured to extend

the Windows® desktop, to mirror the main display, or as the main

display itself. Perform the steps in one of the following sections to

configure the display.

8

Extended Desktop

1. Right-click the Windows® desktop

and select Display settings from the

pop-up menu.

2. Select the preferred monitor at the

top of the page.

3. Select Multiple Displays > Extend

these displays.

4. Click Apply to confirm and exit.

9

Mirror Mode

1. Right-click the Windows® desktop and select Display settings

from the pop-up menu.

2. Select the preferred monitor at the top of the page.

3. Select Multiple Displays > Duplicate these displays.

4. Click Apply to confirm and exit.

Primary Monitor

1. Right-click the Windows® desktop and select Display settings

from the pop-up menu.

2. Select the preferred monitor at the top of the page.

3. Check the box next to the Make this my main display option.

Note that on some computers, you may need to disable the

main display by unchecking the box next to Extend the

desktop onto this monitor or Extend my Windows desktop

onto this monitor.

4. Click Apply to confirm and exit.

10

WINDOWS AUDIO CONFIGURATION

By default, when the docking station is connected to a Windows®

computer, the audio configuration will automatically be changed to

USB (Multimedia) Audio Device. If it does not, perform the following

steps to set the audio to use the docking station.

1. Open Control Panel and select the

Hardware and Sound icon.

2. Click Sound > Manage audio

device, then select USB Audio

Device.

3. Click OK to confirm and exit.

11

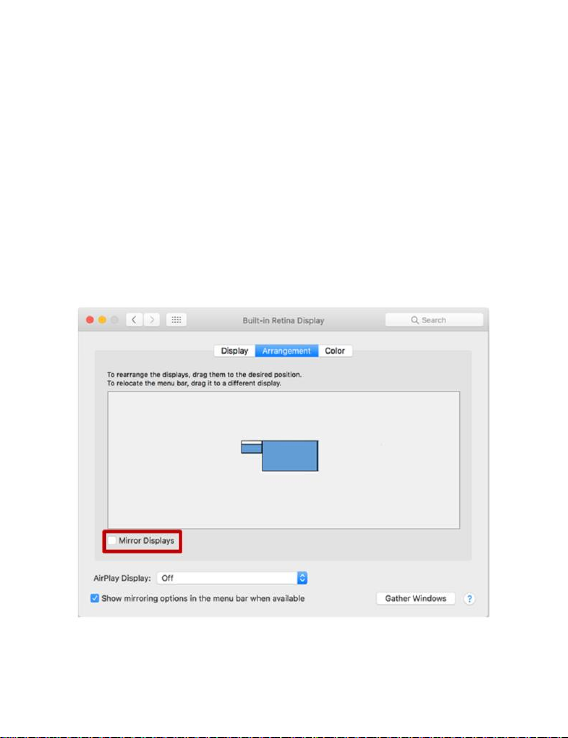

MAC MULTI-MONITOR CONFIGURATION

Perform the following steps to configure Mac® OS X® to use the

second display.

1. Click on the Apple icon in the top left corner of the screen, then

select System Preferences... > Displays.

2. Drag the displays to arrange them as desired. Drag the menu bar

to the display you want to serve as the main display.

3. To switch to Mirror Mode, check the box next to Mirror Displays.

12

TECHNICAL SUPPORT

Monoprice is pleased to provide free, live, online technical support to

assist you with any questions you may have about installation, setup,

troubleshooting, or product recommendations. If you ever need

assistance with your new product, please come online to talk to one

of our friendly and knowledgeable Tech Support Associates. Technical

support is available through the online chat button on our website

www.monoprice.com during regular business hours, 7 days a week.

You can also get assistance through email by sending a message to

[e-mail]

HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.

Microsoft® and Windows® are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or
other countries.

Apple®, Mac®, and OS X® are trademarks of Apple Inc., registered in
the U.S. and other countries.
