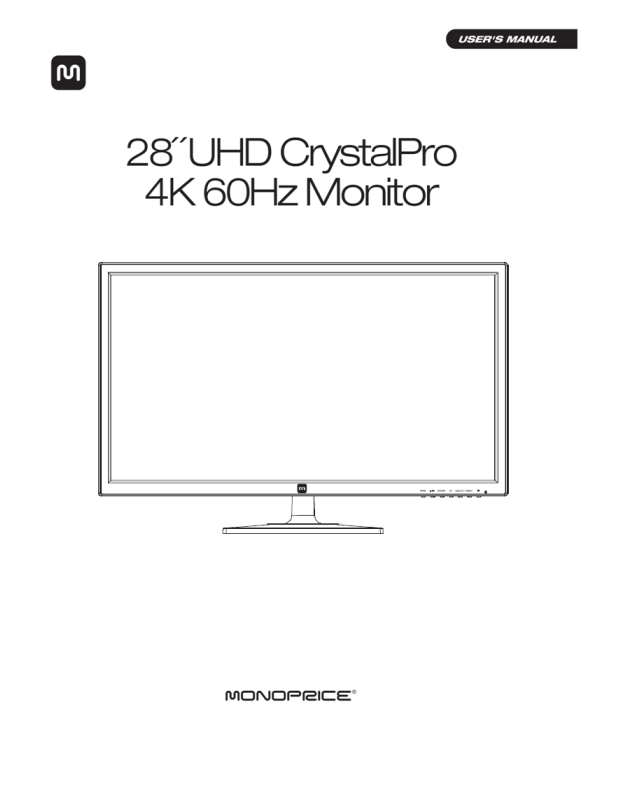

Monoprice 13809 User Manual
CONTENTS
SAFETY WARNINGS AND GUIDELINES ................................................................................. 3
FEATURES ............................................................................................................................... 4
PACKAGE CONTENTS ............................................................................................................. 4
CONNECTIONS ........................................................................................................................ 5
CONTROLS ............................................................................................................................... 6
SETUP ....................................................................................................................................... 7
MONITOR STAND .................................................................................................................... 7
VIEWING ANGLE ADJUSTMENT ............................................................................................. 8
ON-SCREEN DISPLAY (OSD) MENU ...................................................................................... 9
Basic Menu Operation ............................................................................................................ 9
Quick Source Selection Menu .............................................................................................. 10
Input Source Menu ............................................................................................................... 10
Brightness/Contrast Menu .................................................................................................... 11
Color Setting Menu .............................................................................................................. 12
Picture Quality Setting Menu ................................................................................................ 13
Display Menu ....................................................................................................................... 14
Audio Menu .......................................................................................................................... 15
Multi-Window Menu .............................................................................................................. 16
Other Menu .......................................................................................................................... 17
TECHNICAL SUPPORT .......................................................................................................... 18
WARRANTY ............................................................................................................................ 18
TROUBLESHOOTING............................................................................................................. 18
SPECIFICATIONS ................................................................................................................... 20
REGULATORY COMPLIANCE ............................................................................................... 21
Notice for FCC ..................................................................................................................... 21
Notice for Industry Canada .................................................................................................. 22
EU Conformity With Applicable Directives ........................................................................... 22
2
SAFETY WARNINGS AND GUIDELINES
Do not place the monitor on an unstable surface where it could fall and cause either
personal injury or damage to the monitor and/or other equipment.
Do not expose the monitor to water or moisture of any kind. Do not place objects
containing moisture, such as a glass or vase, where it could tip over and spill into or onto
the monitor.
If the monitor is exposed to water or moisture, immediately unplug it from its power
source and allow it to completely dry out before reapplying power.
Do not block the ventilation holes in the monitor's casing. Do not place the monitor in a
confined space with inadequate ventilation.
Do not place the monitor near a heat source, such as a fireplace, heating vent, radiator, etc.
The power supply for this monitor uses a NEMA 5-15 three prong, grounded plug. Do not
use a "cheater" plug or otherwise bypass the grounding pin.
The power supply for this monitor accepts a wide range input voltages, from 100 to 240
VAC, 50 or 60 Hz. Ensure that your power source is within these limits. If not, consult a
professional electrician or your power company for a resolution.
Unplug the monitor if it will go unused for a long period of time.
This monitor has no user serviceable parts. Do not open the case or otherwise attempt to
modify this monitor.
Clean only using a soft, dry cloth. Do not use chemical cleaners, solvents, or detergents. For
stubborn deposits, moisten the cloth with warm water.
Do not leave a single image on the display for a long period of time. Doing so could cause
"burn-in" of the image. It is recommended to use a variable desktop background and to use
a screen saver to prevent "burn-in". Alternatively, ensure that the monitor is power off for
at least 2 hours out of every 12.
3
FEATURES
28" 4K UHD monitor with LED backlighting and 16:9 aspect ratio
3840 x 2160 @ 60Hz 4K UHD maximum resolution using the DisplayPort & HDMI inputs
Supports Picture-in-Picture (PiP) and Picture-by-Picture (PbP) multiple source display
modes
Virtual 5K Overdrive increases screen real estate
DisplayPort v1.2, HDMI-MHL, Dual-Link DVI-D, and VGA inputs
HDMI-MHL input allows a direct connection from Android smartphones and tablets
Built-in stereo speakers with 2 watts/channel amplifier and 3.5mm line input
100 x 100 VESA mounting pattern
PixelPerfect Guarantee ensure zero dead or stuck pixels
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed below. If
anything is missing or damaged, please contact Monoprice Customer Service for a replacement.
1x 28" 4K UHD LED monitor
1x Stand base
1x AC power adapter
1x AC power cord
1x High Speed HDMI cable
1x Quick installation guide
4
CONNECTIONS
1
DVI
Dual Link DVI-D video input
2
HDMI/MHL
HDMI 2.0 video input with MHL support
3
DisplayPort
DisplayPort 1.2 video input
4
VGA
VGA video input
5
Line In
3.5mm TRS stereo audio input
6
DC In
DC power input
HDMI Note: This monitor is capable of displaying the full 4K resolution (3840x2160@60Hz) using
an HDMI connection. However the HDMI source must support the 4K feature, as defined in the
HDMI version 2.0 specification, and you must use a High Speed HDMI cable.
DisplayPort Note: This monitor supports the full 4K resolution (3840x2160@60Hz) at the full 60Hz
refresh rate. However the DisplayPort source and cable must comply with the DisplayPort version
1.2 specification (cable not included).
DVI Note: This monitor features a Dual Link DVI-D input port. Your DVI source must support Dual
Link DVI-D and you must use a Dual Link DVI-D cable (cable not included), which has a pin out
that looks like this:
5
CONTROLS
1. -/ : If the OSD menu is displayed and an entry has been opened for editing, pressing the -/
button decreases the selected value. If the OSD is not displayed, pressing the -/ button opens
the volume adjustment control. With either the brightness or volume adjustment control
displayed, pressing the -/ button decreases the brightness or volume.
2. +/ : If the OSD menu is displayed and an entry has been opened for editing, pressing the +/
button increases the selected value. If the OSD is not displayed, pressing the +/ button opens
the brightness adjustment control. With either the brightness or volume adjustment control
displayed, pressing the +/ button increases the brightness or volume.
3. DOWN: If the OSD menu is displayed, pressing the DOWN button moves the selection highlight
down. If the OSD menu is not displayed, the button has no effect.
4. UP: If the OSD menu is displayed, pressing the UP button moves the selection highlight up. If
the OSD menu is not displayed, this button has no effect.
5. SELECT: If the OSD menu is displayed, pressing the SELECT button either selects the currently
highlighted menu option or opens the currently highlighted menu entry for editing.
6. MENU: If the OSD menu is not displayed, pressing the MENU button opens the OSD menu. If the
OSD menu is displayed pressing the MENU button will back out of a submenu or close the OSD
menu if already at the top menu level.
7. POWER: Press the POWER button to toggle the monitor ON or OFF. When the monitor is
powered on and a video signal is present, the power indicator will glow blue. When the
monitor is powered on but no video signal is present, the power indicator will glow
yellow/orange.
6
SETUP
1. Either install the stand base or remove the stand neck to use a desk or wall mount by following
the instructions in the MONITOR STAND section below.
2. Connect one or more video cable(s) from your source device(s) to the monitor's input(s). The
monitor has four video inputs (VGA, DVI, HDMI-MHL, and DisplayPort) and can simultaneously
display up to four video sources.
3. Plug the DC power connector on the AC power adapter into the DC IN port on the back of the
monitor.
4. Plug the included AC power cord into the AC power adapter. Plug the other end into a nearby
power outlet.
MONITOR STAND
This monitor features a built-in stand, which can be used on a desk, table, or other flat surface. The
stand can also be removed to allow for the use of a desk or wall mount. The monitor supports a
100x100 VESA mounting pattern.
To use the built-in stand, install the stand base plate by performing the following steps:
1. Place a blanket or towel on a flat surface, such as a table or the floor.
2. Place the monitor face down on the blanket or towel.
3. Align the holes on the stand base with the two clips extending out of the bottom of the
stand neck, then press the base onto the neck until it clicks into place.
7
