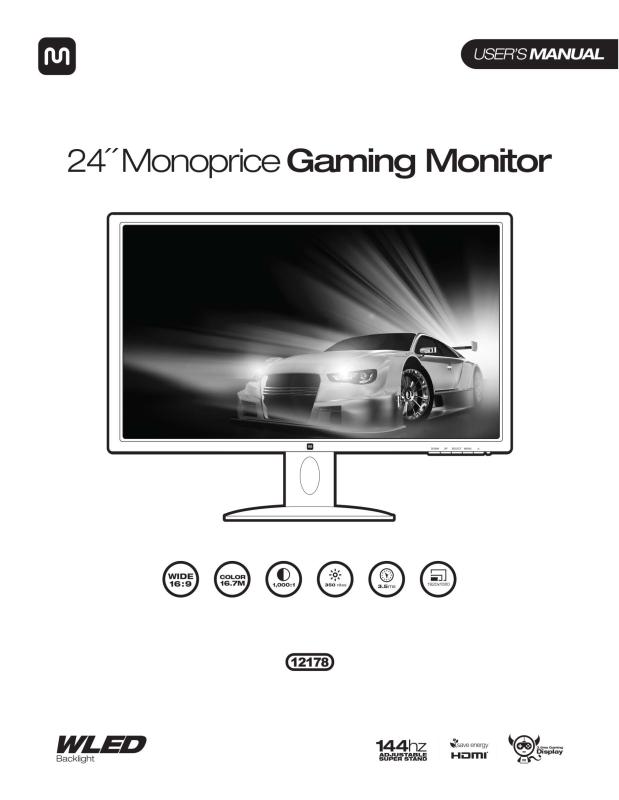

Monoprice 12178 User Manual
CONTENTS
SAFETY WARNINGS AND GUIDELINES ................................................................................. 3
FEATURES ............................................................................................................................... 4
PACKAGE CONTENTS ............................................................................................................. 4
CONNECTIONS ........................................................................................................................ 5
CONTROLS ............................................................................................................................... 6
SETUP ....................................................................................................................................... 7
MONITOR STAND & BASE ....................................................................................................... 7
VIEWING ANGLE ADJUSTMENT ............................................................................................. 9
MAIN INPUT SELECTION ......................................................................................................... 9
QUICK FUNCTION BUTTONS .................................................................................................10
ON-SCREEN DISPLAY (OSD) MENU .....................................................................................10
Basic Menu Operation ...........................................................................................................10
Brightness Menu ...................................................................................................................11
Image Menu ..........................................................................................................................12
Color Temp Menu .................................................................................................................13
OSD Setting Menu ................................................................................................................14
Reset Menu ...........................................................................................................................15
Misc Menu .............................................................................................................................16
SPECIFICATIONS ....................................................................................................................17
TECHNICAL SUPPORT ...........................................................................................................18
WARRANTY .............................................................................................................................18
TROUBLESHOOTING ..............................................................................................................19
COMPLIANCE ..........................................................................................................................20
CE Mark Warning ..................................................................................................................20
FCC Statement .....................................................................................................................20
SAFETY WARNINGS AND GUIDELINE S
Do not place the monitor on an unstable surface where it could fall and cause either
personal injury or damage to the monitor and/or other equipment.
Do not expose the monitor to water or moisture of any kind. Do not place objects
containing moisture, such as a glass or vase, where it could tip over and spill into or
onto the monitor.
If the monitor is exposed to water or moisture, immediately unplug it from its power
source and allow it to completely dry out before reapplying power.
Do not block the ventilation holes in the monitor's casing. Do not place the monitor in a
confined space with inadequate ventilation.
Do not place the monitor near a heat source, such as a fireplace, heating vent, radiator,
etc.
The power supply for this monitor uses a NEMA 5-15 three prong, grounded plug. Do
not use a "cheater" plug or otherwise bypass the grounding pin.
The power supply for this monitor accepts a wide range of input voltages, from 100 to
240 VAC, 50 or 60 Hz, with a current of at least 1.7A. Ensure that your power source is
within these limits. If not, consult a professional electrician or your power company for a
resolution.
Unplug the monitor if it will go unused for a long period of time.
This monitor has no user serviceable parts. Do not open the case or otherwise attempt
to modify this monitor.
Clean only using a soft, dry cloth. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
Do not leave a single image on the display for a long period of time. Doing so could
cause "burn-in" of the image. It is recommended to use a variable desktop background
and to use a screen saver to prevent "burn-in". Alternatively, ensure that the monitor is
powered off for at least 2 hours out of every 12.
3
FEATURES
24" FHD monitor with LED backlighting
16:9 aspect ratio
1920 x 1080 @ 144Hz maximum resolution using the DVI and DP inputs
1 DisplayPort input
1 HDMI input
1 Dual Link DVI-D input
1 VGA input
Detachable stand allows for tilt and swivel, plus rotation for easy portrait/landscape
orientation changes
Built-in stereo speakers with 2 watts/channel amplifier
100 x 100 VESA mounting pattern
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x 24" FHD LED monitor
1x Adjustable stand
1x Stand base
4x M4x8 stand mount sc rews
1x AC power adapter
1x AC power cord
1x 3.5mm TRS audio cable
1x Dual Link DVI-D video cable
1x User's manual
4
CONNECTIONS
1
DP
DisplayPort 1.2 video input
2
VGA
Analog VGA video input
3
DVI
Dual Link DVI-D video input
4
HDMI
HDMI video input
5
LINE IN
3.5mm TRS stereo audio input
6
DC IN
DC power input
1 2 3 4 5 6
DVI Note: This monitor features a Dual Link DVI-D input port. Your DVI source must support
Dual Link DVI-D and you must use a Dual Link DVI-D cable (included), which has a pinout that
looks like this:
5
CONTROLS
1. DOWN: If the OSD menu is displayed, pressing the DOWN button moves the selection
highlight down. If the OSD menu is not displayed, the button is a selectable hotkey (see
page 16).
2. UP: If the OSD menu is displayed, pressing the UP button moves the selection highlight up.
If the OSD menu is not displayed, the button is a selectable hotkey (see page 16).
3. SELECT: If the OSD menu is displayed, pressing the SELECT button enters the OSD
highlighted entry. If the OSD menu is not displayed, the button displays the MAIN INPUT
SELECTION menu (see page 9).
4. MENU: If the OSD menu is not displayed, pres si ng the MENU button opens the OSD menu.
If the OSD menu is displayed, pressing the MENU button will back out of a submenu or
close the OSD menu, if already at the top menu level.
5. POWER: Press the POWER button to toggle the monitor ON or OFF. When the monitor is
powered on and a video signal is present, the power indicator will glow blue. When the
monitor is powered on but no video signal is present, the power indicator will glow
yellow/orange.
6
