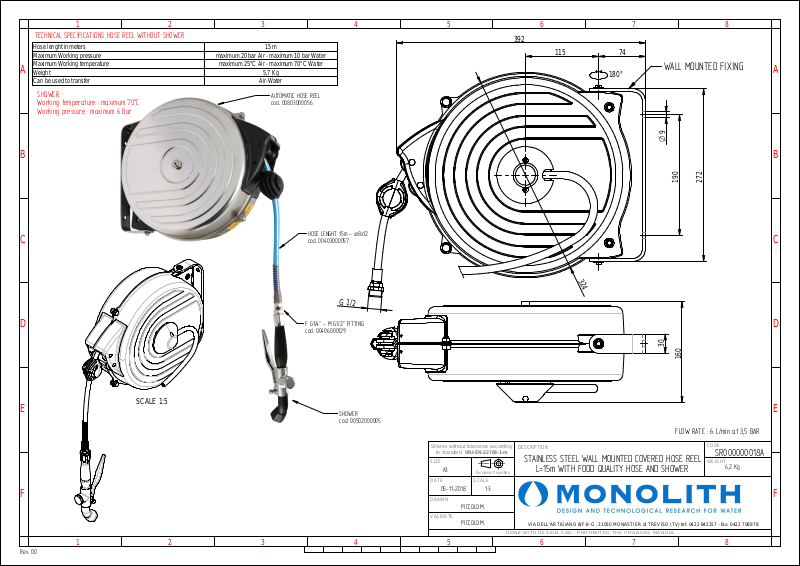

Monolith SR 000000018A Drawing
12345678
TECHNICAL SPECIFICATIONS HOSE REEL WITHOUT SHOWER :
Hose lenght in m et ers 15 m
Maximum Working pressure maxim um 20 ba r Air - maximum 10 bar Water
Maximum Working temperature maximum 25°C Air - maximum 70°C Water
A
Weight 5,7 Kg
Can be used to transfer Air-W ater
392
115
180°
74
WALL MOUNTED FIXING
A
SHOWER :
Working temperature : maximum 70°C
Working pressure : maximum 6 Bar
B
C
AUTOMATIC HOSE REEL
cod. 00803000056
HOSE LENGHT 15m - ø8x12
cod. 00403000057
9
O
B
190
272
C
3
2
4
D
E
F
Rev. 00
G
1
/
2
F G1/4" - M G1/2" FITTING
cod. 00406000129
D
30
160
SCALE 1:5
SHOWER
cod. 00502000005
E
FLOW RATE : 6 L/min at 3,5 BAR
Shares without tolerance according
to standard
SIZE
A3
DATE
05-11-2018
DRAWN
VALIDATE
UNI-EN-22768-1-m
European Projection
SCALE
1:3
PICCOLO M.
PICCOLO M.
DESCRIPTION
STAINLESS STEEL WALL MOUNTED COVERED HOSE REEL
L=15m WITH FOOD QUALITY HOSE AND SHOWER
VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: 0422 842157 - fax: 0422 708978
DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL
12345678
CODE
SR000000018A
WEIGHT
6,2 Kg
F
