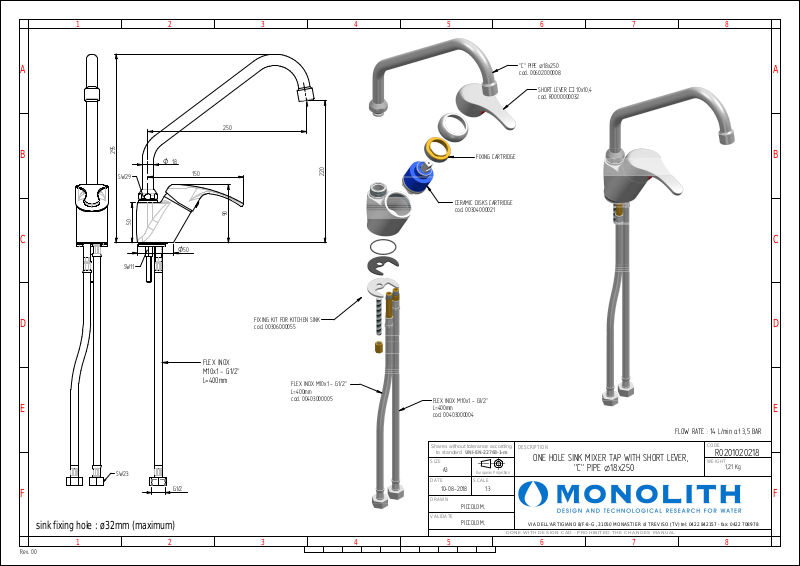

Monolith R 0201020218 Drawing
12345678
A
B
C
295
SW29
50
"C" PIPE ø18x250
cod. 00602000008
SHORT LEVER q 10x10,4
cod. R0000000032
250
18
O
150
90
220
CERAMIC DISKS CARTRIDGE
cod. 00304000021
FIXING CARTRIDGE
A
B
C
O
50
SW11
D
E
SW23
F
sink fixing hole : ø32mm (maximum)
12345678
Rev. 00
G1/2
FLEX INOX
M10x1 - G1/2"
L=400mm
FIXING KIT FOR KITCHEN SINK
cod. 00306000055
FLEX INOX M10x1 - G1/2"
L=400mm
cod. 00403000005
FLEX INOX M10x1 - G1/2"
L=400mm
cod. 00403000004
Shares without tolerance according
to standard
SIZE
A3
DATE
10-08-2018
DRAWN
VALIDATE
UNI-EN-22768-1-m
European Projection
SCALE
1:3
PICCOLO M.
PICCOLO M.
DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL
FLOW RATE : 14 L/min at 3,5 BAR
DESCRIPTION
ONE HOLE SINK MIXER TAP WITH SHORT LEVER,
"C" PIPE ø18x250
VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: 0422 842157 - fax: 0422 708978
CODE
R0201020218
WEIGHT
1,21 Kg
D
E
F
