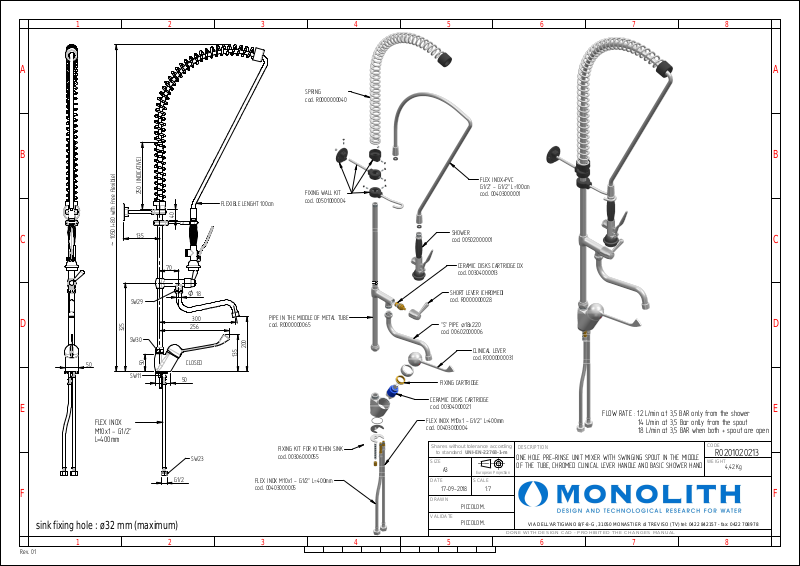

Monolith R 0201020213 Drawing
12345678
A
B
C
A
SPRING
cod. R0000000040
B
FLEX INOX+PVC
250 (INDICATIVE)
FLEXIBLE LENGHT 100cm
40
135
~ 1050 (+80 with free flexible)
FIXING WALL KIT
cod. 00501000004
SHOWER
cod. 00502000001
G1/2" - G1/2" L=100cm
cod. 00403000001
C
SW29
D
50
325
SW30
SW11
E
FLEX INOX
M10x1 - G1/2"
L=400mm
F
sink fixing hole : ø32 mm (maximum)
12345678
Rev. 01
50
70
G1/2
CLOSED
50
O
256
18
300
SW23
PIPE IN THE MIDDLE OF METAL TUBE
cod. R0000000065
200
135
FIXING KIT FOR KITCHEN SINK
cod. 00306000055
FLEX INOX M10x1 - G1/2" L=400mm
cod. 00403000005
CERAMIC DISKS CARTRIDGE DX
cod. 00304000013
SHORT LEVER (CHROMED)
cod. R0000000028
"S" PIPE ø18x220
cod. 00602000006
CLINICAL LEVER
cod. R0000000031
FIXING CARTRIDGE
CERAMIC DISKS CARTRIDGE
cod. 00304000021
FLEX INOX M10x1 - G1/2" L=400mm
cod. 00403000004
Shares without tolerance according
to standard
SIZE
A3
DATE
17-09-2018
DRAWN
VALIDATE
UNI-EN-22768-1-m
European Projection
SCALE
1:7
PICCOLO M.
PICCOLO M.
FLOW RATE : 12 L/min at 3,5 BAR only from the shower
14 L/min at 3,5 Bar onlly from the spout
18 L/min at 3,5 BAR when both + spout are open
DESCRIPTION
ONE HOLE PRE-RINSE UNIT MIXER WITH SWINGING SPOUT IN THE MIDDLE
OF THE TUBE, CHROMED CLINICAL LEVER HANDLE AND BASIC SHOWER HAND
VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: 0422 842157 - fax: 0422 708978
DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL
D
E
CODE
R0201020213
WEIGHT
4,42 Kg
F
