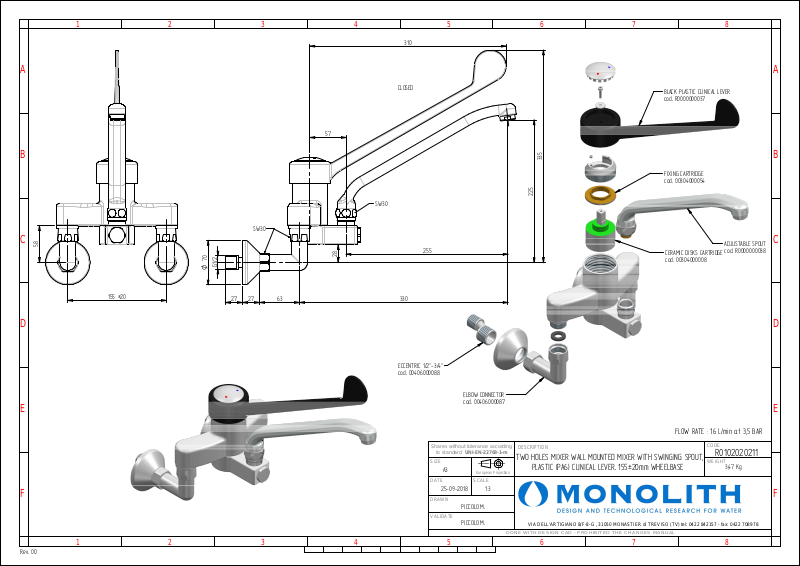

Monolith R 0102020211 Drawing

12345678

310

A

B

C

58

70

O

A

CLOSED

57

335

225

SW30

SW30

28

G1/2

255

BLACK PLASTIC CLINICAL LEVER
cod. R0000000037

FIXING CARTRIDGE
cod. 00304000054

ADJUSTABLE SPOUT

CERAMIC DISKS CARTRIDGE
cod. 00304000008

cod. R0000000038

B

C

D

E

F

Rev. 00

155 ±20

27

3306327

D

ECCENTRIC 1/2"-3/4"
cod. 00406000088

ELBOW CONNECTOR
cod. 00406000087

E

FLOW RATE : 16 L/min at 3,5 BAR

Shares without tolerance according

to standard

SIZE

A3

DATE

25-09-2018

DRAWN

VALIDATE

UNI-EN-22768-1-m

European Projection

SCALE

1:3

PICCOLO M.

PICCOLO M.

DESCRIPTION

TWO HOLES MIXER WALL MOUNTED MIXER WITH SWINGING SPOUT,
PLASTIC (PA6) CLINICAL LEVER. 155±20mm WHEELBASE

VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: [phone] - fax: [phone]

DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL

12345678

CODE

R0102020211

WEIGHT

3,47 Kg

F
