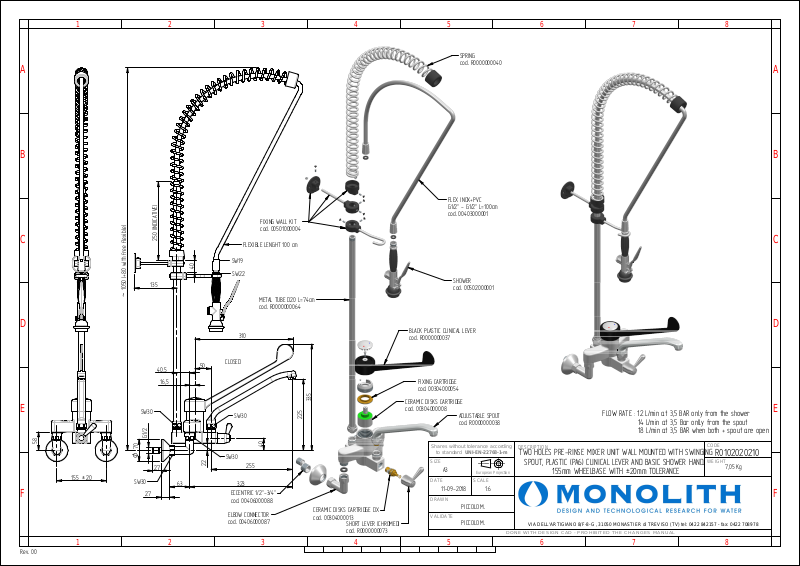

Monolith R 0102020210 Drawing
A
12345678
SPRING
cod. R0000000040
A
B
C
D
B
FLEX INOX+PVC
G1/2" - G1/2" L=100cm
cod. 00403000001
FIXING WALL KIT
cod. 00501000004
250 (INDICATIVE)
40
135
~ 1050 (+80 with free flexible)
FLEXIBLE LENGHT 100 cm
SW19
SW22
SHOWER
cod. 00502000001
METAL TUBE D20 L=74cm
cod. R0000000064
C
D
310
BLACK PLASTIC CLINICAL LEVER
cod. R0000000037
E
F
Rev. 00
58
22
CLOSED
SW30
SW30
255
323
ECCENTRIC 1/2"-3/4"
cod. 00406000088
ELBOW CONNECTOR
cod. 00406000087
40
335
225
CERAMIC DISKS CARTRIDGE DX
cod. 00304000013
SHORT LEVER (CHROMED)
cod. R0000000073
FIXING CARTRIDGE
cod. 00304000054
CERAMIC DISKS CARTRIDGE
cod. 00304000008
Shares without tolerance according
to standard
SIZE
A3
DATE
11-09-2018
DRAWN
VALIDATE
ADJUSTABLE SPOUT
cod. R0000000038
UNI-EN-22768-1-m
European Projection
SCALE
1:6
PICCOLO M.
PICCOLO M.
FLOW RATE : 12 L/min at 3,5 BAR only from the shower
14 L/min at 3,5 Bar onlly from the spout
18 L/min at 3,5 BAR when both + spout are open
DESCRIPTION
TWO HOLES PRE-RINSE MIXER UNIT WALL MOUNTED WITH SWINGING
SPOUT, PLASTIC (PA6) CLINICAL LEVER AND BASIC SHOWER HAND.
155mm WHEELBASE WITH ±20mm TOLERANCE
VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: 0422 842157 - fax: 0422 708978
DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL
E
CODE
R0102020210
WEIGHT
7,05 Kg
F
155u 20
70
O
SW30
SW30
27
40,5
16,5
G1/2
27
63
50
