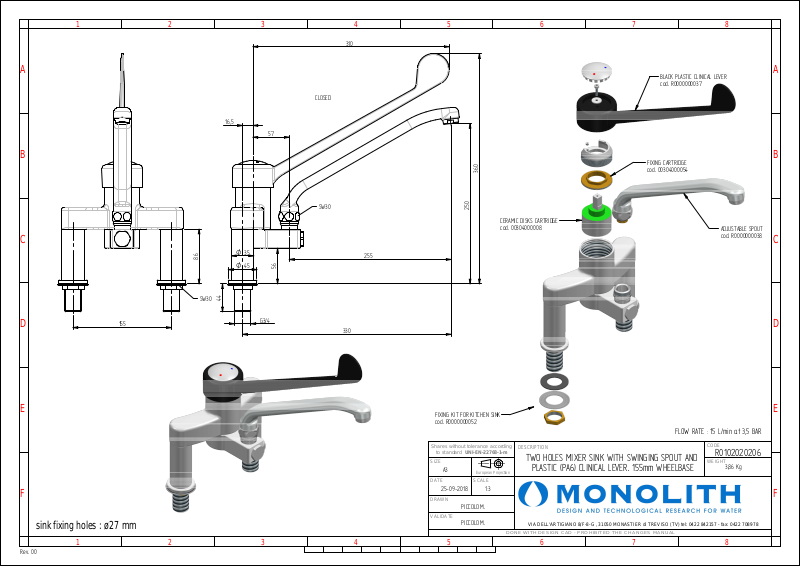

Monolith R 0102020206 Drawing
12345678
310
A
B
C
86
16,5
BLACK PLASTIC CLINICAL LEVER
cod. R0000000037
CLOSED
57
B
FIXING CARTRIDGE
A
360
SW30
35
O
45
O
56
255
250
CERAMIC DISKS CARTRIDGE
cod. 00304000008
cod. 00304000054
ADJUSTABLE SPOUT
cod. R0000000038
C
D
E
F
sink fixing holes : ø27 mm
12345678
Rev. 00
155
SW30
44
G3/4
330
FIXING KIT FOR KITCHEN SINK
cod. R0000000052
Shares without tolerance according
to standard
SIZE
A3
DATE
25-09-2018
DRAWN
VALIDATE
UNI-EN-22768-1-m
European Projection
SCALE
1:3
PICCOLO M.
PICCOLO M.
DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL
FLOW RATE : 15 L/min at 3,5 BAR
DESCRIPTION
TWO HOLES MIXER SINK WITH SWINGING SPOUT AND
PLASTIC (PA6) CLINICAL LEVER. 155mm WHEELBASE
VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: 0422 842157 - fax: 0422 708978
CODE
R0102020206
WEIGHT
3,86 Kg
D
E
F
