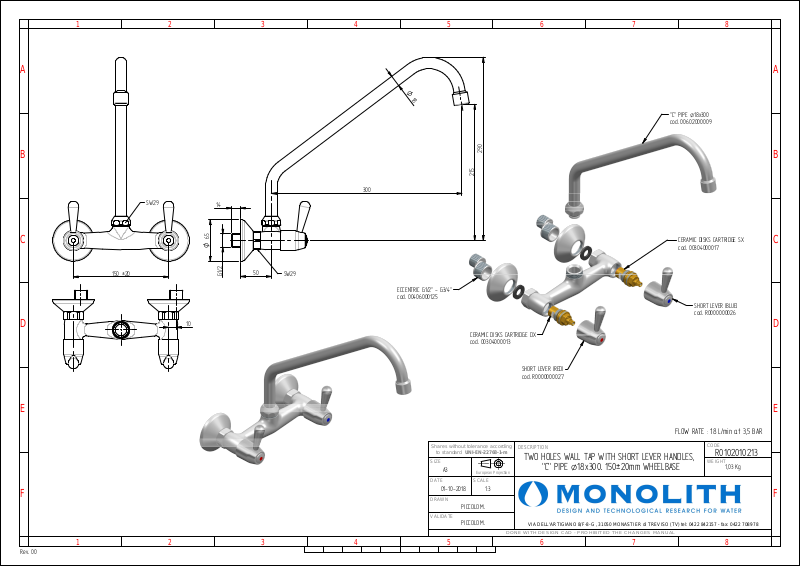

Monolith R 0102010213 Drawing
12345678
A
B
C
SW29
65
O
A
O
1
8
"C" PIPE ø18x300
cod. 00602000009
290
215
300
14
CERAMIC DISKS CARTRIDGE SX
cod. 00304000017
B
C
D
E
F
Rev. 00
150 ±20
G1/2
10
50
SW29
ECCENTRIC G1/2" - G3/4"
cod. 00406000125
SHORT LEVER (BLUE)
cod. R0000000026
D
CERAMIC DISKS CARTRIDGE DX
cod. 00304000013
SHORT LEVER (RED)
cod. R0000000027
E
FLOW RATE : 18 L/min at 3,5 BAR
Shares without tolerance according
to standard
SIZE
A3
DATE
01-10-2018
DRAWN
VALIDATE
UNI-EN-22768-1-m
European Projection
SCALE
1:3
PICCOLO M.
PICCOLO M.
DESCRIPTION
TWO HOLES WALL TAP WITH SHORT LEVER HANDLES,
"C" PIPE ø18x300. 150±20mm WHEELBASE
VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: 0422 842157 - fax: 0422 708978
DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL
12345678
CODE
R0102010213
WEIGHT
1,03 Kg
F
