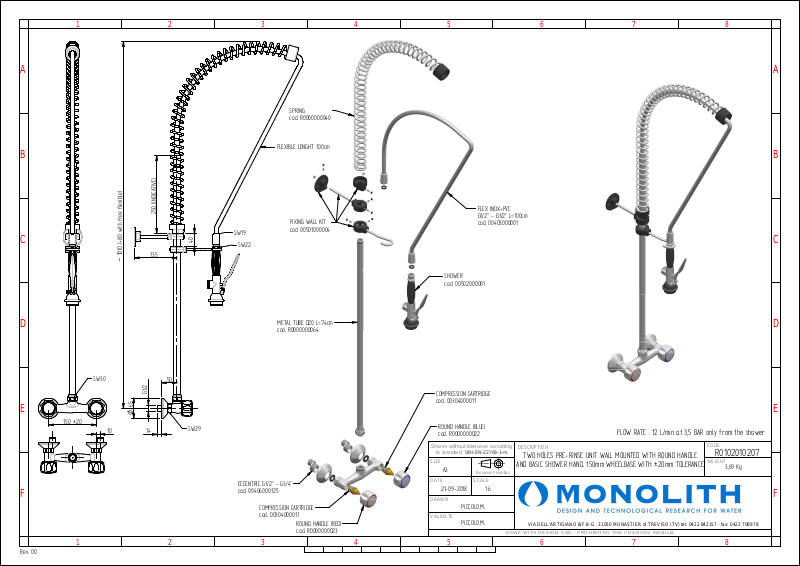

Monolith R 0102010207 Drawing

12345678

A

B

C

A

SPRING
cod. R0000000040

FLEXIBLE LENGHT 100cm

B

250 (INDICATIVE)

FIXING WALL KIT

SW19

40

~ 1010 (+80 with free flexible)

135

SW22

cod. 00501000004

FLEX INOX+PVC
G1/2" - G1/2" L=100cm
cod. 00403000001

C

D

E

F

Rev. 00

SHOWER
cod. 00502000001

150 ±20

SW30

METAL TUBE D20 L=74cm
cod. R0000000064

50

G1/2

65

O

10

14

SW29

ECCENTRIC G1/2" - G3/4"
cod. 00406000125

COMPRESSION CARTRIDGE
cod. 00304000011

ROUND HANDLE (RED)
cod. R0000000023

COMPRESSION CARTRIDGE
cod. 00304000011

ROUND HANDLE (BLUE)
cod. R0000000022

Shares without tolerance according

to standard

SIZE

A3

DATE

21-09-2018

DRAWN

VALIDATE

UNI-EN-22768-1-m

European Projection

SCALE

1:6

PICCOLO M.

PICCOLO M.

DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL

FLOW RATE : 12 L/min at 3,5 BAR only from the shower

DESCRIPTION

TWO HOLES PRE-RINSE UNIT WALL MOUNTED WITH ROUND HANDLE
AND BASIC SHOWER HAND. 150mm WHEELBASE WITH ±20mm TOLERANCE

VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: [phone] - fax: [phone]

CODE

R0102010207

WEIGHT

3,69 Kg
