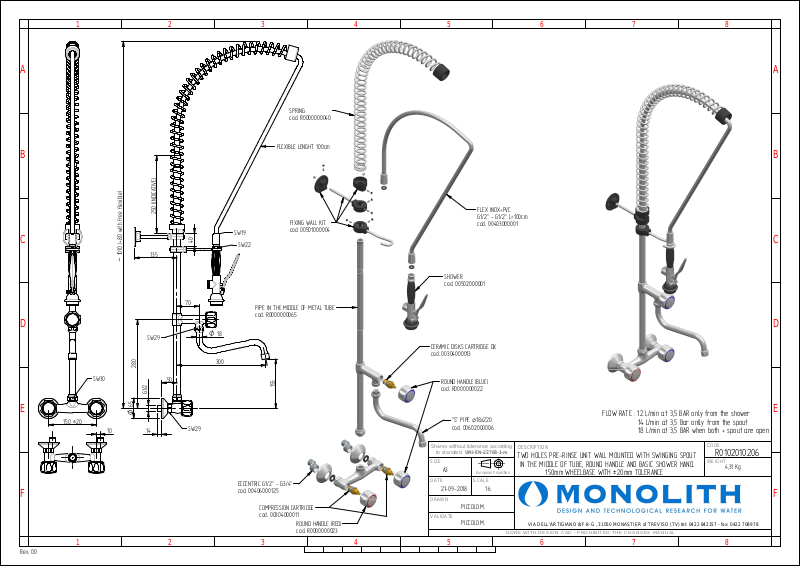

Monolith R 0102010206 Drawing

12345678

A

B

C

A

SPRING
cod. R0000000040

FLEXIBLE LENGHT 100cm

B

250 (INDICATIVE)

FIXING WALL KIT

SW19

40

~ 1010 (+80 with free flexible)

135

SW22

cod. 00501000004

FLEX INOX+PVC
G1/2" - G1/2" L=100cm
cod. 00403000001

C

D

E

F

Rev. 00

SHOWER
cod. 00502000001

70

PIPE IN THE MIDDLE OF METAL TUBE
cod. R0000000065

D

18

SW29

280

150 ±20

SW30

65

O

10

14

50

G1/2

SW29

12345678

O

CERAMIC DISKS CARTRIDGE DX
cod. 00304000013

300

155

ECCENTRIC G1/2" - G3/4"
cod. 00406000125

COMPRESSION CARTRIDGE
cod. 00304000011

ROUND HANDLE (RED)
cod. R0000000023

ROUND HANDLE (BLUE)
cod. R0000000022

"S" PIPE ø18x220
cod. 00602000006

Shares without tolerance according

to standard

SIZE

A3

DATE

21-09-2018

DRAWN

VALIDATE

UNI-EN-22768-1-m

European Projection

SCALE

1:6

PICCOLO M.

PICCOLO M.

DONE WITH DESIGN CAD - PROHIBITED THE CHANGES MANUAL

FLOW RATE : 12 L/min at 3,5 BAR only from the shower
14 L/min at 3,5 Bar onlly from the spout
18 L/min at 3,5 BAR when both + spout are open

DESCRIPTION

TWO HOLES PRE-RINSE UNIT WALL MOUNTED WITH SWINGING SPOUT
IN THE MIDDLE OF TUBE, ROUND HANDLE AND BASIC SHOWER HAND.

CODE

R0102010206

WEIGHT

4,31 Kg

150mm WHEELBASE WITH ±20mm TOLERANCE

VIA DELL'ARTIGIANO 8/F-8-G , 31050 MONASTIER di TREVISO (TV) tel: [phone] - fax: [phone]

E

F
